Fully compatible with '95-later 4L60-E, 4L65-E and 4L70-E units with PWM/EC3 (electronically controlled capacity clutch) control.
Symptoms:
3-4 Clutch failure
Burnt clutches & bands
Pump noise
Reduced 3-4 clutch life
Rotor fracture
Erratic line pressure
Low line rise
1-2 Harsh
2-3 Shift feel poor
Poor shift quality
Code 894, 1870
Falls out of lockup when hot
No lockup
TCC slip
Correction:
The parts in this Sure Cure kit repair and restore key areas most prone to TCC-related transmission problems and other issues affecting shift quality.
Sonnax Sure Cure kit SC-4L60E is a comprehensive reconditioning package for GM 4L60-E, 4L65-E and 4L70-E PWM units featuring the best Sonnax products developed to help rebuilders restore and enhance transmission performance. Sure Cure components are the same Sonnax parts sold individually to resolve common valve body complaints as well as other transmission problems. The high-quality Sonnax parts in each Sure Cure kit repair worn areas and protect the transmission against future damage. Plus, each kit comes with easy-to-read, step-by-step installation guide that covers the inspection and repair of the most critical areas of the valve body.
Restores OE shift quality
Repairs biggest trouble areas to reduce comebacks
Includes step-by-step instructions for comprehensive valve/pump body restoration
Get everything you need for restoring troublesome units in one place, at one cost
Note:
The '95-later 4L60-E, 4L65-E and 4L70-E units with PWM/EC3 (electronically controlled capacity clutch) control can be identified by the 13-pin case connector, PWM/TCC solenoid and PWM pump (five solenoids). All components in this kit are compatible with '93-'94 non-PWM units EXCEPT the TCC apply valve 77805E-K installed in the pump. These units can be identified by the 12-pin case connector, only having a 3-2 solenoid in valve body (four solenoids).
Fully compatible with '95-later 4L60-E, 4L65-E and 4L70-E units with PWM/EC3 (electronically controlled capacity clutch) control.
Symptoms:
Correction:
The parts in this Sure Cure kit repair and restore key areas most prone to TCC-related transmission problems and other issues affecting shift quality.
Sonnax Sure Cure kit SC-4L60E is a comprehensive reconditioning package for GM 4L60-E, 4L65-E and 4L70-E PWM units featuring the best Sonnax products developed to help rebuilders restore and enhance transmission performance. Sure Cure components are the same Sonnax parts sold individually to resolve common valve body complaints as well as other transmission problems. The high-quality Sonnax parts in each Sure Cure kit repair worn areas and protect the transmission against future damage. Plus, each kit comes with easy-to-read, step-by-step installation guide that covers the inspection and repair of the most critical areas of the valve body.
Note:
The '95-later 4L60-E, 4L65-E and 4L70-E units with PWM/EC3 (electronically controlled capacity clutch) control can be identified by the 13-pin case connector, PWM/TCC solenoid and PWM pump (five solenoids). All components in this kit are compatible with '93-'94 non-PWM units EXCEPT the TCC apply valve 77805E-K installed in the pump. These units can be identified by the 12-pin case connector, only having a 3-2 solenoid in valve body (four solenoids).

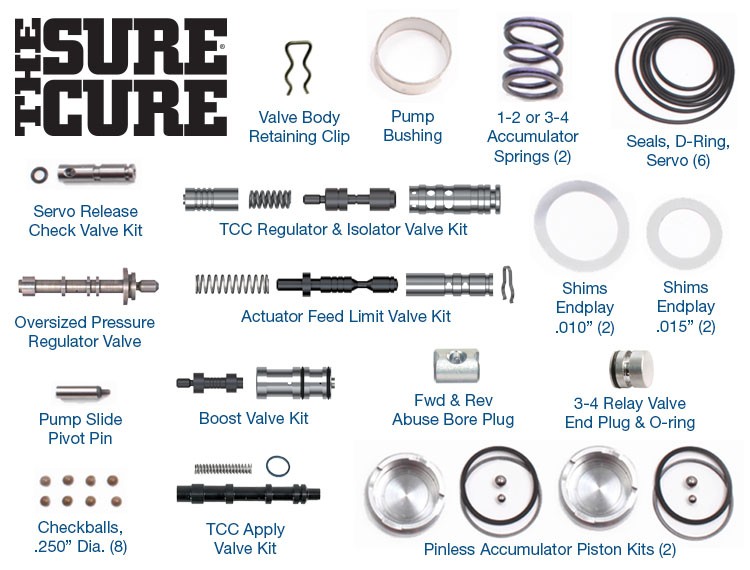

Contents:
SONNAX Installation Instructions
