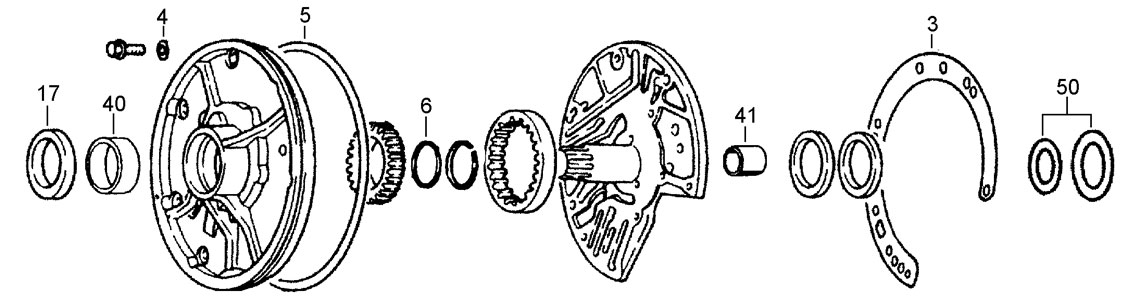

A

Pump

17
40
4
5
6
41
3
50

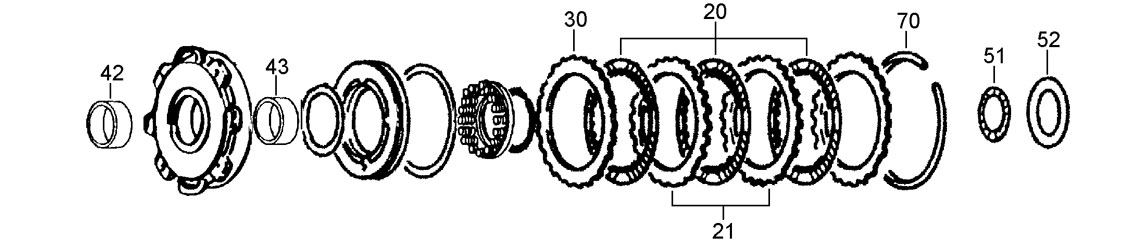

B

Direct Clutch

42
43
30
20
21
70
51
52

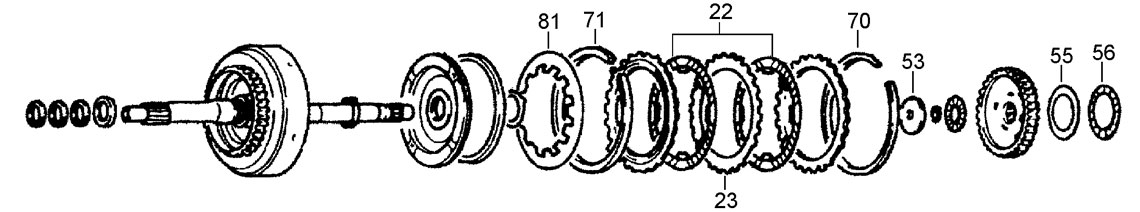

C

Forward Clutch

81
71
23
22
70
53
55
56

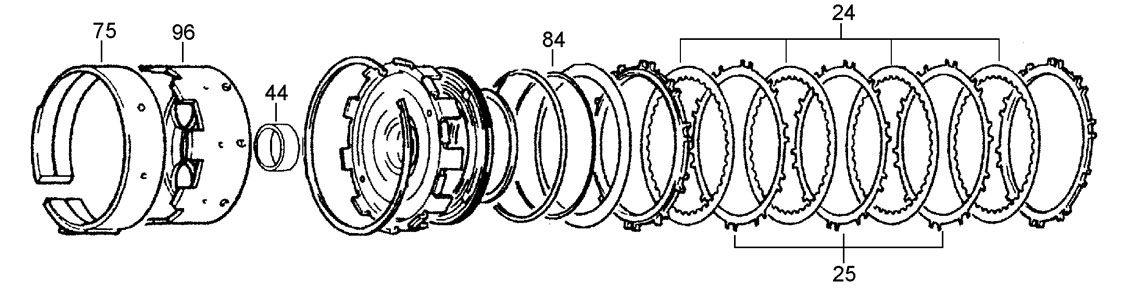

D

Band And Low & Reverse Clutch

75
96
44
84
24
25

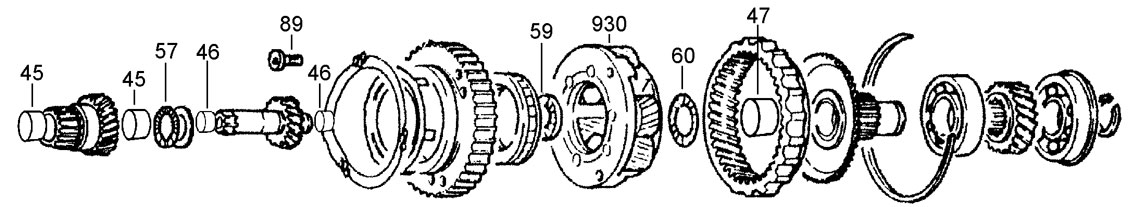

E

Planet Set & Output Shaft

45
45
57
58
46
89
46
59
930
60
47

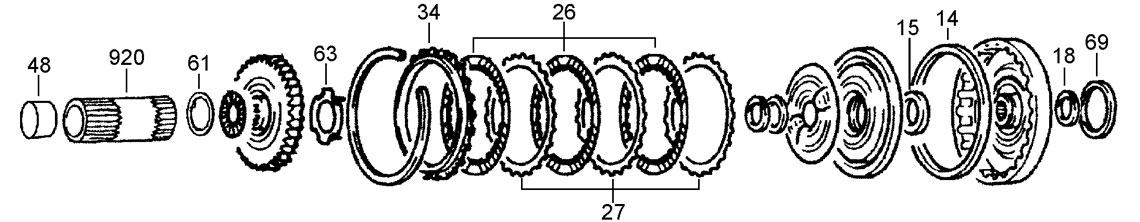

F

End Clutch (Overdrive)

48
920
61
63
34
26
27
15
14
18
69

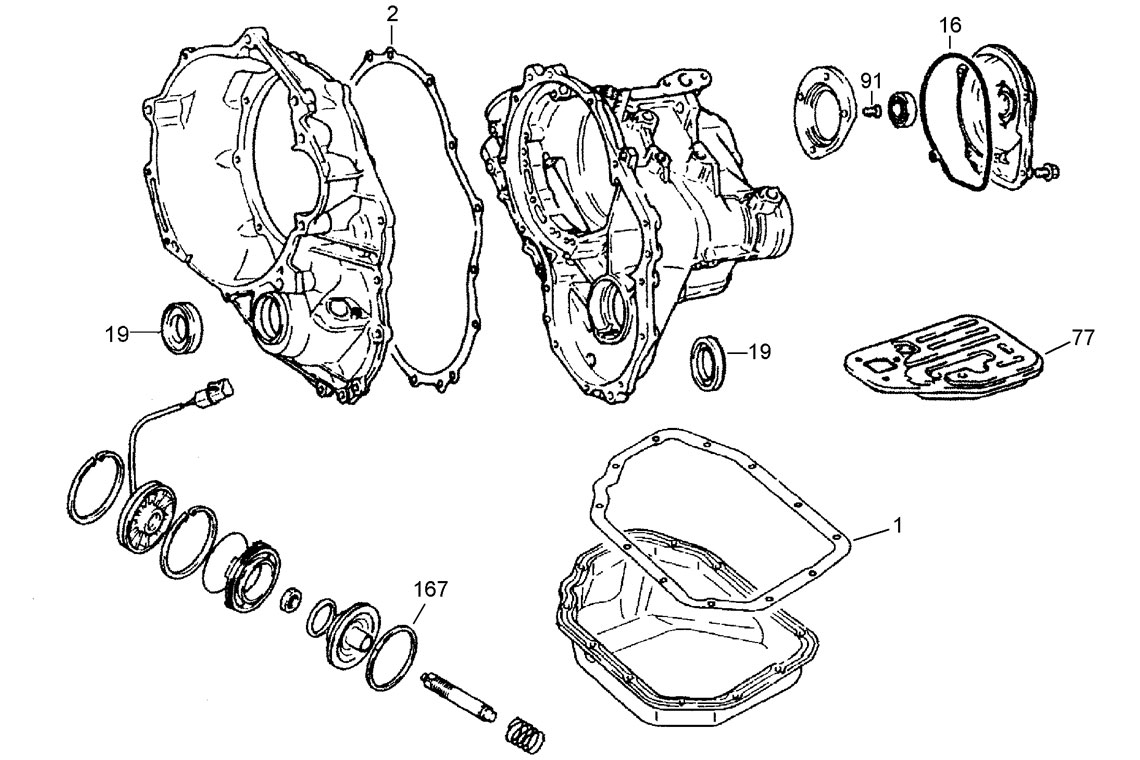

G

Case, Pan, Filter & Servo

167
19
2
1
19
77
91
16

seals

NO PART # DESCRIPTION SIZE YEARS QTY
17A 180200 Front Pump Seal 43 ID x 60 OD x 9.00mm 89-ON 1
18F 180232 Overdrive Clutch Housing Seal 16.5 ID x 20.9 OD x 3.00mm 89-ON 1
19G 180210 Axle Seal Left & Righthand 35 ID x 56 OD x 9.00mm 79-88 2
NI 190230 Overdrive Clutch Housing Seal 13 ID x 20.9 OD x 3.50mm 93-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180254K Sealing Ring Kit 4 Speed 89-ON 1
69F 180260 Overdrive Clutch Sealing Ring 89-ON 1
NI 180258 Direct Clutch Sealing Ring Teflon 93-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 180311 Direct (Front) Friction Plate 127 OD x 1.90mm x 38T 89-ON 2-3
22C 180311 Forward (Rear) Friction Plate 127 OD x 1.90mm x 38T 89-ON 2-3
24D 180322 Low & Reverse Friction Plate 152 OD x 1.85mm x 51T 89-ON 6
26F 180330 Overdrive (End Clutch) OEM 123 OD x 1.80mm x 40T 89-ON 3
26F 180330A Overdrive (End Clutch) Aftermarket 123 OD x 1.80mm x 40T 89-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 180361 Direct (Front) 104.4 ID x 3.80mm x 24T 89-ON 2-3
21B 180361A Direct (Front) 104.6 ID x 3.10mm x 24T 89-ON 34
23C 180363 Forward Steel Plate 104.4 ID x 1.80mm x 24T 89-ON 1-2
25D 180382 Low & Reverse Steel Plate 134 ID x 1.0mm x 20T 89-ON 5
25D 180384 Low & Reverse 134 ID x 1.8mm x 20T 89-ON 5
27F 180390 Overdrive (End Clutch) 106 ID x 0.80mm x 25T 89-ON 3-4
30B 180361 Direct Pressure Plate Inner 104.4 ID x 3.80mm x 24T 89-ON 1
34F 180398 Overdrive Pressure Plate 106 ID x 4.50mm x 25T 89-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180401K Bush Kit 3 Speed 89-ON 1
Kit 180406K Bush Kit 4 Speed All Models 89-ON 1
40A 180410 Pump Bush 89-ON 1
41A 180424 Stator Support 89-ON 1
42B 180413 Direct Drum Front 89-ON 1
43B 180413A Direct Drum Rear 89-ON 1
44D 180420 Bush Centre Support Front 89-ON 1
44D 180421 Centre Support 89-ON 1
45E 180417 Secondary Sungear 89-ON 2
46E 180415 Primary Sungear 89-ON 2
47E 180425 Output Shaft Front 89-ON 1
48F 180415 Overdrive Shaft 89-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
50A 180460H Selective Kit Direct Drum to Pump 1.6 / 2.2mm 89-ON AR
51B 180461 Direct to Forward Clutch Bearing 34.5 x 48 x 3.00mm 89-ON 1
53C 180463A Forward Hub Thrust Plate 89-ON 1
55C 180465 Forward Hub to Shell Thrust Plate 1.6mm 93-ON 1
56C 190472 Input Shell Bearing F4A-23 (V6) 54 ID x 36.5 OD x 3.50mm 89-ON 1
57E 180467A Primary to Secondary Sungear Bearing 89-ON 1
58E 180469A Primary to Secondary Sungear Skid Plate 89-ON 1
59E 180468A Sungear to Planet Needle Bearing V2000 37.9 ID x 22.6 OD x 3.80mm 89-ON 1
59E 180468B Sungear to Planet Needle Bearing V3000 42.3 ID x 22.4 OD x 3.80mm 89-ON 1
60E 190472 Planet to Output Shaft Bearing F4A-23 (V6) 54 ID x 36.5 OD x 3.50mm 89-ON 1
61F 180470A Overdrive Hub to Output Shaft Bronze KM177 55 OD x 43.8 ID x 2.00mm 89-ON 1
63F 180472 Overdrive Piston to Hub 4 Tang Non Turbo 36 ID x 18.9 OD x 1.00mm 89-ON 1
63F 180473 Overdrive Piston to Hub 4 Tang (4 Plate Hub) 36 ID x 19 OD x 1.00mm 89-ON 1
NI 180464A Forward Hub Bearing Series II 93-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
75D 180500 Band (40mm Wide) 89-ON 1
75D 180502 Band (44mm Wide) 89-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
77G 180553 Filter KM171-177 Dacron 89-91 1
77G 180554 Filter KM170-177 Plastic Type 89-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180553K Filter Kit KM171-177 Dacron F4A-23 89-91 1
Kit 180554K Filter Kit KM170-177 Plastic Type F4A21/22 89-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
70B 180630E Direct Clutch Circlip 2.10mm 89-ON AR
70B 180630F Direct Clutch Circlip 2.20mm 89-ON AR
70B 180630G Direct Clutch Circlip 2.30mm 89-ON AR
71C 180630E Forward Clutch Circlip 2.10mm 89-ON AR
71C 180630F Forward Clutch Circlip 2.20mm 89-ON AR
71C 180630G Forward Clutch Circlip 2.30mm 89-ON AR

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
81C 180656 Diaphragm Spring 89-ON 1
84D 180672 Low & Reverse Return Spring 89-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 180702 Pressure Control Solenoid 89-ON 1
NI 180707 Throttle Position Sensor SOHC 2/92-ON 1
NI 180722 Transmission to Case Connector 89-ON 1
NI 190703 VPS Solenoid (V3000) 89-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
89E 180750 Sprag Outer Race Bolt 89-ON 3
91G 180754 Overdrive Housing Bolt 89-ON 4
NI 180780 Manual Valve Plug 89-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
NI 180800K Shift Correction Kit 89-ON 1

hard parts

oil & transmission supplements

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49911 Lubegard Black 89-ON 1
