A

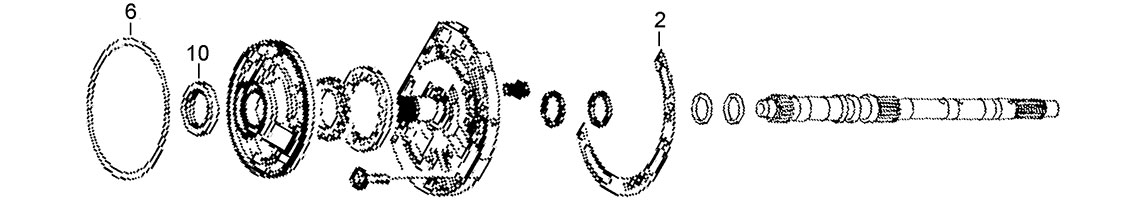

Pump & Input Shaft

2
6
10

B

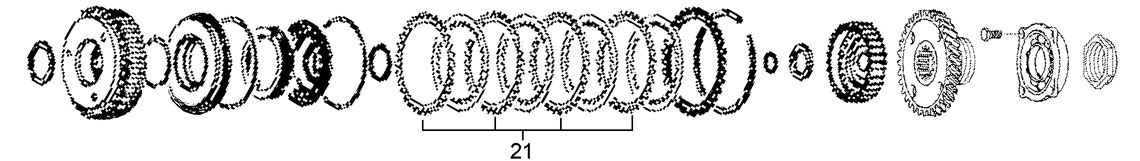

Underdrive Clutch & Output Gear

21

C

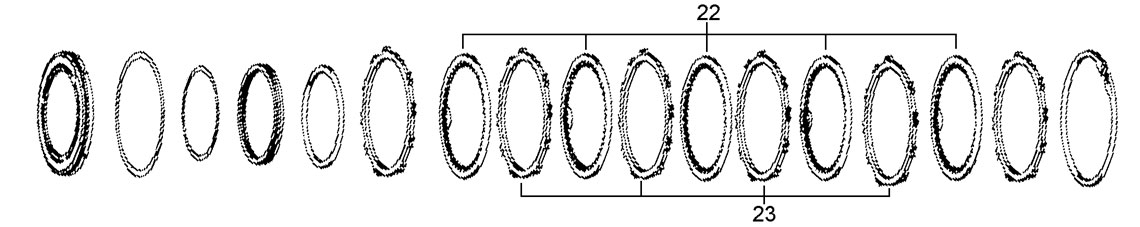

Low & Reverse Brake

23
22

D

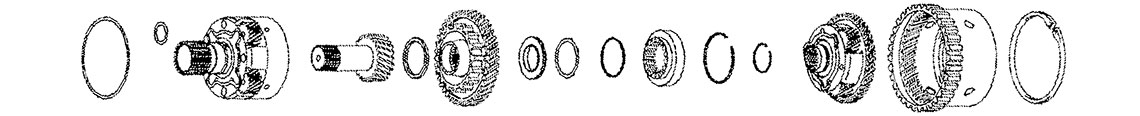

Planetary Assembly


E

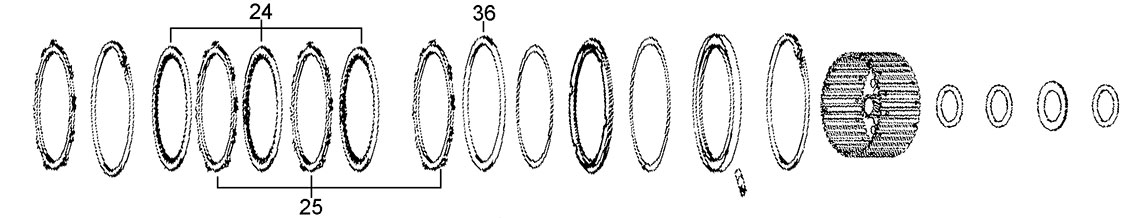

2nd Brake & Reverse Sungear

25
24
36

F

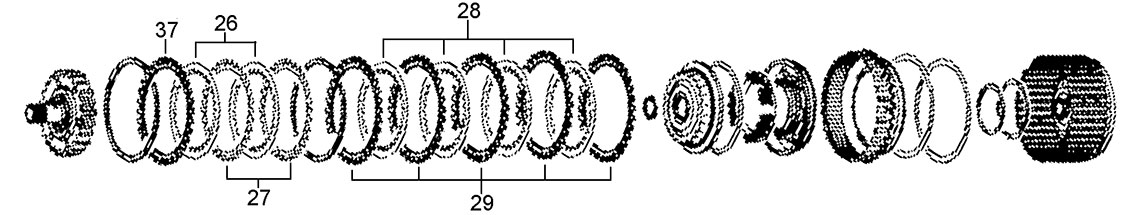

Reverse & Overdrive Clutches

27
28
29
26
37

G

Direct Planet


H

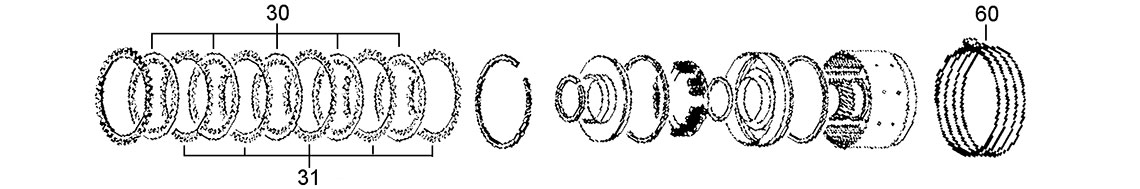

Direct Clutch & Reduction Brake Band

31
60
30

J

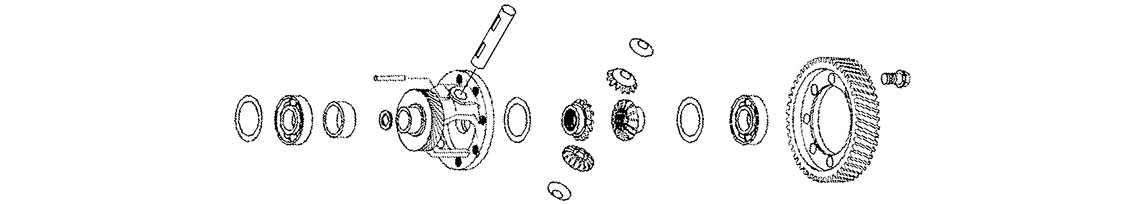

Differential Assembly


K

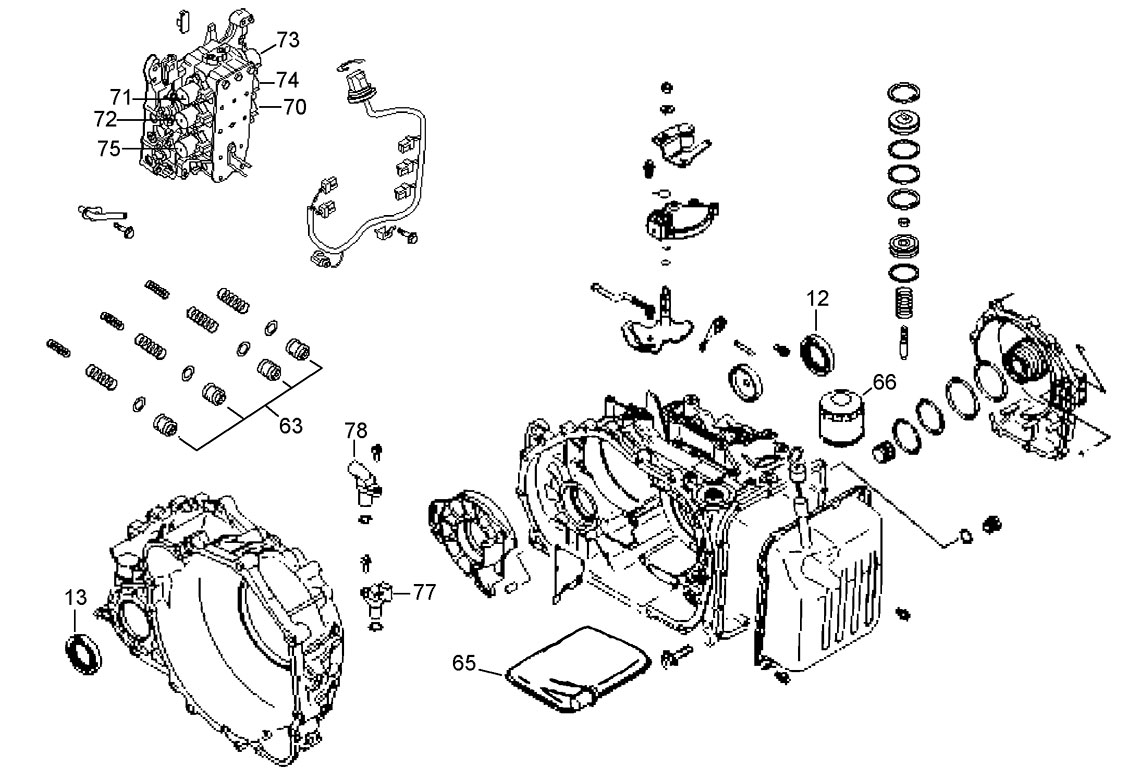

Case, Valve Body & Filter

71
72
74
75
78
73
63
77
66
65
70
13
12

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20012K Overhaul Kit A5GF1 Transtec 06-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
2A 20110 Pump Gasket 06-ON 1
NI 20100 Pan Gasket 06-ON 1
NI 20122 Valve Body Gasket 06-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20185K Accumulator Piston Seal Kit 06-ON 1
6A 20160 Pump O Ring 06-ON 1
NI 20164 Filter O Ring 06-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 180200 Converter Seal 43 ID x 60 OD x 9.00mm 06-ON 1
12K 20222 Seal Axle Righthand Inner (Hyundai/Kia) 30 ID x 39.5 OD x 7.50mm 06-ON 1
12K 20226 Axle Seal Lefthand All 41 ID x 61.2 OD x 13.00mm 06-ON 1
13K 20226 Axle Seal Righthand All 41 ID x 61.2 OD x 13.00mm 06-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20257K Sealing Ring Kit 06-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
22C 20314 Low-Reverse Brake 157 OD x 1.80mm x 30T 06-ON 7
24E 20318 2nd Brake 157 OD x 1.80mm x 30T 06-ON 4
26F 20322 Reverse Clutch 149 OD x 1.80mm x 30T 06-ON 3
28F 20329 Overdrive Clutch 137 OD x 1.80mm x 30T 06-ON 4
30H 20335K Direct Clutch Kit Clutch Kit contains 06-ON 1
31H 20335K Direct Clutch Kit Clutch Kit contains 06-ON 1

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 20360 Underdrive Clutch 118 ID x 1.80mm x 20T 06-ON 5
23C 20364A Low-Reverse Brake 130 ID x 1.00mm x 17T 06-ON AR
23C 20368 Low-Reverse Brake 130 ID x 2.50mm x 17T 06-ON 1
25E 20364A 2nd Brake 130 ID x 1.00mm x 17T 96-ON AR
25E 20368 2nd Brake 130 ID x 2.50mm x 17T 06-ON 5
27F 20372 Reverse Clutch 134 ID x 1.80mm x 20T 06-ON 3
29F 20376 Overdrive Clutch 118 ID x 2.50mm x 20T 06-ON 4
36E 20388 2nd Brake Pressure Plate Stepped 06-ON 1
37F 20392 Reverse Pressure Plate 133 ID x 4.00mm x 28T 06-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
NI 20420 Pump Bush 06-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
60H 20508 Reduction Brake Band 06-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
65K 20558 Internal Filter 06-ON 1
66K 20560 Spin On External Filter 06-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
63K 20590 Accumulator Piston Kit 06-ON 1-5

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70K 20700 Lock Up Solenoid 06-ON 1
71K 20700 Overdrive Clutch Solenoid 06-ON 1
72K 20700 Low & Reverse Brake Solenoid 06-ON 1
73K 20700 Underdrive Clutch Solenoid 06-ON 1
74K 20700 2nd Brake Solenoid 06-ON 1
75K 20700 Reduction Solenoid 06-ON 1
77K 20718 Input Speed Sensor 3 Pin 06-ON 1
77K 20720 Input Speed Sensor 4 Pin 06-ON 1
78K 20724 Output Speed Sensor 3 Pin 06-ON 1
NI 20703 Solenoid A5GF1 10-13 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20787K TCC Control Valve Kit OE valve spool diameters must be measured to verify application 06-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 Lubegard Complete Full Synthetic 946ml Bottle 06-ON AR
NI 49991-06 Lubegard Complete Full Synthetic 5.7 Litre Pack 06-ON AR
NI 49991-20 Lubegard Complete Full Synthetic 20 Litre Pack 06-ON AR
