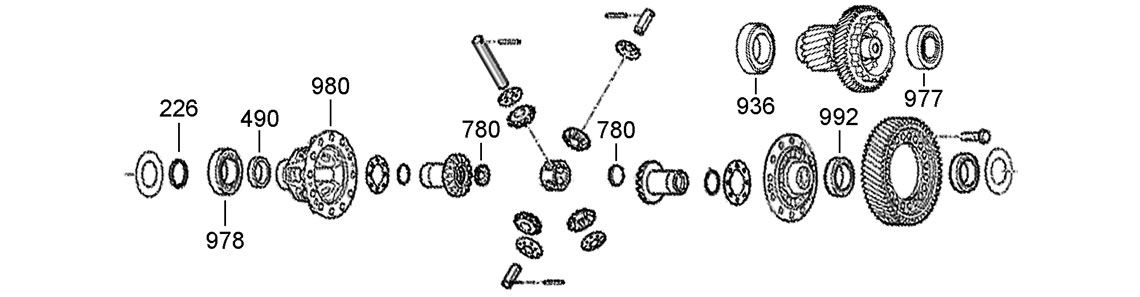

A
Transfer Gear & Diff Assembly
226
978
490
980
780
780
992
936
977

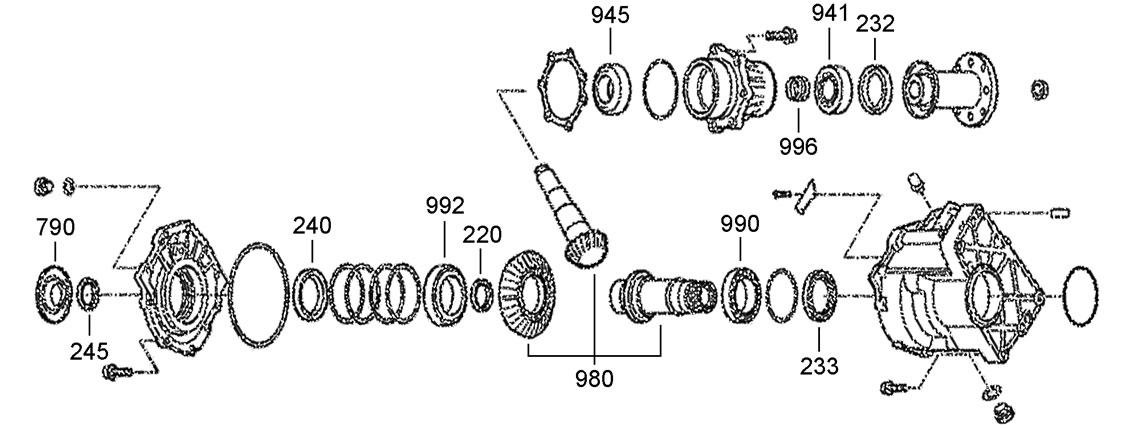

B
Transfer Assembly
245
790
240
992
220
980
233
990
945
996
941
232
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 220B | 114220 | Transfer Shaft Seal | 34 ID x 44 OD x 7.00mm | 16-ON | 1 |
| 226A | 115226 | Inner Axle Seal, Righthand | 37 ID x 47 OD x 5.00mm | 16-ON | 1 |
| 232B | B115232 | Transfer Case Seal | 45 ID x 69 OD x 16.00mm | 16-ON | 1 |
| 233B | B115233 | Transfer Case Seal | 54 ID x 73 OD x 8.00mm | 16-ON | 1 |
| 240B | B151240 | Transfer Case Seal | 16-ON | 1 | |
| 245B | B115245 | Pinion Seal | 34 ID x 49 OD x 9.00mm | 16-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 490A | 115490 | Diff Carrier Needle Bearing | 40 ID x 44.8 OD x 17.00mm | 16-ON | 1 |
| 936A | 151936 | Transfer Case Inner Bearing | 16-ON | 1 | |
| 941B | B115941 | Transfer Case Bearing | 30 ID x 68.2 OD x 22.80mm | 16-ON | 1 |
| 945B | B115945 | Transfer Case Bearing | 40 ID x 75 OD x 27.20mm | 09-ON | 1 |
| 977A | 115977 | Transfer Gear Outer Bearing | 35 ID x 68 OD x 22.00mm | 16-ON | 1 |
| 978A | 115978 | Transfer Driven Bearing | 65 ID x 93 OD x 17.5mm | 16-ON | 1 |
| 990B | B151990 | Bearing | 16-ON | 1 | |
| 992B | 151992 | Transfer Case Bearing | 16-ON | 1 | |
| NI | B115992 | PINION BEARING (A6LF1/2/3) | 57 ID x 87.5 OD x 20.00mm | 10-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 780A | 115780 | Blanking Cap | 30 ID x 34 OD x 5.00mm | 16-ON | 2 |
| 790B | B115790 | Dust Cover | 16-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 980A | 151980 | Differential Carrier | 16-ON | 1 | |
| 980B | B151980 | Hypoid Gear Shaft Set | 16-ON | 1 | |
| 996B | B151996 | Transfer Case Bearing Spacer | 16-ON | 1 |
