A

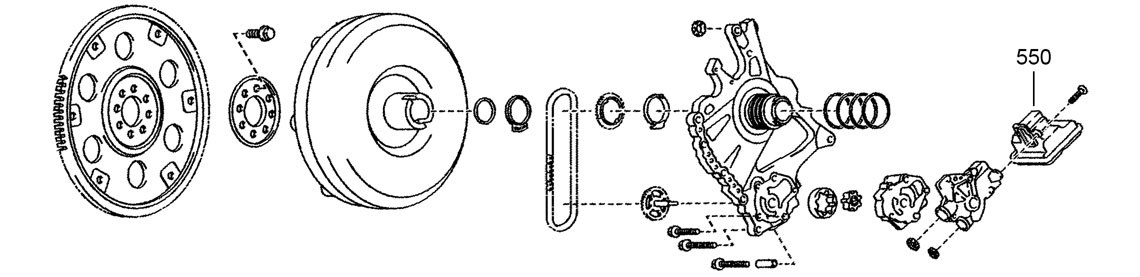

Torque Converter, Oil Pump & Chain

550

B

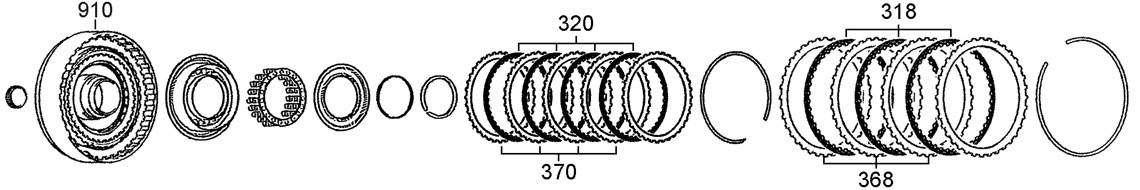

C4 & C3 Clutches

320
318
370
368
910

C

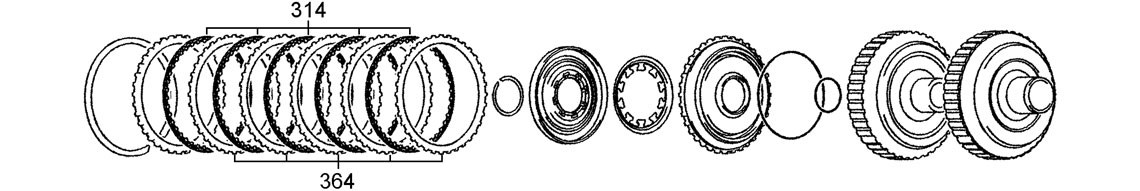

Forward Clutch & Input Sungear

314
364

D

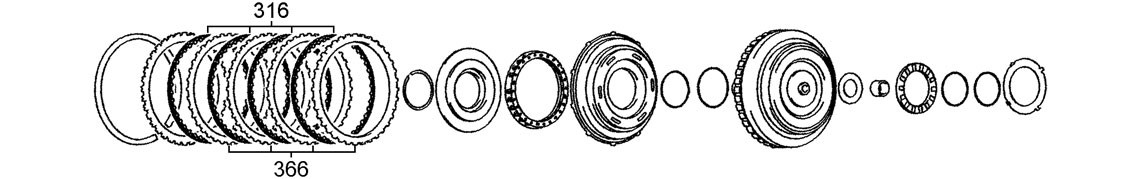

C2 Clutch & Intermediate Shaft Assembly

316
366

E

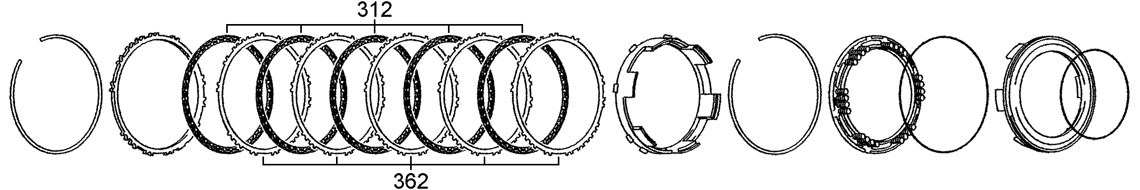

B2 Brake

312
362

F

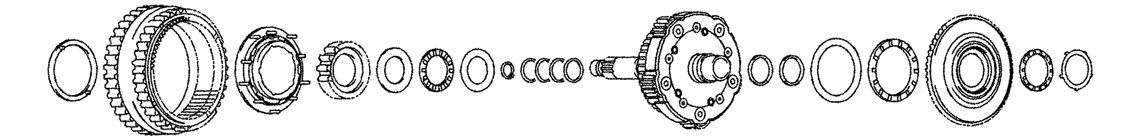

Front Planetary Gear Assembly


G

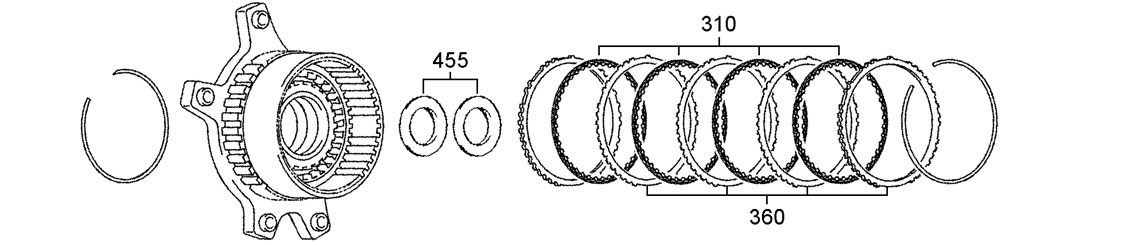

B1 Brake

310
360
455

H

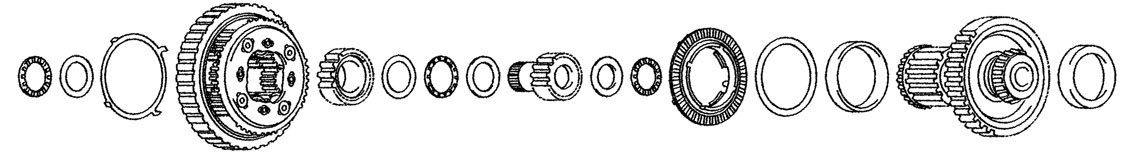

Rear Planetary Gear Assembly


J

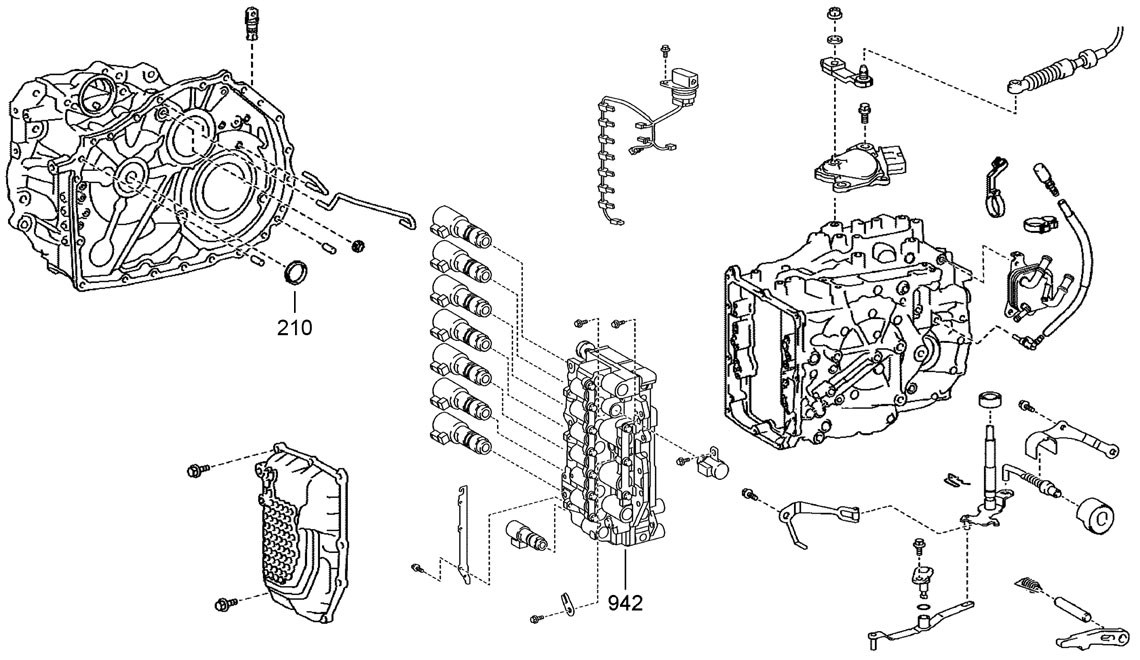

Case, Valve Body & Components

210
942

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 152000K Overhaul Kit with Pistons (AWF8G30, UB80E/F) Transtec 16-ON 1
Kit 152001K Overhaul Kit without Pistons (AWF8G30, UB80E/F) Transtec 16-ON 1
Kit 152002K Overhaul Kit without Pistons (AWF8G45, UA80E/F) Transtec 16-ON 1
Kit 152002KP Overhaul Kit without Pistons (AWF8G45, UA80E/F) Precision 16-ON 1
Kit 152003K Overhaul Kit without Pistons (AWF8G45) Aisin 16-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
NI 152100 Pan Gasket (UA80E/F, UB80E/F) 16-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
210J 152210 Axle Seal Lefthand (UA80E) 51.5 ID x 64 OD x 5.50mm 16-ON 1
NI 152200 Front Pump Seal (UA80E/F, UB80E/F) 51 ID x 65 OD x 5.75mm 16-ON 1
NI 152212 Axle Seal Righthand (UA80E) 16-ON 1
NI 162212 Axle Seal Shaft Righthand 37 ID x 75 OD x 10.00mm 16-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 152300K Friction Module (UA80E/F) 16-ON 1
Kit 152302K Friction Module (UB80E/F) 16-ON 1
Kit 152304K Friction Module (AWG8G45) 16-ON 1
310G 152310 B1 Brake Friction Plate (AWF8G45) 199.5 OD x 1.50mm x 48T 16-ON AR
312E 152312 B2 Brake Friction Plate (AWF8G45) 185.4 OD x 1.50mm x 90T 16-ON AR
314C 152314 C1 Clutch Friction Plate (AWF8G45) 153.2 OD x 1.50mm x 52T 16-ON AR
316D 152316 C2 Clutch Friction Plate (AWF8G45) 162.9 OD x 1.50mm x 48T 16-ON AR
318B 152318 C3 Clutch Friction Plate (AWF8G45) 174.8OD x 1.50mm x 48T 16-ON AR
320B 152320 C4 Clutch Friction Plate (AWF8G45) 134.6 OD x 1.50mm x 40T 16-ON AR

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 152350K Steel Module (UA80E/F) 16-ON 1
Kit 152352K Steel Module (UB80E/F) 16-ON 1
Kit 152354K Steel Module (AWF8G45) 16-ON AR
360G 152360 B1 Brake Steel Plate (AWF8G45) 207.00 OD x 1.50mm x 34T 16-ON AR
362E 152362 B2 Brake Steel Plate (AWF8G45) 194.00 OD x 1.50mm x 19T 16-ON AR
364C 152364 C1 Clutch Steel Plate (AWF8G45) 160.2 OD x 1.50mm x 40T 16-ON AR
366D 152366 C2 Clutch Steel Plate (AWF8G45) 168.00 OD x 1.50mm x 40T 16-ON AR
368B 152368 C3 Clutch Steel Plate (AWF8G45) 180.3 OD x 1.50mm x 48T 16-ON AR
370B 152370 C4 Clutch Steel Plate (AWF8G45) 140.00 OD x 1.50mm x 32T 16-ON AR

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
455G 152455 Centre Support Bearing 16-ON 2

filters

NO PART # DESCRIPTION SIZE YEARS QTY
550A 152550 Filter (UA80E/F,UB80E/F) 16-ON 1
550A 152552 Filter (AWF8G45, AWF8G55) 16-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 152570K Piston Kit (UA80E/F) 16-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 152760K Oversized Cooler/Lube Flow Control Valve Kit (UA80E/F, UB80E/F) 16-ON 1
Kit 152762K Solenoid Damper Kit (UA80E/F, UB80E/F) 16-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 152820K Zip Kit 16-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
910B 152910 C3/C4 Clutch Drum Assembly (UA80) Vin Required 16-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
942J 152942 Valve Body, BMW X2 (GA8G45AW) 18-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit TF-168740-TL8 Reamer for 152760K 16-ON 1
