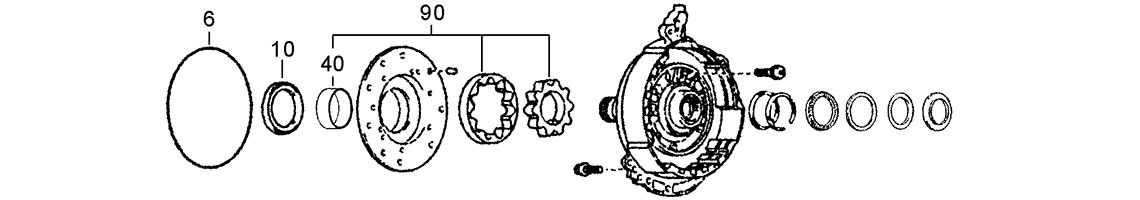

A

Pump

40
90
6
10

B

B1 Brake

21
20

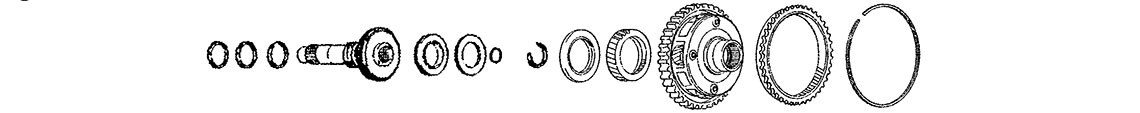

C

Input Shaft & Overdrive Planet


D

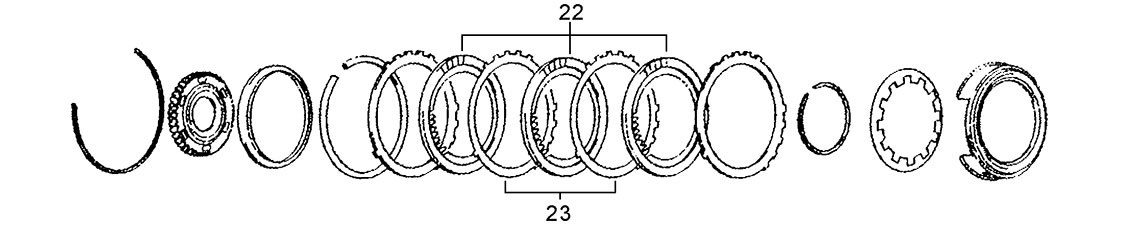

B3 Brake

23
22

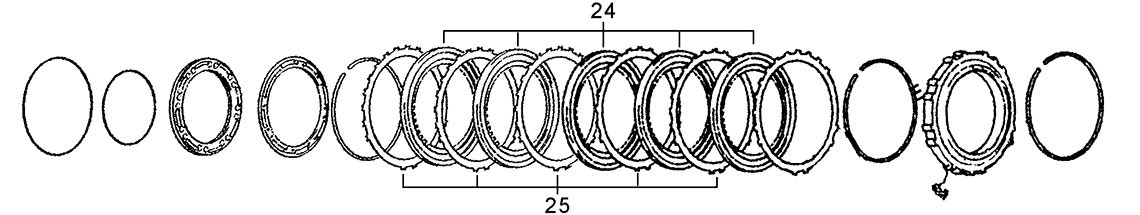

E

B2 Brake & One Way Clutch

25
24

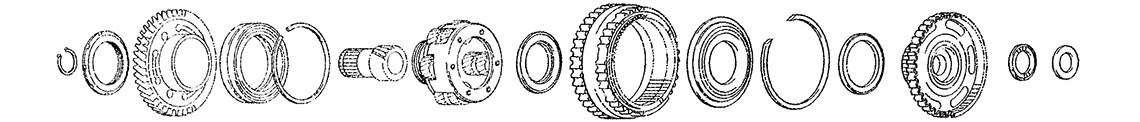

F

Planetary Assembly

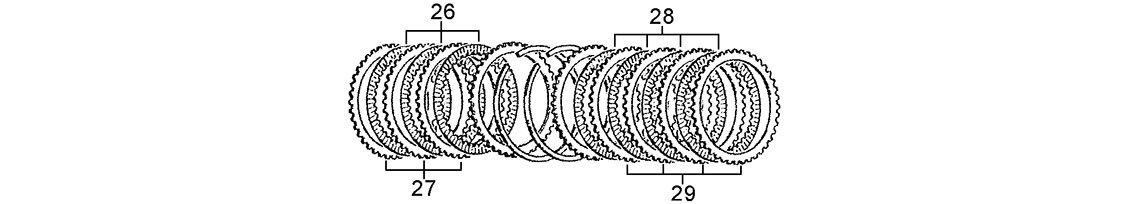

G

C2 (Direct) & C1 (Forward) Clutches

29
27
28
26

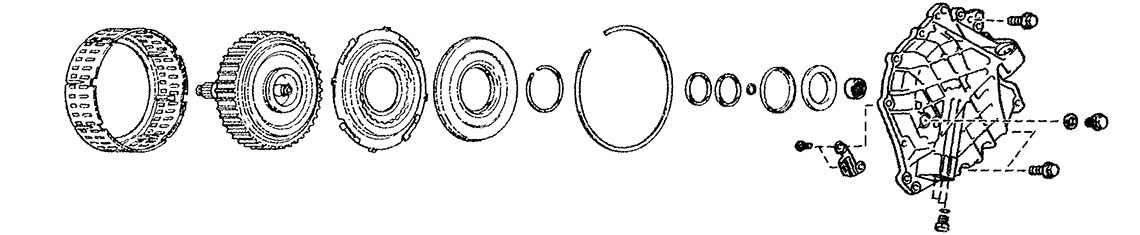

H

C1 & C2 Clutch Drum & End Cover

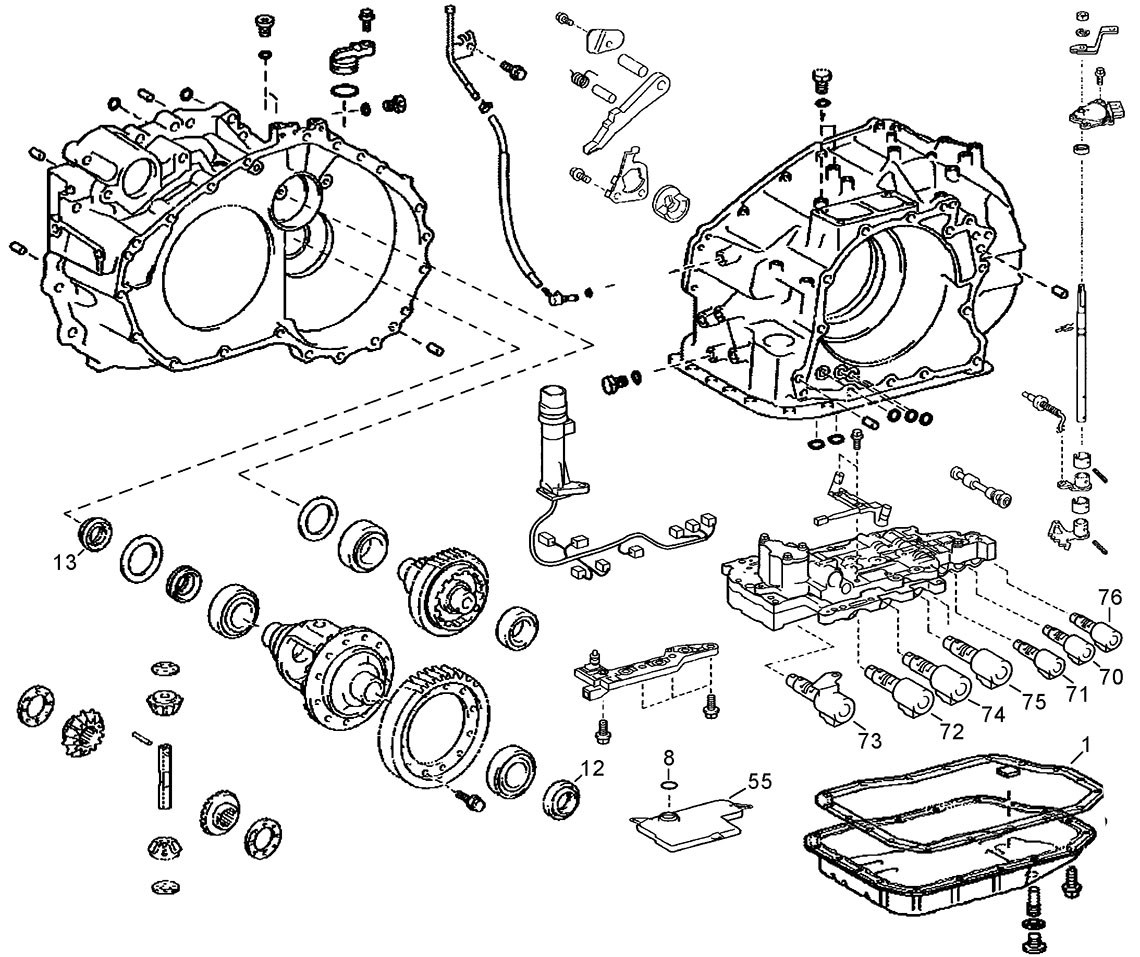

J

Case, Pan, Filter & Valve Body

76
55
73
71
75
72
74
70
8
1
12
13

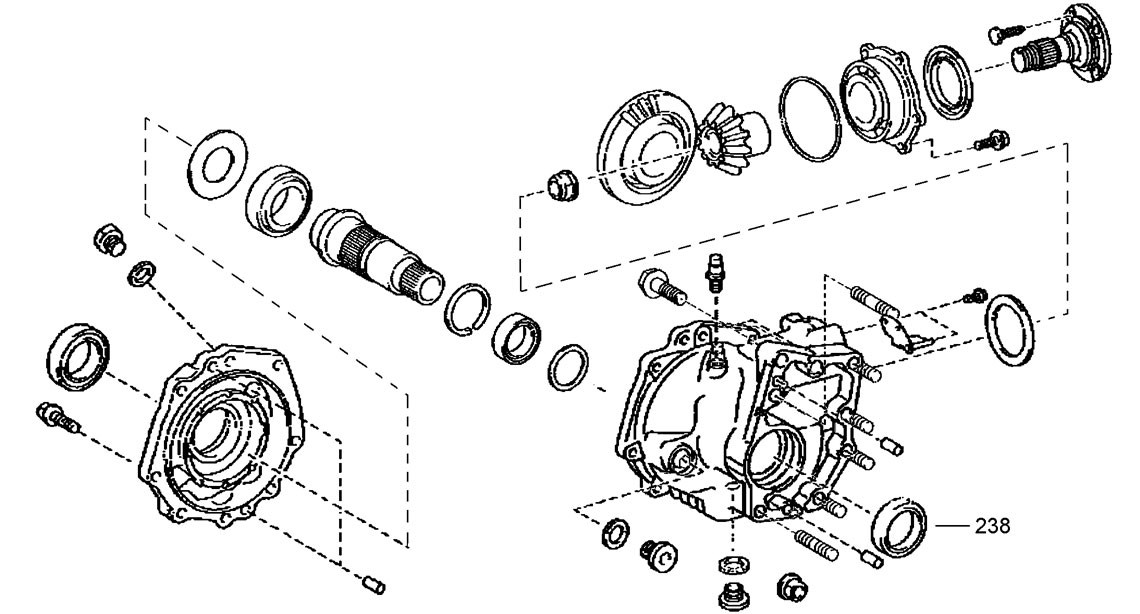

K

Transfer Box Assembly

238

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 107000K Overhaul Kit U760E, U760F Transtec 07-ON 1
NI 107000KP OVERHAUL KIT-TOYOTA U760E Precision 07-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1J 107100 Pan Gasket Cork 07-ON 1
1J 107101 Pan Gasket Duraprene 07-ON 1
1J 107101F Pan Gasket Farpak 07-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
6A 103160 Pump O Ring 07-ON 1
6A 103162 Pump Seal, Lathe Cut 07-ON 1
8J 103170 Filter O Ring 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 103200 Front Pump Seal 42 ID x 62 OD x 6.00mm 07-ON 1
12J 78212 Axle Seal Lefthand 50 ID x 68.3 OD x 8.80mm 07-ON 1
13J 75216 Axle Seal Righthand 40 ID x 56 OD x 9.00mm 07-ON 1
13J 78222 Axle Seal Righthand 55 ID x 74 OD x 9.90mm 07-ON 1
238K 78238 Transfer Case to Differential Seal 55 ID x 79 OD x 8.00mm 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103300K FRICTION MODULE (U660E/U760E) HYB TEC 07-ON 1
20B 103310 B1 Friction 177.3 OD x 1.85mm x 40T 07-ON 4
22D 103310 B3 Friction 177.3 OD x 1.85mm x 40T 07-ON 3
24E 103314 B2 Friction 184 OD x 1.50mm x 40T 07-ON 4
26G 103318 C2 (Direct) Friction 166.4 OD x 1.80mm x 40T 07-ON 4
28G 103318 C1 (Forward) Friction 166.4 OD x 1.80mm x 40T 07-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 103360 B1 Steel 153.5 ID x 1.85mm x 11T 07-ON 4
23D 103362 B3 Steel 153.5 ID x 2.20mm x 11T 07-ON 3
25E 103364 B2 Steel 163.3 ID x 1.60mm x 16T 07-ON 4
27G 103366 C2 (Direct) Steel 144 ID x 2.15mm x 40T 07-ON 4
29G 103368 C1 (Forward) Steel 144 ID x 1.80mm x 40T 07-ON 4

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103400K Bush Kit 07-ON 1
Kit 107400KD Bush Kit 07-ON 1
40A 103410 Pump Bush 46.23mm (1.820") OD 07-ON 1
NI 107410 BUSH PUMP (U660/U760) 2007-ON 47.20mm OD 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55J 107550 Filter 07-ON 1
55J 107552 Filter 15-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 107550K Filter Kit 07-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103570K Piston Kit 07-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70J 103700 SLT Line Pressure Solenoid 07-ON 1
71J 103702 SLU Lock Up Control Solenoid 07-ON 1
71J 107704 Lock-Up Solenoid 07-ON 1
72J 107710 SL1 Solenoid Clutch Control No 1 07-ON 1
73J 107712 SL2 Solenoid Clutch Control No 2 07-ON 1
74J 107710 SL3 Solenoid Clutch Control No 1 07-ON 1
75J 107712 SL4 Solenoid Clutch Control No 2 07-ON 1
76J 103716 SL Solenoid Automatic Transmission 3 Way 07-ON 1

Please Provide Vehicle Details when Enquiring

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103760 Lockup Control Boost Valve Kit 07-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 107800K Shift Kit 07-ON 1
Kit 107801K Zip Kit 07-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 107910 C1 & C2 Clutch Assembly 07-ON 1
90A 107904 Pump Body & Gears 07-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
