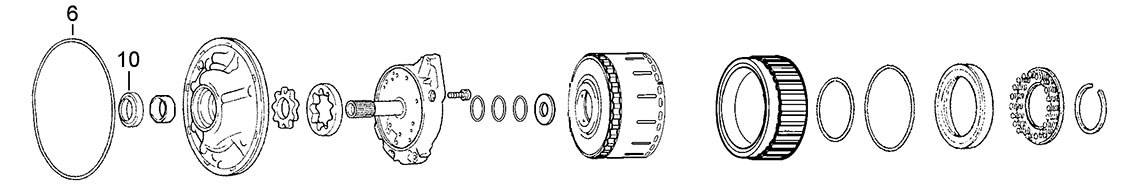

A

Pump

6
10

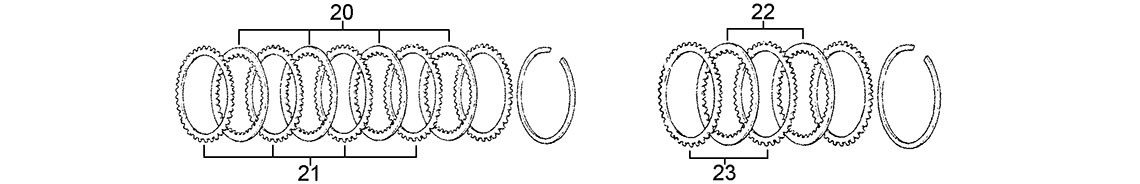

B

C1 & C2 Clutches

23
21
20
22

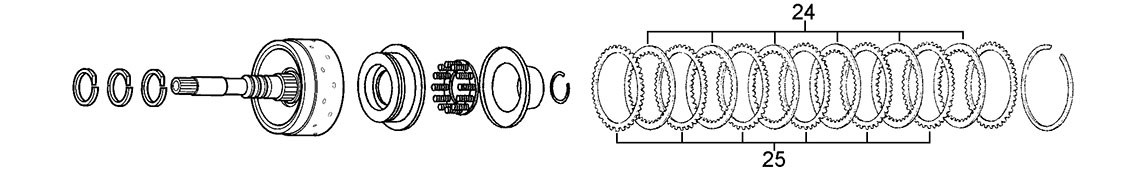

C

C3 Clutch

25
24

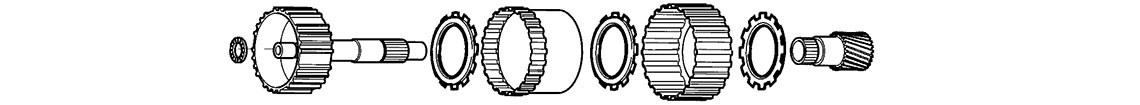

D

Forward Clutch Hub, Rear Sungear & Planet

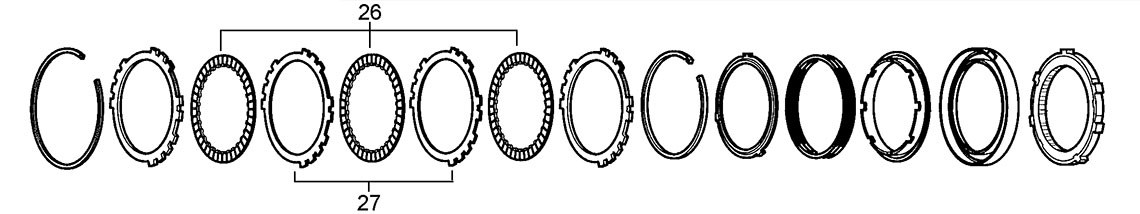

E

2nd & 4th Brake (B3)

27
26

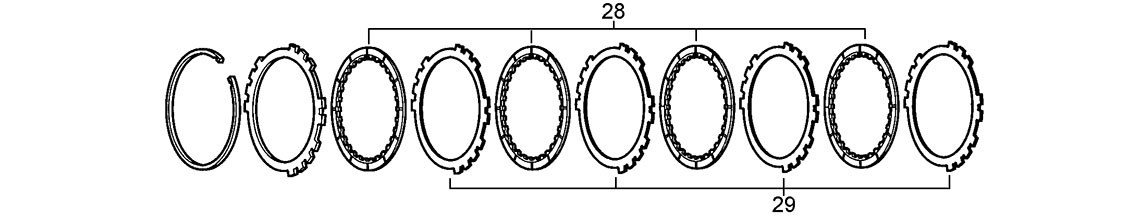

F

1st & Reverse Brake (B2)

29
28

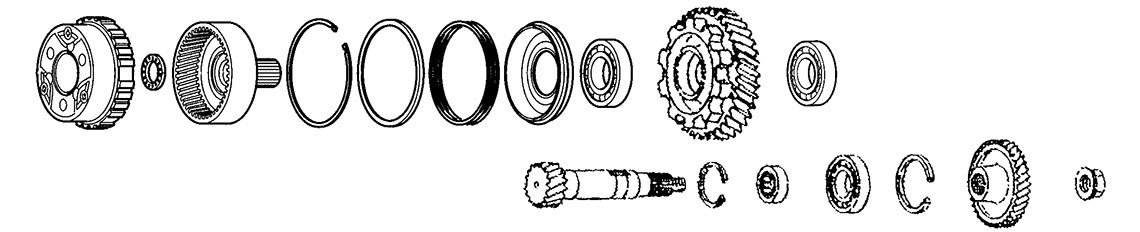

G

Front Planet, 1 St & Reverse Piston & Output Gears

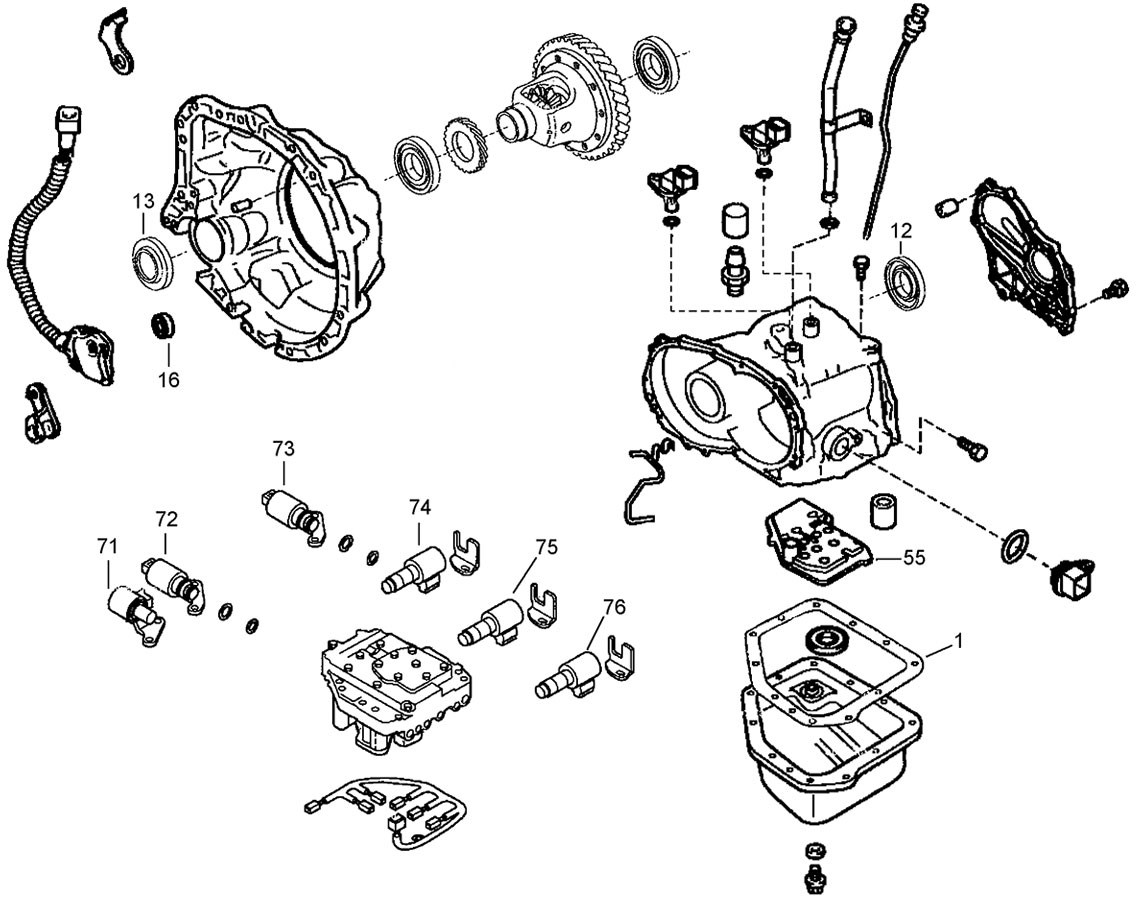

H

Case, Valve Body, Pan & Filter

74
76
72
75
71
55
73
16
13
12
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 81000K Overhaul Kit U540E, 4ATM, 4ATS With Pistons 00-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 81004KM Master Kit with Pistons 00-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1H 81114 Pan Gasket 00-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
6A 81162 Pump O Ring 00-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 81202 Front Pump Seal 32.1 ID x 52.3 OD x 8.00mm 00-ON 1
12H 81212 Axle Seal Righthand 44.90 x 62.40 x 11.30 x 18.00 00-ON 1
13H 81210 Axle Seal Lefthand 44.9 x 70.4 x 12.30 x 18.60 00-ON 1
16H 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 00-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 81300K Friction Kit 00-ON 1
20B 81310 C1 Clutch 121 OD x 1.57mm x 30T 00-ON 4
22B 81312 C2 Clutch 126 OD x 1.70mm x 30T 00-ON 2
24C 81314 C3 Clutch 85 OD x 1.52mm x 30T 00-ON 6
26E 81316 B3 (2nd & 4th) Brake 132 OD x 1.50mm x 30T 00-ON 5
28F 81318 B2 (1st & Reverse) Brake 138 OD x 1.47mm x 30T 00-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 81360 C1 Clutch 106 ID x 2.00mm x 30T 00-ON 3
23B 81362 C2 Clutch 113.9 ID x 2.00mm x 30T 00-ON 3
25C 81364 C3 Clutch’ 68 ID x 2.03mm x 20T 00-ON 5
27E 81366 B3 (2nd & 4th) Brake 114.1 ID x 1.00mm x 13T 00-ON 5
29F 81368 B2 (1st & Reverse) Brake 114 ID x 1.83mm x 13T 00-ON 4

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55H 81554 Filter 00-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 81554K Filter Kit 00-ON 1

electrical components
