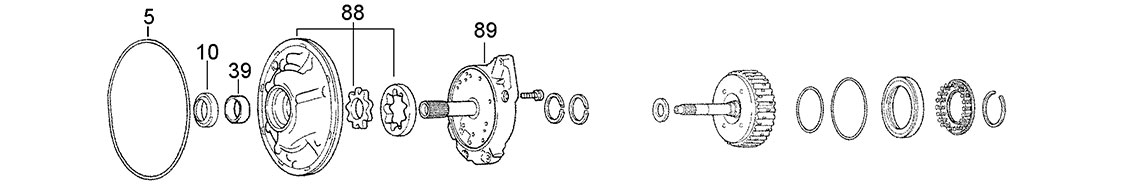

A

Pump & Forward (C1) Clutch Drum

89
39
5
10
88

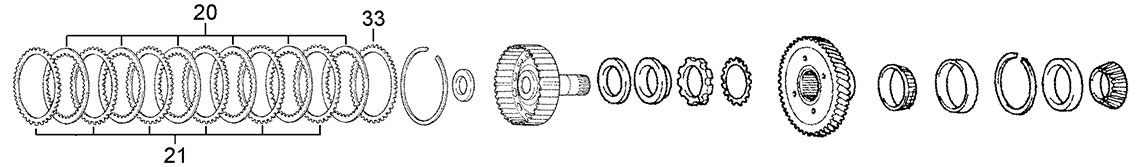

B

Forward (C1) Clutch & Counter Drive Gear

21
33
20

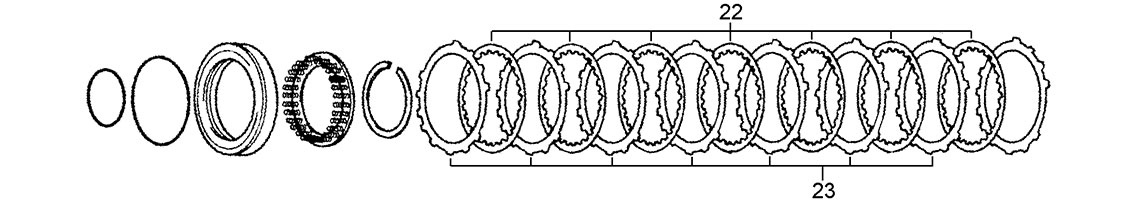

C

Low & Reverse (B2) Brake

23
22

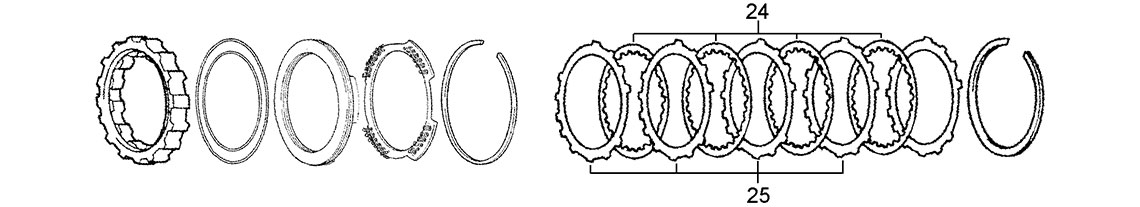

D

2nd (B1) Brake

25
24

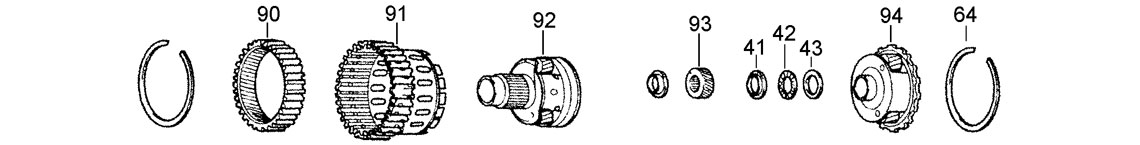

E

Front & Rear Planets

42
43
41
64
90
91
92
93
94

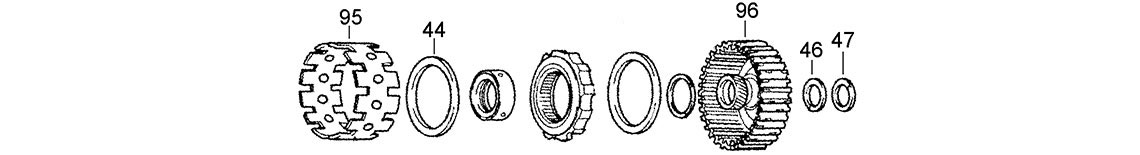

F

No 1 One Way Clutch (F1) Assembly & Rear Sun Gear

46
47
96
44
95

G

Direct (C2) & Overdrive Direct (C0) Clutches & End Cover

26
27
29
63
97
28
62

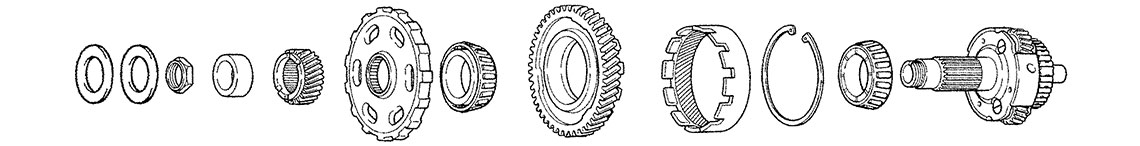

H

Underdrive Planet

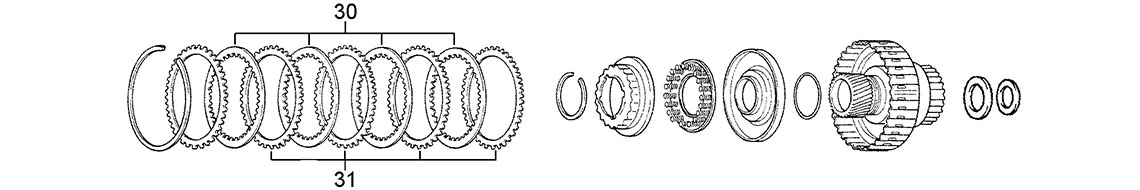

J

Underdrive (C3) Clutch

31
30

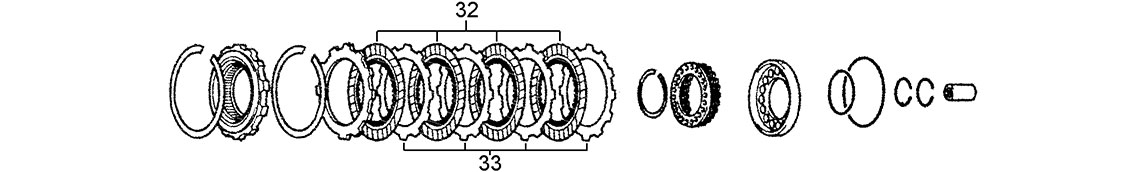

K

No 2 One Way Clutch (F2) & Underdrive (B3) Brake

33
32

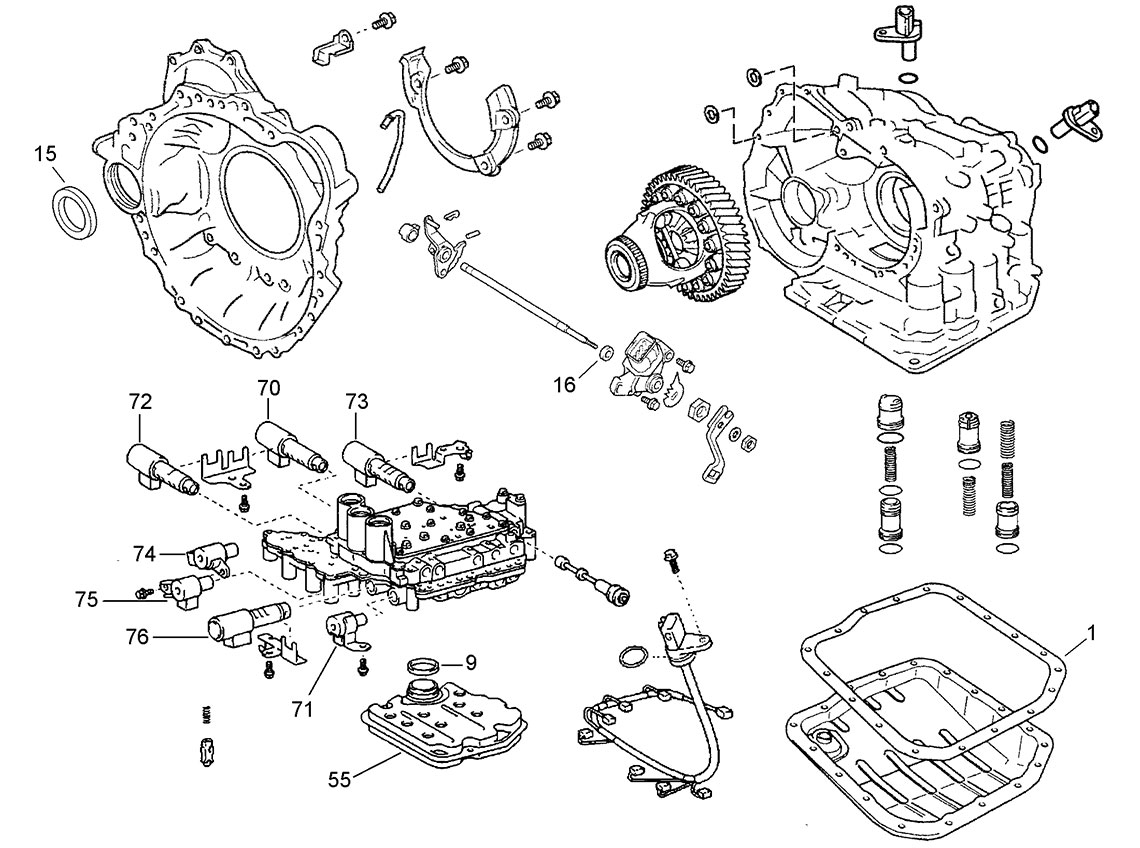

L

Case, Differential, Valve Body & Pan

76
75
74
72
71
73
70
9
55
15
16
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78012K Overhaul Kit with Pistons U250E* * Kit does not contain Overdrive Direct Bonded Piston Transtec 05-ON 1
Kit 78014K Overhaul Kit without Pistons U250E Transtec 05-ON 1
NI 78014KA Overhaul Kit without Pistons U250E Precision 05-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1L 78100 Pan Gasket Cork 05-ON 1
1L 78101 Pan Gasket Duraprene 05-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
5A 78160 Pump Body to Converter Housing O Ring 05-ON 1
9L 78165 Filter O Ring 05-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 73200 Converter Seal 38 ID x 55 OD x 7.70mm 05-ON 1
15L 78214 Axle Seal Righthand 40 ID x 64.3 OD x 9mm 05-ON 1
15L 78222 Axle Seal Righthand 55 ID x 74 OD x 9.90mm 05-ON 1
16L 75205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 05-ON 1
NI 78212 Axle Seal Lefthand 50 ID x 68.3 OD x 8.80mm 05-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78250K Sealing Ring Kit 05-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78301KA Friction Module 05-ON 1
20B 78310 Forward (C1) Clutch 136 OD x 1.95mm x 40T 05-ON 6
20B 78311 Forward (C1) Clutch 136 OD x 1.80mm x 40T 05-ON 6
22C 78314 Low Reverse (B2) Brake 163 OD x 1.80mm x 40T 05-ON 7
24D 78318 2nd (B1) Brake 170 OD x 1.80mm x 40T 05-ON 4
26G 78324 Direct (C2) Clutch 157 OD x 1.52mm x 40T 05-ON 4
28G 78338 Overdrive Direct (C0) Clutch 151 OD x 1.80mm x 40T 05-ON 4
30J 78328 Underdrive (C3) Clutch 114 OD x 2.0mm x 40T 05-ON 3
32K 78332 Underdrive (B3) Brake 112.5 OD x 1.90mm x 28T 05-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 78360 Forward (C1) Clutch 115 ID x 1.80mm x 40T 05-ON 6
23C 78364 Low Reverse (B2) Brake 143 ID x 1.80mm x 12T 05-ON 7
25D 78368 2nd (B1) Brake 143 ID x 2.00mm x 12T 05-ON 4
27G 78370 Direct (C2) Clutch 141.7 ID x 1.80mm x 40T 05-ON 4
29G 78388 Overdrive Direct (C0) Clutch 127 ID x 1.80mm x 40T 05-ON 4
31J 78378 Underdrive (C3) Clutch 91 ID x 2.0mm x 40T 05-ON 3
33B 78390B Forward Clutch Pressure Plate 115 ID x 3.30mm x 40T 05-ON 1
33K 78382 Underdrive (B3) Brake 93 ID x 1.85mm x 11T 05-ON 3

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78408K Bush Kit 05-ON 1
39A 73410 Pump Bush 38 ID x 41.2 OD 05-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
41E 78483 Sungear to Rear Planet Front Race 05-ON 1
42E 78484 Sungear to Rear Planet Bearing 05ON 1
43E 78486 Sungear to Rear Planet Rear Race 05-ON 1
44F 78489A Rear Planet to No 1 OWC Thrust 05-ON 1
46F 78493 Rear Sungear to Direct Clutch Bearing 32 ID x 45 OD x 2.75mm 05-ON 1
47F 78495 Rear Sungear to Direct Clutch Race 33 ID x 45 OD x 2.75mm 05-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55L 78564 Filter 05-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78564K Filter Kit 05-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72580K Accumulator Piston Kit 05-ON 1
62G 78586 Overdrive Direct Moulded Piston 05-ON 1
63G 78588 Overdrive Direct Balance Piston 05-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
64E 78652 Rear Planet to Ringear Circlip 05-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70L 78731 SLT Solenoid Line Pressure Control 05-ON 1
71L 78738 DSL Solenoid Shift/TCC 05-ON 1
72L 78736 SL3 Solenoid Clutch Control No 3 05-ON 1
73L 78732 SL1 Solenoid Clutch Control No 1 05-ON 1
74L 78715 S4 Solenoid Transmission 3 way No 2 05-ON 1
75L 78716 S4 Solenoid Transmission 3 Way No 1 05-ON 1
76L 78736 SL2 Solenoid Clutch Control No 2 05-ON 1

Please provide VIN no when ordering solenoids to enable us to check these are correct for your appliication

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78798K Boost Valve Kit 05-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78812K Sonnax ZIP Kit 05-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
88A 78900 Front Pump Body & Gears Contains Pump Seal and Bush Gears 10.7mm wide 1 dot on Gears 05-ON 1
88A 78902 Front Pump Body & Gears Contains Pump Seal and Bush Gears 11.7mm wide 2 dots on Gears 05-ON 1
89A 78904 Pump Stator Shaft Assembly 05-ON 1
96F 78959 Drive Shell 05-ON 1
97G 78970K Overdrive Direct Drum and Direct Piston Circlip Groove is 37.10mm high 02-ON 1
NI 78972K Direct Piston Supplied with Overdrive Direct Drum 05-ON 1

Gear Train Parts are numbered for easy identification.
As these parts vary between and within models Please provide VIN No when ordering to enable us to supply the correct parts

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
