A

2nd Clutch

83
20
21
60

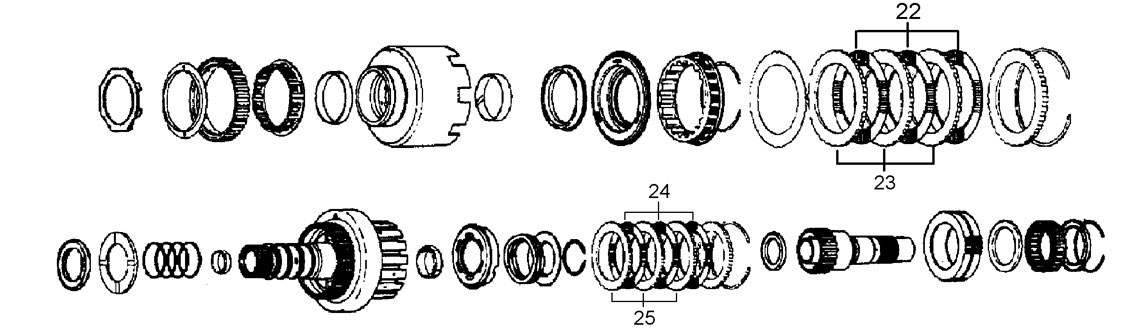

B

Reverse Input & Coast Clutches

24
25
22
23

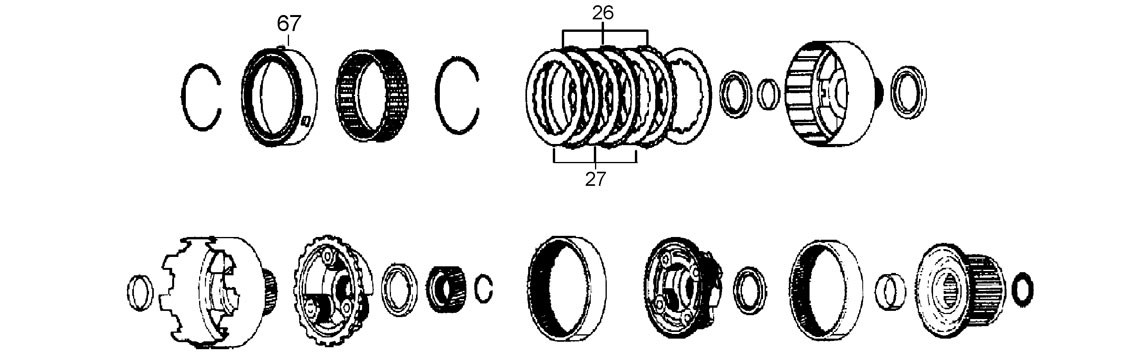

C

Direct Clutch & Planets

67
26
27

D

Forward Clutch & Final Drive

28
29
61

E

Pump, Valve Body, Drive Chain, Case, Pan & Filter

3
2
75
76
11
57
59
77
79
79
78
10
12
13
62
49
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39000K Overhaul Kit with Bonded Pistons 95-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39120K Valve Body Gasket Kit 95-03 1
1E A39100 Pan Gasket 95-ON 1
2E A39110 Side Cover Inner Seal 95-ON 1
3E A39112 Side Cover Outer Seal 95-ON 1
NI A39114 Channel Plate to Case Gasket 95-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10E 40200 Converter Seal 43.7 ID x 82.2 OD x 10.30mm 95-ON 1
11E A39210 Axle Seal Lefthand 42 ID x 59.3 OD x 15.60mm 95-ON 1
12E A39210 Axle Seal Righthand 42 ID x 59.3 OD x 15.60mm 95-ON 1
13E A39216 Axle Inner Sleeve (Cap Shaped) 95-ON 2

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39250K Sealing Ring Kit 95-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20A A39310 2nd Clutch Friction Plate 167 OD x 1.80mm x 36T 95-ON 3
22B A39314 Reverse Input Clutch Friction Plate 134.7 OD x 1.80mm x 48T 95-ON 3
24B A39318 Coast Clutch Friction Plate 83 OD x 1.80mm x 20T 95-ON 4
26C A39322 Direct Clutch Friction Plate with External Teeth 99.75 ID x 1.80mm x 36T 95-ON 4-6
28D A39326 Forward Clutch Friction Plate 127 OD x 1.80mm x 30T 95-ON 7

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21A A39362 2nd Clutch Steel Plate 121.7 ID x 2.25mm x 8T 95-ON 3
23B A39366 Reverse Input Clutch Steel Plate 101.5 ID x 2.25mm x 30T 95-ON 3
25B A39368 Coast Clutch Steel Plate 62 ID x 1.75mm x 12T 95-ON 4
27C A39372 Direct Clutch Steel Plate with Internal Teeth 126 OD x 1.88mm x 16T 95-ON 6
29D A39376 Forward Clutch Steel Plate 103.5 ID x 1.75mm x 30T 95-ON 7

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39400K Bush Kit 95-ON 1
NI A32412 Converter Bush 95-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39450K Thrust Kit 95-ON 1
57E A39490 Pump Shaft Bearing 95-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
60A A39500 2nd & 4th Band 95-ON 1
61D A39510 Low / Reverse Band 95-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
62E A39550 Filter 95-ON 1
NI 37564 Shift Solenoid Filter 95-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39550K Filter Kit 95-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
67C A39576 Direct Clutch Bonded Piston 95-ON 1

electrical components

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A39776 Channel Plate Sleeve Kit 95-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
49E A39960 Transmission Pan 95-ON 1
59E A39902 Pump Drive Shaft 95-ON 1
83A A39900U Pump Used 95-ON 1
