FN4A-EL, 4F27E

A

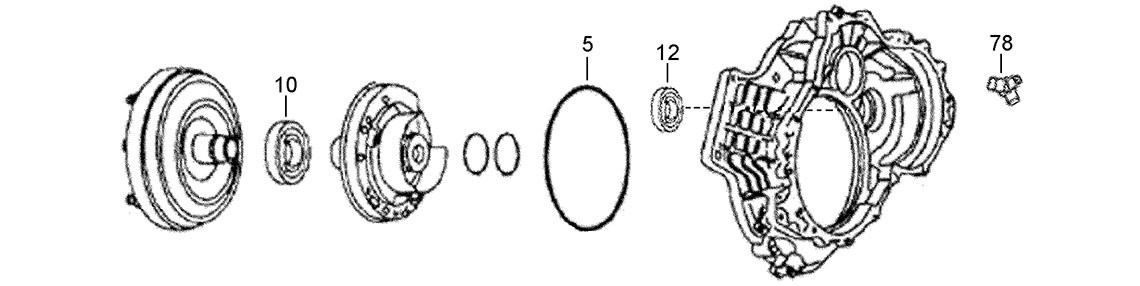

Converter, Pump & Bellousing

B

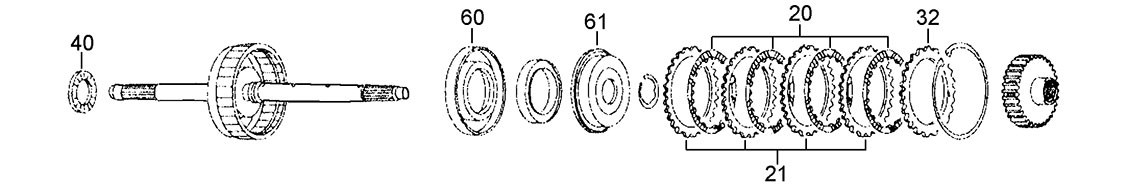

Forward Clutch

C

Low & Reverse Brake

D

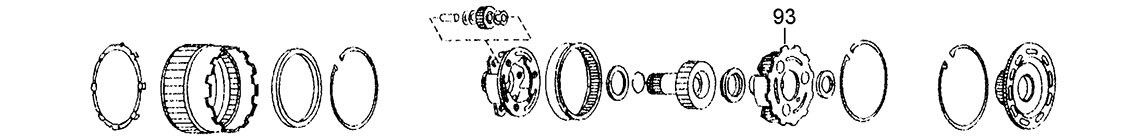

Planetary Assemblies

E

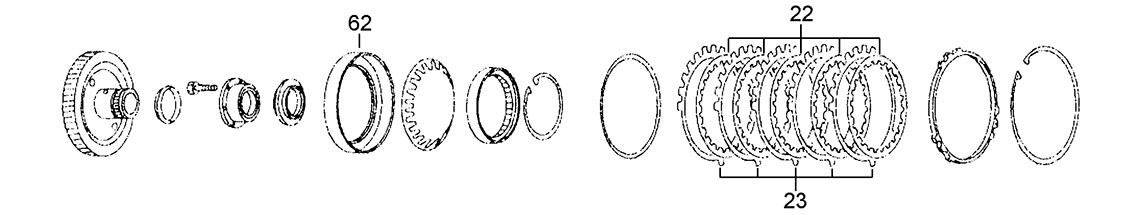

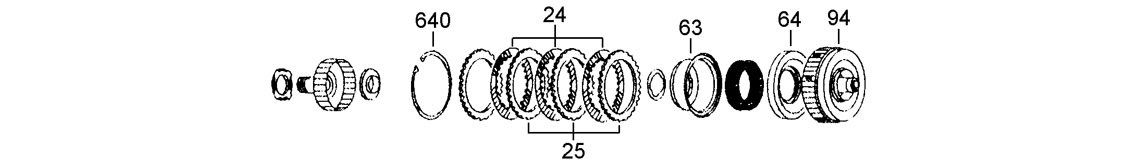

3-4 Clutch

640

F

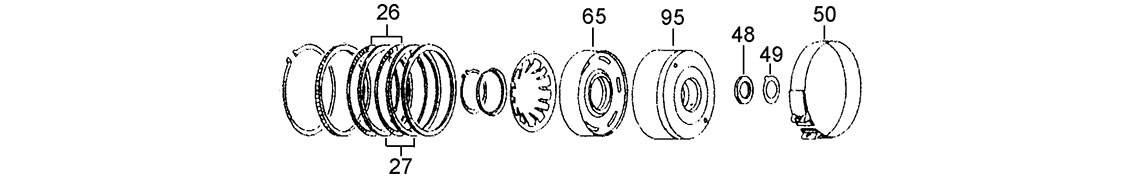

Reverse Clutch & 2-4 Band

G

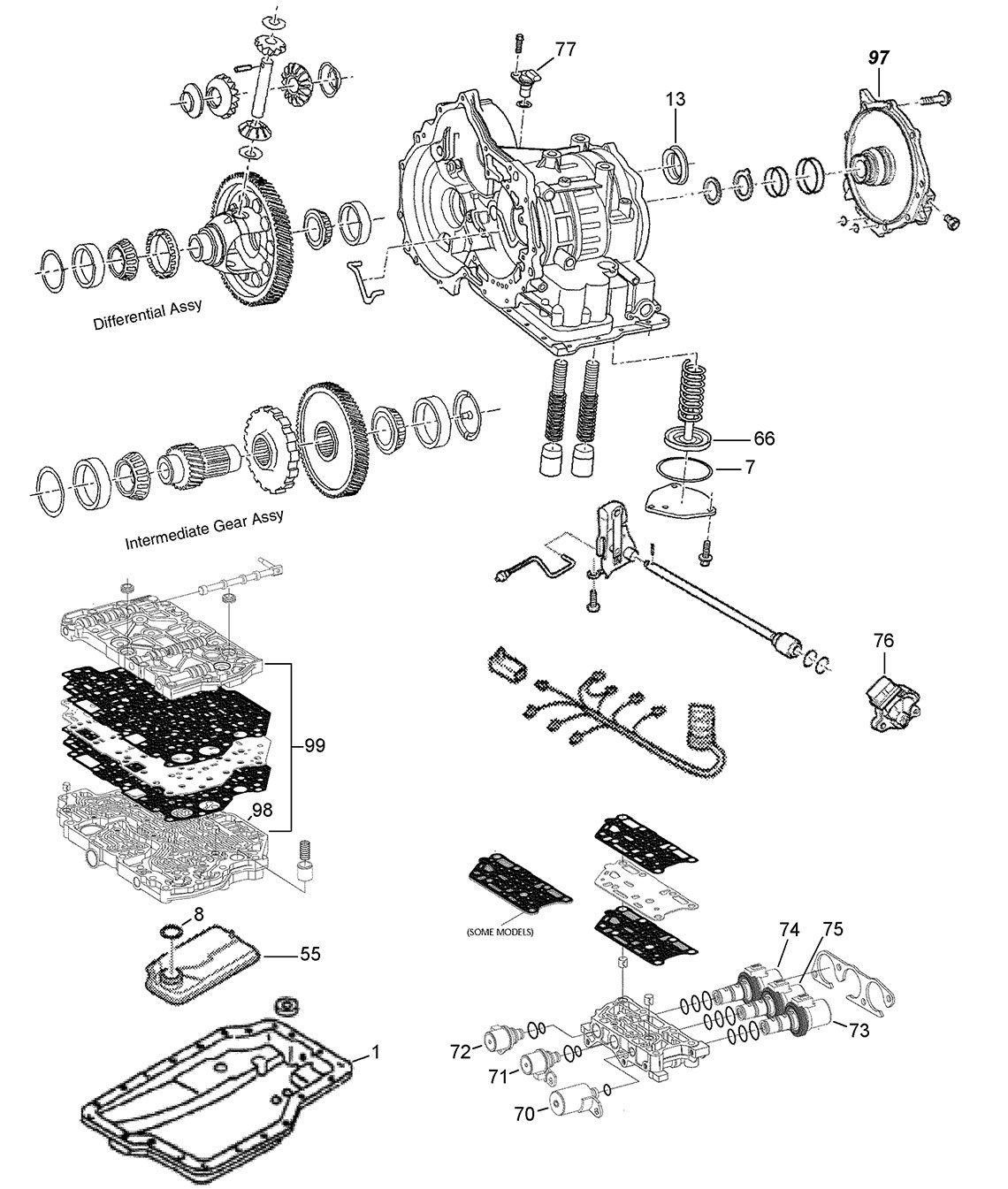

Case , Valve Body , Pan & Filter

overhaul kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	68000K	Overhaul Kit FN4A-EL* with Moulded Pistons	Transtec	99-ON	1
Kit	68000KA	Overhaul Kit FN4A-EL with Moulded Pistons	Precision	99-ON	Alt
Kit	68001K	Overhaul Kit FN4A-EL* without Moulded Pistons	Transtec	99-ON	1
Kit	68001KA	Overhaul Kit FN4A-EL without Moulded Pistons	Precision	99-ON	Alt
Kit	68002K	Overhaul Kit 4F27E Ford Focus with Moulded Pistons	Transtec	99-ON	1
Kit	68002KA	Overhaul Kit 4F27E Ford Focus with Moulded Pistons	Precision	99-ON	Alt
Kit	68003K	Overhaul Kit 4F27E Ford Focus without Moulded Pistons	Transtec	99-ON	1
Kit	68003KA	Overhaul Kit 4F27E Ford Focus without Moulded Pistons	Precision	99-ON	Alt

For Ford & Mazda in New Zealand use 68000K or 68001K.
For Ford produced in USA & Europe use 68002K or 68003K

master kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	68000KM	Master Kit FN4A-EL		99-00	1
Kit	68001KM	Master Kit FN4A-EL	Includes 68550 filter	01-ON	1
Kit	68002KM	Master Kit with Pistons, 4F27E		99-ON	1

Master Kits contain Overhaul Kit with Pistons, All Frictions, Band and Filter

gaskets

NO	PART #	DESCRIPTION	YEARS	QTY
Kit	68150K	Pump Leak Kit	99-ON	1
1G	68100	Pan Gasket Cork	99-ON	1
1G	68101	Pan Gasket Duraprene	99-ON	Alt

rubber components

NO	PART #	DESCRIPTION	YEARS	QTY
5A	68162	Pump Lathe Cut Seal 4F27E	99-ON	1
5A	76160	Pump O Ring FN4A-EL	99-ON	1
7G	68170	Servo Cover O Ring	99-ON	1
8G	68172	Filter O Ring	99-ON	1

seals

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
10A	68200	Converter Seal	40 ID x 60.2 OD x 6.00mm	99-ON	1
12A	180210	Axle Seal Righthand FN4A-EL	35 ID x 56 OD x 9.00mm	99-ON	1
12A	68210	Axle Seal Righthand 4F27E	39.5 x 56.2 x 16.60mm Metal	99-ON	1
13G	180210	Axle Seal Lefthand FN4A-EL	35 ID x 56 OD x 9.00mm	99-ON	1
13G	68210	Axle Seal Lefthand 4F27E	39.5 x 56.2 x 16.60mm Metal	99-ON	1

sealing rings

NO	PART #	DESCRIPTION	YEARS	QTY
Kit	68250K	Sealing Ring Kit	99-ON	1
NI	68260	Sealing Ring Forward & 3-4	99-ON	1
NI	68264	Sealing Ring Reverse Clutch	99-ON	1

friction plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	68300K	Friction Module, FN4A-EL/4F27E		99-ON	1
Kit	68301K	Friction Module, Late FN4A-EL		01-ON	1
Kit	68302KA	Friction Module	ALLOMATIC	02-ON	1
20B	68310	Forward	115 ODx 1.60mm x 32T	99-ON	4
22C	68314	Low-Reverse	155 OD x 1.60mm x 42T	99-ON	5
24E	68310	3rd & 4th	115 ODx 1.60mm x 32T	99-ON	3
24E	68326	3rd & 4th Internal Teeth (Single Sided Friction)	115 OD x 2.50mm x 32T	01-ON	3
25E	68328	3rd & 4th External Teeth (Single Sided Friction)	94 ID x 2.50mm x 32T	01-ON	3
26F	68322	Reverse	140 OD x 1.60mm x 32T	99-ON	2

steel & pressure plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
21B	68360	Forward	94 ID x 1.60mm x 32T	99-ON	4
23C	68364	Low-Reverse	142 ID x 1.60mm x 12T	99-ON	5
25E	68360	3rd & 4th Mazda	94 ID x 1.60mm x 32T	99-ON	3
25E	68371	3rd & 4th Ford	94 ID x 3.50mm x 32T	99-ON	3
27F	68372	Reverse	127 ID x 1.60mm x 36T	99-ON	2
32B	68390	Forward Pressure Plate Stepped	94 ID x 3.10mm x 32T	99-ON	1
32B	68398	Backing Plate Forward / Direct (FN4AEL)	94 ID x 3.90mm x 32T	99-ON	1

bushes

NO	PART #	DESCRIPTION	YEARS	QTY
Kit	68400K	Bush Kit	99-ON	1
NI	68410	Pump Body Bush	99-ON	1
NI	68411	Bush Stator	99-ON	1
NI	68412	Reverse Drum Bush	99-ON	1
NI	68449	Servo Bore Repair Bush Tool Required	99-ON	1

thrust washers & bearings

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
40B	68460	Stator to Forward Drum Plastic Thrust Washer		99-ON	1
48F	68480	Reverse Drum to End Cover Bearing FN4A-EL	27 ID x 40 OD x 2.30mm	99-ON	1
48F	68482	Reverse Drum to End Cover Bearing 4F27E	27 ID x 40 OD x 2.70mm	99-ON	1
49F	68486A	Bearing to End Cover Thrust 1.50mm	1.50mm	99-ON	AR
49F	68486B	Bearing to End Cover Thrust 1.70mm	1.70mm	99-ON	AR
49F	68486D	Bearing to End Cover Thrust 1.90mm	1.90mm	99-ON	AR
49F	68486E	Bearing to End Cover Thrust 2.10mm	2.10mm	99-ON	AR
49F	68486F	Bearing to End Cover Thrust 2.30mm	2.30mm	99-ON	AR
NI	68470	Output Gear Front & Rear 4F27E only	45 ID x 68 OD x 13.00mm	99-ON	1-2

bands

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
50F	68500	Brake Band		99-ON	1

filters

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
55G	68550	Filter		99-ON	1
55G	68552	Filter Mazda 121/Demio		99-ON	1

filter kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	68550K	Filter Kit		99-ON	1
Kit	68552K	Filter Kit Mazda 121/Demio		99-ON	1

pistons

NO	PART #	DESCRIPTION	YEARS	QTY
60B	68572	Forward Clutch Piston	99-ON	1
61B	68574	Forward Clutch Balance Piston	99-ON	1
62C	68576	Low & Reverse Piston	99-ON	1
63E	68580	3rd & 4th Clutch Balance Piston	99-ON	1
64E	68578	3rd & 4th Clutch Piston	99-ON	1
65F	68582	Reverse Clutch Piston FN4A-EL	99-ON	1
65F	68585	Reverse Clutch Piston 4F27E	99-ON	1
66G	68570	Servo Apply Piston	99-ON	1

circlips

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
640E	68640	3-4 Clutch Circlip 1.6mm		99-ON	1

electrical components

Check "Technical Information" to properly identify the solenoids for your application.

NO	PART #	DESCRIPTION	YEARS	QTY
70G	68700	Pressure Control Solenoid A	99-ON	1
71G	68708	Shift Solenoid A Ford	99-ON	1
71G	68708	Shift Solenoid D Mazda	99-ON	1
72G	68708	Shift Solenoid B Ford	99-ON	1
72G	68708	Shift Solenoid E Mazda	99-ON	1
73G	68704	Shift Solenoid C Ford	99-ON	1
73G	68704	Shift Solenoid A Mazda	99-ON	1
74G	68704	Shift Solenoid D Ford	99-ON	1
74G	68704	Shift Solenoid C Mazda	99-ON	1
75G	68704	Shift Solenoid E Ford	99-ON	1
75G	68704	Shift Solenoid B Mazda	99-ON	1
76G	68710	Inhibitor Switch Mazda 9 Pin	99-ON	1
76G	68712	Inhibitor Switch Ford	99-ON	1
76G	68714	Inhibitor Switch Mazda 6 Pin	99-ON	1
77G	68732	Turbine Speed Sensor (TSS)	99-ON	1
78A	68732	Turbine Speed Sensor (TSS)	99-ON	1
78A	68736	Output Speed Sensor (VSS) 4F27E	99-ON	1
NI	68740	OIL PRESSURE SWITCH (FNR5)	06-ON	1
NI	68742	Temperature Sensor	99-ON	1

sundry parts

NO	PART #	DESCRIPTION	YEARS	QTY
NI	68782	Adjustable Band Pin & Nut	99-ON	1
NI	68794	Oversize Pressure Valve * * Requires Reamer	99-ON	1
NI	68796	Oversize Solenoid P/REG/TC Relief Valve	99-ON	1

shift & reprogramme kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	68800K	Superior Shift Correction Package		99-ON	1
Kit	68802K	Shift Kit TransGo		99-ON	1

hard parts

NO	PART #	DESCRIPTION	YEARS	QTY
93D	68930KU	Gear Train (Used)	99-ON	1
94E	68940	3-4 (High) Clutch Drum	99-ON	1
95F	68938	Reverse Clutch Drum	99-ON	1
97G	68960	End Cover Mazda FN4A-EL OEM	99-ON	1
97G	68962R	End Cover Mazda FN4A-EL Rebuilt	99-ON	1
97G	68962R	End Cover Ford Rebuilt	99-ON	1
97G	68964	End Cover Ford OEM	99-ON	1
98G	68951	Valve Body Half (Mazda FN4A-EL) New	99-ON	1

fluids

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
NI	49991-06	Lubegard Complete Full Synthetic 5.7 Litre Pack		99-ON	AR
NI	49991-20	Lubegard Complete Full Synthetic 20 Litre Pack		99-ON	AR
