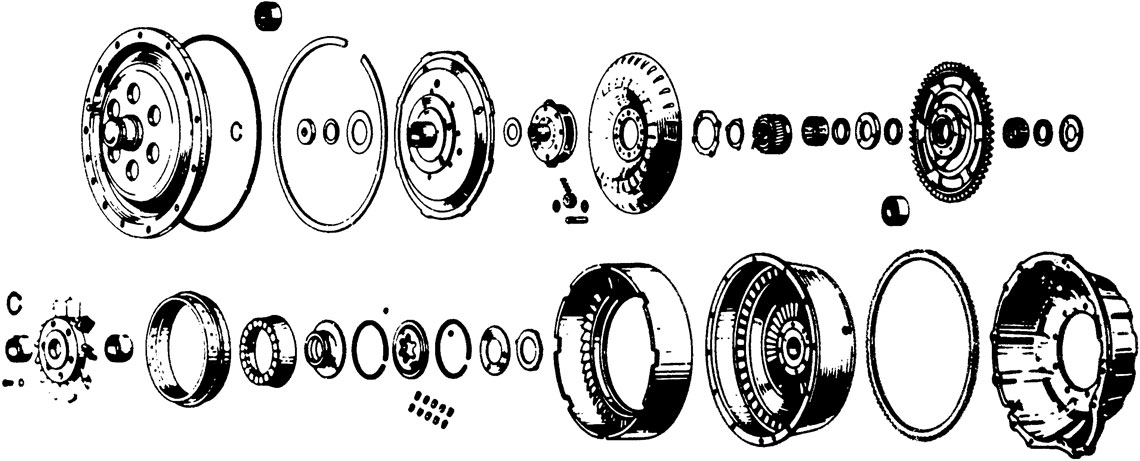

A
Torque Converter

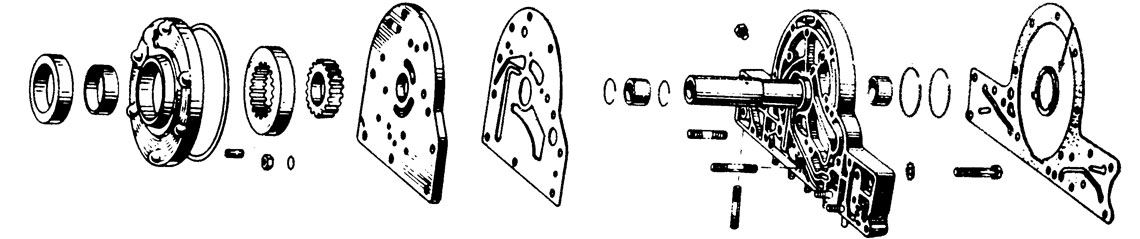

B
Front Pump & Reaction Flange
C
Front Clutch, Input Shaft & Low Band

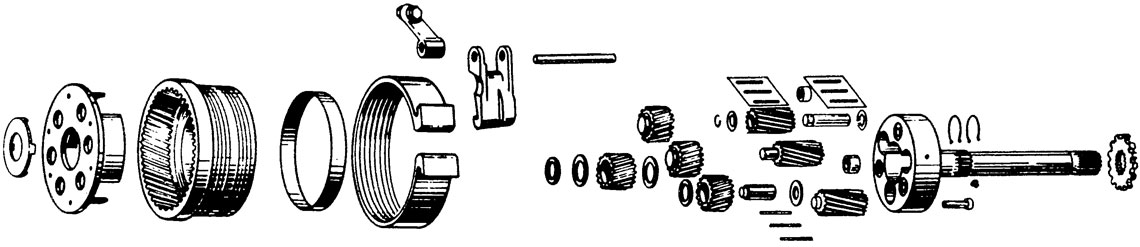

D
Reverse Drum, Band & Planetary

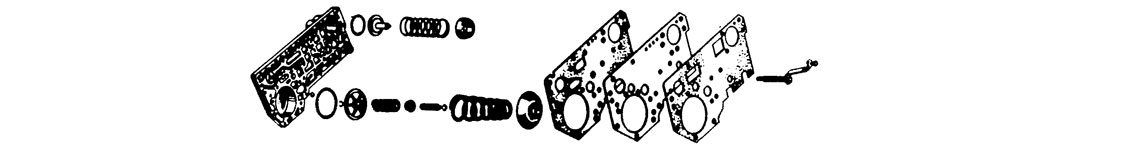

E
Servo Units

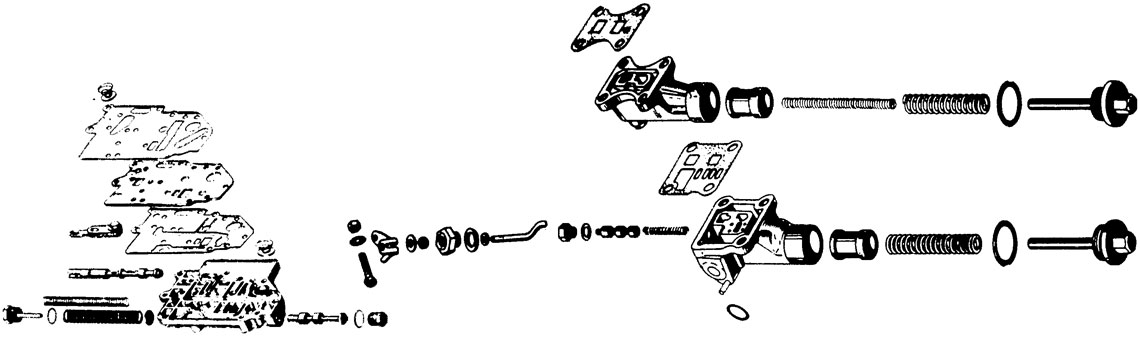

F
Valve Body & Accumulators

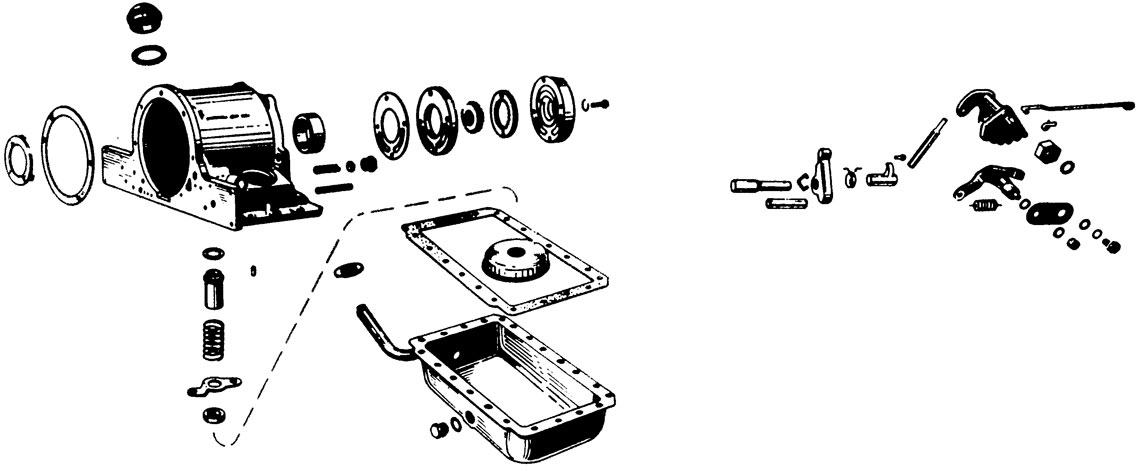

G
Case, Pan, Rear Pump & Lever Controls

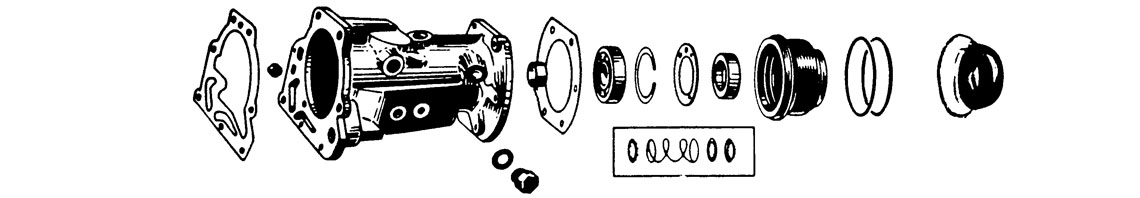

H
Extension Housing
Note – Please check stock and availability with ALLTRANZ to confirm your order. Some hard parts are available on an indent basis.
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | A99413KM | MASTER KIT (DYNAFLOW) 1948-54 | |||
| NI | A99415KM | MASTER KIT (DYNAFLOW) 1955-60 | |||
| NI | A99416KM | MASTER KIT (DYNAFLOW) 1961-1963 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | A99418K | SEAL UP KIT (DYNAFLOW) 1961-63 | |||
| NI | A99427 | O RING CONVERTER (TORUS SEAL) |
bushes
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 37410 | BUSH FRONT PUMP (TH200/700/5L40E) | 93-ON | 1 | |
| NI | A99250 | BUSH EXTN HOUSING (DYNAFLOW) | 61-63 | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | A99419K | TORQUE BALL SEAL KIT (DYNAFLOW) 1953-60 |
