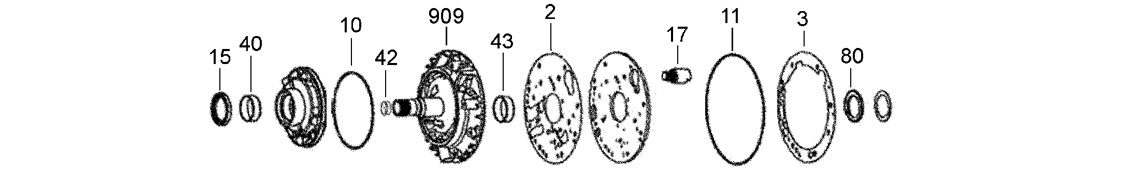

A

Pump

42
40
43
3
80
2
10
15
17
11
909

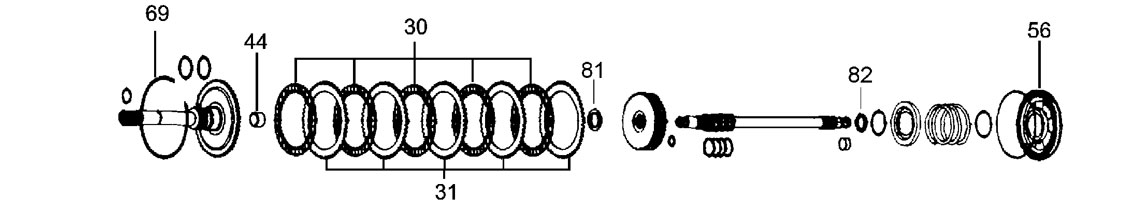

B

C1 Clutch

81
30
82
31
69
44
56

C

C4 And C2 Clutches

70
71
32
69
86
98
60
68
61
33
34
45
57
58
84
35
73

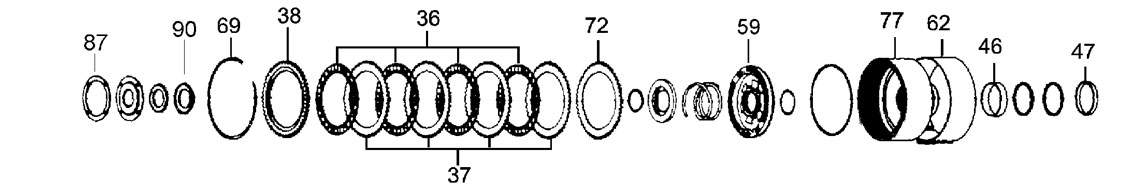

D

C3 Clutch

47
38
87
72
62
77
90
69
46
59
37
36

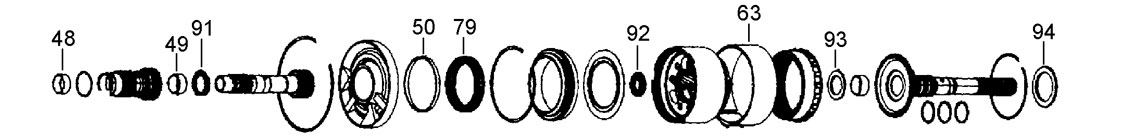

E

Planet Set

49
79
63
48
91
50
93
92
94

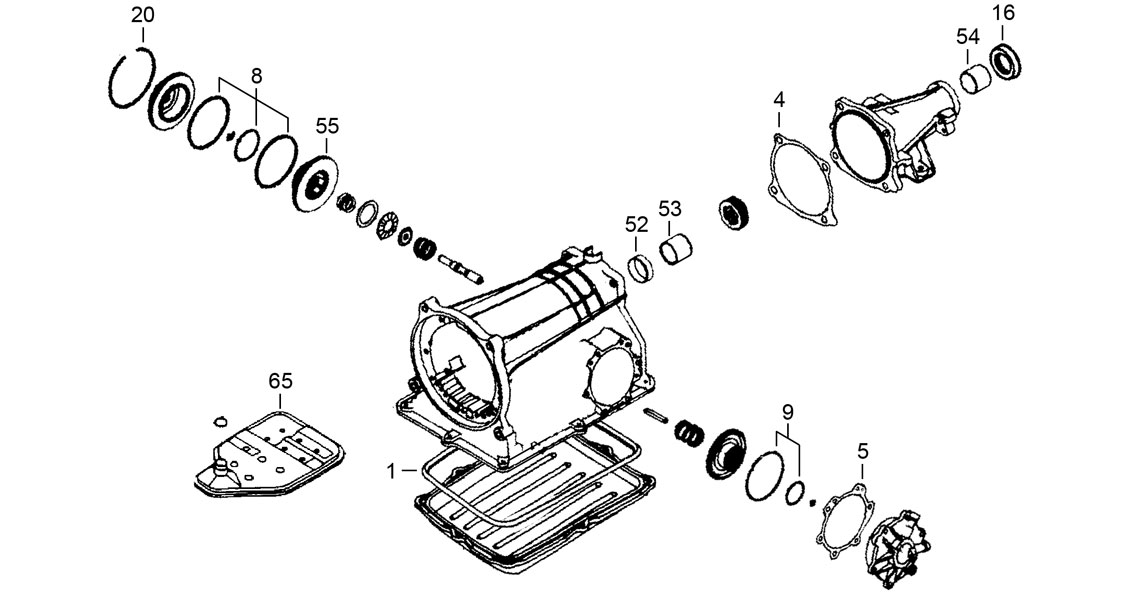

F

Case, Pan & Servos

55
65
4
52
20
54
53
9
8
1
16
5

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24004K Overhaul Kit M74 90-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24106K Extension Housing Seal Up Kit 90-ON 1
Kit 24108K Rear Servo in Car Re-Seal Kit 90-ON 1
1F 24100 Pan Gasket 90-ON 1
2A 24111A Pump Plate to Cover Gasket 90-ON 1
3A 24114 Pump Cover to Case Gasket 90-ON 1
4F 24106 Extension Housing Gasket 2WD 90-ON 1
4F 24107 Extension Housing Gasket 4WD 90-ON 1
5F 24108A Rear Servo Cover Gasket 90-ON Alt
5F 24109 Rear Servo Cover Gasket (Metal) 90-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24169K Clutch Seal Kit 90-ON 1
Kit 24199K Solenoid O Ring 90-ON 1
8F 24171K Front Servo O Ring Kit 90-ON 1
9F 24175K Rear Servo O Ring Kit 90-ON 1
10A 24161 Pump Body to Cover Lathe Cut 90-ON 1
11A 24162 Pump Cover to Case O Ring 90-ON 1
73C 24174K O Ring Kit C3 Clutch Viton Outer Seals 90-ON 1
NI 112176 Rear Servo Piston O Ring 40mm ID 90-ON 1
NI 24127 Valve Body Ball Large (White) 90-ON 1
NI 24170 Front Servo Release & Cover O-Ring 3.00mm thickness 90-ON AR
NI 24192 Filler Bung O Ring 90-ON 1
NI 24193 Converter Hub O-Ring 90-ON 1
NI 24197 O Ring Wiring Harness Small 90-ON 1
NI 35173 Speedo O Ring 90-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
15A 24200 Front Pump Seal 46 ID x 61.9 OD x 6.90mm 90-ON 1
16F 24220 Extension Housing Trans 16, 19, 34 & 43 38.5 ID x 60.3 OD x 11.80mm 90-ON 1
16F 24220-5 Extension Housing Seal, Pack of 5 38.5 ID x 60.3 OD x 11.80mm 90-ON 1
16F 24222 Extension Housing Trans 22 & 37 38 ID x 60 OD x 13.5mm 90-ON 1
16F 24224 Extension Housing Boot Seal 90-ON Alt
NI 21210 Selector Shaft 7.7 ID x 17.6 OD x 4.00mm 90-ON 2
NI 21210-2 Selector Shaft Seal, Pack of 2 90-ON 1
NI 24230 Adaptor Housing Seal Trans 12, 13, 4, 15, 30, 31, 32, 33 31.5 ID x 44.8 OD x 6.60mm 90-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24250K Sealing Ring Kit - No C3 Cast RIngs 90-ON 1
NI 24273 Sealing Ring Overdrive Shaft Small 90-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24352KA Friction Kit 90-ON 1
Kit 24354K Friction Kit 90-ON 1
30B 24312A C1 Clutch Friction Plate, A/M 126.4 OD x 2.00mm x 46T 90-ON 5
30B 24314 C1 Clutch Friction Plate Hi Energy 126.4 OD x 2.00mm x 46T 90-ON 5
32C 24320A C4 Clutch Friction Plate, Tan 117 OD x 2.00mm x 41T 90-ON Alt
34C 24312A C2 Clutch Friction Plate, A/M 126.4 OD x 2.00mm x 46T 90-ON 5
34C 24314 C2 Clutch Friction Plate Hi Energy 126.4 OD x 2.00mm x 46T 90-ON 5
36D 24312A C3 Clutch Friction Plate, A/M 126.4 OD x 2.00mm x 46T 90-ON 4
36D 24314 C3 Clutch Friction Plate Hi Energy 126.4 OD x 2.00mm x 46T 90-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 24362 C1 Clutch Steel Plate 102 ID x 2.00mm x 52T 90-ON AR
31B 24364 C1 Clutch Steel Plate 102 ID x 2.25mm x 52T 90-ON 2
31B 24365 C1 Clutch Steel Plate 102 ID x 2.30mm x 52T 90-ON AR
31B 24366 C1 Clutch Steel Plate 102 ID x 2.50mm x 52T 90-ON 2
33C 24370A C4 Clutch Steel Plate 91 ID x 1.40mm x 56T 90-ON AR
33C 24370B C4 Clutch Steel Plate 91 ID x 1.70mm x 56T 90-ON AR
33C 24370C C4 Clutch Steel Plate 91 ID x 1.80mm x 56T 90-ON AR
33C 24370D C4 Clutch Steel Plate 91 ID x 2.20mm x 56T 90-ON AR
33C 24370E C4 Clutch Steel Plate 91 ID x 2.30mm x 56T 90-ON AR
35C 24360 C2 Clutch Steel Plate 102 ID x 1.80mm x 52T 90-ON AR
35C 24362 C2 Clutch Steel Plate 102 ID x 2.00mm x 52T 90-ON 2
35C 24364 C2 Clutch Steel Plate 102 ID x 2.25mm x 52T 90-ON 2
35C 24365 C2 Clutch Steel Plate 102 ID x 2.30mm x 52T 90-ON AR
35C 24366 C2 Clutch Steel Plate 102 ID x 2.50mm x 52T 90-ON 2
37D 24362 C3 Clutch Steel Plate 102 ID x 2.00mm x 52T 90-ON AR
37D 24364 C3 Clutch Steel Plate 102 ID x 2.25mm x 52T 90-ON 2
37D 24365 C3 Clutch Steel Plate 102 ID x 2.30mm x 52T 90-ON AR
37D 24366 C3 Clutch Steel Plate 102 ID x 2.50mm x 52T 90-ON 2
38D 24396 C3 Pressure Plate 102 ID x 4.50mm x 52T 90-ON 1
70C 24372 C4 Wave Washer 90-ON 1
71C 24368 C2 Wave Washer 90-ON 1
72D 24374 C3 Wave Washer 90-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24426K Reverse Sungear Front & Rear Bush Kit 90-ON 1
40A 24410 Pump Body Bush 46.13 ID x 49.28 OD x 15.10mm 90-ON 1
42A 24414 Stator Support Front 90-ON 1
43A 24416 Pump Cover Rear 90-ON 1
44B 24418 Input Shaft 90-ON 1
45C 24420 C1, C2, C4 Clutch Cylinder Bush 90-ON 1
46D 24423 C3 Clutch Cylinder Front 90-ON 1
47D 24425 C3 Clutch Cylinder Rear 90-ON 1
48E 24426 Reverse Sungear Front 90-ON 1
49E 24428 Reverse Sungear Rear 90-ON 1
50E 24430 Centre Support 90-ON 1
52F 24432 Case 90-ON 1
53F 24434 Case Sleeve 90-ON 1
54F 24440 Extension Housing Bronze 90-ON 1
54F 44432 Extension Housing Babbit 38.2 ID x 41.3 OD x 38.00mm 90-ON Alt
NI 44440 Gear Linkage Bush (.4840" OD) 90-ON AR
NI 44442 Gear Linkage Bush (.5310" OD) 90- AR

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
80A 24460 Pump to Input Shaft Needle Bearing 42.8 ID x 62.6 OD x 3.65mm 90-ON 1
81B 24462 C1 Clutch Hub to Input Shaft Bronze 22 ID x 37.5 OD x 1.60mm 90-ON 1
82B 24464 Overdrive Shaft to Forward Sungear Spacer 90-ON 1
84C 24466 C1, C2 Cylinder to C4 Clutch Hub Thrust 34.8 ID x 48 OD x 6.00mm 90-ON 1
86C 24470 C4 Hub to C2 Hub & Outer Race Assembly Nylon Washer 64.1 ID x 80 OD x 1.90mm 90-ON 1
87D 24470 C2 Hub to Thrust Plate Inner Race 64.1 ID x 80 OD x 1.90mm 90-ON 1
90D 24474 Needle Bearing to Reverse Sungear Plate 90-ON 1
91E 24494 Forward Sungear to Reverse Sungear Bearing (3 pieces) 32 ID x 44.5 OD x 3.90mm 90-ON 1
92E 24482 Forward Sungear to Planet Cover Bearing 22.5 ID x 43.4 OD x 4.30mm 90-ON 1
93E 21490 Planet to Output Shaft Bearing 35 ID x 55 OD x 3.00mm 90-ON 1
NI 24478A Bearing Forward to Reverse Sungear 90-ON 1
NI 33466 Planet to Output Shaft Thrust Plate 90-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
62D 24500 Front Band Flex Trans 14, 15, 16, 19, 32, 33, 34, 42 & 43 90-ON 1
62D 24500A Front Band Flex Trans 14, 15, 16, 19, 32, 33, 34, 42 & 43 A/M 90-ON 1
62D 24502 Front Band Flex Trans 12, 13, 22, 30, 31 & 37 90-ON 1
63E 24518 Rear Band All 90-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
65F 24550 Filter 90-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
55F 24570 Front Servo Piston with Belville Spring 90-ON 1
56B 24571 C1 Clutch Piston 90-ON 1
57C 24572 C2 Clutch Piston 90-ON 1
58C 24574 C4 Clutch Piston 90-ON 1
59D 24573 C3 Clutch Piston 90-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
20F 24632 Front Servo Outer Snap Ring 90-ON 1
69B 24630 Outer Snap Ring C1 90-ON 1
69C 24630 Outer Snap Ring C2 90-ON 1
69D 24630 Outer Snap Ring C3 90-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
60C 24680 C4 Piston Return Spring Retainer 90-ON 1
61C 24682 C4 Piston Return Spring Retainer Snap Ring 90-ON 1
79E 24652 Rear Sprag 90-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 24702 S5 Solenoid Pressure Control 90-ON Alt
NI 24710 Inhibitor Switch, White 02-ON 1
NI 24712 Inhibitor Switch Black Trans Codes 30 to 34, 37, 42 & 43 02-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
98C 24768 C2 Clutch Actuating Sleeve 90-ON 1
NI 112775 Breather 90-ON 1
NI 21753 Speedo Clip 90-ON 1
NI 24753 Speedo Clip 90-ON 1
NI 24770 Retainer Plate S5 Solenoid 90-ON 1
NI 24772 Pin Selector Shaft 90-ON 2
NI 24775 Filler Bung 90-ON 1
NI 24775A Filler Bung - Extra Long Thread 90-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24984 Planet Set & Output Shaft 90-ON 1
Kit 24999 Internal Parts Package 90-ON 1
68C 24931 C1/C2/C4 Cylinder 90-ON 1
77D 24951 C3 Clutch Cylinder 90-ON 1
909A 24909C Pump Stator 90-ON 1
NI 24992 Lever Manual Detent 90-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49912 Must also use Yellow Lubegard 90-ON 1
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
NI 49999-04 Dexron III 4 Litre 90-ON AR
