SOLENOID TEST MANIFOLD KIT (8HP45/55/70)
# 121774K

Solenoid Test Manifold Kit

SOLENOID TEST MANIFOLD KIT (8HP45/55/70)

Warning:

Sonnax test manifold kit tests internal mechanical sealing ability only; it does not test the integrity of the electrical coil and contacts. See instructions for details.


The leading cause of solenoid failure in ZF8HP45, ZF8HP55, ZF8HP70 and Chrysler 845RE units is an inability to maintain an internal mechanical seal, resulting in a multitude of drivability concerns. Since it is not an electrical failure, it can be difficult to evaluate whether a solenoid is the cause of a particular problem.

This Sonnax solenoid test manifold kit allows quick, easy, cost-effective pass/fail verification of the solenoid's internal sealing integrity, taking the guess work out of replacing solenoids.

  • Must be used with Sonnax vacuum test stand TVACTEST
  • Test solenoid sealing reliability with vacuum by inserting solenoid snout into Sonnax test manifold

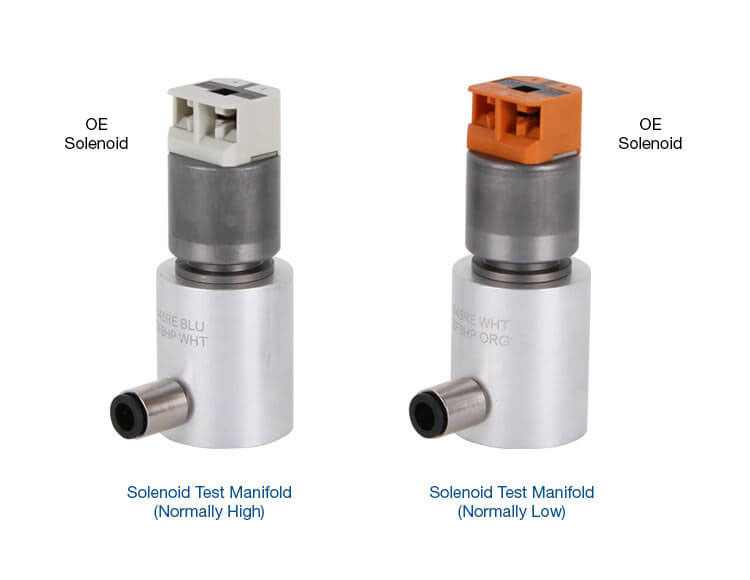

Contains:

  • Manifold 845RE BLU/ ZF8HP WHT
  • Manifold 845RE WHT/ ZF8HP ORG

121774K Instruction Sheet


Sonnax Roadshow Part 4. Additional Valve Body Repair Issues

Type of Product: Sundry Parts
Qty Needed:
Years:
Alternative #:
