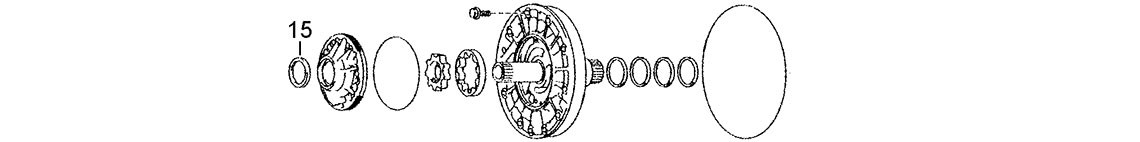

A

Pump

15

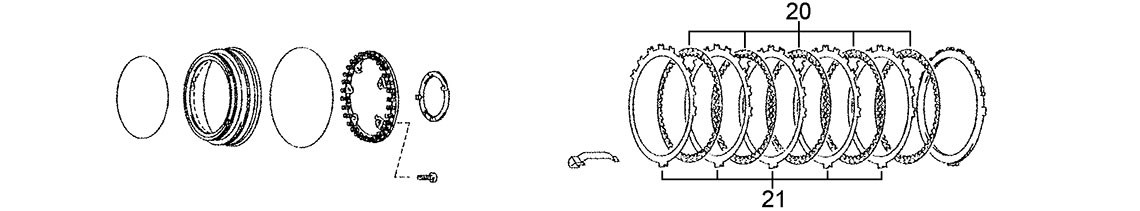

B

B1 Brake (2nd & 8th)

20
21

C

C3 Clutch (3rd & 7th)

23
22

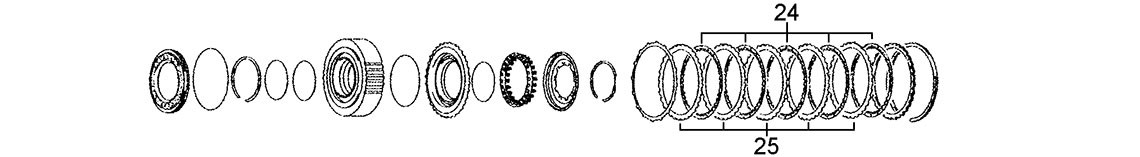

D

C4 Clutch (4th & 6th)

25
24

E

Front Planet

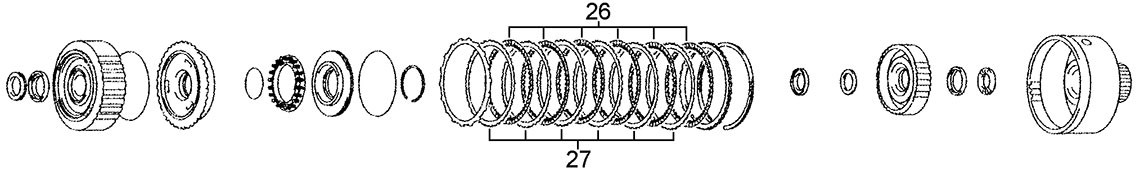

F

C1 Clutch (1st, 2nd, 3rd, 4th & 5th)

27
26

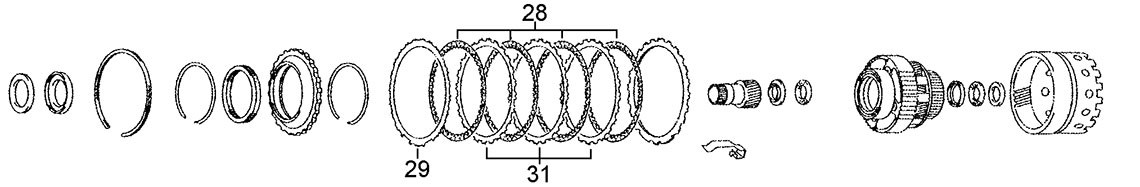

G

F1 One Way Clutch, 2nd Brake (Reverse) & Rear Planet

29
31
28

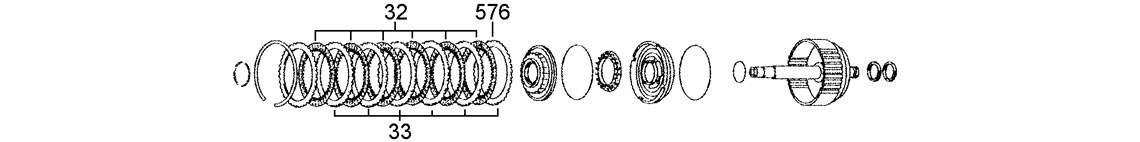

H

C2 Clutch (5th, 6th, 7th & 8th)

576
33
32

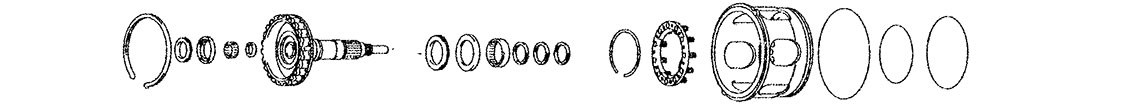

J

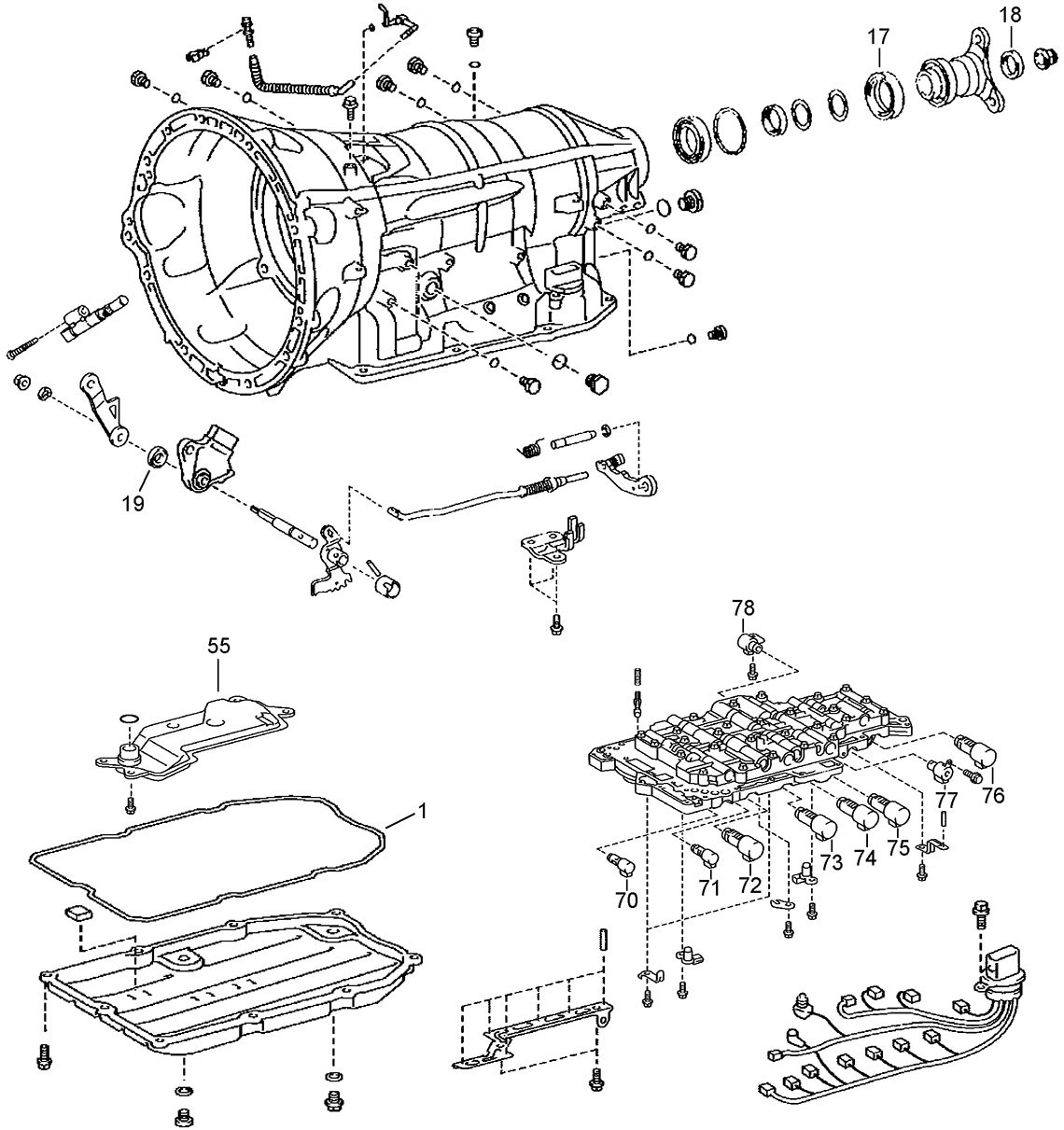

K

Case, Pan, Filter & Valve Body

74
72
77
71
73
75
78
76
55
1
19
17
18
70

overhaul kits

We provide cost effective sourcing for OE parts.
To obtain a quote please provide Registration or VIN No

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 108000K Overhaul Kit AA80E, TL-80SN 07-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1K 108100 Pan Gasket 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
15A 106200 Converter Seal 45 ID x 62.2 OD x 6.00mm 07-ON 1
17K 108220 Extension Housing Seal 07-ON 1
18K 108226 Yoke Flange Seal 32.5 ID x 41 OD x 6.5mm 07-ON 1
19K 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 108310 B1 Brake 2nd & 8th 203 OD x 1.88mm x 36T 07-ON 5
22C 108314 C3 Clutch 3rd & 7th 177 OD x 2.05mm x 36T 07-ON 4
24D 108318 C4 Clutch 4th & 6th 147 OD x 1.87mm x 36T 07-ON 5
26F 108322 C1 Clutch 1st, 2nd, 3rd, 4th & 5th 167 OD x 1.80mm x 48T 07-ON 6
28G 108326 B2 Brake Reverse 180 OD x 1.52mm x 50T 07-ON 4
32H 102328 C2 Clutch 5th, 6th, 7th & 8th 137mm OD x 2.03mm x 42T 07-ON 6
32H 108328 C2 Friction 5th, 6th, 7th & 8th 07-ON AR

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 108360 B1 Brake 2nd & 8th 178 ID x 2.00mm x 10T 07-ON 5
23C 108364 C3 Clutch 3rd & 7th 156 ID x 2.00mm x 36T 07-ON 4
25D 108368 C4 Clutch 4th & 6th 133 ID x 2.00mm x 32T 07-ON 5
27F 108372 C1 Clutch 1st, 2nd, 3rd, 4th & 5th 151 ID x 2.03mm x 36T 07-ON 6
29G 108377 B2 Brake Reverse 164 ID x x 1.80mm x 24T 07-ON 1
31G 108376 B2 Brake Reverse 164 ID x 191 OD x 1.80mm x 24T 07-ON 4
33H 102378 C2 Clutch 5th, 6th, 7th & 8th 114mm ID x 2.03mm x 36T 07-ON 6

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55K 108550 Filter 07-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 108550K Filter Kit 07-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
576H 108576 Balance Piston Reverse Clutch 07-ON 1

electrical components

Please call with Chassis No to enable us to check correct Electrical Components are supplied

Some Solenoids may require Special Order
