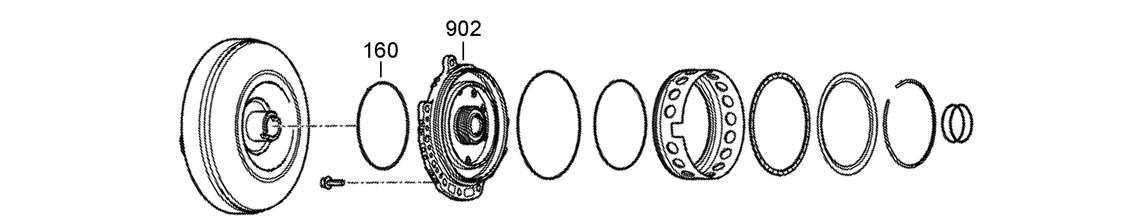

A
Torque Converter, Oil Pump & Chain
160
902
B

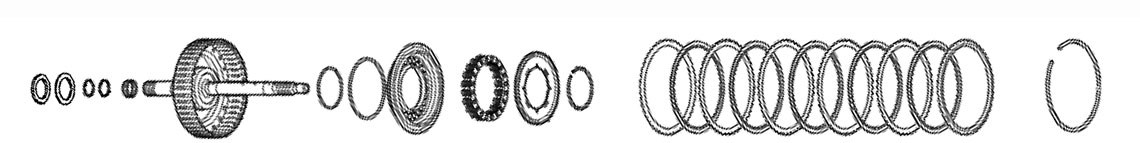

Overdrive Clutch Assembly

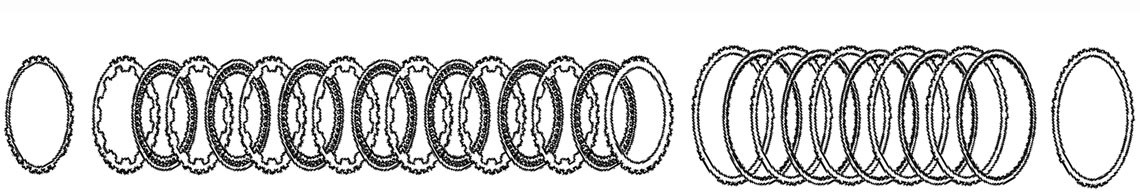

C
Low & Reverse Brake
D

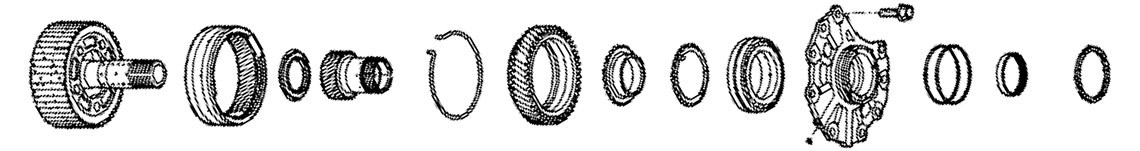

Front Planetary and Sungear & Centre Support Assembly

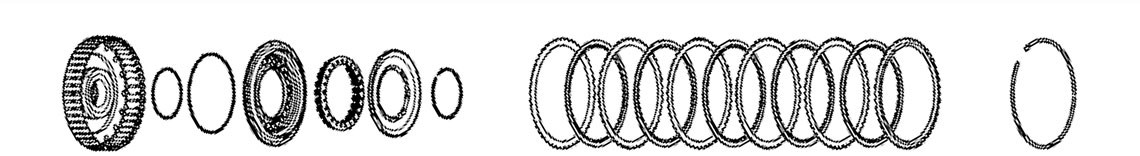

E
Underdrive Clutch Assembly

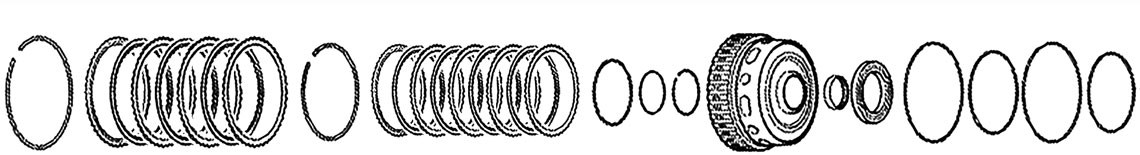

F
2-8 Brake, 3-7-Reverse & 4-6 Clutch Assembly

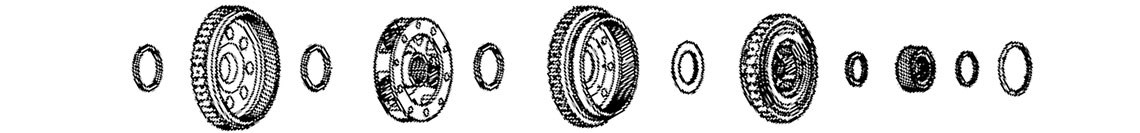

G
Middle & Rear Planetary

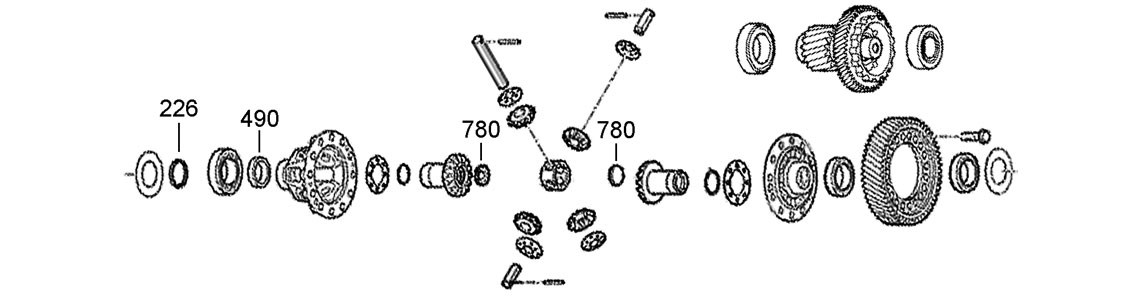

H
Transfer Gear & Diff Assembly
226
490
780
780

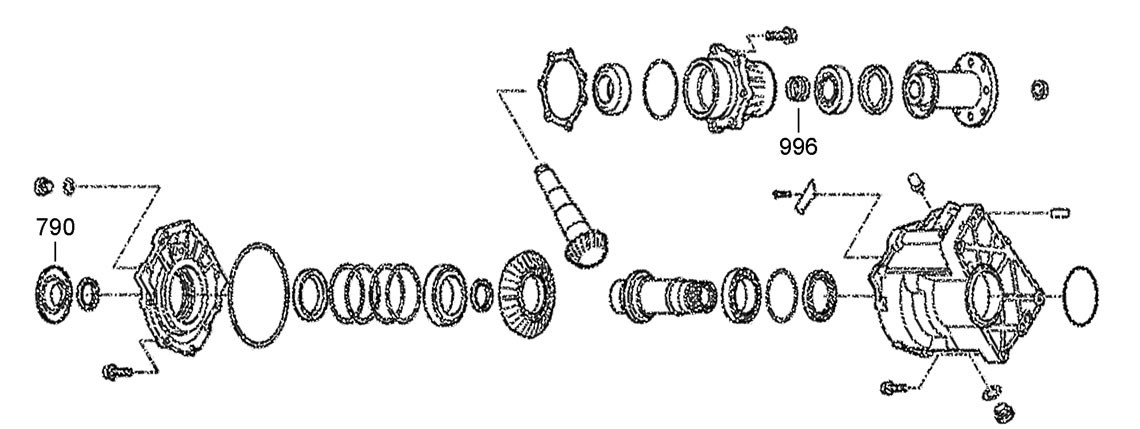

J
Transfer Assembly
790
996

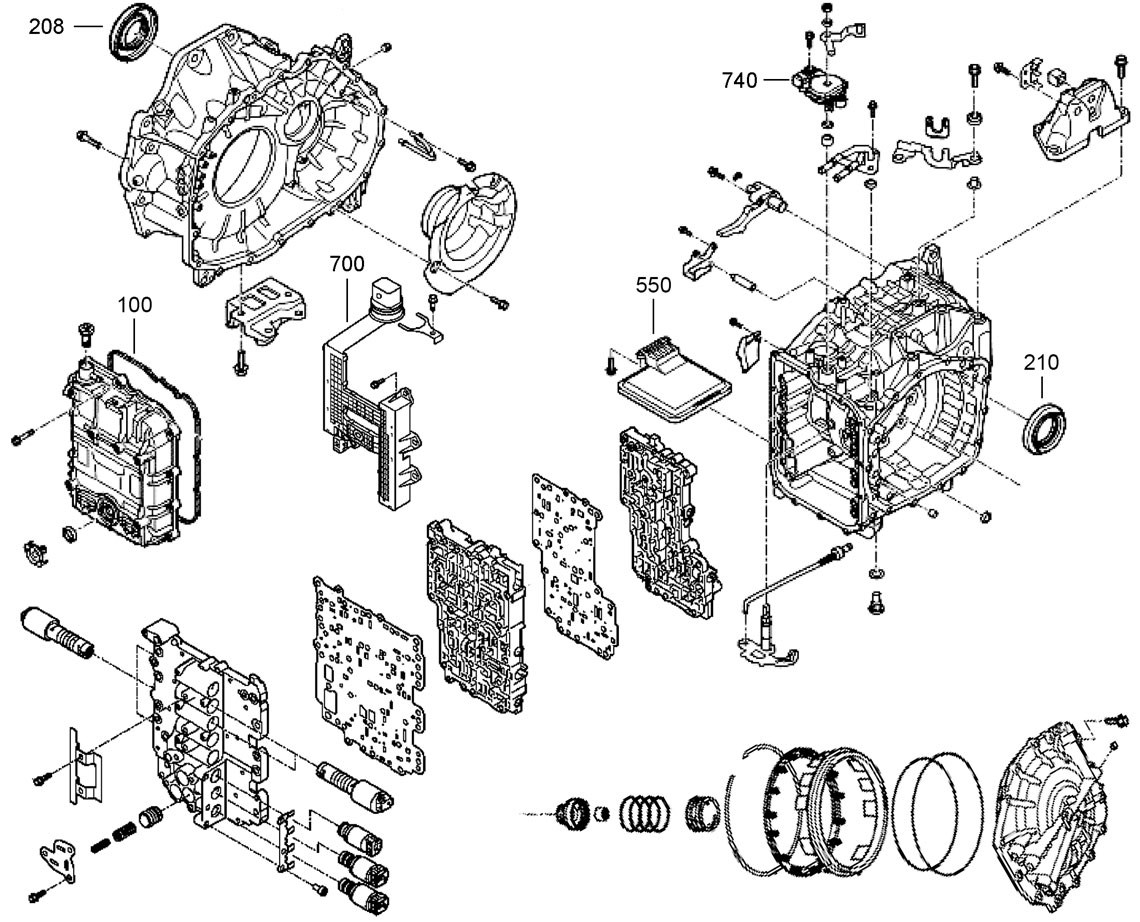

K
Case Assembly, Valve body & Components
100
700
208
550
740
210
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 208K | 115220 | Righthand Axel Seal | 63 ID x 82 OD x 10.00mm | 10-ON | 1 |
| 208K | 151208 | Righthand Axel Seal | 40 ID x 74 OD x 10/17.00mm | 18-ON | 1 |
| 210K | 115210 | Lefthand Axel Seal | 40 ID x 70 OD x 10.00mm | 10-ON | 1 |
| 226H | 115226 | Axle Seal Righthand Inner | 37 ID x 47 OD x 5.00mm | 10-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 490H | 115490 | Diff Carrier Needle Bearing | 40 ID x 44.8 OD x 17.00mm | 09-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 700K | 151700 | Wiring Loom | 18-ON | 1 | |
| 740K | 151740 | Inhibitor Switch | 18-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 780H | 115780 | Blanking Cap | 30 ID x 34 OD x 5.00mm | 10-ON | 2 |
| 790J | B115790 | Dust Cover | 10-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 902A | 151902 | Oil Pump Assembly | 18-ON | 1 | |
| 996J | B151996 | Transfer Case Bearing Spacer | 18-ON | 1 |
