A

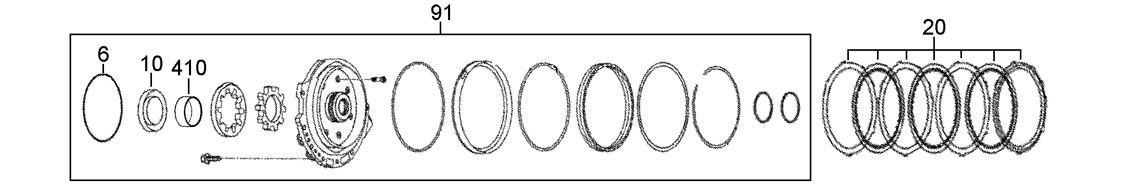

Pump & 2-6 Brake

20
6
91
10

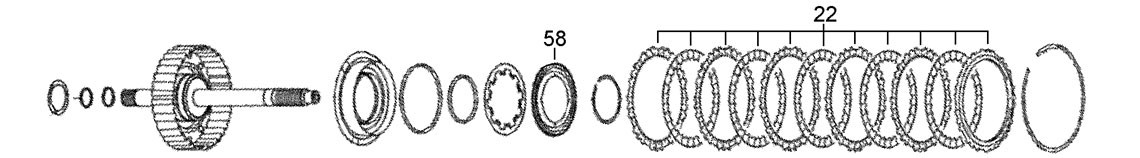

B

3-5-Reverse Clutch

22
58

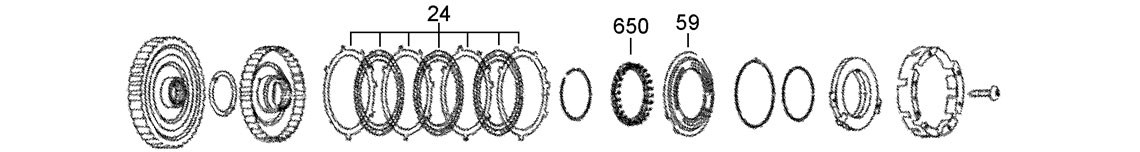

C

Underdrive Brake

24
59

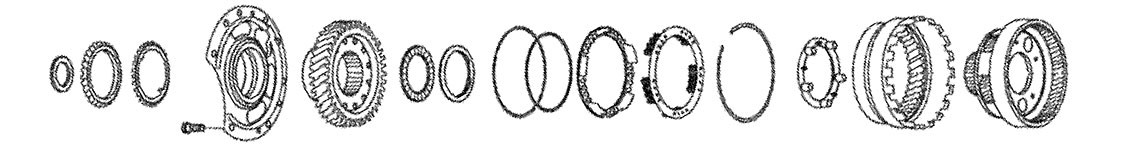

D

Reverse Piston & Front Planet

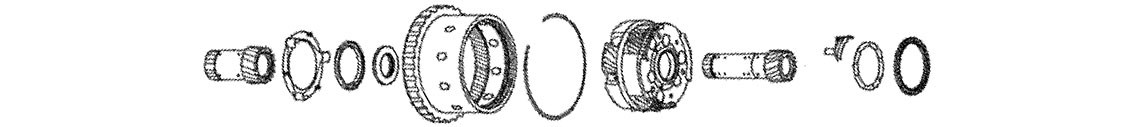

E

Front Sungear, Centre & Rear Planets

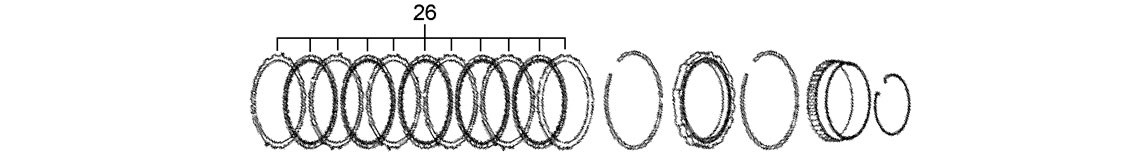

F

Low & Reverse Brake

26

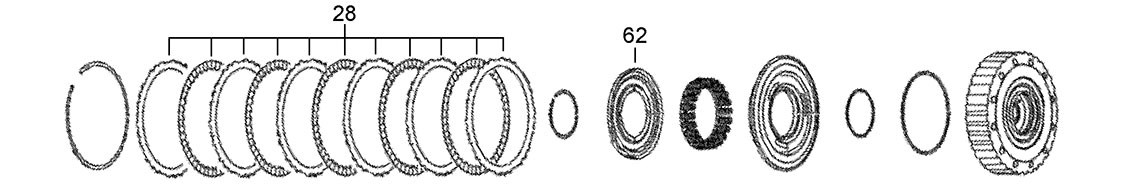

G

Overdrive Clutch

62
28

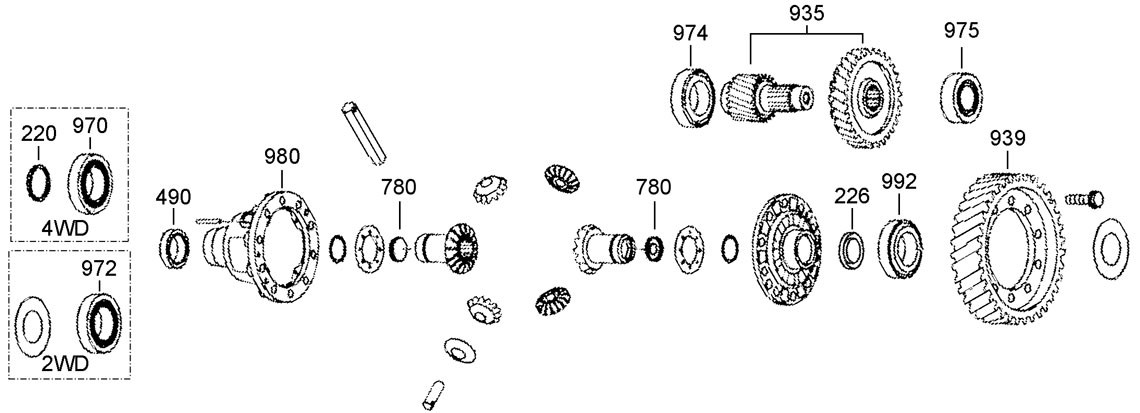

H

Transfer Gear & Diff Assembly - VIN Required

220
972
980
780
780
970
490
974
935
975
226
992
939

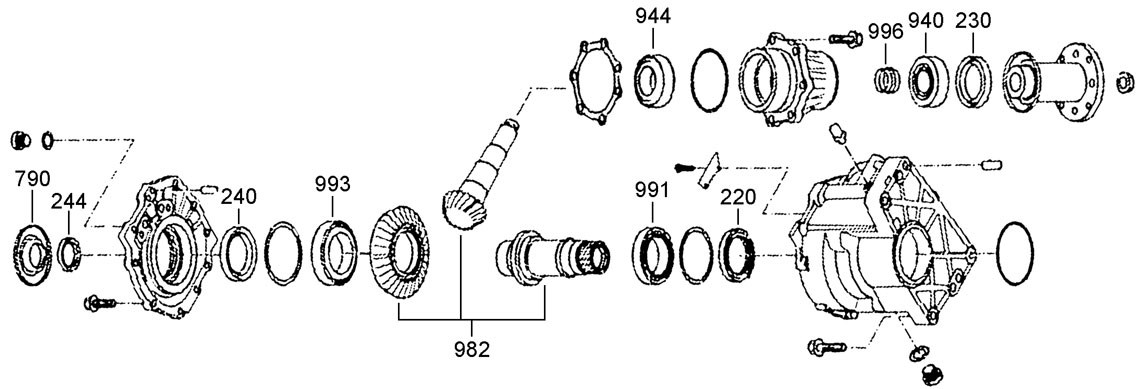

J

Transfer Assembly - VIN Required

790
244
240
993
982
991
220
944
996
940
230

K

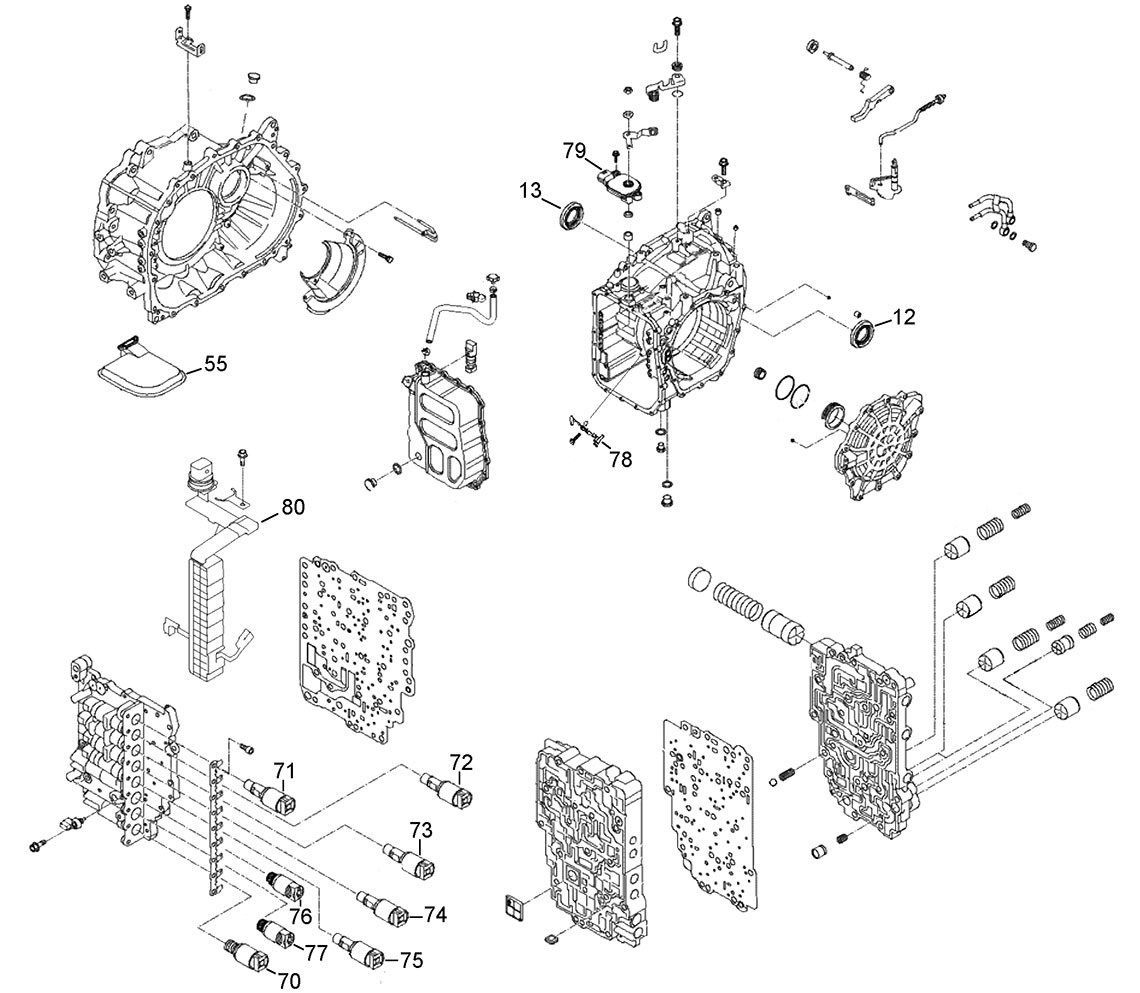

Case, Filter & Valve Body

71
70
77
76
75
74
73
72
80
78
55
12
13
79

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 114170K O Ring Kit 10-ON 1
Kit 114175K Solenoid O Ring Kit 10-ON 1
6A 114160 Pump O Ring 10-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 114200 Front Pump Seal 43 ID x 60 OD x 6.00mm 10-ON 1
12K 114210 Axle Seal Lefthand 37 x 64 x 10 x 17mm 10-ON 1
12K 115210 Axle Seal Lefthand 40 ID x 70 OD x 10.00mm 10-ON 1
13K 114216 Axle Seal Righthand 2WD 37 x 67 x 10 x 17mm 10-ON 1
13K 114218 Axle Seal Righthand AWD 61 ID x 79 OD x 10.00mm 10-ON 1
13K 115214 Axle Seal Righthand 2WD 40 ID x 74 OD x 10.00mm 10-ON 1
220H 114220 Transfer Shaft Seal 34 ID x 44 OD x 7.00mm 10-ON 1
220J 20220 Seal Axle Righthand 54 ID x 73 OD x 8.00mm 10-ON 1
220J B115233 Seal Axle Righthand 54 ID x 73 OD x 8.00mm 10-ON 1
220J B115234 Seal Axle Righthand 61 ID x 79 OD x 10.00mm 10-ON 1
226H 115226 Axle Seal Righthand Inner 37 ID x 47 OD x 5.00mm 10-ON 1
230J B115230 Output Seal Righthand Drive Shaft 45 ID x 69 OD x 8.00mm 10-ON 1
230J B115232 Output Seal Righthand Drive Shaft 45 ID x 69 OD x 16.00mm 10-ON 1
240J B115240 Pinion Seal 56 ID x 76 OD x 9.00mm 10-ON 1
240J B115242 Pinion Seal 45 ID x 69 OD x 8.00mm 10-ON 1
244J B115244 Pinion Seal 34 ID x 49 OD x 7.00mm 10-ON 1
244J B115245 Pinion Seal 34 ID x 49 OD x 9.00mm 10-ON 1
NI 131230 Manual Shaft Seal 14 ID x 20 OD x 4mm 10-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 114250K Sealing Ring Kit 10-ON 1

friction plates

Friction Plates are only available as a Clutch Kit.
Individual Plates will be added as they become Available

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
NI 114390D 2-6 Brake Top Pressure Plate 158mm ID x 2.30mm x 7T 10-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
490H 114490 Diff Carrier Needle Bearing, 4WD 38 ID x 42 OD x 17.00mm 10-ON 1
490H 115490 Diff Carrier Needle Bearing, 4WD 40 ID x 44.8 OD x 17.00mm 10-ON 1
490H 115974 Diff Carrier Needle Bearing, 2WD 54.5 ID x 85 OD x 22.00mm 10-ON 1
940J B115940 Transfer Case Bearing 30 ID x 68 OD x 22.00mm 10-ON 1
940J B115941 Transfer Case Bearing 30 ID x 68.2 OD x 22.80mm 10-ON 1
940J B115942 Transfer Case Bearing 10-ON 1
944J B115944 Transfer Case Bearing 39 ID x 75 OD x 27.00mm 10-ON 1
944J B115945 Transfer Case Bearing 75 OD x 39.9 ID x 27.20mm 10-ON 1
970H 114970 Transfer Driven Gear Bearing, 4WD 62 ID x 90 OD x 16.00mm 10-ON 1
970H 114972 Transfer Driven Gear Bearing, 4WD 50 ID x 80 OD x 20.00mm 10-ON AR
970H 115976 Transfer Driven Gear Bearing, 4WD 64 ID x 93 OD x 22.00mm 10-ON 1
972H 114972 Transfer Driven Gear Bearing, 2WD 50 ID x 80 OD x 20.00mm 10-ON 1
972H 115974 Transfer Driven Gear Bearing, 2WD 54.5 ID x 85 OD x 22.00mm 10-ON 1
972H B115990 Transfer Driven Gear Bearing, 2WD 54.5 ID x 80 OD x 17.50mm 10-ON 1
974H 113936 Transfer Gear Inner Bearing 10-ON 1
974H 114936 Transfer Gear Inner Bearing 32 ID x 65 OD x 22.00mm 10-ON 1
974H 114937 Transfer Gear Inner Bearing 35 ID x 65 OD x 20.00mm 10-ON 1
974H 115970 Transfer Gear Inner Bearing 47 ID x 80 OD x 17.00mm 10-ON 1
974H 115971 Transfer Gear Inner Bearing 48 ID x 80 OD x 20.00mm 10-ON 1
975H 113934 Transfer Gear Outer Bearing 10-ON 1
975H 114934 Transfer Gear Outer Bearing 45 ID x 75 OD x 20.00mm 10-ON 1
975H 115975 Transfer Gear Outer Bearing 59.5 ID x 90 OD x 23.50mm 10-ON 1
975H 115977 Transfer Gear Outer Bearing 35 ID x 68 OD x 21.00mm 10-ON 1
975H 115978 Transfer Gear Outer Bearing 65 ID x 93 OD x 17.5mm 10-ON 1
991J B115990 Transfer Pinion Bearing 54.5 ID x 80 OD x 17.50mm 10-ON 1
992H 114972 Transfer Gear Bearing 50 ID x 80 OD x 20.00mm 10-ON 1
992H B115992 Transfer Gear Bearing 57 ID x 87.5 OD x 20.00mm 10-ON 1
993J B115992 Transfer Pinion Bearing 57 ID x 87.5 OD x 20.00mm 10-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55K 114550 Filter 10-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 114570K Piston Kit 10-ON 1
58B 114574 3-5-Reverse Balance Piston 10-ON 1
59C 114576 Underdrive Brake Piston (Alloy) 10-ON 1
62G 114580 Overdrive Balance Piston 10-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 115802K Shift Kit, Tool Required 10-ON 1

hard parts

Please provide VIN No when ordering the above parts.

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
NI 114940 Valve Body Complete 10-ON 1

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-A4A6-RV-TK Toolkit for 115802K 10-ON 1
NI TF-102741-TL13 Tool for 115772K 10-ON 1
