A

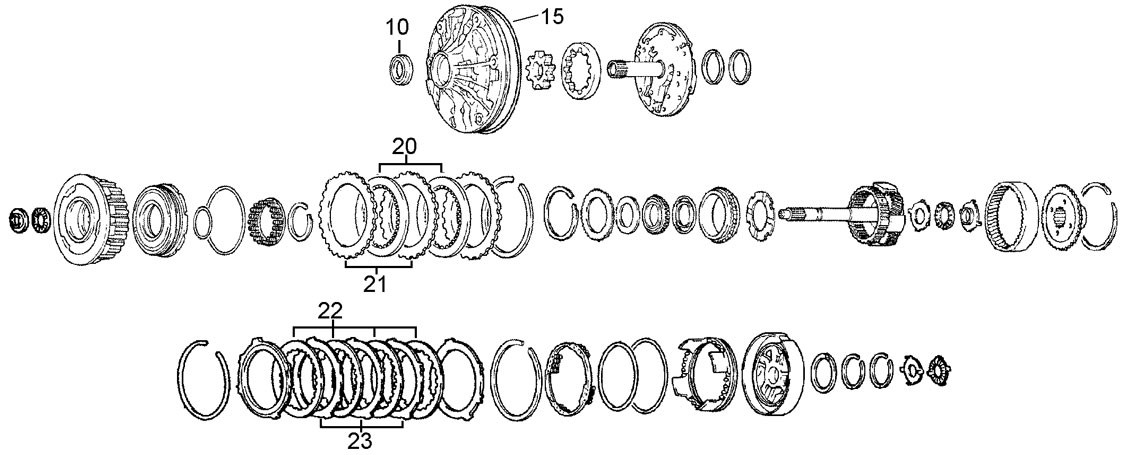

Pump, Overdrive Brake & Overdrive Direct Clutch

10
15
20
21
22
23

B

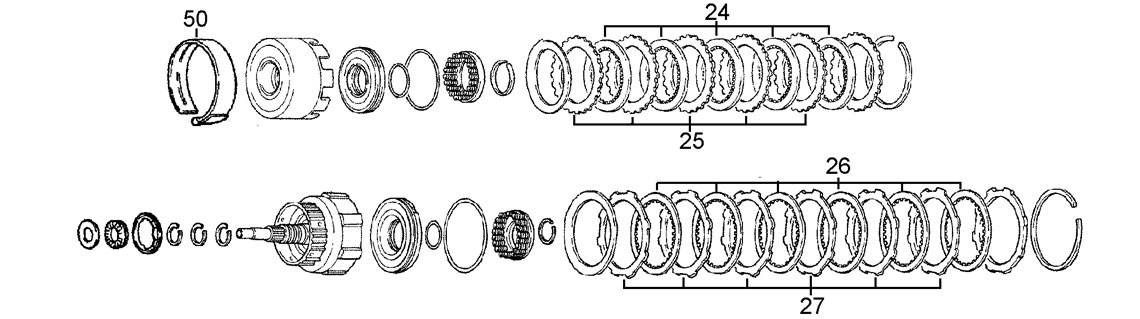

Direct And Forward Clutches

27
25
26
24
50

C

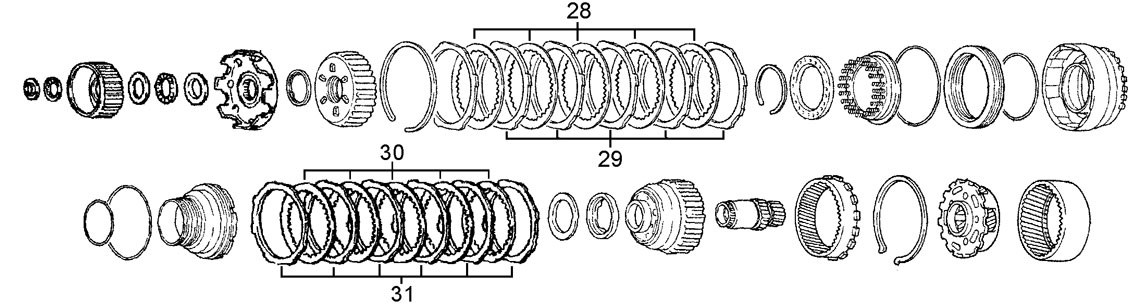

3rd & 2nd Brake And Front Planet

29
30
31
28

D

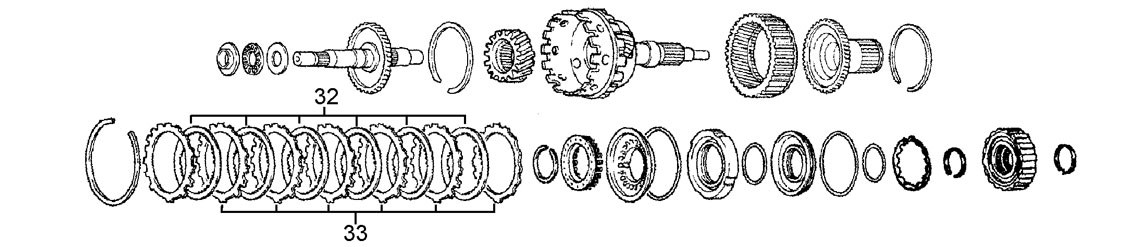

Centre & Rear Planets And Low Reverse Brake

33
32

E

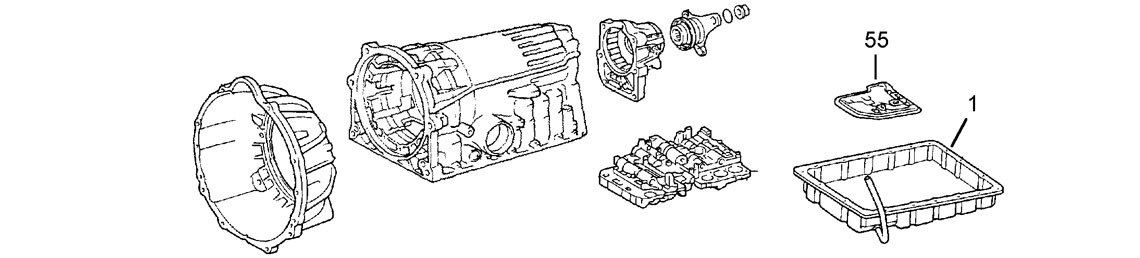

Case, Pan, Valve Body And Filter

55
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 71000K Overhaul Kit A650E Transtec 98-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1E 76100 Pan Gasket Cork 98-ON 1
1E 76101 Pan Gasket Duraprene 98-ON Alt
1E 76101F Pan Gasket, Farpack 98-ON Alt

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
15A 76160 Pump O Ring 98-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 73200 Converter Seal 38 ID x 55 OD x 7.70mm 98-ON 1
NI 75205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 98-ON 1
NI 76222 Extension Housing Seal 42 ID x 55 OD x 10.00mm 98-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 71250K Sealing Ring Kit 98-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 71300K Friction Module 98-ON 1
20A 75326 Overdrive Brake 165 OD x 2.10mm x 24T 98-ON 4
20A 75326A Overdrive Brake Friction Plate 165 OD x 2.00mm x 24T 98-ON Alt
22A 76310 Overdrive Direct Clutch 126.25 OD x 2.00mm x 32T 98-ON 4
22A 76314 Direct Clutch 131 OD x 2.10mm x 40T 98-ON 4
22A 76314D Direct Clutch 131.5 OD x 2.00mm x 40T 98-ON Alt
22A 76314H Direct Clutch, Red 131 OD x 2.03mm x 40T 98-ON Alt
24B 71318 Direct Clutch 131.5 OD x 1.8mm x 40T 98-ON 5
26B 76319 Forward Clutch 126 OD x 1.9mm x 40T 98-ON 6
28C 71326 2nd Brake 141.5 OD x 2.20mm x 36T 98-ON 5
30C 71330 3rd Brake 151 OD x 1.80mm x 36T 98-ON 5
32D 71334 Low Reverse Brake 138 OD x 1.70mm x 44T 98-ON 6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21A 76360 Overdrive Direct Clutch 105 ID x 2.00mm x 24T 98-ON 2
21A 76362 Overdrive Brake 143 ID x 2.00mm x 6T Notched 98-ON 3
23A 76360A Overdrive Direct Clutch 105 ID x2.50mm x 24T 98-ON 1
25B 71368 Direct Clutch 105.5 ID x 1.80mm x 24T 98-ON 5
27B 75360 Forward Clutch All Except SC400/430 105 ID x 1.80mm x 8T 98-ON 5
27B 75376 Forward Clutch All Except SC400/430 105 ID x 1.40mm x 8T 98-ON 1
27B 76367 Forward Clutch SC400/430 105 ID x 2.30mm x 8T 98-ON 5
29C 71377 3rd Brake 123.5 ID x 2.90mm x 23T 98-ON 5
31C 71378 2nd Brake 131 ID x 2.00mm x 8T 98-ON 4
31C 71380 2nd Brake 131 ID x 2.70mm x 8T 98-ON 5
33D 71384 Low Reverse Brake 124 ID x 1.80mm x 18T 98-ON 5

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
NI 73410 Pump Bush 41.2 x 38 98-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50B 76500 3rd Coast Brake Band 98-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E 71552 Filter 98-ON 1
NI 76569 Solenoid Screen Filter 98-ON AR

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 71552K Filter Kit 98-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 71700 Pressure Control Solenoid 98-ON 1
NI 71710 No 3 Shift Solenoid 98-ON 1
NI 73722 Output Speed Sensor 98-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-06 Lubegard Complete Full Synthetic 5.7 Litre Pack 98-ON AR
NI 49991-20 Lubegard Complete Full Synthetic 20 Litre Pack 98-ON AR
