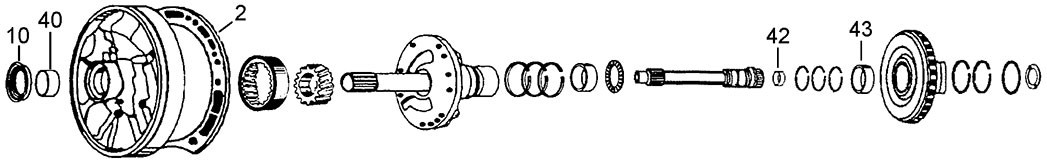

A

Pump & Input Clutch Hub

10
40
2
42
43

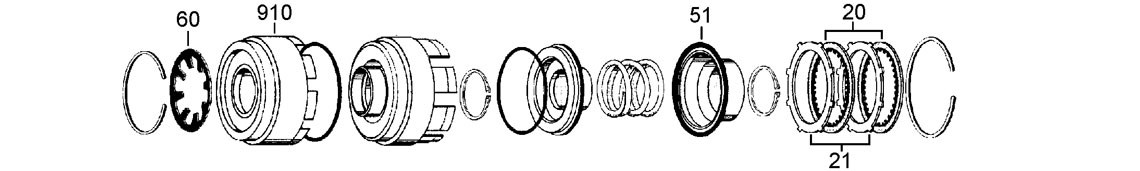

B

Input Clutch Housing & Underdrive Clutch

60
910
51
20
21

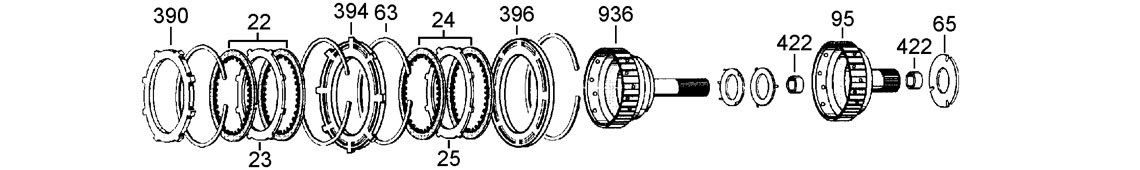

C

Overdrive & Reverse Clutches

390
22
23
394
63
24
25
396
936
422
422
95
65

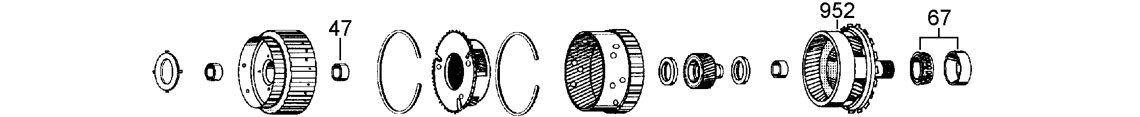

D

Front & Rear Planets

47
67
952

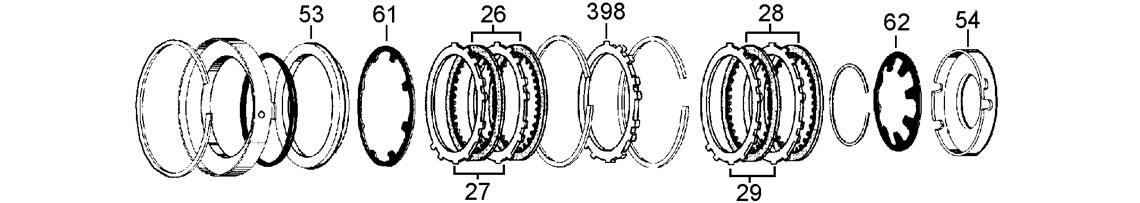

E

2-4 & Low & Reverse Clutches

53
61
26
27
29
398
28
62
54

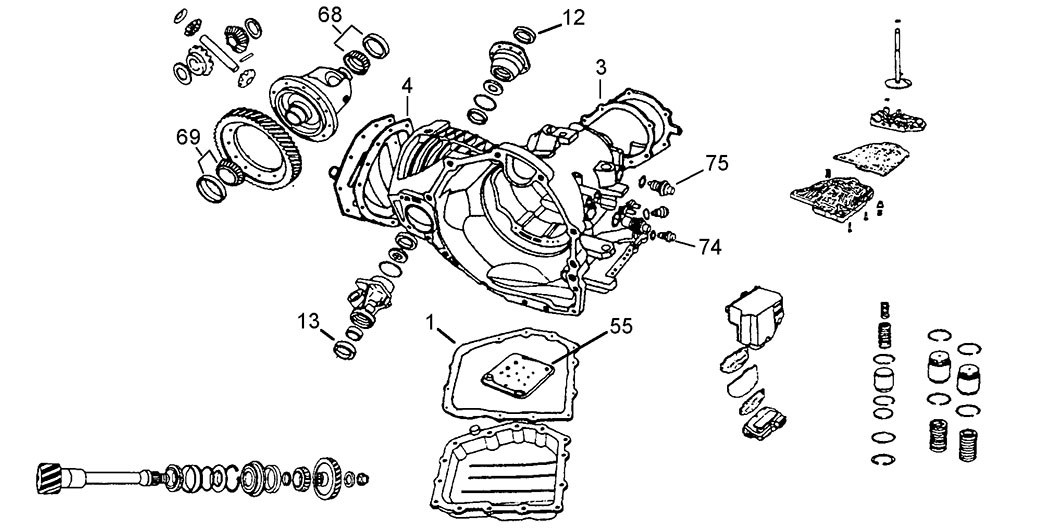

F

Transfer Shaft, Case, Pan & Filter

13
1
55
69
68
12
4
3
75
74

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170000K Overhaul Kit A604 Transtec 90-03 1
Kit 170001K Overhaul Kit 41TE With Pistons Transtec 04-ON 1
Kit 170002K Overhaul Kit (40TE/41TE) Transtec 04-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170000KM Master Kit A604, 40TE, 41TE 90-03 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170150K Pump Leak Kit 90-ON 1
1F 170100 Pan Gasket Cork 90-ON 1
1F 170101 Pan Gasket Duraprene 90-ON Alt
2A 170110 Pump Gasket 90-ON 1
3F 170120 End Cover Gasket 90-ON 1
4F 170130 Differential Cover Gasket 90-ON 1
NI 170126 Solenoid Gasket 90-99 1
NI 170128 Solenoid Gasket 00-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 170160 Pump O Ring 90-ON 1
NI 170176 Filter O Ring 90-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 150200 Converter Seal 35.9 ID x 57 OD x 9.00mm 90-ON 1
12F 130210 Axle Seal Letfhand 2WD & AWD 39 ID x 58.20 OD x 10.40mm 90-ON 1
13F 130210 Axle Seal Righthand 2WD 39 ID x 58.20 OD x 10.40mm 90-ON 1
13F 170230 Transmission to Transfer Case Seal AWD 37.5 ID x 57.1 OD x 8.00mm 90-ON 1
NI 130210 Outer Half Shaft Cover Seal AWD 39 ID x 58.20 OD x 10.40mm 90-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170300K Friction Kit Raybestos 90-ON 1
Kit 170300KA Friction Kit Exedy 90-ON Alt
20B 170310 Underdrive 138 OD x 1.80mm x 28T 90-ON 4
20B 170310D Underdrive Friction Plate 90-ON Alt
22C 170310 Overdrive 138 OD x 1.80mm x 28T 90-ON 4
22C 170310D Overdrive Friction Plate 90-ON Alt
24C 170310 Reverse 138 OD x 1.80mm x 28T 90-ON 2
24C 170310D Reverse Friction Plate 90-ON Alt
26E 170316 2-4 Clutch 154 OD x 2.10mm x 31T 90-ON 4
28E 170318 Low-Reverse 154 OD x 1.80mm x 32T 90-ON 5
28E 170318A Low-Reverse Friction Plate ALLOMATIC 90-ON Alt

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 170360 Underdrive 115 ID x 1.70mm x 8T 90-ON 4
21B 170360A Underdrive Steel 115 ID x 1.80mm x 8T 90-ON AR
23C 170362 Overdrive 115 ID x 2.50mm x 8T 90-ON 2
25C 170360 Reverse 115 ID x 1.70mm x 8T 90-ON 2
25C 170360A Reverse Steel 115 ID x 1.80mm x 8T 90-ON AR
27E 170366 2-4 Clutch 133 ID x 2.50mm x 14T 90-ON 4
29E 170368 Low-Reverse 133 ID x 1.70mm x 14T 90-ON 5
390C 170390U Underdrive Pressure Plate (A604) 6.00mm 115 ID x 6.00mm 90-ON 1
394C 170394U Overdrive Pressure Plate (A604/42RLE) 115 ID x 8.50mm x 4T 90-ON 1
396C 170396U Reverse Pressure Plate (A604) 8.50mm 115 ID x 8.50mm 90-ON 1
398E 170398U Low / Reverse Pressure Plate (A604) 6.00mm 115 ID x 6.00mm 90-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170402K Bush Kit 95-ON 1
40A 150410 Pump Body Bush Babbit 90-ON Alt
40A 150410A Pump Body Bush Bronze 90-ON 1
42A 170416 Input Shaft Bush 01-ON 1
43A 170424 Input Drum Rear Bush 01-ON 1
47D 170428 2-4 Clutch Hub Bush 96-ON 1
422C 170418 Bush Overdrive Hub (41TE/42LE) 90-96 1
422C 170420 Bush Overdrive Hub 96-ON 1
422C 170422 Bush Overdrive Hub (41TE/42RLE) 96-ON 2
NI 25426 Bush Input Clutch Hub (42RLE/42LE/62TE) 90-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170450K Thrust Bearing Kit 90-ON 1
Kit 170452K Thrust Washer Kit (Without selectives) 90-ON 1
65C 170464D Overdrive Clutch Hub Selective 3 Slot 1.80mm 1.80mm 90-ON AR
65C 170464E Overdrive Clutch Hub Selective 3 Slot 2.24mm 2.24mm 90-ON AR
65C 170464F Overdrive Clutch Hub Selective 3 Slot 2.47mm 2.47mm 90-ON AR
67D 170480 Rear Planet Bearing (Cup & Cone) 37.8 ID x 63 OD x 17.10mm 90-ON 1
68F 170480 Differential Bearing Lefthand 37.8 ID x 63 OD x 17.10mm 90-2/95 1
69F 170480 Differential Bearing 2WD only 37.8 ID x 63 OD x 17.10mm 90-ON 1
NI 170490 Output Gear Bearing 41.2 ID x 68 OD x 17.50mm 90-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55F 170550 Filter 90-ON 1
55F 170560 Filter (A606) 93-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170550K Filter Kit 90-ON 1
Kit 170560K Filter Kit (A606) 93-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170590K Accumulator Sleeve & Piston Kit 90-ON 1-3
Kit 26588K Billet Accumulator Piston Kit 90-ON 1
51B 170580 Underdrive Balance Piston 90-ON 1
53E 170578 2-4 Mouled Piston 04-ON 1
54E 170576 Low & Reverse Moulded Piston 04-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170630K Complete Circlip Kit 90-ON 1
63C 25680 Overdrive Circlip 90-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
60B 170652 Overdrive & Reverse Diaphragm Spring 90-ON 1
61E 170656 2-4 Clutch Diaphragm Spring 90-ON 1
62E 170660 Low & Reverse Diaphragm Spring 90-04 1
62E 170662 Low & Reverse Diaphragm Spring 90-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170700K Solenoid Set Includes Solenoid Gasket 90-ON 1
Kit 170700KR Solenoid Set 90-ON Alt
Kit 26797K Oversize Solenoid Switch Valve Plug Kit 90-ON 1
74F 170720 Input Speed Sensor 90-ON 1
75F 170722 Output Speed Sensor 90-ON 1
NI 170730 MLPS Sensor Round Pins 96-9/98 1
NI 170732 MLPS Sensor Flat Pins 10/99-ON 1
NI 25738 Switch Pressure Transducer (42RLE) 90-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 25762K TCC Control & Plunger Kit 90-ON 1
Kit 26782K 0.420" Switch Valve Repair Kit with Tool 90-ON 1
Kit 26784K 0.420" Switch Valve Repair Kit (Refill Kit) 90-ON 1
Kit 26786K 0.453" Switch Valve Repair Kit with Tool 90-ON 1
Kit 26788K 0.453" Switch Valve Repair Kit (Refill Kit) 90-ON 1
Kit 26793K Solenoid Switch Valve Plug Kit .453: Dia Spool Only 90-ON 1
Kit 26794K Solenoid Switch Valve Plug Kit See Notes .420: Dia Large Spool Only 90-ON 1
NI 170750 Cooler By Pass Valve 90-ON 1
NI 170752 Cooler By Pass Plug 90-ON 1
NI 170760 Modified Diff Pin Brackets Pack of two) 90-ON 1
NI 170765 Low & Reverse Piston Retainer with Bleed Valve 04-ON 1
NI 170765 Low & Reverse Piston Retainer 03-ON 1
NI 170770 Low & Reverse Accumulator Cover 90-ON 1
NI 170770 Low & Reverse Accumulator Cover 90-ON 1
NI 25766 Oversize Pressure Regulator Valve* Reamer Required Units with VLP Solenoid Only 07-ON 1
NI 25768 Oversized Pressure Regulator Valve 90-ON 1
NI 26796 Oversize Solenoid Switch Valve 90-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170800K Shift Kit 89-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170926K Gear Train with 5 Pinion Rear Planet Contains Front & Rear Planets, Sungear & Ringear 90-ON 1
Kit 170926KU Planetary Kit 5 Pin (41TE/A604) Used 90-ON 1
95C 170940 Overdrive Hub and Shaft 95-ON 1
910B 170910KU Input Drum Kit (A604) 90-ON 1
936C 170936 Underdrive Hub & Shaft (A604/62TE) 90-ON 1
936C 170936U Underdrive Hub & Shaft (A604/62TE) Used 90-ON 1
952D 170952 Rear Planet (A604) 90-ON 1
NI 170900 Oil Pump (A604) 99-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-06 Lubegard Complete Full Synthetic 5.7 Litre Pack 90-ON AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L)
