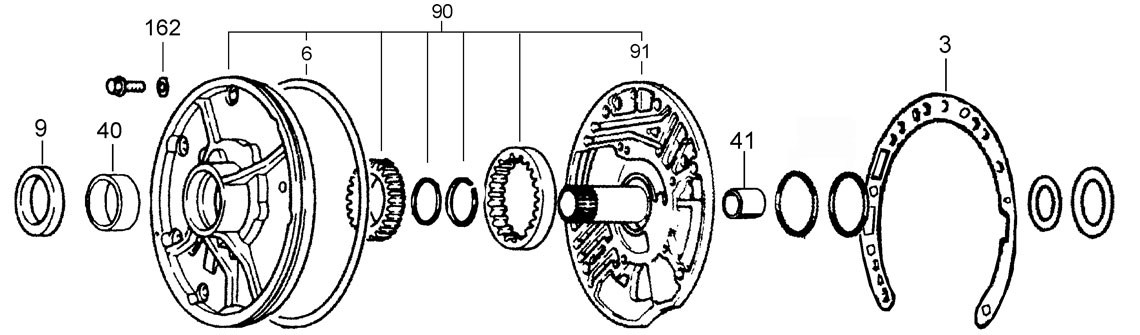

A

Pump

9
40
162
90
6
91
41
3

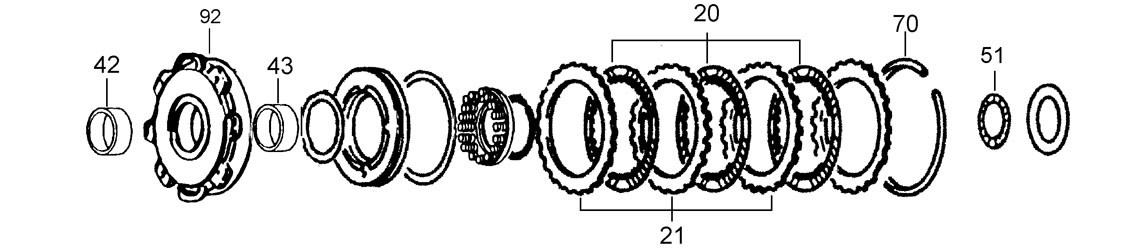

B

Direct Clutch

42
92
43
20
21
70
51

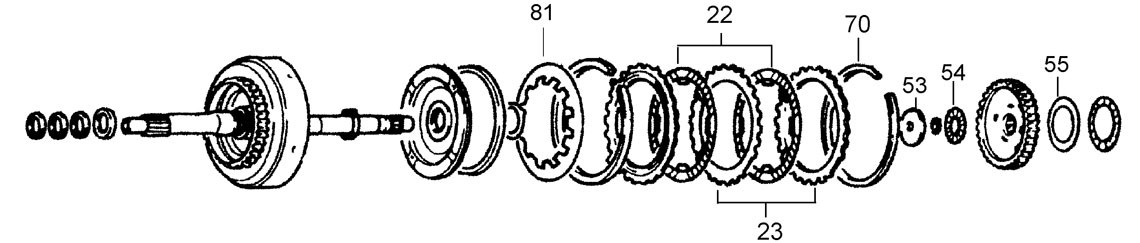

C

Forward Clutch

81
22
23
70
53
54
55

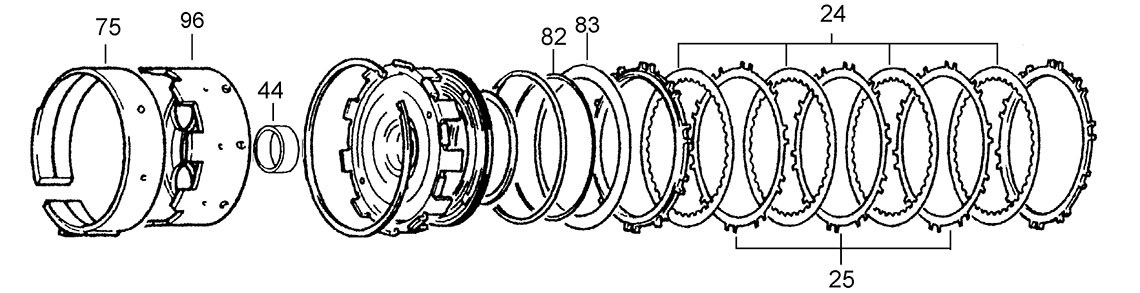

D

Band And Low & Reverse Clutch

75
96
44
82
83
24
25

E

Planet Set & Output Shaft

45
57
46
84
59
60
47

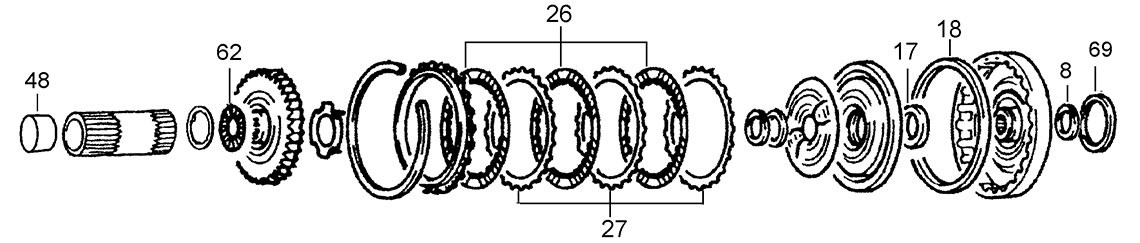

F

End Clutch (Overdrive)

48
62
26
27
17
18
8
69

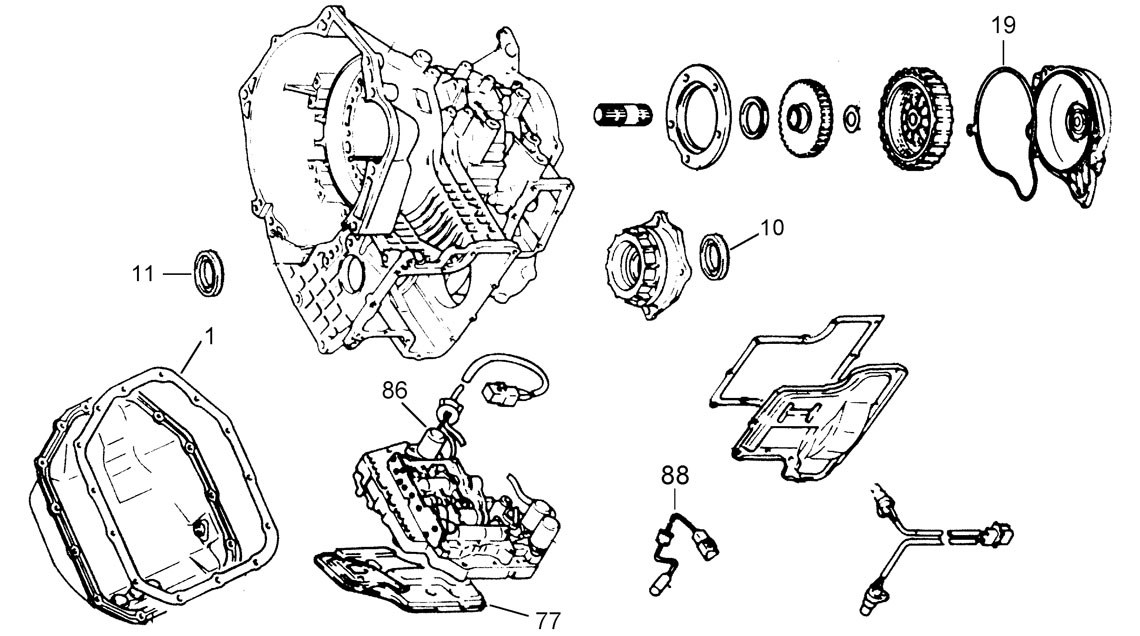

G

Case. Pan & Filter

11
1
86
77
88
10
19

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190004K Overhaul Kit A4AF1, A4AF2, A4BF1, A4BF2 Transtec 93-99 1
Kit 190006K Overhaul Kit A4AF3, A4BF2, A4BF3 Transtec 00-ON 1
Kit 190006KA Overhaul Kit, A4AF3/A4BF3 Precision 00-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1G 190102 Pan Gasket Except A4BF1 Lantra & Tiburon 93-ON 1
1G 190102A Pan Gasket, Cork 93-ON Alt
1G 190104 Pan Gasket A4BF1 Lantra & Tiburon 96-ON 1
3A 190114 Pump Gasket 93-ON 1
NI 190122K Valve Body Gasket Kit A4BF1, A4BF2) 93-ON 1
NI 190126K Valve Body Gasket Kit A4BF3 93-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180187K Overdrive Seal Kit Except A4BF3 Without Overdrive Cover O Ring 93-ON 1
Kit 190166K Servo D Ring Ring Kit 93-ON 1
Kit 190175K Forward & Direct Seal Kit 93-ON 1
Kit 190189K Overdrive Repair Kit Except A4BF3 93-ON 1
6A 180160 Pump O Ring 93-ON 1
17F 190190 Overdrive Clutch Inner D Ring 93-ON 1
18F 180183 Overdrive Clutch Outer Lip Seal 93-ON 1
19G 190194 Overdrive Cover O Ring 93-ON 1
162A 180162 Pump Bolt Seal 93-ON 6

seals

NO PART # DESCRIPTION SIZE YEARS QTY
8F 190230 Overdrive Clutch Housing Seal 13 ID x 20.9 OD x 3.50mm 93-ON 1
9A 180200 Front Pump Seal 43 ID x 60 OD x 9.00mm 93-ON 1
10G 190216 Axle Seal Lefthand 35 x 56 x 7.5 x 11.5mm 93-ON 1
11G 190216 Axle Seal Righthand 35 x 56 x 7.5 x 11.5mm 93-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180254K Sealing Ring Kit 93-99 1
Kit 190252K Sealing Ring Kit 00-ON 1
69F 180260 Overdrive Clutch Sealing Ring 93-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 180311 Direct Friction Except A4BF3 127 OD x 1.90mm x 38T 93-99 3
20B 190312 Direct Friction A4BF3 127 OD x 1.90mm x 38T 00-ON 4
22C 180311 Forward Friction Except A4BF3 127 OD x 1.90mm x 38T 93-99 3
22C 190312 Forward Friction A4BF3 127 OD x 1.90mm x 38T 00-ON 4
24D 180322 Low & Reverse Friction 152 OD x 1.85mm x 51T 93-ON 6
26F 180330 Overdrive Except A4BF3 123 OD x 1.80mm x 40T 93-ON 4
26F 190332 Overdrive A4BF3 123 OD x 1.65mm x 36T 00-ON 4
NI 180300KD FRICTION KIT-KM177 (A4BF-2/3)

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 180361A Direct 104.6 ID x 3.10mm x 24T 93-ON 3
23C 180363 Forward 104.4 ID x 1.80mm x 24T 93-ON 3
25D 180382 Low & Reverse 134mm I.D.(1.0mm) 134 ID x 1.0mm x 20T 93-ON 5
25D 180384 Low & Reverse 134mm I.D.(1.8mm) 134 ID x 1.8mm x 20T 93-ON 5
27F 180390 Overdrive Except A4BF3 106 ID x 0.80mm x 25T 93-ON 4
27F 190392 Overdrive A4BF3 95.8 ID x 4.00mm x 25T 00-ON 4
27F 190392A Overdrive A4BF3 95.8 ID x 2.54mm x 25T 00-ON 4

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180406K Bush Kit 93-ON 1
40A 180410 Pump Bush 93-ON 1
41A 180424 Stator Support Bush 93-ON 1
42B 180413 Direct Drum Front Bush 93-ON 1
43B 180413A Direct Drum Rear Bush 93-ON 1
44D 180421 Centre Support Bush 93-ON 1
45E 180417 Secondary Sungear Bushes 93-ON 2
46E 180415 Primary Sungear Bushes 93-ON 2
47E 180425 Output Shaft Bush 93-ON 1
48F 180415 Overdrive Shaft Bush 93-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
51B 180461 Forward to Direct Clutch Bearing 34.5 x 48 x 3.00mm 93-ON 1
53C 180468A Forward Hub Thrust Plate 37.9 ID x 22.6 OD x 3.80mm 93-ON 1
54C 180464A Forward Hub Bearing 93-ON 1
55C 180465 Forward Hub to Shell Plate 1.6mm 93-ON 1
59E 180468B Sungear to Planet Needle Bearing 42.3 ID x 22.4 OD x 3.80mm 93-ON 1
60E 190472 Planet to Output Shaft Bearing 54 ID x 36.5 OD x 3.50mm 93-ON 1
62F 190482 Overdrive Clutch Hub Bearing 28 ID x 42.4 OD x 2.80mm 93-ON 1
NI 190954 Differential Bearing A4AF3/A4BF3 00-ON 2

bands

NO PART # DESCRIPTION SIZE YEARS QTY
75D 180502 Band 93-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
77G 190552 Filter A4AF1 93-1/94 1
77G 190556 Filter A4AF2 2/94-ON 1
77G 190558 Filter A4AF2/3 97-ON 1
77G 190558 Filter A4BF3 00-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190552K Filter Kit A4AF1/2 93-1/94 1
Kit 190554K Filter Kit A4BF1, A4BF2, A4BF3 Hyundai 1
Kit 190556K Filter Kit A4AF1/2 2/94-ON 1
Kit 190558K Filter Hyundai Kit A4AF2/3 97-ON 1
Kit 190558K Filter Hyundai Kit A4BF3 00-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
70B 180630E Direct Clutch Circlip 2.10mm 2.10mm 93-ON AR
70B 180630F Direct Clutch Circlip 2.20mm 2.20mm 93-ON AR
70B 180630G Direct Clutch Circlip 2.30mm 2.30mm 93-ON AR
70C 180630E Forward Clutch Circlip 2.10mm 2.10mm 93-ON AR
70C 180630F Forward Clutch Circlip 2.20mm 2.20mm 93-ON AR
70C 180630G Forward Clutch Circlip 2.30mm 2.30mm 93-ON AR

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
81C 180656 Forward Clutch Diaphram Spring 93-ON 1
82D 180672 Low & Reverse Spring Ring 93-ON 1
83D 190680 Low & Reverse Return Spring 93-ON 1
84E 190650 Low Sprag F4A32, Hyundai 93-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180720K Solenoid Set 93-99 1
Kit 190720K Solenoid Set A4BF3 6 Solenoids 00-ON 1
86G 180702 Pressure Control Solenoid 93-99 1
88G 190750 Temperature Sensor 93-ON 1
NI 180722 Transmission to Case Connector 93-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI 190760 Idler Gear Lock Washer 93-ON 3

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190806K Valve Body Kit A4BF3 00-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 190906 Pump Assembly A4AF3, A4BF3* 04-ON 1
91A 190907 Pump Stator A4AF3, A4BF3* 04-ON 1
92B 190910 Direct Drum Assembly A4AF3, A4BF3* 04-ON 1
96D 180908 Drive Shell (Band Drum) 10mm lugs 89-ON 1
96D 180910 Drive Shell (Band Drum) 19.5mm lugs 89-ON 1

* For earlier models both Stator or Pump and Direct Drum must be replaced
