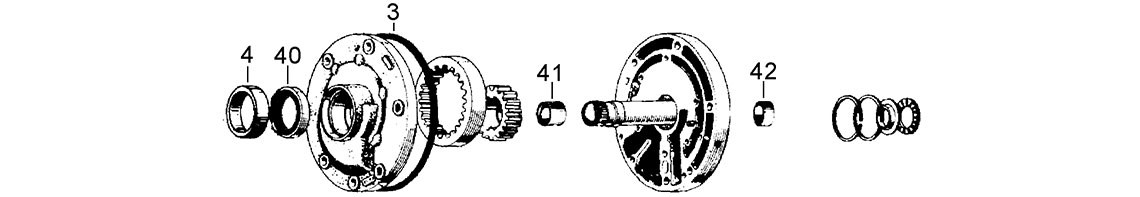

A

Pump

40
42
4
41
3

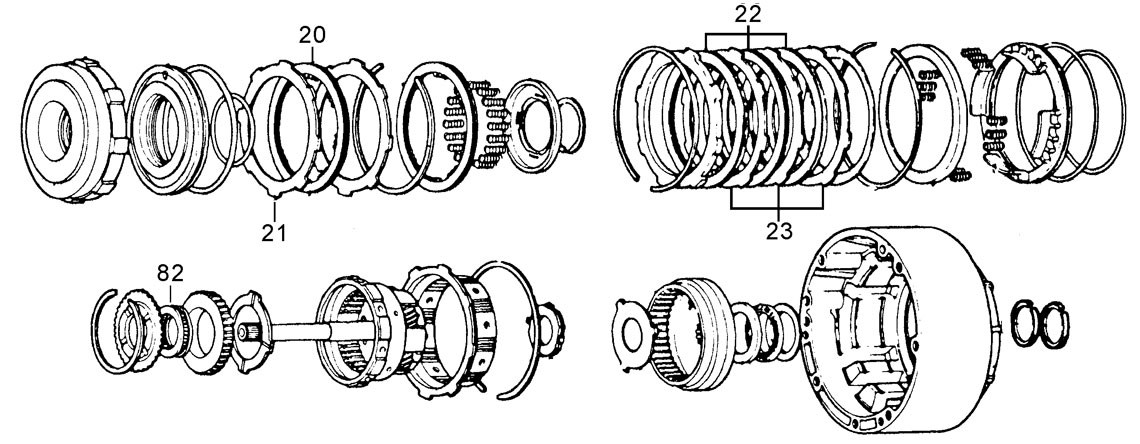

B

Overdrive Assembly

23
21
82
22
20

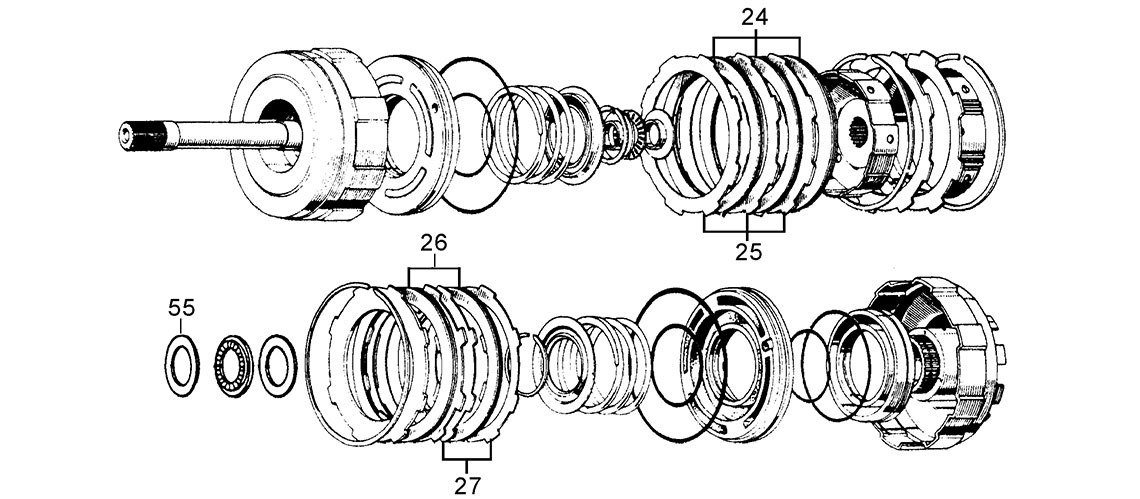

C

Forward & Direct Clutches

27
26
24
55
25

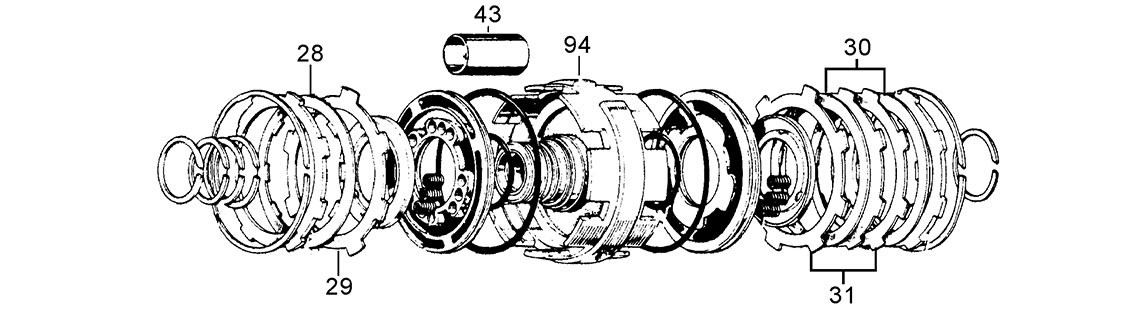

D

Second Coast (B1) & Second (B2) Brakes

43
30
28
94
29
31

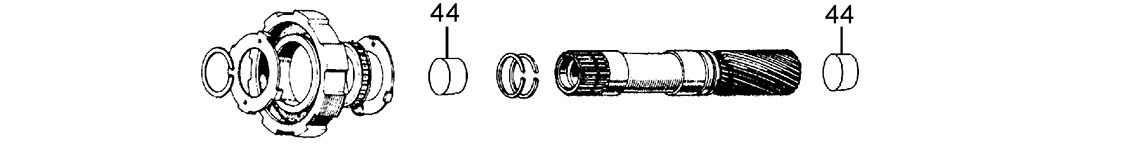

E

Intermediate Sprag & Sungear

44
44

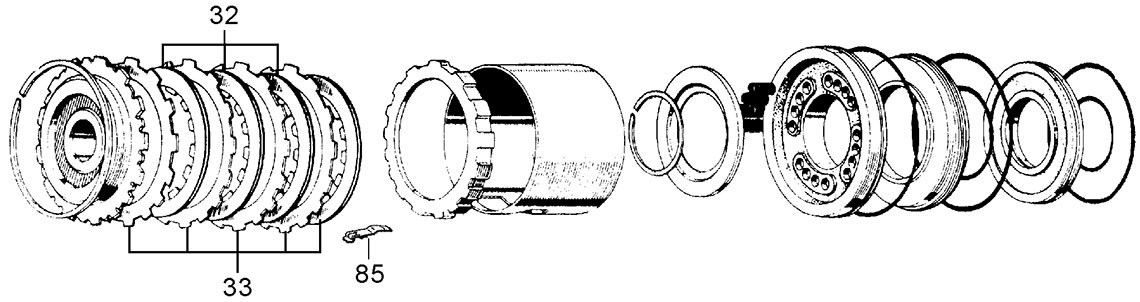

F

Low & Reverse Brake

32
33
85

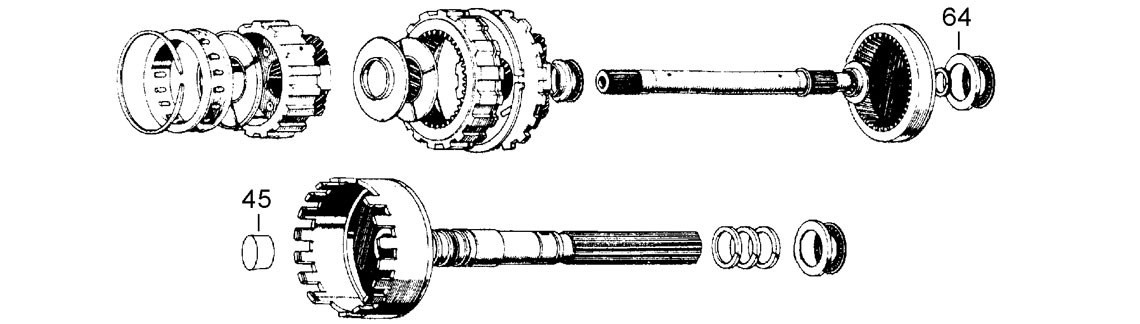

G

Planet Sets & Output Shaft

45
64

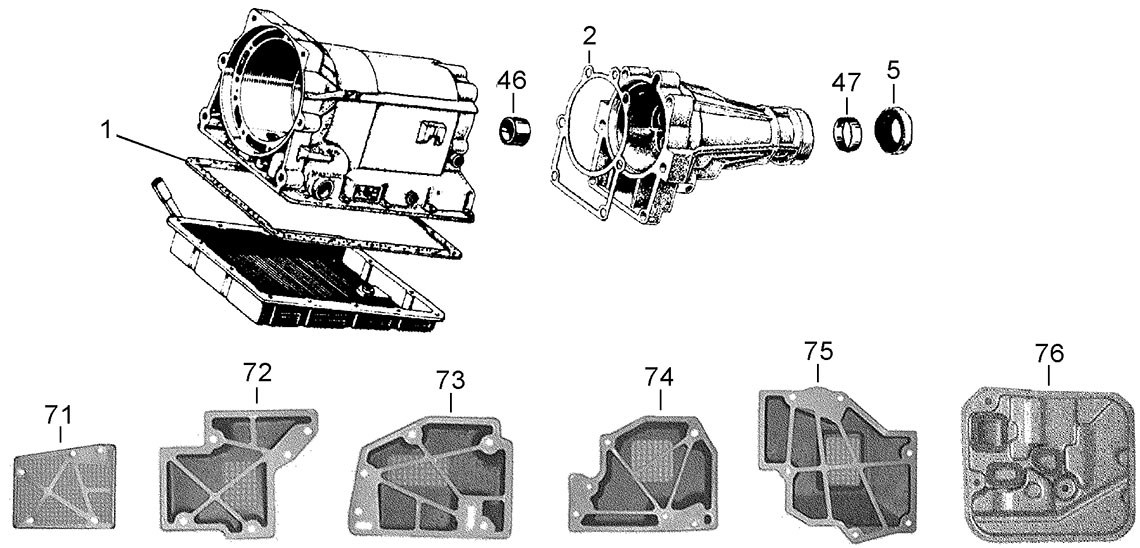

H

Case, Pan & Filters

46
47
76
1
2
5
71
72
73
74
75

rubber components

seals

NO PART # DESCRIPTION SIZE YEARS QTY
4A 73200 Front Pump Seal 38 ID x 55 OD x 7.70mm 72-ON 1
5H 21212 Extension Housing Volvo 35 ID x 49.6 OD x 9.50mm 72-ON 1
5H 27220 Extension Housing Mitsubishi 40 ID x 52 OD x 11.00mm 90-ON 1
5H 33206 Extension Housing VN Commodore 36.5 ID x 60.5 OD x 12.00mm 92-ON 1
5H 61220 Extension Housing Isuzu & Holden Rodeo 38.4 ID x 49.6 OD x 12.0mm 88-ON 1
5H 73220 Extension Housing Most Toyota 38 ID x 58 OD x 11.00mm 72-ON 1
5H 73220 Extension Housing Mazda 38 ID x 58 OD x 11.00mm 99-ON 1
5H 73222 Extension Housing Mitsubishi 39 ID x 57.5 OD x 13.00mm 88-ON 1
5H 73222 Extension Housing Hyundai Stellar 39 ID x 57.5 OD x 13.00mm 87-ON 1
5H 76222 Extension Housing Volvo 42 ID x 55 OD x 10.00mm 72-ON 1
NI 27230 Adaptor Housing 45 ID x 68.6 OD x 7.00mm 92-ON 1
NI 73205 Selector Shaft 11 ID x 22 OD x 7.00mm 72-ON 2
NI 73208 Speedo Adaptor 9.5 ID x 15.5 OD x 5.20mm 72-ON 1
NI 73227 Seal Adapter Housing (Vitara) 35 ID x 50 OD x 9.00mm 1
NI 73240 Seal Transfer Input (Toyota) 41 ID x 80 OD x 10.00mm 1
NI 76226 Adaptor Housing 40.5 ID x 56 OD x 7.75mm 88-ON 1
NI 78230 Transfer Case Extension Housing 38 ID x 58 OD x 11.00mm 82-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 73254K Sealing Ring Kit 4 Speed 77-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 73300K Friction Module with 2.3mm Low/Rev Frictions, A40 Series 72-ON 1
20B 73310 Overdrive Clutch 127 OD x 2.30mm x 24T 77-ON 1-2
22B 73310 Overdrive Brake 127 OD x 2.30mm x 24T 77-ON 3
22B 73315 Overdrive Brake 142 OD x 2.30mm x 44T 79-81 3
22B 75312 Overdrive Brake 142mm O.D.x 142 OD x 1.75mm x 33T 82-ON 3
24C 73310 Forward (Front) 2.30mm 127 OD x 2.30mm x 24T 72-ON 3-4
24C 73311 Forward (5 Plate Clutch) 2.00mm 127 OD x 2.00mm x 24T 72-ON 5
24C 73311A Forward Friction 127 OD x 2.00mm x 24/48T 72-ON Alt
26C 73310 Direct (Rear) 127 OD x 2.30mm x 24T 72-ON 2-3
28D 73310 2nd Coast (B1) Brake 127 OD x 2.30mm x 24T 72-ON 1
30D 73310 2nd (B2) Brake 127 OD x 2.30mm x 24T 72-ON 2-3
32F 73312 Low & Reverse 127 OD x 2.30mm x 16T 72-ON 4-5
32F 73312W Low & Reverse Waved 127 OD x 2.30mm x 16T 72-ON Alt

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 73360 Overdrive Clutch 102 ID x 1.80mm x 8T 72-81 2
21B 73360X Overdrive Clutch 102 ID x 2.00mm x 8T 82-ON 2
23B 73360 Overdrive Brake A40D 1.80mm 102 ID x 1.80mm x 8T 77-ON 3
23B 73365 Overdrive Brake Except A40D 116 ID x 2.00mm x 7T 79-ON 3
23B 73366 Overdrive Brake Except A40D (2.30mm) 116 ID x 2.30mm x 7T 79-ON 3
25C 73360 Forward (1.80mm) 102 ID x 1.80mm x 8T 72-81 4
25C 73360S Forward (1.40mm) 102 ID x 1.40mm x 8T 72-ON AR
25C 73360X Forward (2.00mm) 102 ID x 2.00mm x 8T 82-ON 4
25C 73360XX Forward (2.30mm) 102 ID x 2.30mm x 8T 72-ON AR
27C 73360 Direct (1.80mm) 102 ID x 1.80mm x 8T 72-81 3
27C 73360S Direct (1.40mm) 102 ID x 1.40mm x 8T 72-ON AR
27C 73360X Direct (2.00mm) 102 ID x 2.00mm x 8T 82-ON 3
27C 73360XX Direct (2.30mm) 102 ID x 2.30mm x 8T 72-ON AR
29D 73361 2nd Coast (B1) Brake 102 ID x 1.80mm x 8T 72-ON 1
31D 73361 2nd (B2) Brake 102 ID x 1.80mm x 8T 72.ON 2-3
31D 73361A 2nd (B2) Brake Oversize (2.00mm) 102 ID x 2.00mm x 8T 72-ON AR
31D 73361B 2nd (B2) Brake Oversize (2.30mm) 102 ID x 2.30mm x 8T 72-ON AR
31D 73361C 2nd (B2) Brake Oversize (3.00mm) 102 ID x 3.00mm x 8T 72-ON AR
33F 73362 Low & Reverse 102 IDx 1.80mm x 15T 72-ON 4-5

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
55C 73474 Plate Forward to Direct Clutch Front 72-ON 1
64G 73474 Plate Output Shaft to Ringear Front 72-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
NI 73665 Spring Selector Detent 1

sundry parts

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
94D 73920 Centre Support Toyota 72-ON 1
94D 73922 Centre Support Mitsubishi 72-ON 1
94D 73924 Centre Support, Toyota 72-ON 1
NI 73775K Drain Bung & Washer Kit 72-ON 1
