A

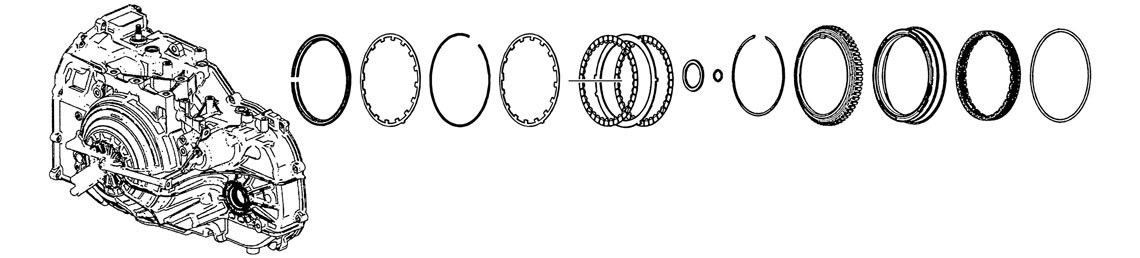

Rear Housing & 2-9 Brake Piston Assembly
B
6-7-8-9 Clutch
C

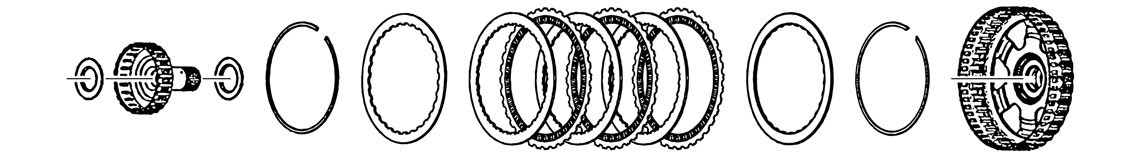

5-7-Reverse Clutch
D

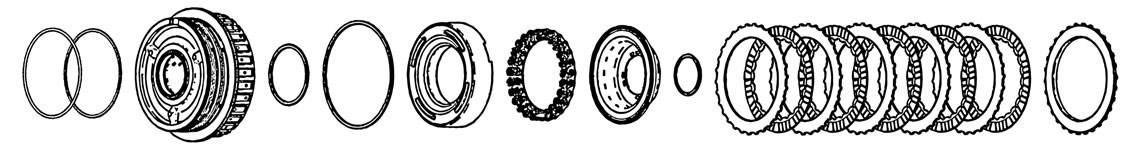

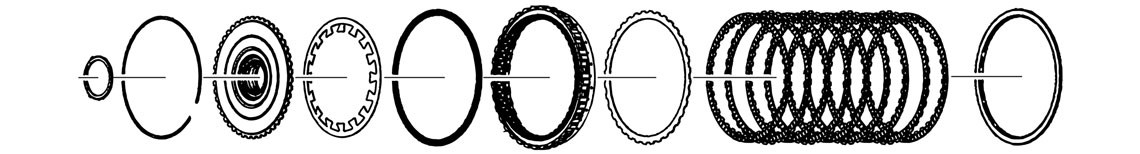

2-9 Brake Assembly
E

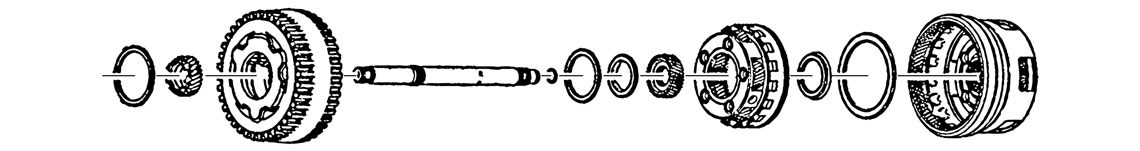

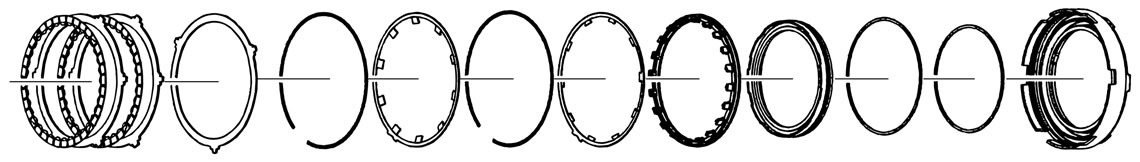

4th Clutch Assembly
F
Overdrive, Input & Output Carriers
G

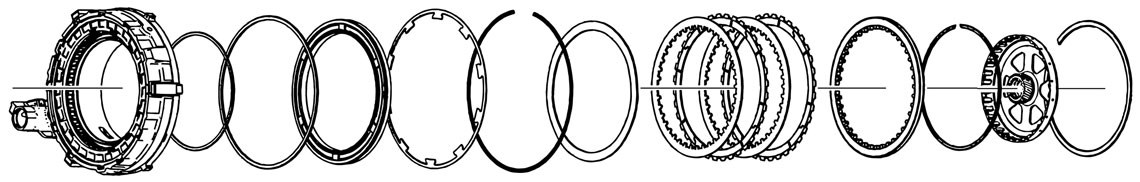

1-2-3-4-5-6 Brake
H

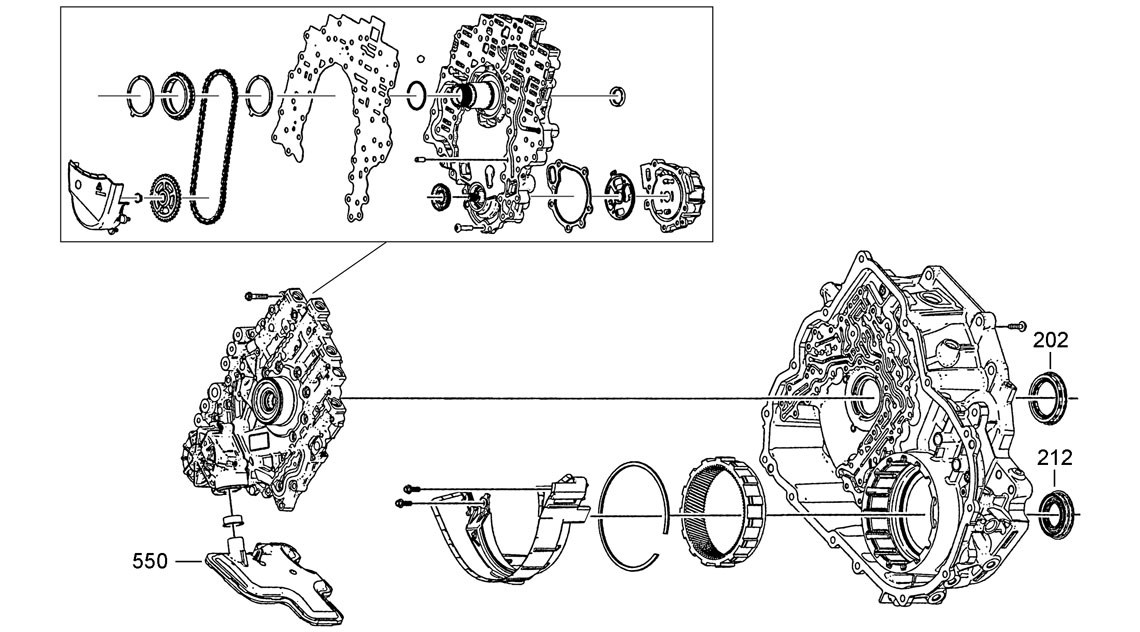

Oil Pump, Torque Converter & Differential Housing Assembly
202
212
550
J

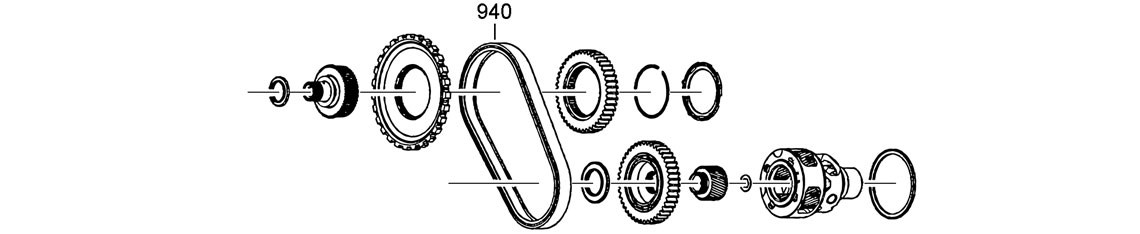

Drive Link Assembly
940
K

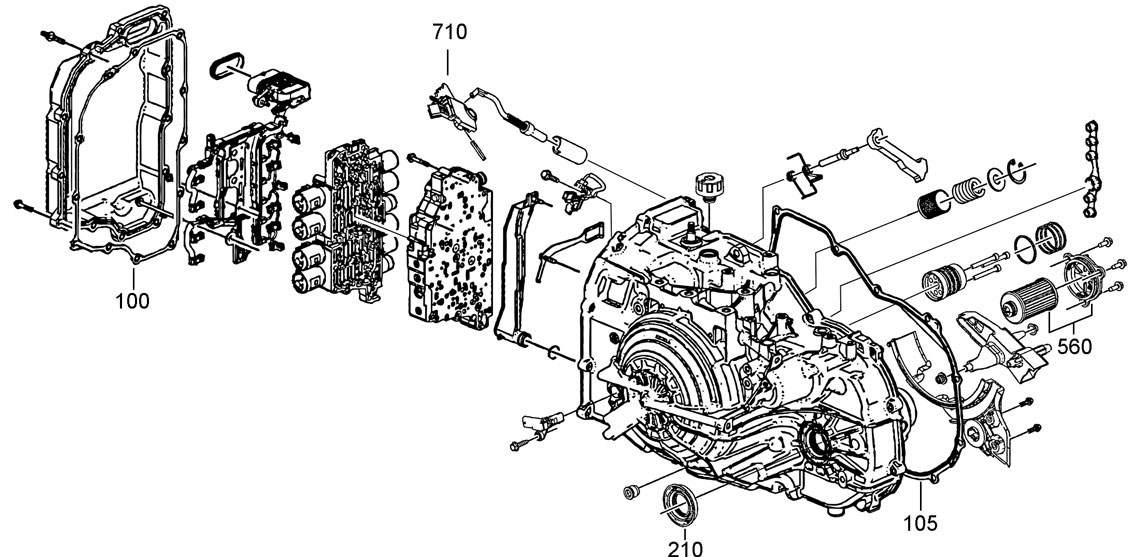

Valve Body, Case Assembly & Park System Components
560
210
100
105
710
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 155000K | Overhaul Kit with Pistons, Transtec | Transtec | 17-ON | 1 |
| Kit | 155001K | Overhaul Kit without Pistons, Transtec | Transtec | 17-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 100K | 155100 | Pan Gasket | 17-ON | 1 | |
| 105K | 155105 | Case Gasket | 17-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 202H | 135202 | Converter Seal | 46.5 ID x 73.7 OD x 11.05mm | 17-ON | 1 |
| 210K | 135210 | Axle Seal Lefthand | 35 ID x 61 OD x 10.30mm | 17-ON | 1 |
| 212H | 135212 | Axle Sea Righthand | 35 ID x 66.3 OD x 24.50mm | 17-ON | 1 |
| NI | 155210 | Input Seal | 21.5 ID x 29.6 OD x 6.70mm | 17-ON | 1 |
| NI | 155220 | Transfer Case Output Seal | 17-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 155300K | Friction Kit High Energy | 17-ON | 1 | |
| Kit | 155300KA | Friction Kit, Aftermarket | 17-ON | Alt |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 550H | 155550 | Filter | 17-ON | 1 | |
| 560K | 155560 | External Filter with Cap | 17-ON | 1 |
The transmission has to be disassembled to replace the filter.
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 940J | 155940 | Transmission Chain, 9T65 | 17-ON | 1 | |
| NI | 155990 | Valve Body Plate | 17-ON | 1 | |
| NI | 155992 | Valve Body Plate | 17-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-05 | LUBEGARD COMPLETE FULL SYNTHETIC 5L | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
