42RLE

Fits bores containing OE switch valve with .453" dia. large spool and ID groove.

Symptoms:

• Codes 841, 868, 871, 988, 1775, 1776
• OD clutch burned
• Failsafe mode
• Bind-up
• TCC apply & release concerns (41 & 42 series)
• Engine stall (41 & 42 series)
• 2nd Gear starts w/MIL on
• 4th Clutch burned

Cause:
Bore wear at solenoid switch valve plugs allows critical pressure loss and causes plugs to hang up in the bore

Correction:
Recover hydraulic control and prevent valve sticking by installing the patented Sonnax solenoid switch valve plug kit.

Warning:
Measure large spool diameter on OE switch valve to verify which Sonnax part will fit the unit being repaired. Some Chrysler switch valves measure .420” dia. and others .453” dia. Another third version found in "late" anodized valve bodies have a .453" dia. but with a narrower spool and incorporates an ID groove. Sonnax offers repairs for all three sizes.

Solenoid switch valve plugs in listed Chrysler transmissions cause bore wear as they oscillate and stroke during operation. This wear allows pressure loss, cross-leakage and often permits the plugs to cock and hang up in the bore. This can result in failsafe mode, various codes, bind-ups and burnt 4th or overdrive clutches. In 41 and 42 series units, TCC concerns can result, including engine stalling due to improper lockup. Installing this patented Sonnax solenoid switch valve plug kit restores normal operation and control to this circuit.

• Patented Sonnax plugs redesigned to prevent cocking
• Annular grooves help center plugs in bore to prevent future side-load wear
• No reaming required

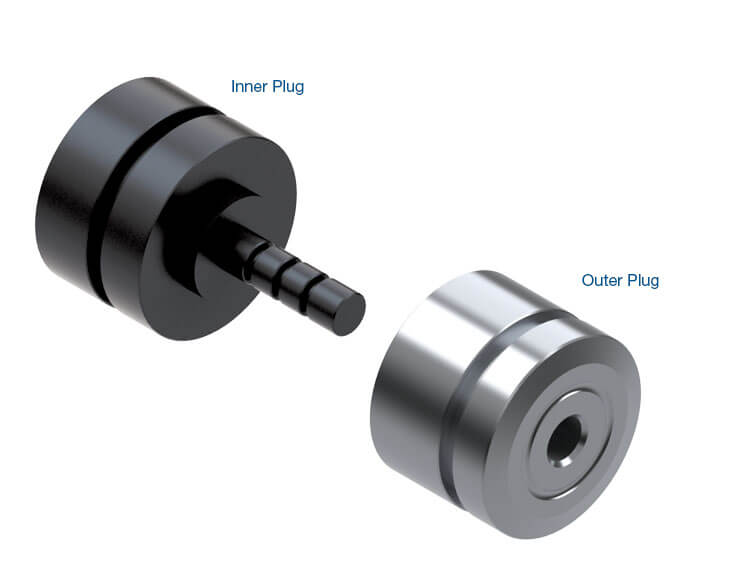

Contents:

• Inner Plug
• Outer Plug

SONNAX Installation Instructions
