CDF DRUM SAVER KIT (10R80)
# 129766K

CDF Drum Saver Kit

CDF DRUM SAVER KIT (10R80)

Tool Required


Symptoms:

  • Bump shifts
  • No 2nd
  • Neutral shifts
  • Slide shifts

Cause:
CDF drum internal sleeve commonly shifts, exposing fluid passages and allowing loss of clutch apply fluid.

Correction:
Restore proper CDF drum hydraulic control and prevent future sleeve movement with Sonnax CDF drum saver kit.


Ford 10R80 transmissions commonly suffer from the CDF drum sleeve shifting rearward, exposing fluid ports from behind the sleeve. This fluid loss leads to bump slides, neutral shifts, slide shifts and loss of 2nd Gear.

Installing the Sonnax CDF drum saver kit restores proper CDF drum functionality. The step on the Sonnax sleeve prevents it from shifting rearward in the drum, and a set screw locks the sleeve from rotating. Whether installing to fix a shifted sleeve or using as a preventive solution, the Sonnax CDF drum saver kit is the key to avoiding CDF drum replacement.

  • Improved sleeve press fit vs OE sleeve
  • Locking set screw keeps sleeve from rotating
  • Replacement CDF drum bushings included for complete repair
  • Convenient tool kit T-129910-TK available for easy install and retention

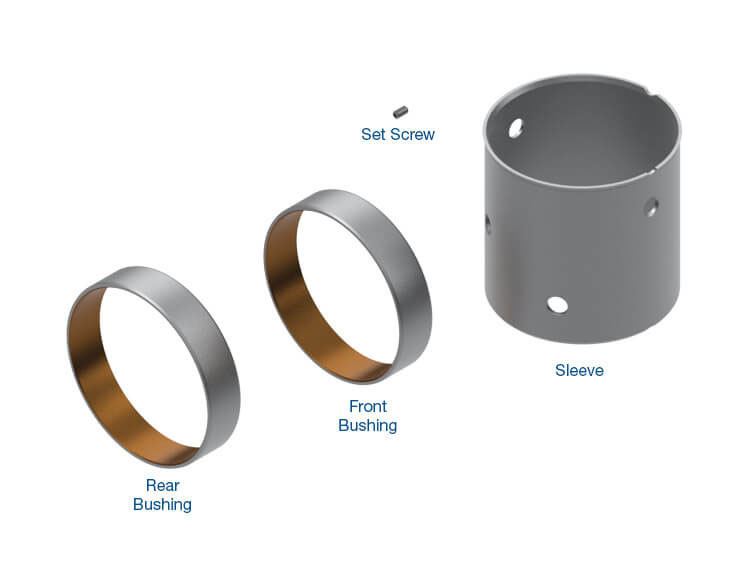

Contains:

  • Sleeve
  • Set Screws (2) 1 Extra
  • Front Bushing
  • Rear Bushing

129766K Instruction Sheet

Type of Product: Sundry Parts
Qty Needed:
Years:
Alternative #:
