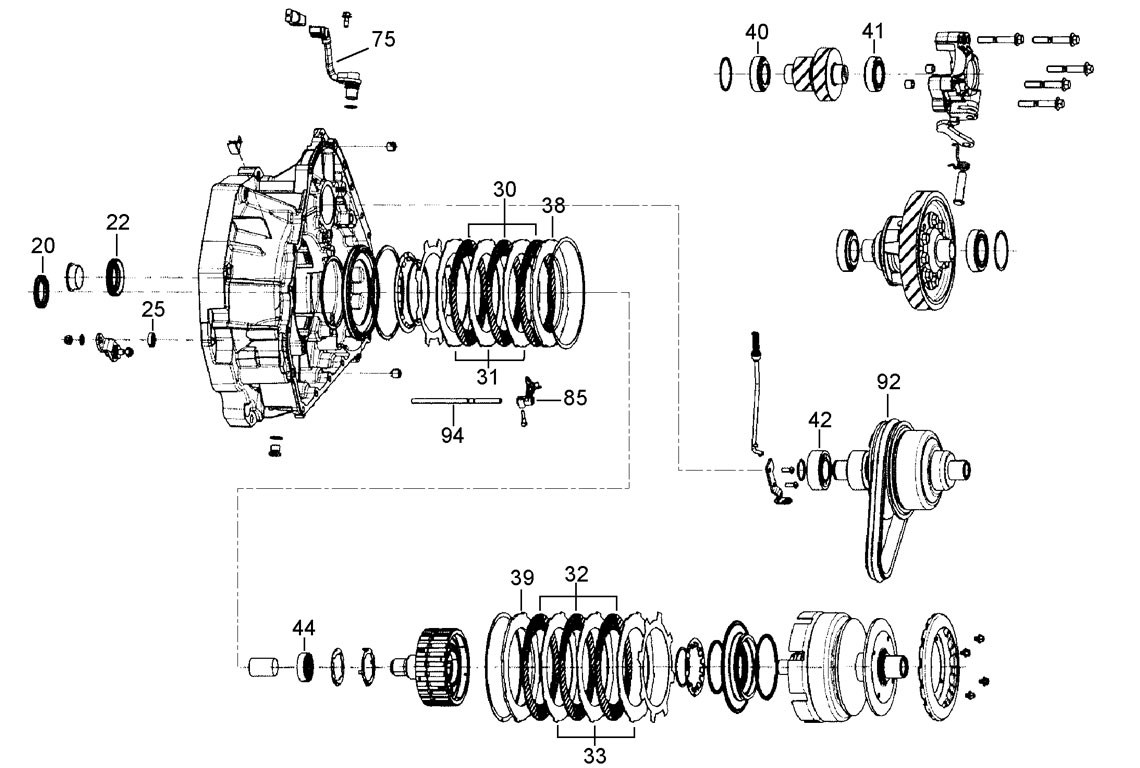

A

41
40
20
25
22
44
92
75
93
31
39
32
42
33
85
30
94
38

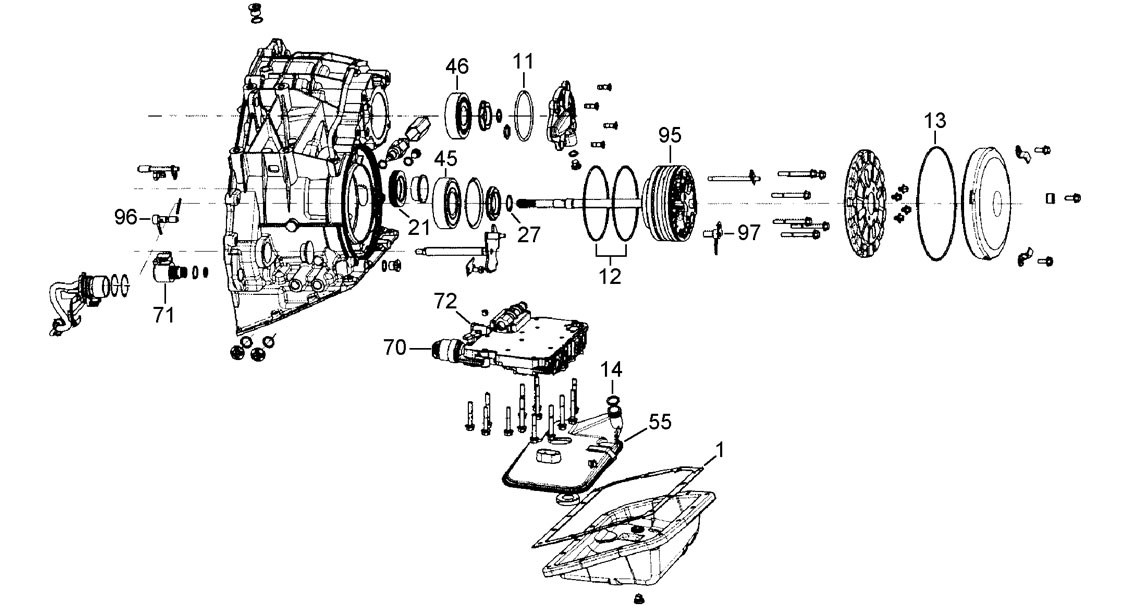

B

27
45
72
71
21
46
96
97
95
55
70
12
11
1
13
14
75

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C13004K Overhaul Kit BMW Mini 00-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1B C13104 Pan Gasket 00-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
11B C13163 Secondary Cover O Ring (Large) 00-ON 1
12B C13160 Pump O Ring Front & Rear 00-ON 2
13B C13162 Primary Cover O Ring 00-ON 1
14B C13164 Filter O Ring 00-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A C13200 Front (Input Shaft) Seal 38 ID x 52 OD x 7.00mm 00-ON 1
21B 73220 Axle Seal Lefthand 38 ID x 58 OD x 11.00mm 00-ON 1
22A 73220 Axle Seal Righthand 38 ID x 58 OD x 11.00mm 00-ON 1
25A C13205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 00-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
27B C13253 Primary Shaft (Pump Nose) with Lug 00-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30A C13312 Forward Friction 168 OD x 2.50mm x 24T 00-ON 3
32A C13312 Reverse Friction 168 OD x 2.50mm x 24T 00-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A C13362 Forward Steel 125 ID x 2.00mm x 8T 00-ON 3
33A C13362 Reverse Steel 125 ID x 2.00mm x 8T 00-ON 3
38A C13392 Forward Pressure Plate 125 ID x 4.00mm x 8T 00-ON 1
39A C13392 Reverse Pressure Plate 125 ID x 4.00mm x 8T 00-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
40A C13496 Idler Bearing Righthand 30 ID x 55 OD x 13.00mm 00-ON 1
41A C13496 Idler Bearing Leftthand 30 ID x 55 OD x 13.00mm 00-ON 1
42A C13493A Pinion Bearing 30 ID x 62 OD x 20.00mm 00-ON 1
44A C13494 Input Shaft Bearing (Needle) 38 ID x 45 OD x 12.00mm 00-ON 1
45B C13491 Primary Bearing 35 ID x 80 OD x 21.00mm 00-ON 1
46B C13492 Secondary Bearing 30 ID x 72 OD x 19.00mm 00-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55B C13555 Filter OEM 00-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C13555K Filter Kit 00-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70B C13720 Stepper Solenoid 00-ON 1
71B C13724 Secondary Pressure Solenoid 00-ON 1
72B C13726 Clutch Control Solenoid 00-ON 1
75A C13732 Speed Sensor Mini 00-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
85A C13765 Ratio Sensor Fork 00-ON 1
NI C13772 Steel Ball for Primary Sliding Shaft 00-ON 6
NI C13772 Steel Ball for Secondary Sliding Shaft 00-ON 9

hard parts

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
70B C13962 VALVE BODY (VT1-27T) MINI
NI C13960U Valve Body Rover (Used) 00-ON 1

oil & transmission supplements
