A

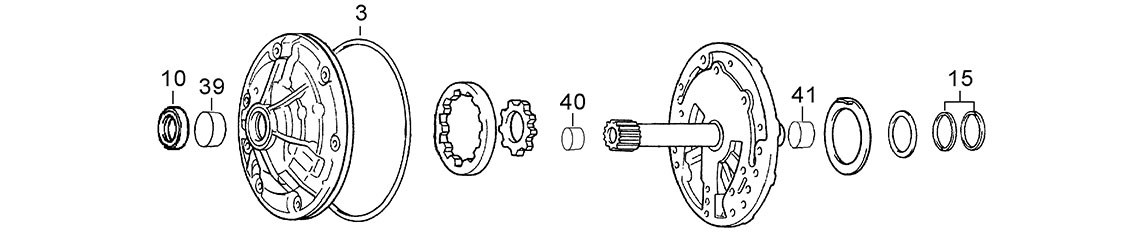

Pump

40
41
3
39
10
15

B

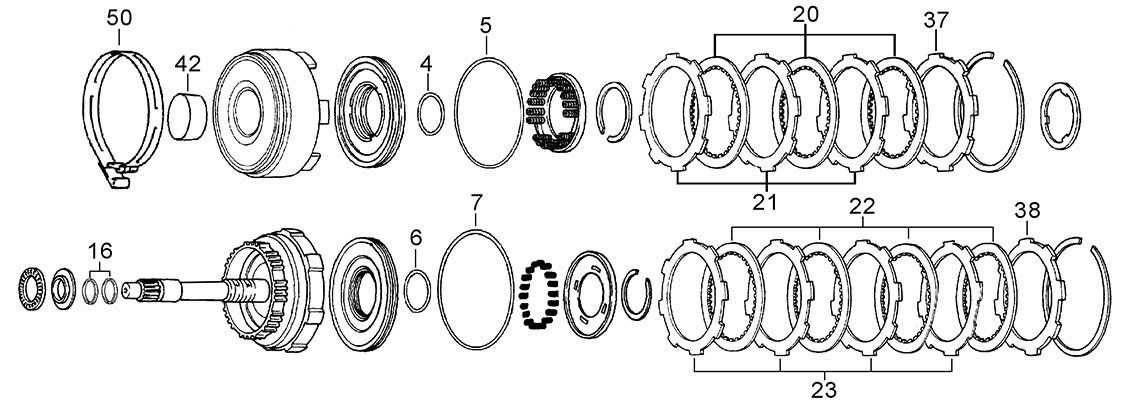

Direct And Forward Clutches

42
4
7
23
72
20
37
21
22
38
6
16
50
74
5

C

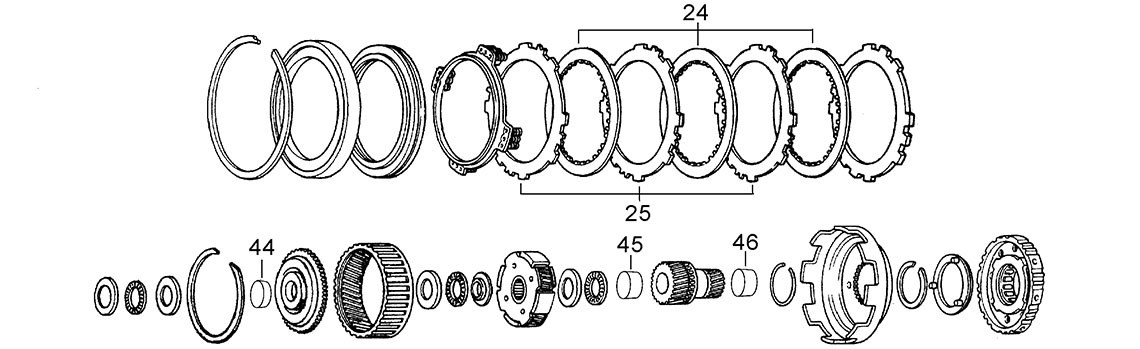

Intermediate Brake And Front Planet

44
24
46
25
45

D

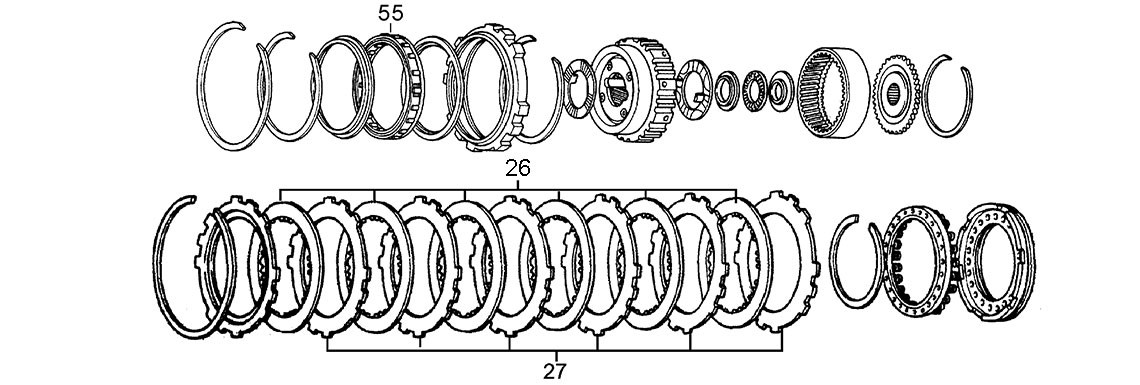

Rear Planet And Low Reverse Brake

27
26
55

E

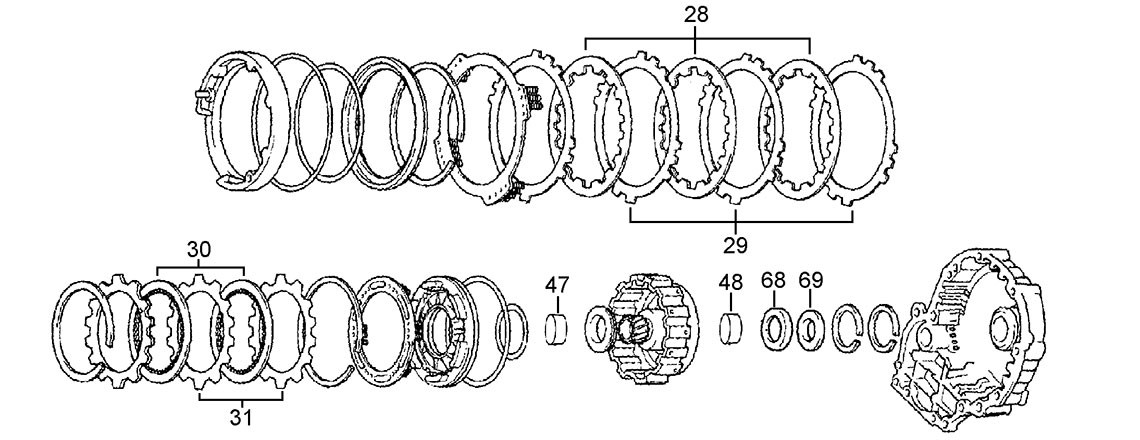

A140 Overdrive Clutch And Brake

47
29
28
31
48
30
68
69

F

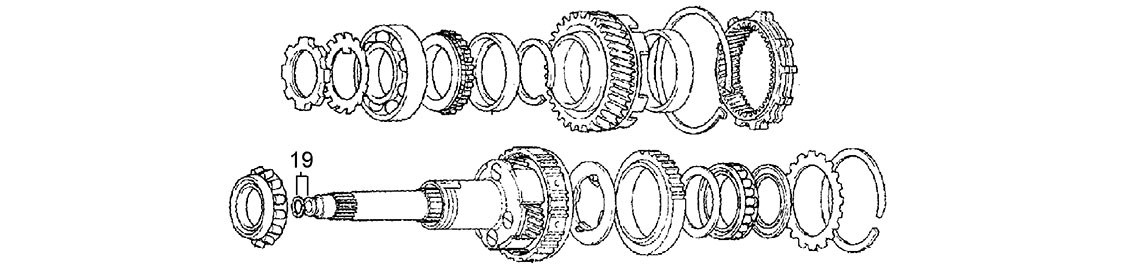

A140 Intermediate Shaft And Overdrive Planet

19

G

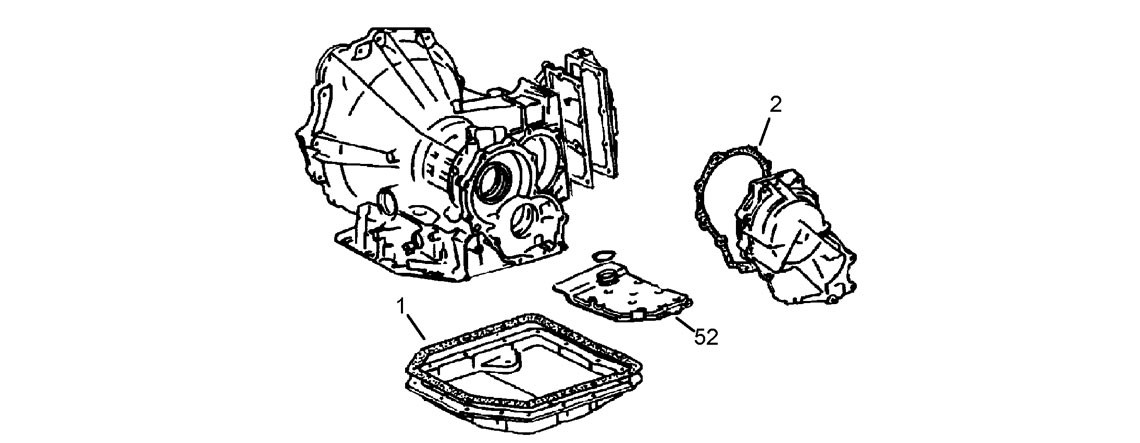

Case Pan And Filter

2
52
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 75000K Overhaul Kit A130 83-ON 1
Kit 75001K Overhaul Kit A210 Suzuki & Barina 85-ON 1
Kit 75004K Overhaul Kit A140E/L, 141E 83-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
3A 75160 Pump O Ring 83-ON 1
4B 75172 Direct Clutch Inner O Ring 83-ON 1
5B 75174 Direct Clutch Outer O Ring 83-ON 1
6B 75170 Forward Clutch Inner O Ring 83-ON 1
7B 75174 Forward Clutch Outer O Ring 83-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 73200 Converter Seal 38 ID x 55 OD x 7.70mm 83-ON 1
NI 75178 Intermediate Clutch Housing to Case Seal (Modified) 35.85mm Long 83-ON 1
NI 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 85-ON 1
NI 75208 Axle Shaft Left & Right A131L, A132L, A141E 34 ID x 54 OD x 9.00mm 83-ON 2
NI 75210 Axle Shaft Left & Right A130L, A140E/L 35 ID x 55 OD x 8.00mm 84-ON 2

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 75250K Sealing Ring Kit All 83-ON 1
15A 75260 Stator Support (Direct Clutch) Telfon 83-ON 2
16B 75262 Input Shaft (Forward Clutch) 83-ON 2
19F 75260 Intermediate Shaft A140 83-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 75310 Direct 125 OD x 1.80mm x 40T 83-ON 2-4
20B 75311 Direct 125 OD x 2.00mm x 40T 87-ON 2-4
22B 75310 Forward Plain 125 OD x 1.80mm x 40T 83-ON 2-4
24C 75312 Intermediate 142 OD x 1.75mm x 33T 83-ON 2-3
24C 75313 Intermediate 140 OD x 2.00mm x 33T 87-ON 2-3
26D 75312 Low & Reverse 142 OD x 1.75mm x 33T 83-ON 5-6
26D 75324 Low & Reverse 142 OD x 1.50mm x 33T 93-ON 6
28E 75312 Overdrive Brake Smooth A140 142 OD x 1.75mm x 33T 83-ON 2
28E 75318 Overdrive Brake A140 165 OD x 1.90mm x 24T 87-ON 3
30E 75310 Overdrive Direct Clutch A140 125 OD x 1.80mm x 40T 83-ON 2
30E 75311 Overdrive Direct Clutch A140 125 OD x 2.00mm x 40T 87-ON 2

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 75360 Direct All 105 ID x 1.80mm x 8T 83-ON 3-4
21B 76366 Direct All Oversize 105 ID x 2.00mm x 8T 83-ON AR
23B 75360 Forward All 105 ID x 1.80mm x 8T 83-ON 3-4
23B 76366 Forward All Oversize 105 ID x 2.00mm x 8T 83-ON AR
25C 75362 Intermediate All (Wide Spline) 117 ID x 1.80mm x 12T 83-ON 3-4
27D 75363 Low & Reverse 125 ID x 1.80mm x 12T 83-ON 4-5
29E 75370 Overdrive Brake A140 143 ID x 2.00mm x 12T 83-89 4-5
29E 75388 Overdrive Brake A140 Camry Only 143 ID x 2.50mm x 12T 90-ON 2
31E 75360 Overdrive Direct Clutch A140 105 ID x 1.80mm x 8T 83-86 2
31E 75368 Overdrive Direct Clutch A140 105 ID x 1.80mm x 20T 87-ON 2-3
37B 75390 Direct Pressure Plate 3.00mm 105 ID x 3.00mm x 3T 83-ON 1
38B 75390 Forward Pressure Plate 3.00mm 105 ID x 3.00mm x 3T 83-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
68E 75490 Overdrive Direct Clutch to Overdrive Housing Bearing A140 26.5x46x3.75 83-ON 1
69E 75492 Overdrive Direct Clutch to Overdrive Housing Race A140 24.8x42.8x4 83-ON 1

bands

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
55D 75662 Low Sprag 83-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 75700K Universal Shift Solenoids 2 Solenoids plus 3 Brackets A140 83-ON 1

sundry parts
