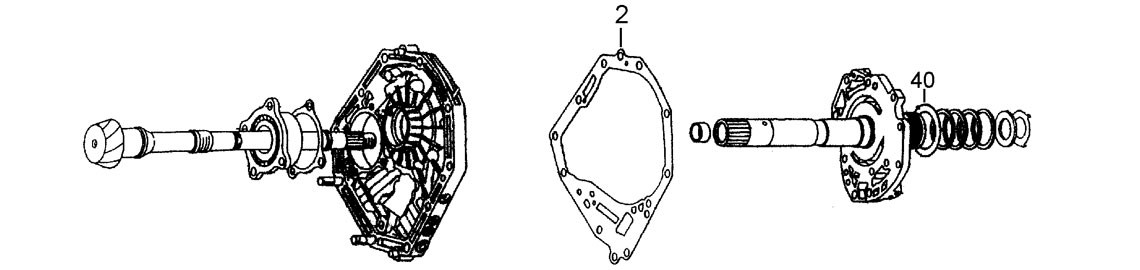

A

Pump

40
2

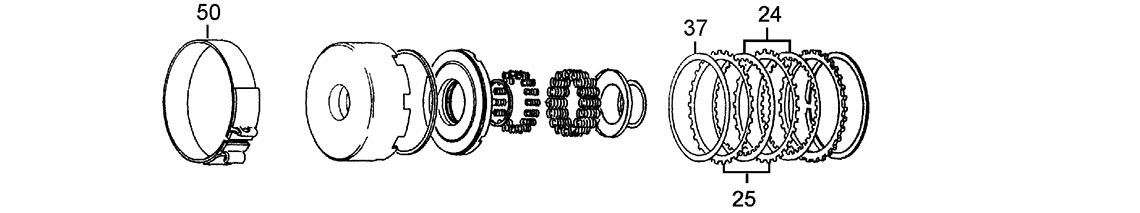

B

Reverse Clutch

24
37
25
50

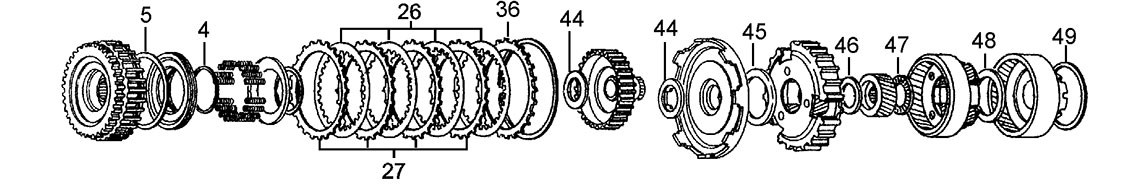

C

High Clutch & Planet Set

49
27
45
4
48
47
44
44
26
36
46
5

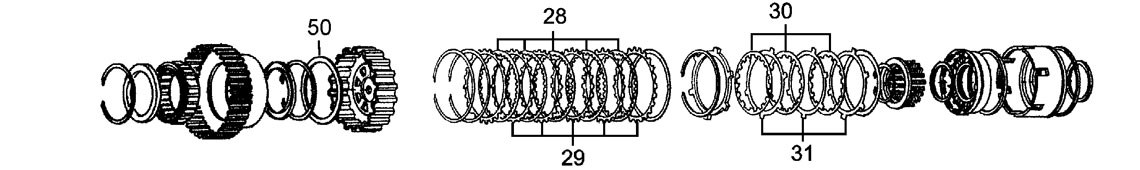

D

Forward & Coast Clutches

29
31
30
50
28

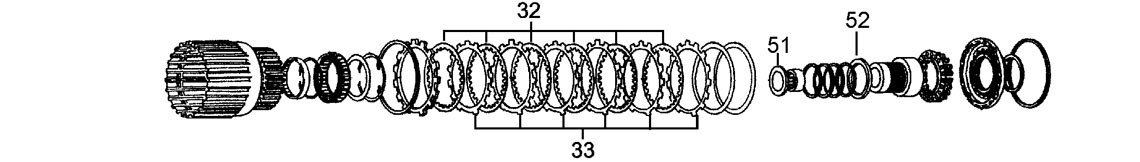

E

Low & Reverse Clutch

51
33
32
52

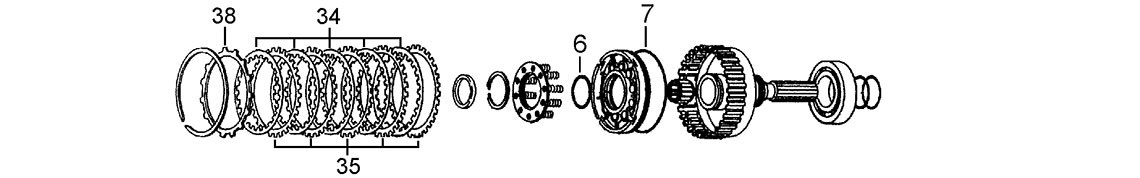

F

Transfer Clutch

6
7
38
34
35

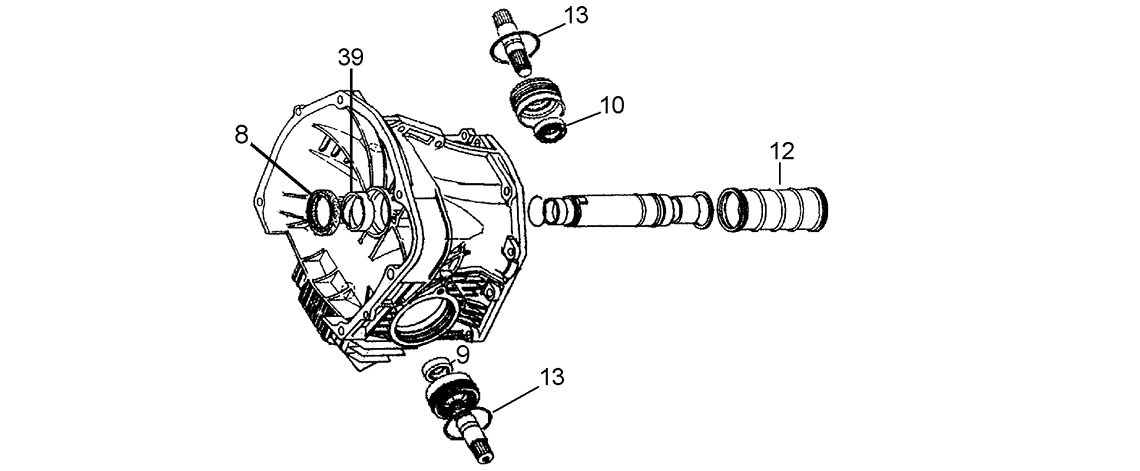

G

Differential Housing

12
8
39
13
10
13
9

H

Case & Pan

1
11
3
713
130

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 62000K Overhaul Kit 4EAT 87-98 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 56120K Valve Body Gasket Kit 87-98 1
1H 62100 Pan Gasket Cork 87-98 1
1H 62101 Pan Gasket Duraprene 87-98 Alt
2A 62110 Front Housing Gasket 87-98 1
3H 62122 Rear Housing Gasket 87-98 1
130H 62130 Transfer Clutch Solenoid Gasket 87-98 2

seals

NO PART # DESCRIPTION SIZE YEARS QTY
8G 62200 Converter Seal 50 ID x 65 OD x 10.00mm 87-98 1
9G 62222 Axle Seal Lefthand 30 ID x 50 OD x 9.00mm 87-98 1
10G 62224 Axle Seal Righthand 30 ID x 50 OD x 9.00mm 87-98 1
11H 60230 Extension Housing 4WD 35 ID x 50 OD x 11.00mm 87-98 1
12G 62235 Differential to Transmission Sealing Pipe 87-98 1
NI 62210 Manual Shaft Seal 16 ID x 25 OD x 5.00mm 87-98 1
NI 62220 Front Drive Pinion Seal 52 ID x 66 OD x 6.40mm 87-98 2

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 62250K Sealing Ring Kit 87-98 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
24B 55313 Reverse 34 Teeth 150 OD x 2.00mm x 34T 87-93 2
24B 56315 Reverse 30 Teeth 149 OD x 2.00mm x 30T 92-96 2
24B 62311 Reverse 38 Teeth 150 OD x 2.00mm x 38T 95-98 2
26C 55317 High 133 OD x 1.60mm x 30T 87-98 4-5
28D 56310 Forward 1.6mm 148 OD x 1.60mm x 36T 87-98 Alt
28D 62310 Forward 2.0mm 148 OD x 2.00mm x 36T 87-98 5-7
30D 56312 Coast 133 OD x 2.00mm x 18T 87-98 3-5
32E 56314 Low & Reverse 147 OD x 2.00mm x 30T 87-98 AR
32E 62314 Low & Reverse 148 OD x 1.60mm x 30T 87-98 AR
32E 62315 Low & Reverse 148 OD x 1.80mm x 30T 87-98 4-6
34F 62318 4WD (Transfer) Clutch 118 OD x 1.80mm x 24T 87-98 6
34F 62320 4WD (Transfer) Clutch 118 OD x 2.00mm x 24T 87-98 AR
34F 62322 4WD (Transfer Clutch) 118 OD x 1.80mm x 50T 94-98 6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 56350K Reverse Drum Saver Kit 87-92 1
Kit 56352K Reverse Drum Saver Kit 93-98 1
25B 56366 Reverse (135mm ID) 136 ID x 2.00mm x 30T 87-93 2
25B 56367 Reverse (128mm ID) 129 ID x 2.00mm x 30T 93-95 2
27C 55371 High 27 Teeth (2.4mm) 112 ID x 2.40mm x 27T 87-98 AR
27C 56368 High 27 Teeth (1.70mm) 112 ID x 1.70mm x 27T 87-98 AR
27C 56368A High 27 Teeth (2.00mm) 112 ID x 2.00mm x 27T 87-98 AR
27C 56368B High 27 Teeth (2.75mm) 112 ID x 2.75mm x 27T 87-98 AR
27C 56368C High 27 Teeth (3.00mm) 112 ID x 3.00mm x 27T 87-98 AR
27C 62361A High 24 Teeth (2.00mm) 112 ID x 2.00mm x 24T 95-98 AR
27C 62361B High 24 Teeth (3.00mm) 112 ID x 3.00mm x 24T 95-98 AR
29D 56360 Forward (2.00mm) 130 ID x 2.00mm x 24T 87-98 5-7
29D 56361 Forward (1.80mm) 130 ID x 1.80mm x 24T 87-98 AR
31D 56362 Coast 115 ID x 2.00mm x 6T 87-98 3-5
33E 56364 Low & Reverse (2.00mm) 125 ID x 2.00mm x 14T 87-98 AR
33E 62363A Low & Reverse (1.30mm) 129 ID x 1.30mm x 14T 87-98 AR
33E 62363C Low & Reverse (1.80mm) 129 ID x 1.80mm x 14T 87-98 AR
35F 62368 4WD (Transfer) Clutch 104.6 ID x 1.60mm x 30T 87-98 5
35F 62369 4WD (Transfer) Clutch Kolene 104.6 ID x 1.80mm x 30T 87-98 AR
35F 62370 4WD (Transfer) Clutch 104.6 ID x 1.80mm x 30T 87-98 5
36C 56398A High Clutch Pressure Plate (3.60mm) 112 ID x 3.60mm x 27T 87-98 AR
36C 56398C High Clutch Pressure Plate (4.00mm) 112 ID x 4.00mm x 27T 87-98 AR
36C 56398D High Clutch Pressure Plate (4.20mm) 112 ID x 4.20mm x 27T 87-98 AR
36C 56398E High Clutch Pressure Plate (4.40mm) 112 ID x 4.40mm x 27T 87-98 AR
38F 62396 4WD (Transfer) Clutch Pressure Plate 104.6 ID x 4.00mm x 30T 87-98 AR
38F 62398 4WD (Transfer) Clutch Pressure Plate (5.00mm) 104.6 ID x 5.00mm x 30T 87-98 AR

* Check before fitting as this kit does not suit all models
Contains Modified Waved Spring, Standard Friction Plates and Undersize Steel Plates

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
39G 62410 Bellhousing to Converter Hub 87-98 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50B 56500 Band Non Turbo 87-98 1
50B 56500A Band Heavy Duty Carbonite 44.45mm Wide 87-98 Alt

filters

NO PART # DESCRIPTION SIZE YEARS QTY
NI 62550 Filter Except Legacy 87-98 1
NI 62552 Filter Legacy 87-98 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 62550K Filter Kit Subaru 4 Speed Except Legacy 87-98 1
Kit 62552K Filter Kit Legacy 87-98 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
NI 62630 Speedo Adaptor Snap Ring 87-98 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
37B 56673 Reverse Clutch Modified Waved Cushion Spring 87-98 1

electrical components

Chassis No required when ordering Transfer Clutch Solenoids

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 56800K Shift Kit 87-98 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI 62960 Rear Mount Righthand Side 87-98 1
NI 62962 Rear Mount Lefthand Side 87-98 1
