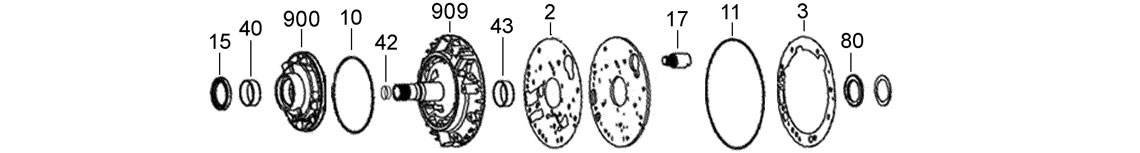

A

Pump

43
3
42
40
2
80
17
15
10
11
900
909

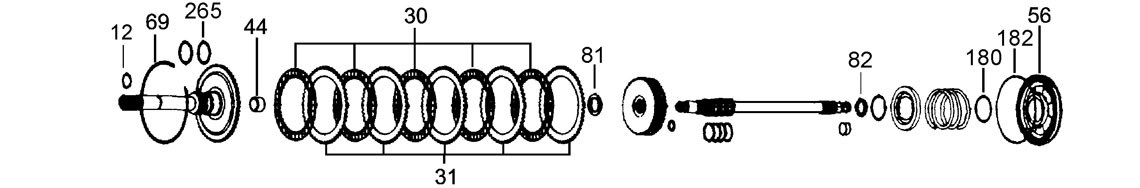

B

C1 Clutch

265
69
44
81
30
82
31
180
182
12
56

C

C4 And C2 Clutches

69
70
98
33
71
61
84
85
34
60
86
32
68
183
185
57
58
74
75
35
45

D

C3 Clutch

36
89
62
268
77
37
69
72
90
59
38
181
185
13
87

E

Planet Set

49
281
48
51
63
50
93
96
79
98
91
97
94
92
99

F

Case, Pan & Servos

20
53
5
4
9
52
8
65
54
55
172
1
16
985

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24005K Overhaul Kit (BA/BF) 02-05 1
Kit 24006K Overhaul Kit ION 93, 97LE 02-05 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24005KM Master Kit 02-05 1
Kit 24005KMS5 Master Kit With S5 Solenoid 02-05 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
15A 24200 Front Pump Seal 46 ID x 61.9 OD x 6.90mm 02-05 1
16F 24220 Extension Housing 38.5 ID x 60.3 OD x 11.80mm 02-05 1
16F 24225 Extension Housing Seal LE72 42 ID x 66.6 OD x 9.70mm 02-05 1
24F 21210 Selector Shaft 7.7 ID x 17.6 OD x 4.00mm 05-05 1
NI 24230 Adaptor Seal Territory 31.5 ID x 44.8 OD x 6.60mm 02-05 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24352K Friction Kit 02-05 1
Kit 24354K Friction Module (Late BTR) Hi Energy OEM 02-05 1
30B 24312 C1 Clutch Radial & Waffle Grooves 126.4 OD x 2.00mm x 46T 02-05 5
30B 24314 C1 Clutch Radial Grooves 126.4 OD x 2.00mm x 46T 02-05 Alt
32C 24324A C4 Clutch Hi Energy 117 OD x 2.00mm x 41T 02-05 3
34C 24312 C2 Clutch Radial & Waffle Grooves 126.4 OD x 2.00mm x 46T 02-05 5
34C 24314 C2 Clutch Radial Grooves 126.4 OD x 2.00mm x 46T 02-05 Alt
36D 24312 C3 Clutch Radial & Waffle Grooves 126.4 OD x 2.00mm x 46T 02-05 4
36D 24314 C3 Clutch Radial Grooves 126.4 OD x 2.00mm x 46T 02-05 Alt

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 24362 C1 Clutch Steel Plate 102 ID x 2.00mm x 52T 02-05 AR
31B 24364 C1 Clutch Steel Plate 102 ID x 2.25mm x 52T 02-05 2
31B 24365 C1 Clutch Steel Plate 102 ID x 2.30mm x 52T 02-05 AR
31B 24366 C1 Clutch Steel Plate 102 ID x 2.50mm x 52T 02-05 2
33C 24370A C4 Clutch Steel Plate 91 ID x 1.40mm x 56T 02-05 1
33C 24370B C4 Clutch Steel Plate 91 ID x 1.70mm x 56T 02-05 AR
33C 24370C C4 Clutch Steel Plate 91 ID x 1.80mm x 56T 02-05 1
33C 24370D C4 Clutch Steel Plate 91 ID x 2.20mm x 56T 02-05 1
33C 24370E C4 Clutch Steel Plate 91 ID x 2.30mm x 56T 02-05 AR
35C 24360 C2 Clutch Steel Plate 102 ID x 1.80mm x 52T 02-05 AR
35C 24362 C2 Clutch Steel Plate 102 ID x 2.00mm x 52T 02-05 2
35C 24364 C2 Clutch Steel Plate 102 ID x 2.25mm x 52T 02-05 2
35C 24365 C2 Clutch Steel Plate 102 ID x 2.30mm x 52T 02-ON AR
35C 24366 C2 Clutch Steel Plate 102 ID x 2.50mm x 52T 02-05 2
37D 24362 C3 Clutch Steel Plate 102 ID x 2.00mm x 52T 02-05 AR
37D 24364 C3 Clutch Steel Plate 102 ID x 2.25mm x 52T 02-05 2
37D 24365 C3 Clutch Steel Plate 102 ID x 2.30mm x 52T 02-05 AR
37D 24366 C3 Clutch Steel Plate 102 ID x 2.50mm x 52T 02-05 2
38D 24396 C3 Pressure Plate 102 ID x 4.50mm x 52T 02-05 1
70C 24372 C4 Wave Washer 02-05 1
71C 24368 C2 Wave Washer 02-05 1
72D 24374 C3 Wave Washer 02-05 1

bushes

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24452K Needle Washer Kit 02-05 1
80A 24460 Pump to Input Shaft Needle Bearing 42.8 ID x 62.6 OD x 3.65mm 02-05 1
81B 24462 C1 Clutch Hub to Input Shaft Bronze 22 ID x 37.5 OD x 1.60mm 02-05 1
82B 24464 Overdrive Shaft to Forward Sungear Spacer 02-05 1
84C 24466 C1, C2 Cylinder to C4 Clutch Hub Thrust 34.8 ID x 48 OD x 6.00mm 02-05 1
85C 24468 C1, C2 Cylinder to C4 Clutch Hub Bearing 33 ID x 51 OD x 3.80mm 02-05 1
86C 24470 C4 Hub to C2 Hub & Outer Race Assembly Nylon Washer 64.1 ID x 80 OD x 1.90mm 02-05 1
87D 24470 C2 Hub to Thrust Plate Inner Race 64.1 ID x 80 OD x 1.90mm 02-05 1
89D 24468 Inner Race Plate to Reverse Sungear Bearing 33 ID x 51 OD x 3.80mm 02-05 1
90D 24474 Needle Bearing to Reverse Sungear Plate 02-05 1
91E 24478 Forward Sungear to Reverse Sungear Bearing 02-05 1
92E 24482 Forward Sungear to Planet Cover Bearing 22.5 ID x 43.4 OD x 4.30mm 02-05 1
93E 21490 Planet to Output Shaft Bearing 35 ID x 55 OD x 3.00mm 02-05 1
94E 24488 Output Shaft to Case Bearing 52 ID x 71.7 OD x 3.40mm 02-05 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
62D 24502 Front Band Flex 02-05 1
63E 24518 Rear Band 02-05 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
65F 24550 Filter 02-05 1
NI 24565 Valve Body Filter (BTR) 02-05 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 24550K Filter Kit 02-05 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
55F 24570 Front Servo Piston with Belville Spring 02-05 1
56B 24571 C1 Clutch Piston 02-05 1
57C 24572 C2 Clutch Piston 02-05 1
58C 24574 C4 Clutch Piston 02-05 1
59D 24573 C3 Clutch Piston 02-05 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
20F 24632 Front Servo Outer Snap Ring 02-05 1
69B 24630 Outer Snap Ring C1 02-05 1
69C 24630 Outer Snap Ring C2 02-05 1
69D 24630 Outer Snap Ring C3 02-05 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
NI 24996 Valve Body Without Solenoids 02-05 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49403AU Cooler Kit Falcon (AU & BA) 295 x 280 x 19.00mm 02-05 1
Kit 49403B Cooler Kit Falcon (BF & Territory) 295 x 280 x 19.00mm 02-05 1
NI 49403AU BA Series 295 x 280 x 19.00mm 02-05 1
