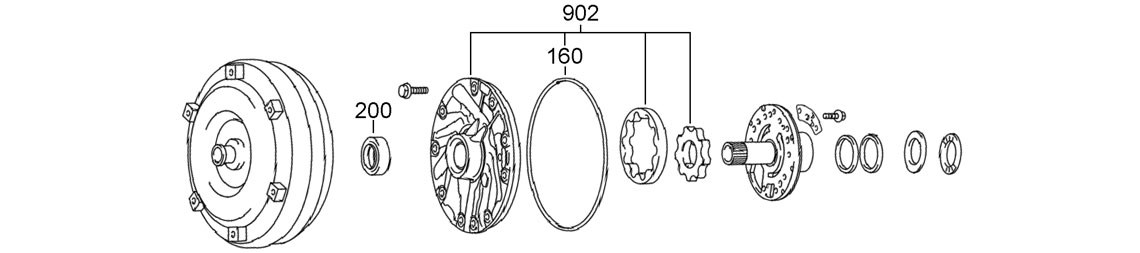

A

Torque Converter, Front Oil Pump & Chain

200
160
902

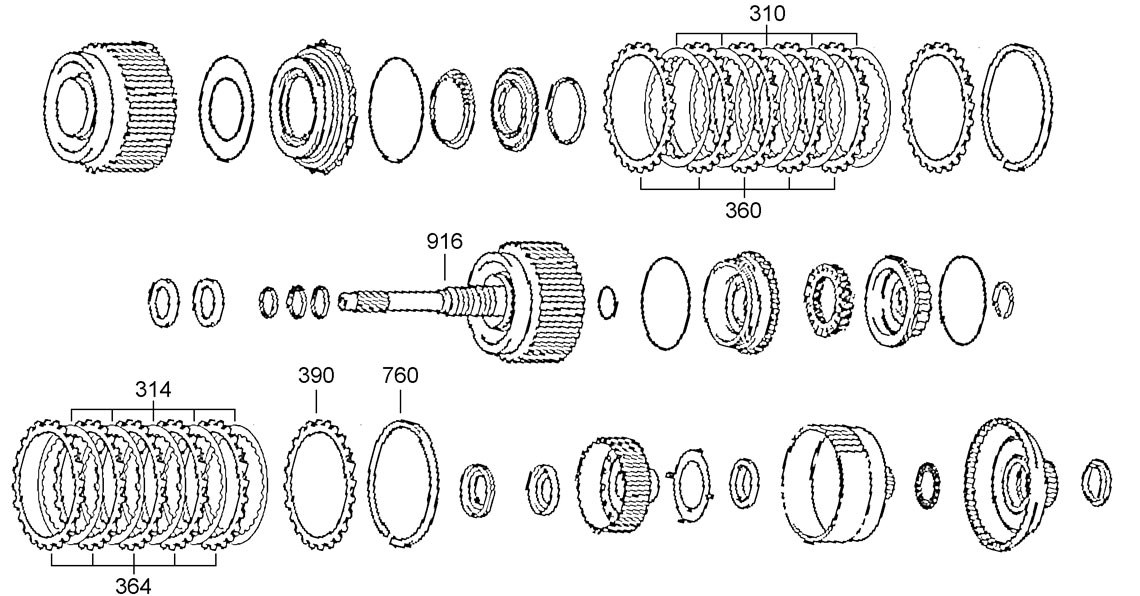

B

Brake Band & Multiple Disc Clutch

364
314
310
360
916

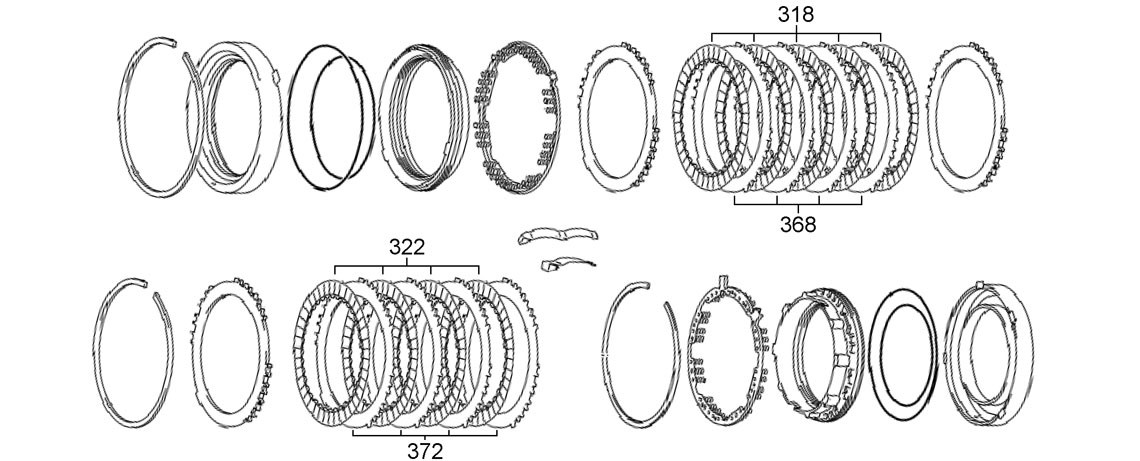

C

Center support & Planetary Sun Gear

372
322
318
368

D

Brake No 3, 1st & Reverse Brake

326
396
376

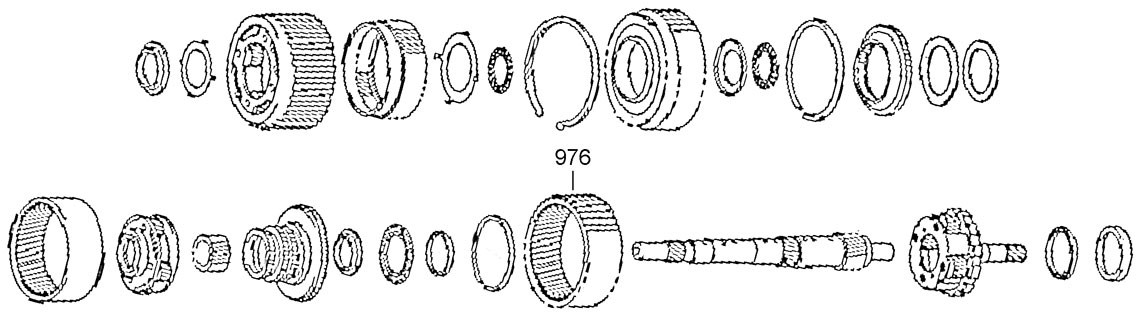

E

Planetary Gear, Reverse Piston and Counter Gear

976

F

Valve Body, Oil Strainer, Transmission case & Oil pan

71
72
73
74
75
76
77
550
100
730
730

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 120000K Overhaul Kit 15-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
100F 120100 Pan Gasket 15-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
160A 120160 Pump O Ring 15-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 120200 Seal Converter 15-ON 1
NI 120220 Seal Extension Housing 15-ON 1
NI 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 15-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
310B 120310 Direct Clutch Friction Plate 169 OD x 2.00mm x 36T 15-ON 5
314B 120314 Forward Clutch Friction Plate 128 OD x 2.00mm x 30T 15-ON 5
318C 120318 No 2 Brake Friction Plate 169 OD x 1.80mm x 36T 15-ON 5
322C 120322 No 1 Brake Friction Plate 161 OD x 1.80mm x 36T 15-ON 4
326D 120326 No 4 Brake Friction Plate 140 OD x 1.55mm x 48T 15-ON 7
NI 120310A FRICTION NO 2 CLUTCH (AC60E/F) - AM 169 OD x 2.00mm x 36T
NI 120314A FRICTION NO 1 (FORWARD) CLUTCH (AC60E/F) 128 OD x 2.00mm x 30T 5
NI 120318A FRICTION NO 2 BRAKE (AC60E/F) 169 OD x 1.80mm x 36T 5
NI 120322A FRICTION NO 1 BRAKE (AC60E/F) 161 OD x 1.80mm x 36T
NI 120326A FRICTION NO 4 BRAKE (AC60E/F) 140 OD x 1.55mm x 48T

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
360B 120360 Direct Clutch Steel Plate 153 ID x 3.00mm x 30T 15-ON 5
364B 120364 Forward Clutch Steel Plate 106 ID x 3.00mm x 24T 15-ON 5
368C 120368 No 2 Brake Steel Plate 140 ID x 2.60mm x 16T 15-ON 4
372C 120372 No 1 Brake Steel Plate 130 ID x 2.40mm x 18T 15-ON 4
376D 120376 No 4 Brake Steel Plate 125 ID x 1.75mm x 16T 15-ON 6
396D 120396 No 4 Brake Pressure Plate 125 ID x 8.25mm x 15T 15-ON 1
NI 120360A STEEL NO 2 CLUTCH (AC60E/F) 153 ID x 3.00mm x 30T 5
NI 120364A STEEL NO 1 (FORWARD) CLUTCH (AC60E/F) 106 ID x 3.00mm x 24T 5
NI 120368A STEEL NO 2 BRAKE (AC60E/F) 140 ID x 2.60mm x 16T 4
NI 120372A STEEL NO 1 BRAKE (AC60E/F) 130 ID x 2.40mm x 18T 4

filters

NO PART # DESCRIPTION SIZE YEARS QTY
550F 120550 Filter AC60E 15-ON 1
550F 120552 Filter AC60F 15-ON 1
550F 120554 Filter (HV/FCV Hybrid) Toyota/Lexus 15-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
NI 120550K Filter Kit AC60E 15-ON 1
NI 120552K Filter Kit AC60F 15-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
71F 120700 SLT Solenoid 15-ON 1
72F 120710 SL2 Solenoid 15-ON 1
73F 120710 SL1 Solenoid 15-ON 1
74F 120710 SL3 Solenoid 15-ON 1
75F 120704 SLU Solenoid 15-ON 1
76F 120710 SL4 Solenoid 15-ON 1
77F 120706 SL Solenoid 15-ON 1
730F 120730 Speed Sensor 15-ON 1
NI 120740 Wiring Harness 15-ON 1
NI 120750 Neutral Start Switch 15-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
902A 120902 Pump Body & Gears 15-ON 1
916B 120916 Input Shaft & Forward Clutch Drum, VIN # required 15-ON 1
976E 120976 Rear Annulus 15-ON 1
