A

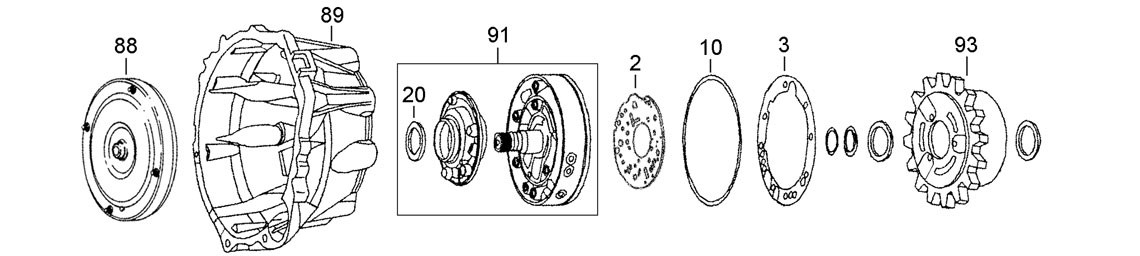

Converter, Bell Housing, Pump & Front Planet

89
2
91
908
92
88
93
20
3
10

B

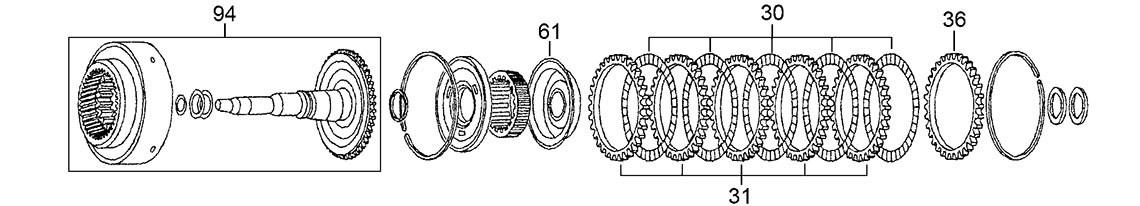

Input Shaft & C1 Clutch Cylinder

36
30
31
61
94

C

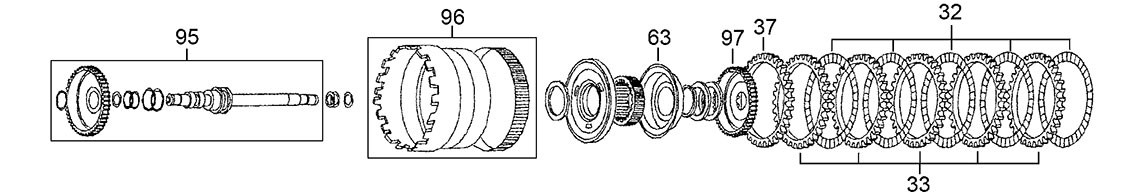

C1 Hub, Intermediate Shaft & C2 Clutch Cylinder

96
63
33
37
95
32
97

D

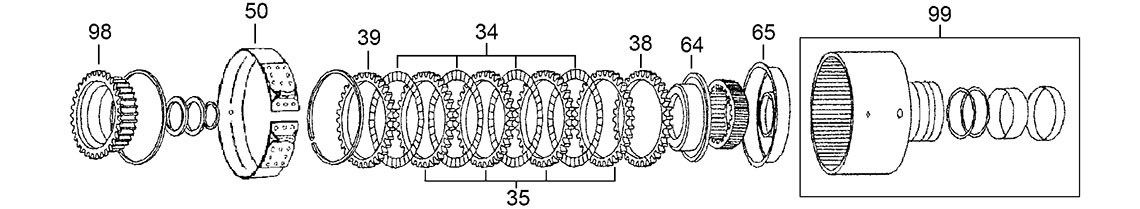

C3 Hub & C3 Clutch Cylinder

50
38
64
39
65
35
99
98
34

E

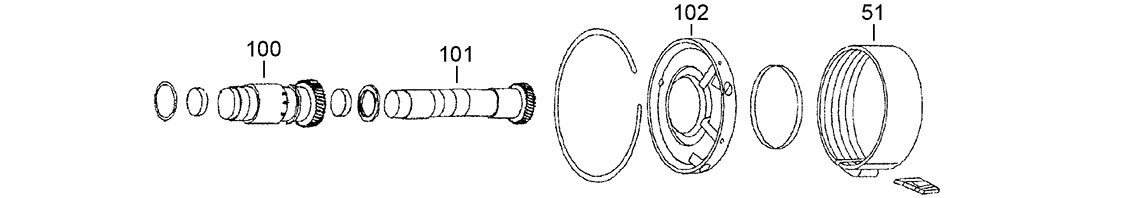

Reverse & Forward Sungears, Centre Support & B2 Band

51
100
101
102

F

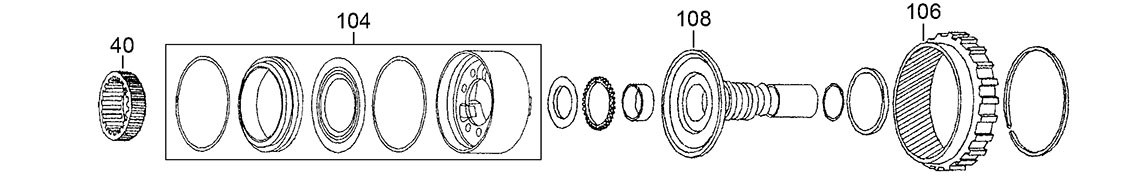

Rear Planet, Output Shaft & Rear Annulus

40
104
108
106

G

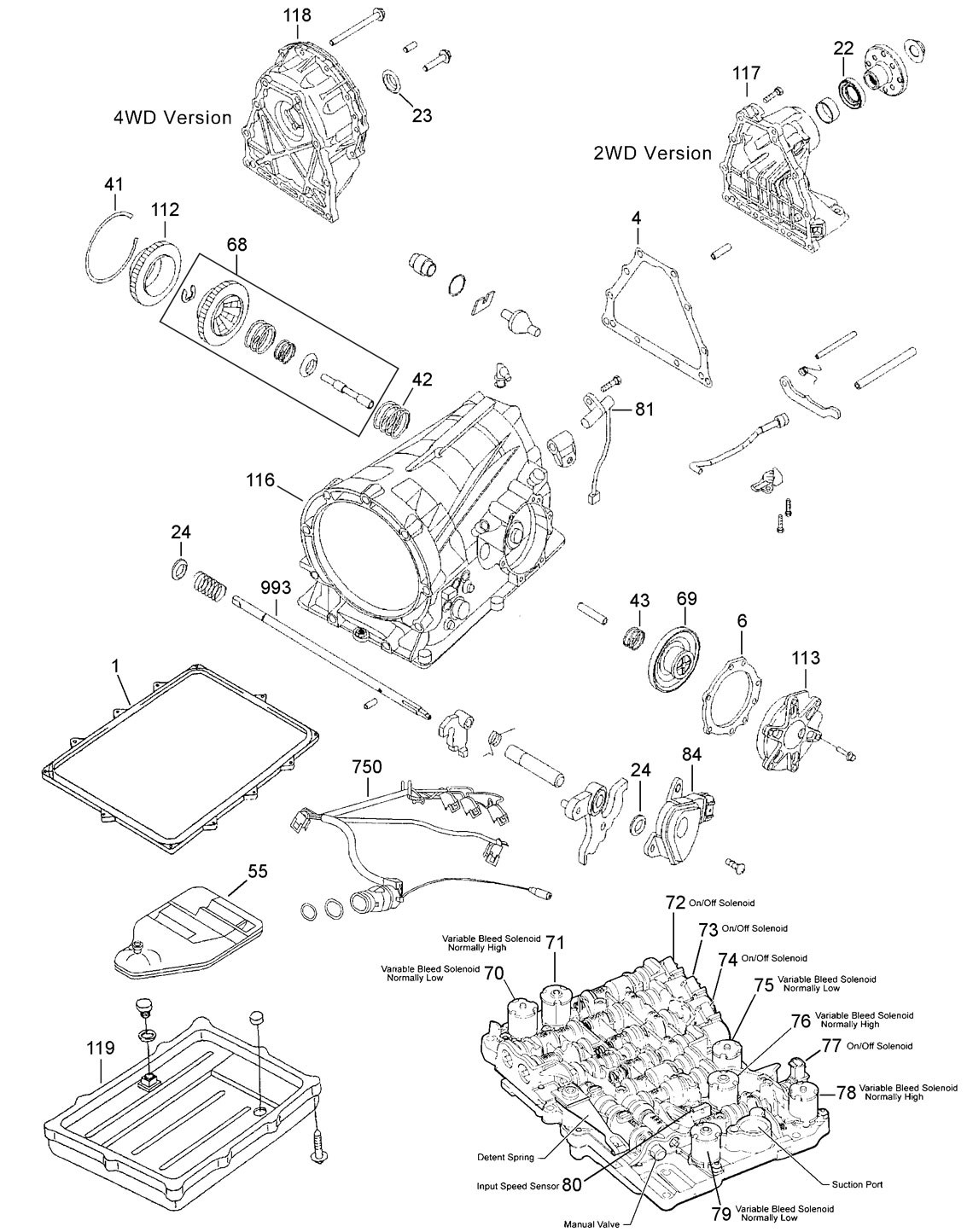

Case, Valve Body, Pan, Filter & Electrical Components

4
41
78
24
23
24
70
22
68
6
71
69
43
42
79
73
81
76
75
77
80
72
74
55
84
120
118
112
119
116
1
117
113
993

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112000K Overhaul Kit with Bonded Pistons 11-ON 1
Kit 112002K Overhaul Kit without Bonded Pistons 11-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112000KM Master Kit with Bonded Pistons 11-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112170K Front Servo O Ring Kit 11-ON 1
10A 24162 Pump Cover to Case O Ring 11-ON 1
NI 112176 Rear Servo Piston O Ring 40mm ID 11-ON 1
NI 112190 VBS Solenoid O Ring 11-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 24200 Front Pump Seal 46 ID x 61.9 OD x 6.90mm 11-ON 1
22G 24220 Extension Housing 2WD 38.5 ID x 60.3 OD x 11.80mm 11-ON 1
23G 24230 Extension Housing 4WD 31.5 ID x 44.8 OD x 6.60mm 11-ON 1
24G 21210 Selector Shaft 7.7 ID x 17.6 OD x 4.00mm 11-ON 2

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112250K Sealing Ring Kit 11-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112300K Friction Module 11-ON 1
30B 24314 C1 Clutch Friction 126.4 OD x 2.00mm x 46T 11-ON 5
32C 24314 C2 Clutch Friction 126.4 OD x 2.00mm x 46T 11-ON 6
34D 24314 C3 Clutch Friction 126.4 OD x 2.00mm x 46T 11-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 24362 C1 Clutch Steel (2.00mm) 102 ID x 2.00mm x 52T 11-ON AR
31B 24364 C1 Clutch Steel (2.25mm) 102 ID x 2.25mm x 52T 11-ON AR
31B 24365 C1 Clutch Steel 102 ID x 2.30mm x 52T 11-ON AR
31B 24366 C1 Clutch Steel (2.50mm) 102 ID x 2.50mm x 52T 11-ON AR
33C 24362 C2 Clutch Steel (2.00mm) 102 ID x 2.00mm x 52T 11-ON AR
33C 24364 C2 Clutch Steel (2.25mm) 102 ID x 2.25mm x 52T 11-ON AR
33C 24365 C2 Clutch Steel 102 ID x 2.30mm x 52T 11-ON AR
33C 24366 C2 Clutch Steel (2.50mm) 102 ID x 2.50mm x 52T 11-ON AR
35D 24362 C3 Clutch Steel (2.00mm) 102 ID x 2.00mm x 52T 11-ON AR
35D 24364 C3 Clutch Steel (2.25mm) 102 ID x 2.25mm x 52T 11-ON AR
35D 24365 C3 Clutch Steel 102 ID x 2.30mm x 52T 11-ON AR
35D 24366 C3 Clutch Steel (2.50mm) 102 ID x 2.50mm x 52T 11-ON AR
36B 24396 C1 Pressure Plate (4.50mm) 102 ID x 4.50mm x 52T 11-ON 1
37C 112374 C2 Wave Washer 102 OD x 1.00mm x 52T 11-ON 1
38D 112374 C3 Wave Washer 102 OD x 1.00mm x 52T 11-ON 1
39D 24396 C3 Pressure Plate (4.50mm) 102 ID x 4.50mm x 52T 11-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112450K Bearing and Washer Kit 11-ON 1
NI 112460 Skid Plate & Shim Pump To Front Planet 11-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50D 24502 B1 (Front) Band 11-ON 1
51E 24518 B2 (Rear) Band 11-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55G 112550 Filter 11-ON 1
NI 112565 Solenoid Filter 11-ON AR

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112550K Filter Kit 11-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112570K Piston Kit 11-ON 1
61B 112582 C1 Balance Piston 11-ON 1
63C 112586 C2 Balance Piston 11-ON 1
64D 112590 C3 Balance Piston 11-ON 1
65D 112588 C3 Bonded Piston 11-ON 1
68G 112595 Front Servo Piston 11-ON 1
69G 112596 Rear Servo Piston 11-ON 1
69G 24596 Rear Servo Piston 11-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112630K Circlip Kit 11-ON 1
41G 24632 Circlip Front Servo Cover 11-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
40F 112654 Low One Way Clutch 11-ON 1
42G 112672 Front Servo Spring 11-ON 1
43G 112674 Rear Servo Spring 11-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 112760K Valve Body Bolt Kit 11-ON 1
NI 112775 Breather 11-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
120G 112998 Valve Body Complete with Solenoids & Wiring Herness 11-ON 1
