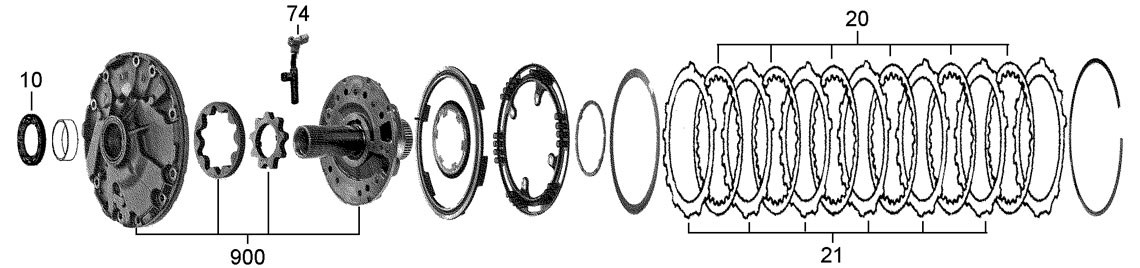

A

Pump & B1 Brake Assembly

21
20
74
10

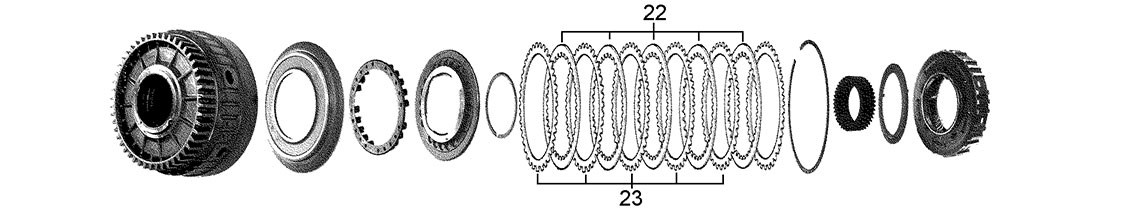

B

K3 Clutch Assembly

23
22

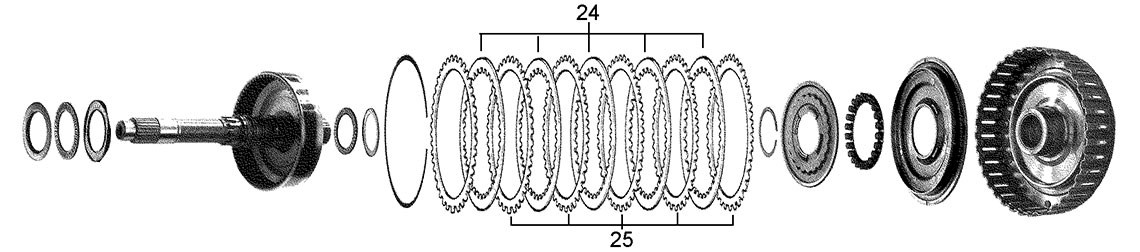

C

Input Shaft & K1 Clutch Assembly

25
24

D

Drive Shell, One Way Clutch & Planetary Assembly

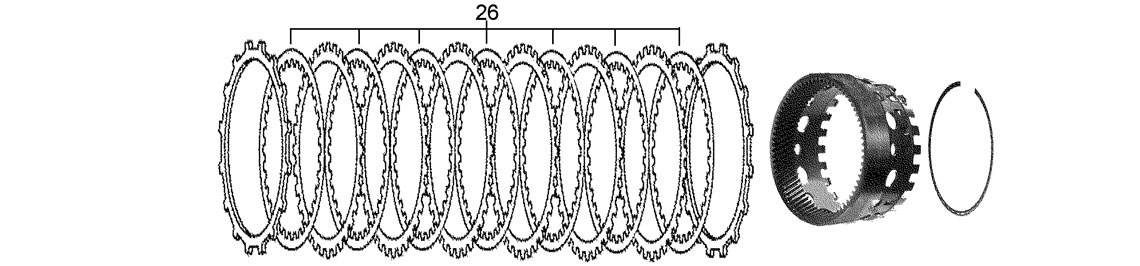

E

B2 Brake Assembly

26

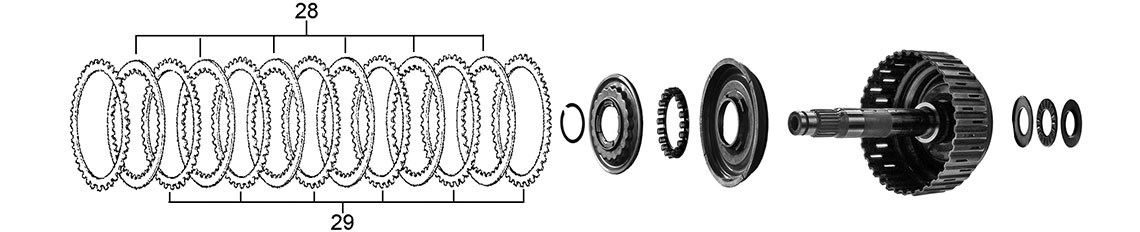

F

K2 Clutch Assembly

29
28

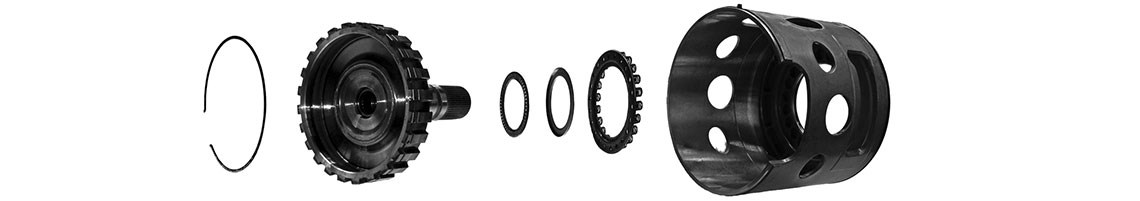

G

Output Shaft & B2 Brake Piston

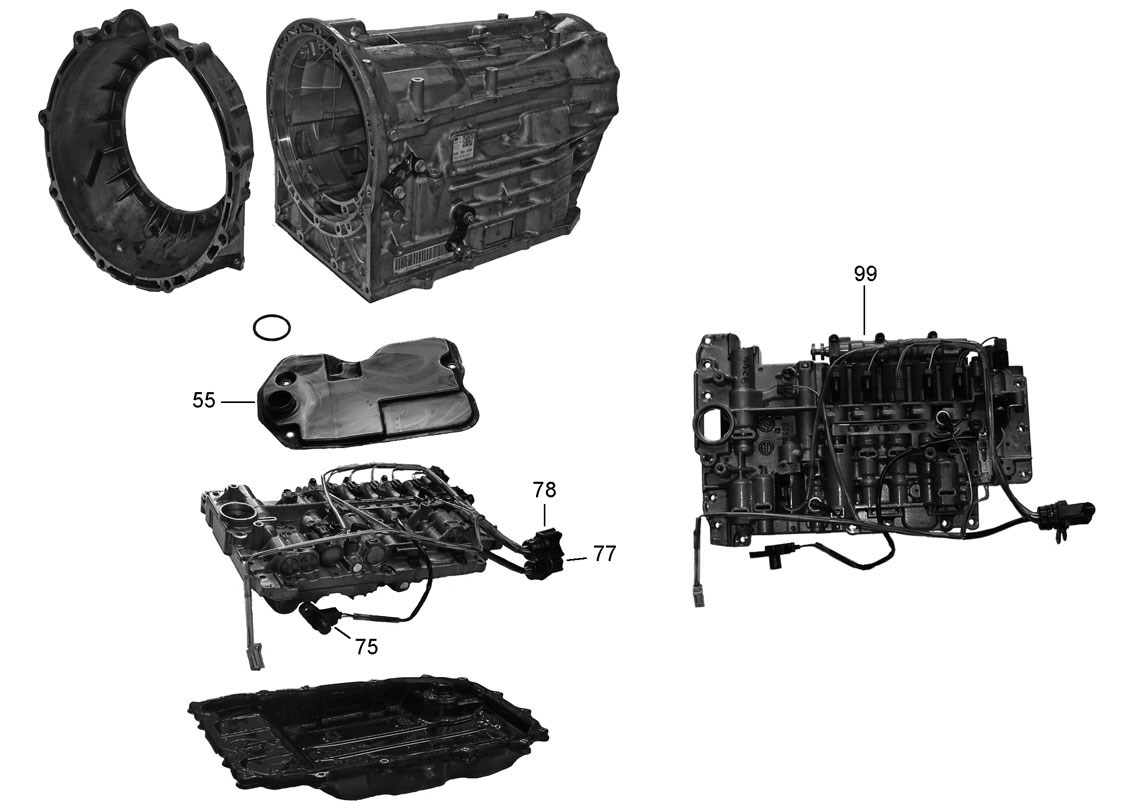

H

Case & Valve Body Components

75
77
78
55
99

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 102000K Overhaul Kit TR-60SN, 09D 03-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
NI 102100 Pan Gasket 03-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 102160 Pump O Ring 03-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 102200 Front Pump Seal 45 ID x 62.3 OD x 7.60mm 03-ON 1
NI 102220 Adapter Housing Seal 42 ID x 72.5 OD x 11.00mm 03-ON 1
NI 102230 Selector Shaft Seal 03-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 102250K Sealing Ring Kit 03-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20A 102310 B1 Brake Friction 195mm OD x 2.00mm x 48T 03-ON 6
22B 102314 K3 Clutch Friction 170mm OD x 2.00mm x 36T 03-ON 5
24C 102318 K1 Clutch Friction 165mm OD x 2.10mm x 40T 03-ON 7
26E 102322 B2 Brake Friction 173mm OD x 1.70mm x 50T 03-ON 7
28F 102328 K2 Clutch Friction 137mm OD x 2.03mm x 42T 03-ON 7

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21A 102360 B1 Brake Steel 170mm ID x 2.00mm x 10T 03-ON 6
23B 102364 K3 Clutch Steel 146mm ID x 2.00mm x 36T 03-ON 7
25C 102368 K1 Clutch Steel 150mm ID x 2.00mm x 36T 03-ON 7
29F 102378 K2 Clutch Steel 114mm ID x 2.03mm x 36T 03-ON 7

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 102400K Bush Kit 03-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55H 102550 Filter 03-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 102550K Filter Kit 03-ON 1

sundry parts

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 102800K Shift Kit 03-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
99H 102940 Valve Body 03-ON 1
99H 102942 Valve Body 03-ON 1
99H 102943 Valve Body 03-ON 1
99H 102944 Valve Body 03-ON 1
99H 102945 Valve Body 03-ON 1
99H 102946 Valve Body 03-ON 1
99H 102947 Valve Body 03-ON 1
99H 102949 Valve Body Porsche 03-ON 1
99H 102950 Valve Body Porsche 03-ON 1

Vehicle Details Required when Ordering

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-0140 Glycol Test Kit 03-ON 1
