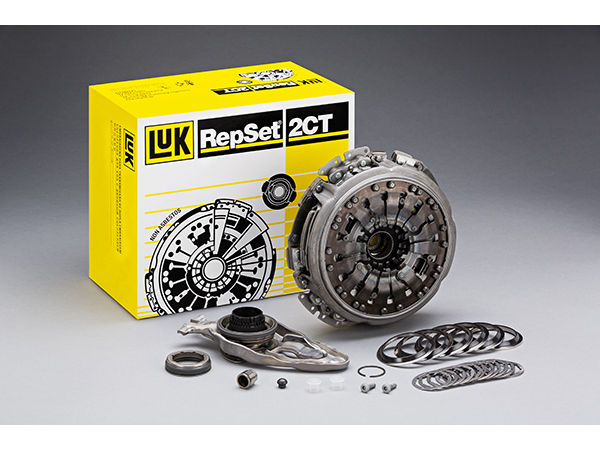

DUAL CLUTCH DRUM ASSEMBLY (0AM/DQ200)
# D141916K

Dual Clutch Drum Assembly Complete*

DUAL CLUTCH DRUM ASSEMBLY (0AM/DQ200)

Clutch contains the following shims:

  • Large:
    • 3.0mm
    • 2.85mm
    • 2.65mm
    • 2.45mm
    • 2.25mm
    • 2.05mm
  • Small:
    • 3.0mm
    • 2.75mm
    • 2.50mm
    • 2.30mm
    • 2.00mm
    • 1.80mm
    • 1.65mm
    • 1.40mm
    • 1.20mm
    • 1.00mm
    • 0.85mm

The following shims may be required to obtain correct End Float

  • 141763C 1.90mm
  • 141763B 1.70mm
  • 141763A 1.50mm

These are not included with the kit & will be an additional cost.



Technical Video



Recommended Tools:
  • T400041810 - Clutch Flywheel Mounting Tool Set
  • T400041910 - Clutch Flywheel Mounting Tool Set
  • T400042010 - Clutch Flywheel Mounting Tool Set

Type of Product: Dual Clutch
Qty Needed:
Years:
Ask for price
