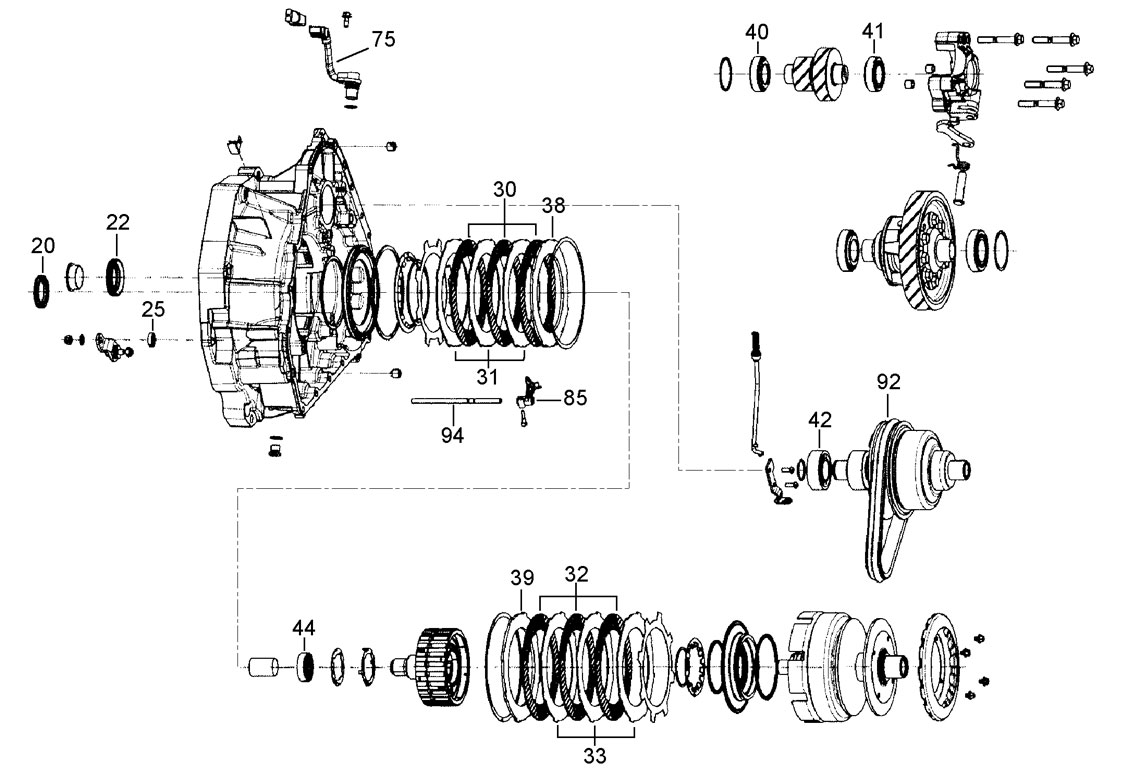

A

41
40
22
20
44
42
94
30
39
92
33
85
25
93
31
32
38

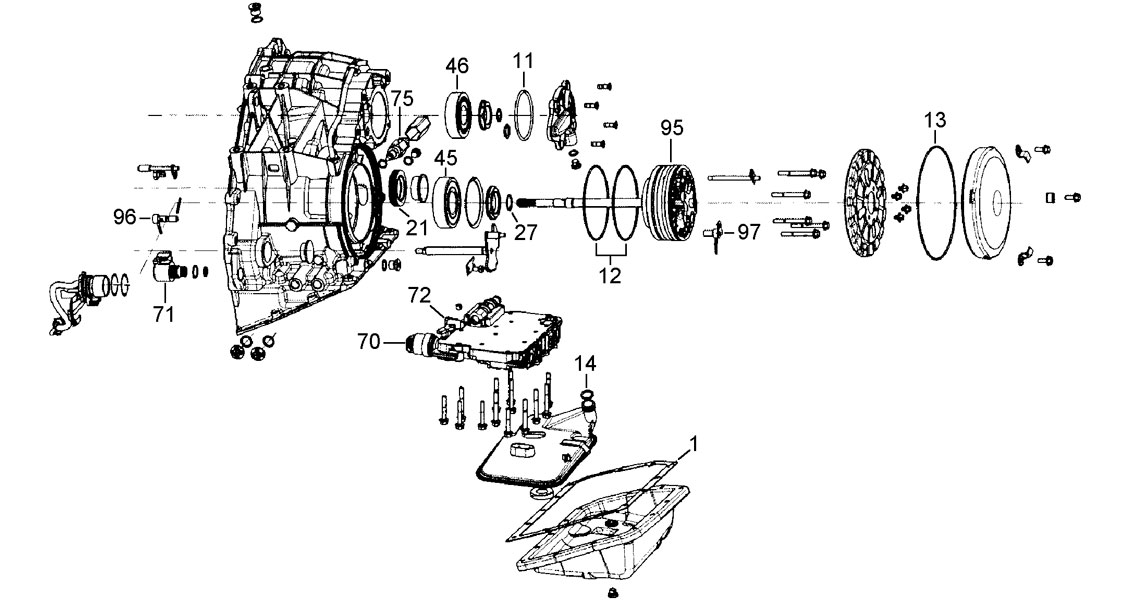

B

70
27
21
45
46
71
55
72
75
95
97
96
13
11
1
12
14

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C13004K Overhaul Kit Rover 25, 45 & MGF 00-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1B C13104 Pan Gasket 00-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
11B C13163 Secondary Cover O Ring (Large) 00-ON 1
12B C13160 Pump O Ring Front & Rear 00-ON 2
13B C13162 Primary Cover O Ring 00-ON 1
14B C13164 Filter O Ring 00-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A C13200 Front (Input Shaft) Seal 38 ID x 52 OD x 7.00mm 00-ON 1
21B 73220 Axle Seal Lefthand 38 ID x 58 OD x 11.00mm 00-ON 1
22A 73220 Axle Seal Righthand 38 ID x 58 OD x 11.00mm 00-ON 1
25A C13205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 00-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
27B C13253 Primary Shaft (Pump Nose) with Lug 00-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30A C13312 Forward Friction 168 OD x 2.50mm x 24T 00-ON 3
32A C13312 Reverse Friction 168 OD x 2.50mm x 24T 00-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A C13362 Forward Steel 125 ID x 2.00mm x 8T 00-ON 3
33A C13362 Reverse Steel 125 ID x 2.00mm x 8T 00-ON 3
38A C13392 Forward Pressure Plate 125 ID x 4.00mm x 8T 00-ON 1
39A C13392 Reverse Pressure Plate 125 ID x 4.00mm x 8T 00-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
40A C13496 Idler Bearing Righthand 30 ID x 55 OD x 13.00mm 00-ON 1
41A C13496 Idler Bearing Leftthand 30 ID x 55 OD x 13.00mm 00-ON 1
42A C13493 Pinion Bearing Rover 25 & 45 35 ID x 62 OD x 18.00mm 00-ON 1
42A C13493A Pinion Bearing MG 30 ID x 62 OD x 20.00mm 00-ON 1
44A C13494 Input Shaft Bearing (Needle) 38 ID x 45 OD x 12.00mm 00-ON 1
45B C13491 Primary Bearing 35 ID x 80 OD x 21.00mm 00-ON 1
46B C13492 Secondary Bearing 30 ID x 72 OD x 19.00mm 00-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55B C13554 Filter 00-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C13554K Filter Kit 00-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70B C13720 Stepper Solenoid 00-ON 1
71B C13724 Secondary Pressure Solenoid 00-ON 1
72B C13726 Clutch Control Solenoid 00-ON 1
75B C13710 Inhibitor Switch Rover Square Connector 00-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
85A C13765 Ratio Sensor Fork 00-ON 1
NI C13772 Steel Ball for Primary Sliding Shaft 00-ON 6
NI C13772 Steel Ball for Secondary Sliding Shaft 00-ON 9

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
92A C13940 Drive Belt 00-ON 1
93A C13920 Secondary Drum (Rebuilt) Rover 25 & 45, MGF 00-ON 1
94A C13980 Ratio Sensor Shaft 00-ON 1
94A C13980 Ratio Sensor Shaft 00-ON 1
95B C13902 Pump Assembly 00-ON 1
96B C13970 Pitot Tube Primary 00-ON 1
97B C13972 Pitot Tube Engine 00-ON 1
NI C13990 Damper Plate Rover 00-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
NI C13960U Valve Body Rover (Used) 00-ON 1
