A

Bellhousing, Pump & Valve Body

2
20

B

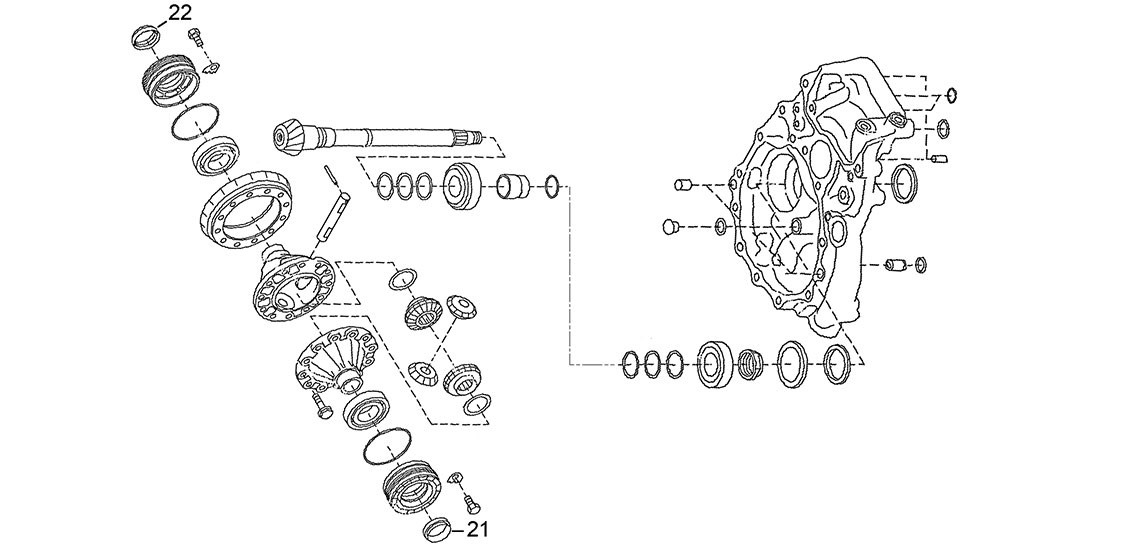

Front Differential & Cover

22
21

C

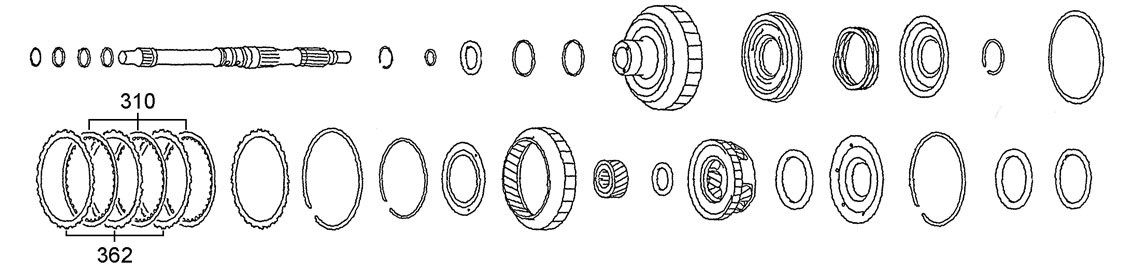

Input Shaft, Forward Clutch & Planet

310
362

D

Reverse Brake

312
364

E

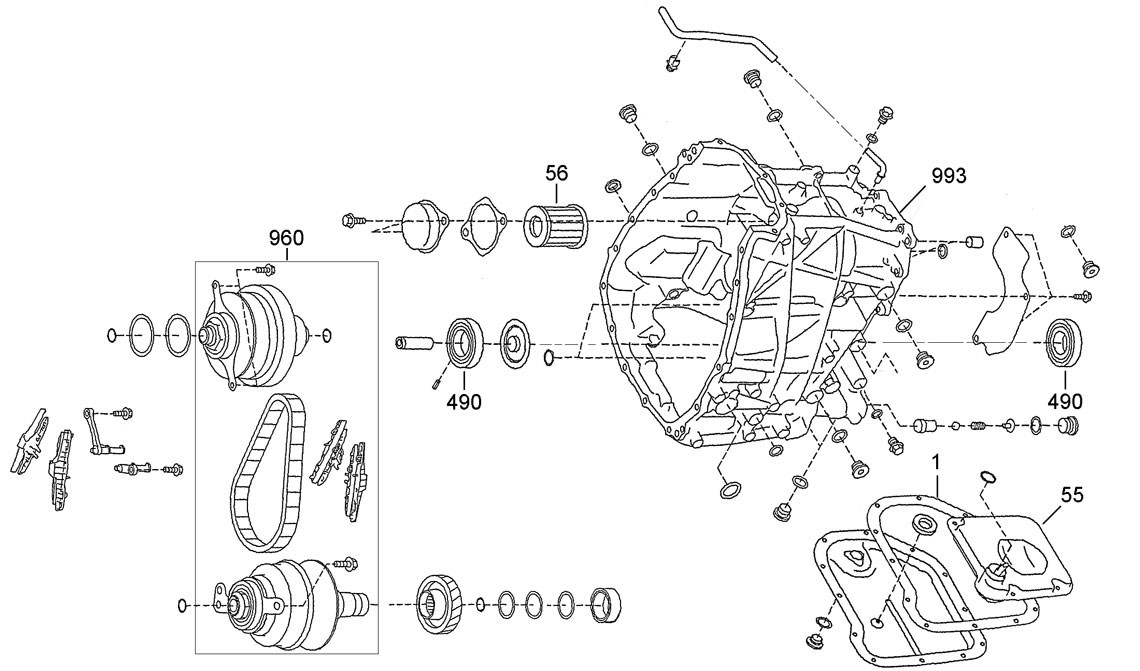

Pulley Set, Pan, Filter & Main Case

55
56
1
960
993
490
490

F

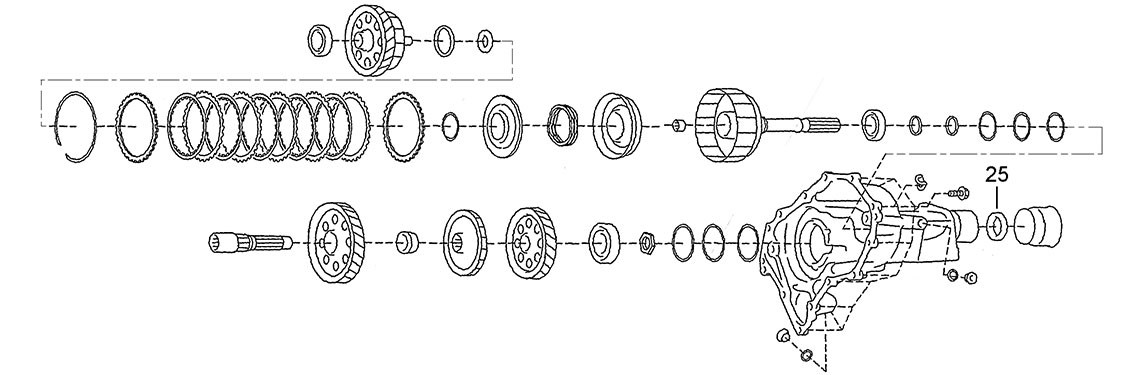

Transfer Gear & Clutch, Output Clutch & Extension Housing

25

overhaul kits

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1E C63100 Pan Gasket Cork 12-ON 1
1E C63101 Pan Gasket Duraprene 12-ON 1
2A C63120 Valve Body Cover Gasket 12-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 56164 Input Shaft to Converter O Ring 25 x 20.8 x 1.60mm 12-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A C63200 Converter Seal 47.5 ID x 65 OD x 6.00mm 12-ON 1
21B 64220 Axle Seal Lefthand 36 ID x 50 OD x 9.00mm 12-ON 1
22B 64222 Axle Seal Righthand 36 ID x 50 OD x 9.00mm 12-ON 1
25F 60230 Rear Output Seal 35 ID x 50 OD x 11.00mm 12-ON 1
NI 85205 Manual Shaft Seal 15 ID x 24.3 OD x 5.00mm 12-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C63300KHT Friction Module, Hybrid Technology 12-ON 1
310C C63310HT Forward Clutch Friction Plate, Hybrid Technology 122.80 OD x 1.6mm x 30T 12-ON 3
312D C63312HT Reverse Brake Friction Plate, Hybrid Technology 149.32 OD x 1.63mm x 24T 12-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C63360K Steel Module 12-ON 1
362C C63362 Forward Clutch Steel Plate 109.55 ID x 1.22mm x 24T 12-ON 3
364D C63364 Reverse Brake Steel Plate 135.84 ID x 1.22mm x 12T 12-ON 4

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
490E C63491 Primary Support Bearing (check sizes) 35 ID x 82 OD x 19.50mm 12-ON 1
490E C63492 Case Support Bearing (check sizes) 40 ID x 74 OD x 14.00mm 12-ON 1
490E C63493 Pulley Bearing 40 ID x 80 OD x 21.00mm 12-ON AR
490E C63494 Secondary Support Bearing (check sizes) 35 ID x 83 OD x 16.00mm 12-ON 1
490E C63495 Secondary Support Bearing (check sizes) 35 ID x 88 OD x 16.00mm 12-ON 1
490E C63496 Case Support Bearing (check sizes) 35 ID x 72 OD x 17.00mm 12-ON 1
490E C63497 Case Support Bearing (check sizes) 35 ID x 72 OD x 12.50mm 12-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E C63550 Filter 12-ON 1
55E C63552 Internal Filter Gen II CVT 15-ON 1
56E C62552 Cartridge Filter 12-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C63550K Filter Kit Gen II CVT 12-ON 1
Kit C63552K Filter Kit Gen II CVT 15-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C63570K Piston Kit Gen II 12-ON 1

electrical components

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
960E C63960U Pulley Set & Belt, Lineatronic FROM NEW CORE 12-ON 1
960E C63962U Pulley Set & Belt, Hybrid 12-ON 1
990C C63990 Transmission Case With Bearing 12-ON 1
993E C63993 Transfer Case with Bearing 12-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
940A C63940 Valve Body Gen II Lineartronic 12-ON 1
940A C63940FN Valve Body, Subaru Lineartronic FROM NEW CORES 12-ON 1
940A C63942 Valve Body Gen II Lineartronic 12-ON 1
