A

23
25
22
20
1

B

210
160
212
214
216
216
165
220

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C18002K Overhaul Kit with Pistons 12-ON 1
Kit C18003K Overhaul Kit 12-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY

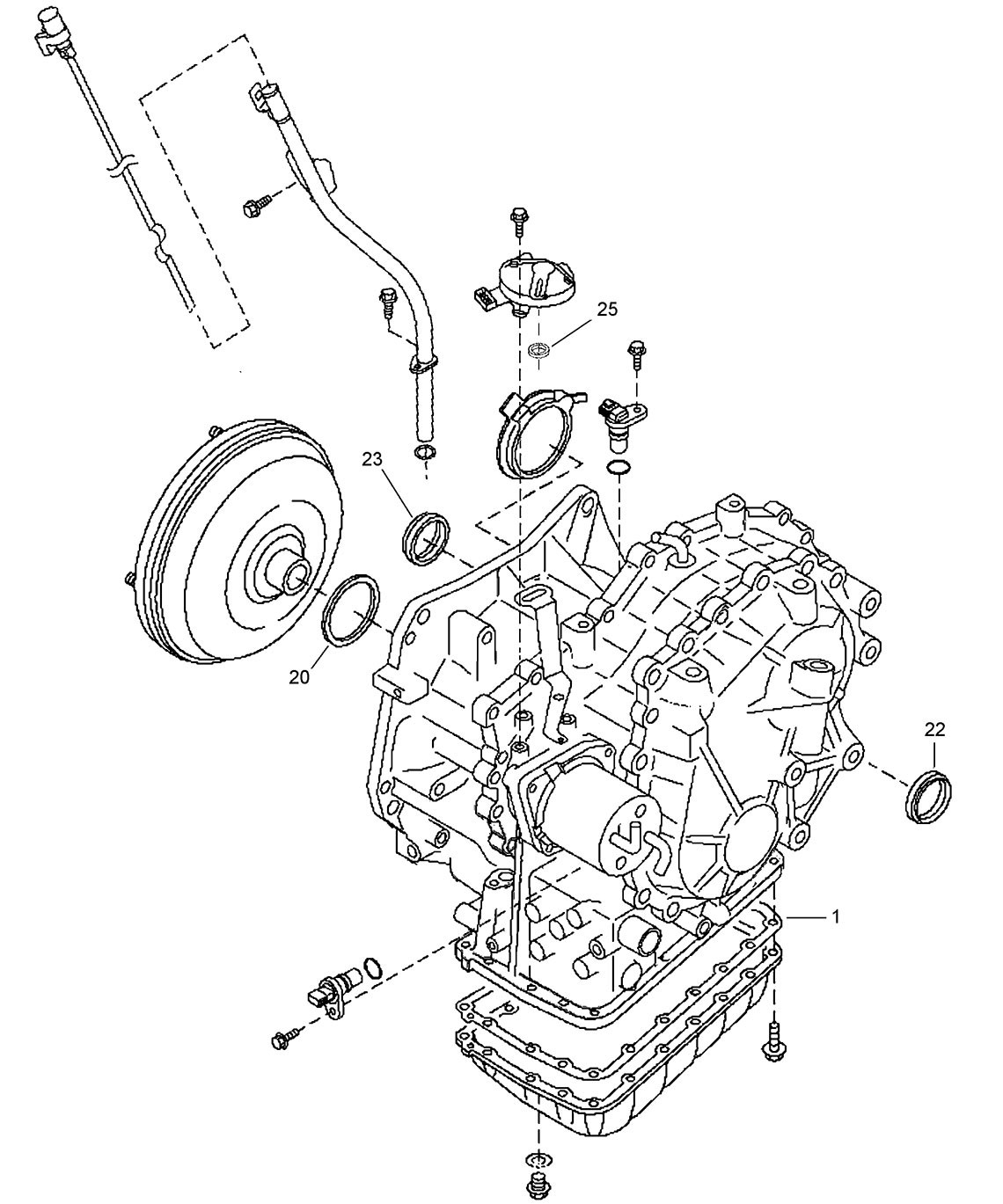

1A C16102 Pan Gasket 12-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY

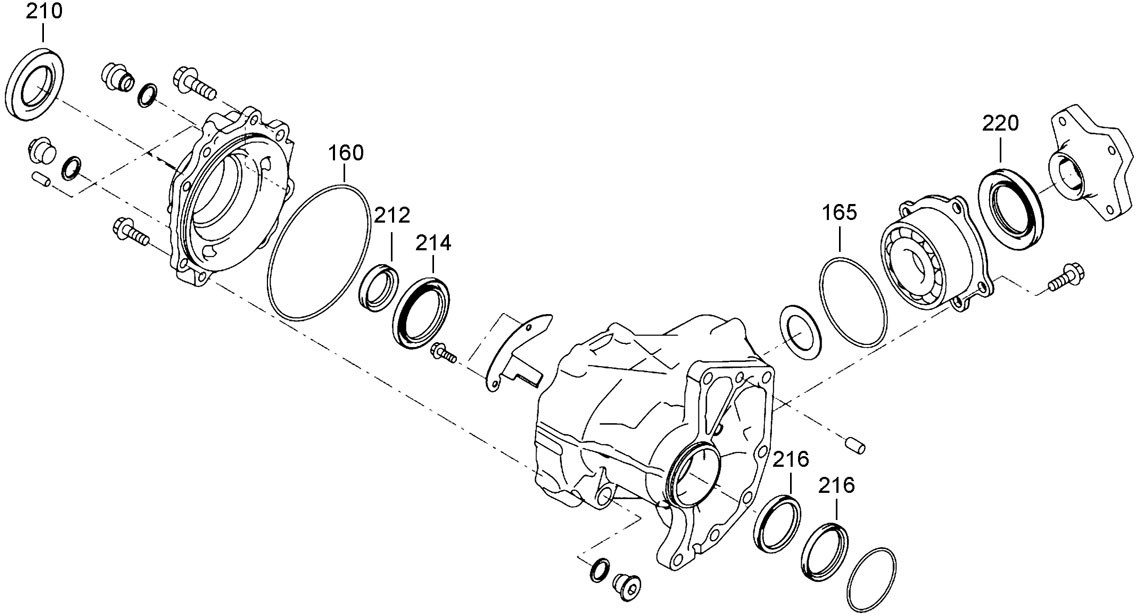

160B B53160 Transfer Case O-Ring 12-ON 1
165B B53165 Transfer Case O-Ring 12-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A C16200 Converter Hub 51 ID x 66 OD x 7.00mm 12-ON 1
22A C18210 Axle Seal Lefthand 39 ID x 59 OD x 8 x 14.30mm 12-ON 1
23A C18214 Axle Seal Righthand 33 ID x 59 OD x 9.3 x 16.50mm 12-ON 1
25A 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 12-ON 1
210B B53210 Transfer Case Seal 35 ID x 71 OD x 9.00mm 12-ON 1
212B B53212 Transfer Case Seal 33.5 ID x 45 OD x 10.00mm 12-ON 1
214B B53214 Transfer Case Seal 52.5 ID x 71 OD x 7.00mm 12-ON 1
216B B53216 Transfer Case Seal 48 ID x 56.5 OD x 8.00mm 12-ON 2
220B B53220 Transfer Case Seal 12-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C18302K Steel Kit JF017E 12-ON 1
NI C14314 Reverse Friction 178.3 OD x 1.50mm x 40T 12-ON 3
NI C16310 Forward Friction 138 OD x 1.50mm x 36T 12-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
NI C16360 Forward Steel 119.8 ID x 1.37mm x 30T 12-ON 3
NI C18364 Reverse Steel 164 ID x 1.40mm x 11T 12-ON 3

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
NI C18491 Pimary Bearing Inner 55 ID x 105 OD x 23.00mm 12-ON 1
NI C18493 Pimary Bearing Outer 34 ID x 80 OD x 16.00mm 13-ON 1
NI C18497 Secondary Bearing Outer 45 ID x 105 OD x 21.00mm 12-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C18550K Filter Kit 48mm Pick Up 12-ON 1
Kit C18558K Filter Kit 12-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
NI C18570K Piston Kit 12-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C18720K Solenoid Set 12-ON 1
NI C18700 Solenoid 12-ON AR
NI C18730 Input Speed Sensor 12-ON 1
NI C18740 Oil Pressure Sensor 12-ON 1
NI C18752 Inhibitor Switch 12-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
NI C18960 Valve Body 12-ON 1
NI C18966U Valve Body (Used) 12-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
NI C18762A Oil Cooler 4 Pipes, Aftermarket 12-ON 1
NI C18764 Oil Cooler 4 Pipes 12-ON 1

oil & transmission supplements
