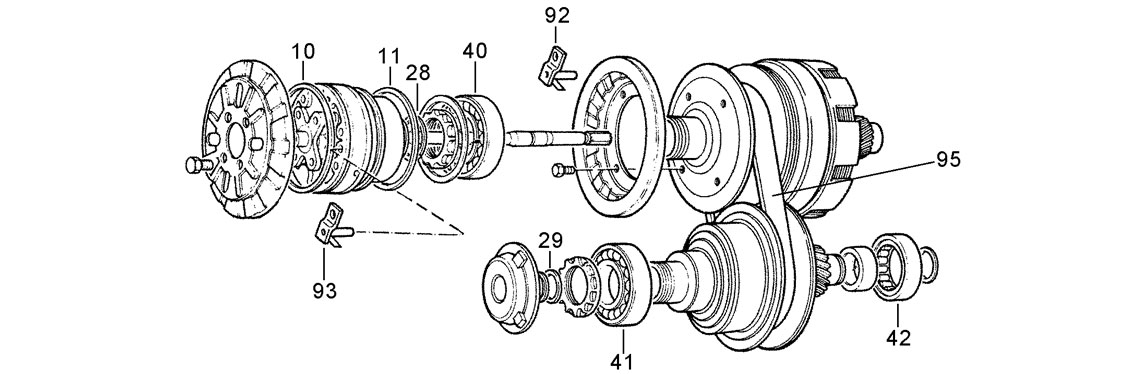

A

41
42
40
28
29
94
92
95
93
11
10

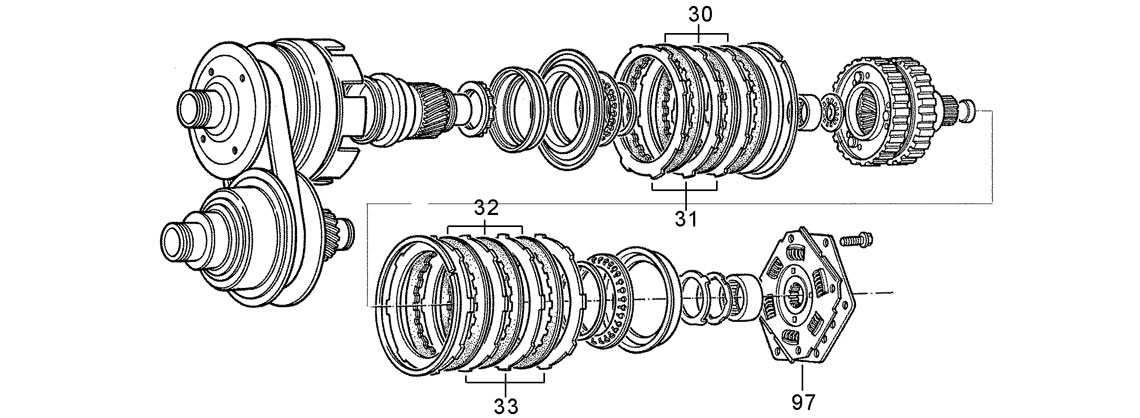

B

30
33
97
31
96
32

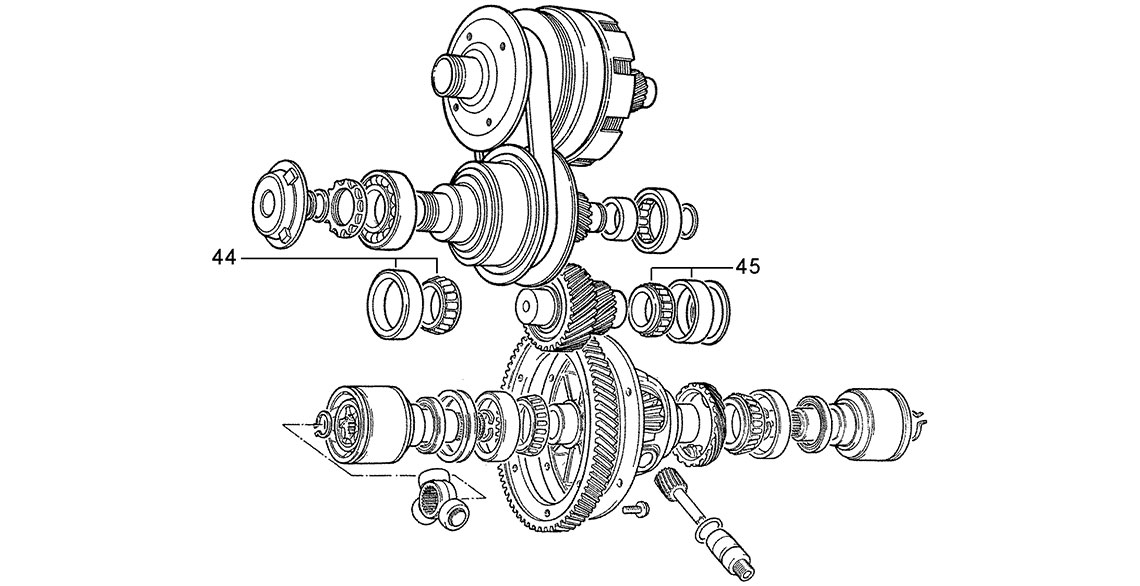

C

44
45

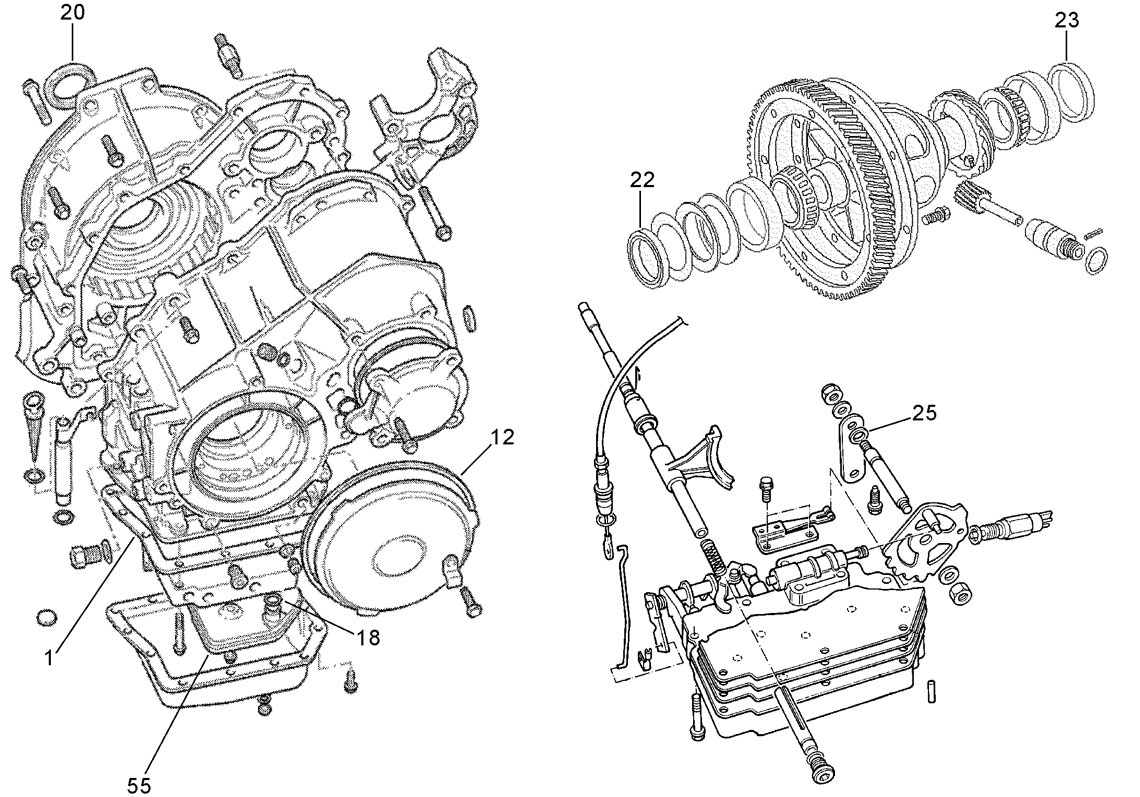

D

23
20
75
22
25
55
1
18
12

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C13012K Overhaul Kit (CTX) Pre Zetec* 89-95 1
Kit C13014K Overhaul Kit (CTX) Zetec 95-ON 1

13010K & 13012K Special Order Only. Please allow 10-14 Days

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1D C13100 Pan Gasket Fiesta CVT 87-89 1
1D C13110 Pan Gasket CTX 89-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
10A C13160 Pump O Ring Front 87-ON 1
11A C13160 Pump O Ring Rear 87-ON 1
12D C13162 Primary Cover O Ring 87-ON 1
18D C13164 Filter O Ring 87-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20D C13200 Input Shaft Seal CTX 38 ID x 52 OD x 7.00mm 89-ON 1
22D C13210 Axle Seal Lefthand CTX 40 ID x 55 OD x 10.00mm 89-ON 1
23D C13210 Axle Seal Righthand CTX 40 ID x 55 OD x 10.00mm 89-ON 1
25D C13205 Selector Shaft Seal CTX 12 ID x 22 OD x 7.00mm 89-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
28A C13252 Primary Shaft (Pump Nose) 87-ON 1
29A C13254 Secondary Shaft 87-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30B C13312 Forward Clutch 168 OD x 2.50mm x 24T 87-ON 3
32B C13312 Reverse Clutch 168 OD x 2.50mm x 24T 87-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B C13362 Forward Clutch Zetec 125 ID x 2.00mm x 8T 95-ON 3
33B C13362 Reverse Clutch Zetec 125 ID x 2.00mm x 8T 95-ON 3

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
40A C13490 Primary Bearing 35 ID x 72 OD x 17.00mm 87-ON 1
41A C13492 Secondary Bearing 30 ID x 72 OD x 19.00mm 87-ON 1
42A C13493B Pinion Support Roller Bearing 30 ID x 62 OD x 16.00mm 87-ON 1
44C C13496 Idler Gear Bearing Lefthand 30 ID x 55 OD x 13.00mm 87-ON 1
45C C13496 Idler Gear Bearing Righthand 30 ID x 55 OD x 13.00mm 87-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55D C13550 Filter CVT 87-89 1
55D C13560 Filter CTX 89-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C13560K Filter Kit CTX 89-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
75D 43700 Inhibitor Switch 3 Pin Connector 89-93 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
92A C13970 Primary Pitot Tube 87-ON 1
93A C13972 Engine Pitot Tube 87-ON 1
95A C13940 Drive Belt 87-ON 1
97B C13990 Damper Plate (Pre Zetec) 87-1/95 1

* Special Order Only

Other Parts Available on Request (Approximately 10-14 Days)
