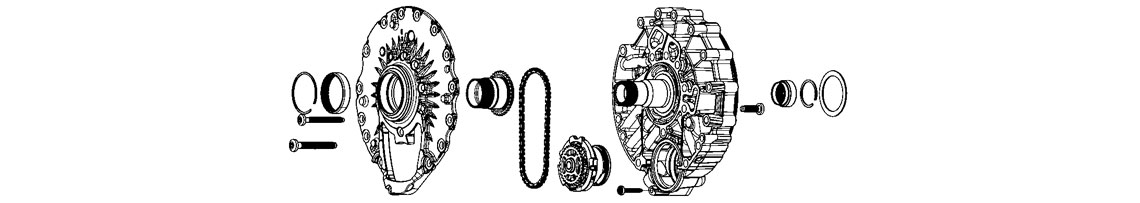

A

Pump

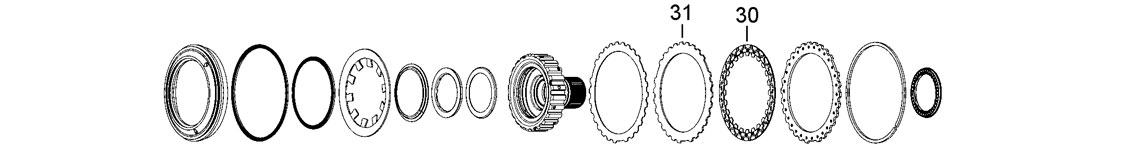

B

A Clutch

31
30

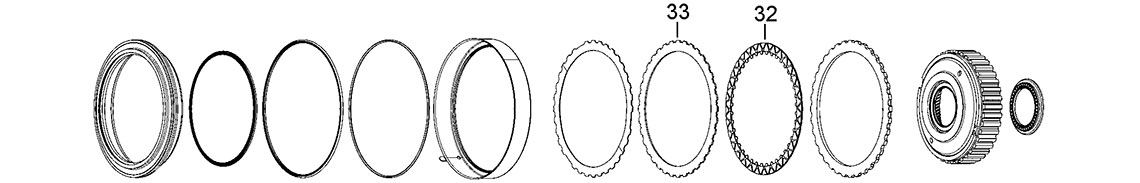

C

B Clutch

33
32

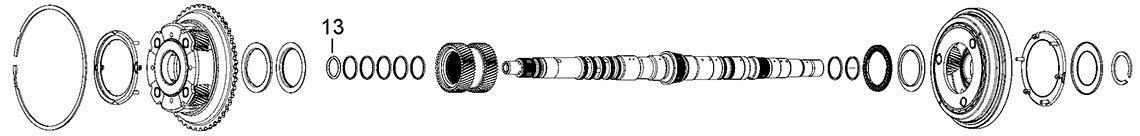

D

No 1 & No 2 Planetary Gear Sets

13

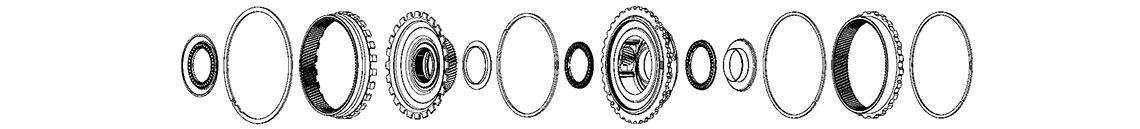

E

No 3 Planetary Gear Set

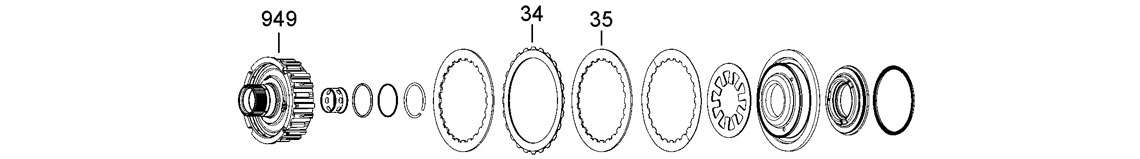

F

E Clutch

34
35

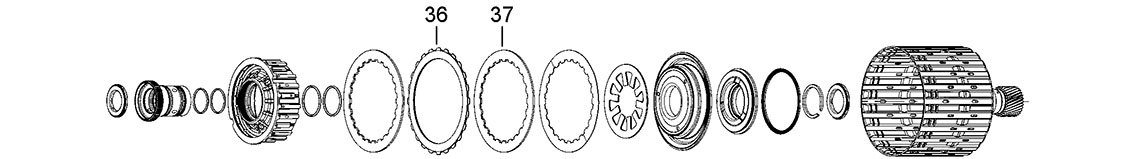

G

C Clutch

37
36

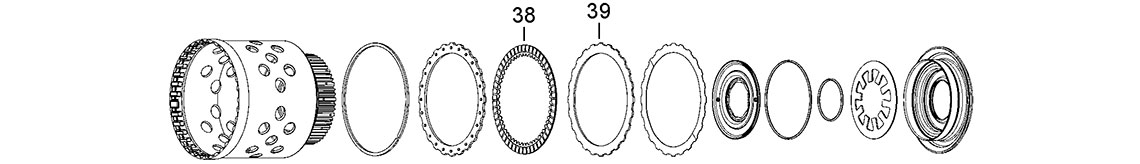

H

D Clutch

38
39

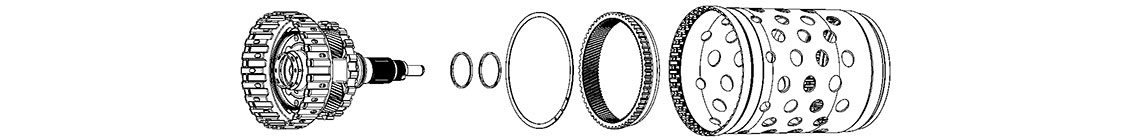

J

No 4 Planetary Gear Set

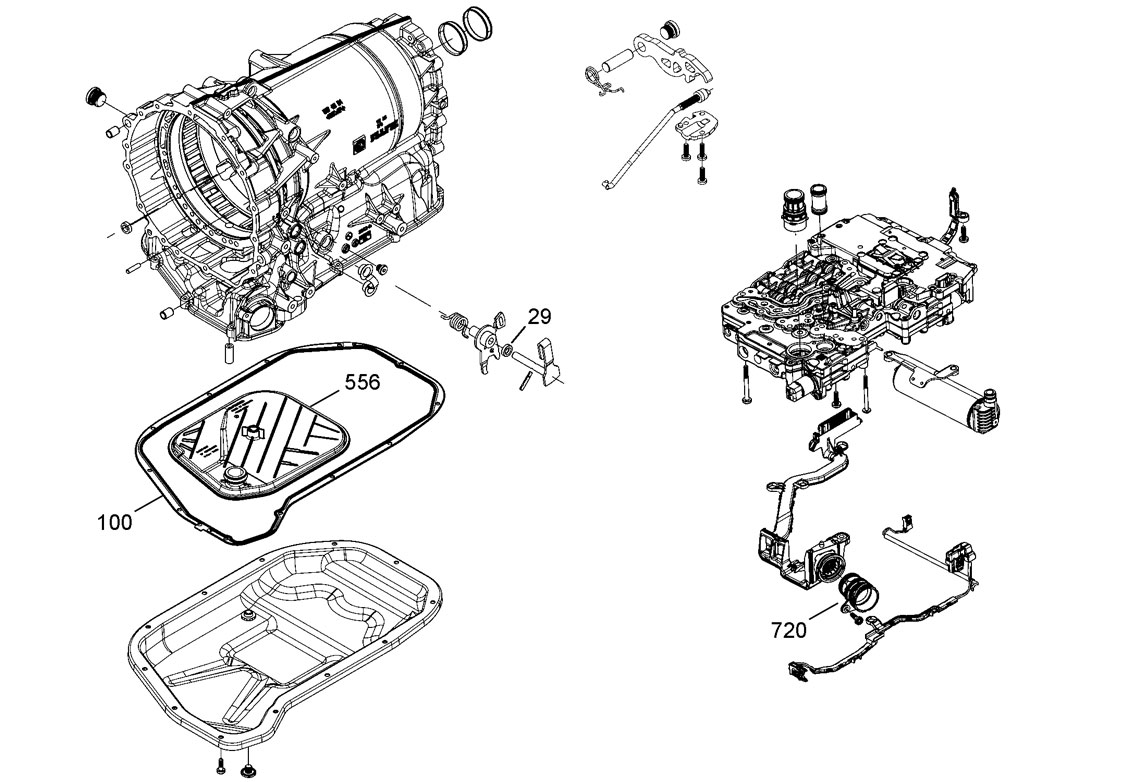

K

29
556

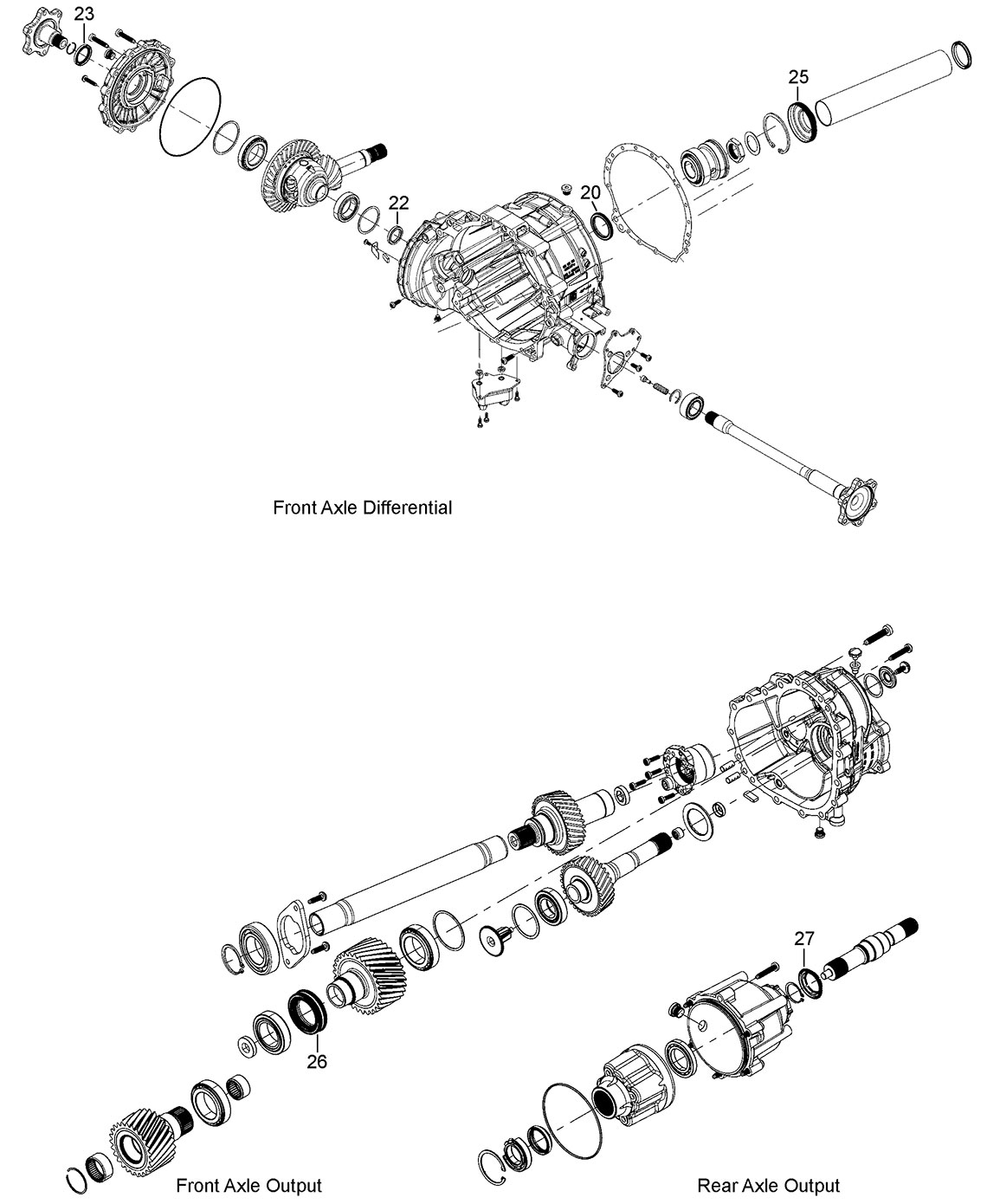

L

25
23
20
26
22
27

M


overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 124001K Overhaul Kit with Pistons, Transtec 09-ON 1
Kit 124002K Overhaul Kit without Pistons, Transtec 09-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
NI 121135 Pump Bolt Washer 09-ON

seals

NO PART # DESCRIPTION SIZE YEARS QTY
22L 122210 Lefthand Axle Seal 33.5 ID x 47 OD x 7.00mm 09-ON 1
23L 122214 Righthand Axle Seal 40 ID x 55 OD x 7.00mm 09-ON 1
25L 95226 Front Axle Diff Pinion Shaft Seal 37.5 ID x 88 OD x 16.00mm 09-ON 1
26L 122220 Front Axle Output Input Gear Seal 52 ID x 77.7 OD x 20.70mm 09-ON 1
27L 98214 Rear Output Flange Seal 40 ID x 52 OD x 7.00mm 09-ON 1
29K 93202 Manual Shaft Seal 10 ID x 18 OD x 5.00mm 09-ON 1
NI 121200 Converter Seal 53 ID x 71 OD x 7.00mm 09-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
13D 121270 Input Shaft Sealing Ring 09-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30B 123310 A Clutch Friction 145.8 OD x 1.60mm x 32T 09-ON 6
32C 124314 B Clutch Friction 210 OD x 2.10mm x 38T 09-ON 5
34F 123318 E Clutch Friction 135.5 ID x 2.10mm x 32 Ext.T 09-ON 7
36G 123318 C Clutch Friction 135.5 ID x 2.10mm x 32 Ext.T 09-ON 7
38H 123322 D Clutch Friction 172 OD x 2.10mm x 63T 09-ON 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 123360 A Clutch Steel 122.85 ID x 1.80mm x 27T 09-ON 6
33C 124364 B Clutch Steel 185 ID x 1.80mm x 42T 09-ON 5
35F 123368 E Clutch Steel 163.3 ODx 2.05mm x 24 Int.T 09-ON 7
37G 124370 C Clutch Steel 163 OD x 2.80mm x 24T 09-ON 7
39H 124372 D Clutch Steel 145 ID x 2.40mm x 30T 09-ON 6

filters

NO PART # DESCRIPTION SIZE YEARS QTY
556K 124556 Filter, Chrysler 15-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 124555K Filter Kit Includes Pan Gasket, Filter & Bolts 09-ON 1

oil & transmission supplements

NO PART # DESCRIPTION SIZE YEARS QTY
NI 121999-01 ZF Lifeguard 8 1 Litre Pack 09-ON AR
NI 121999-05 ZF Lifeguard 8 5 Litre Pack 09-ON AR
NI 121999-20 ZF Lifeguard 8 20 Litre Pack 09-ON AR

Other Parts available on Request.

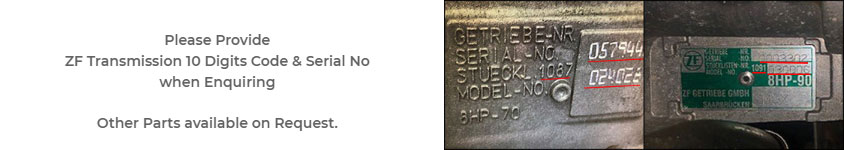

Please Provide ZF Transmission Code & Serial No when Enquiring
