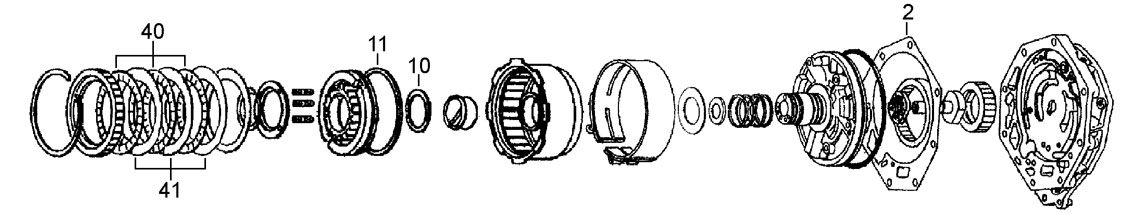

A

Pump & Direct Clutch

41
40
2
11
10

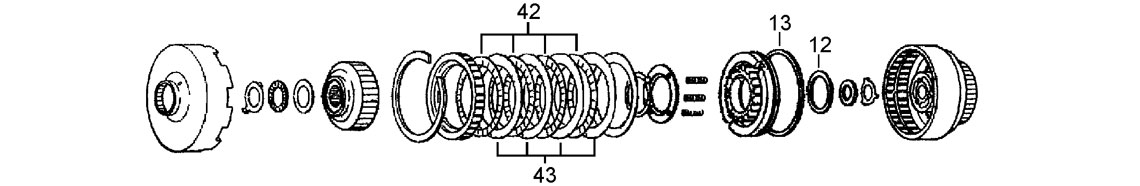

B

Forward Clutch

43
42
13
12

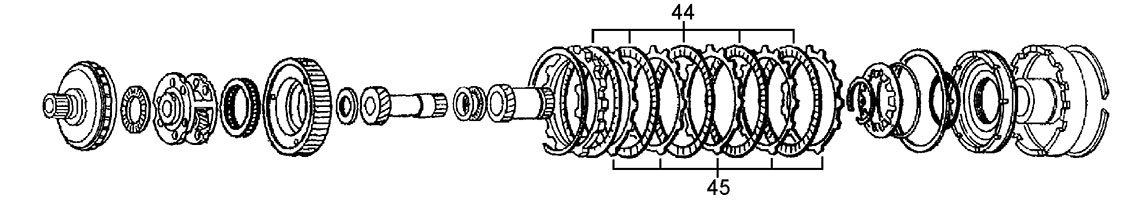

C

Planet Set And Low & Reverse Brake

45
44

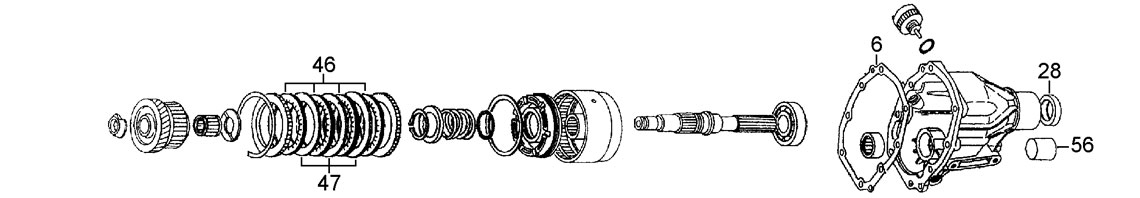

D

Transfer Clutch

47
28
46
6
56

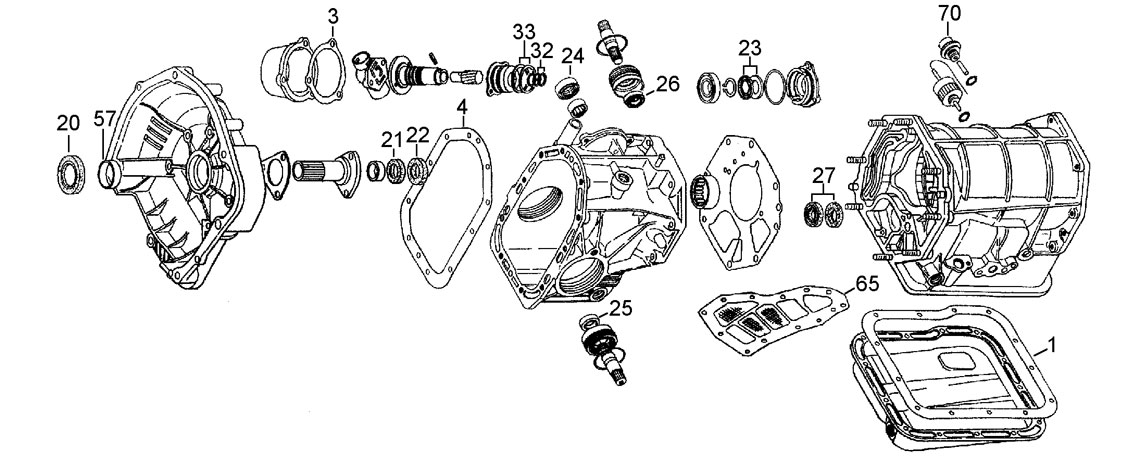

E

Case & Differential Housing

20
70
23
65
57
22
21
26
24
4
32
25
33
3
1
27

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A61000K Overhaul Kit M41 2WD 75-ON 1
Kit A61000K-1 Gasket & Rubber Kit 2WD Only 75-ON 1
Kit A61002K Overhaul Kit M41 AWD Transtec 82-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1E A61100 Pan Gasket 75-83 1
1E A61102 Pan Gasket 84-88 1
1E A61104 Pan Gasket 89-ON 1
2A A61110 Pump Gasket 75-ON 1
3E A61112 Governor Cover Gasket 3 Bolt Holes 75-ON 1
3E A61114 Governor Cover Gasket 4 Bolt Holes 75-ON Alt
4E A61118 Bellhousing to Differential Gasket Non Turbo 75-ON 1
4E A61119 Bellhousing to Differential Gasket Turbo 75-ON 1
6D A61122 Extension Housing Gasket 4WD 75-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
10A 65170 Direct Clutch Inner O Ring 75-ON 1
11A 65172 Direct Clutch Outer O Ring 75-ON 1
12B 65170 Forward Clutch Inner O Ring 75-ON 1
13B 65172 Forward Clutch Outer O Ring 75-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20E 60200 Converter Seal 42 ID x 60 OD x 9.00mm 75-ON 1
21E A61210 Stator Shaft 32 ID x 48 OD x 12.00mm 75-79 1
21E A61212 Stator Shaft 28 ID x 48 OD x 14.00mm 80-82 1
21E A61214 Stator Shaft Front 28 ID x 42 OD x 7.00mm 83-ON 1
22E A61215 Stator Shaft Rear 28 ID x 44 OD x 9.00mm 83-ON 1
23E A61219 Output Drive Gear to Diff Case 42 ID x 64 OD x 12.00mm 75-82 1
23E A61220 Output Drive Gear to Diff Case 41 ID x 58 OD x 6.50mm 83-ON 2
24E A61228 Governor Shaft 22 ID x 40 OD x 10.00mm 75-ON 1
25E 62222 Axle Lefthand 4WD and Turbo 30 ID x 50 OD x 9.00mm 83-ON 1
26E 62224 Axle Righthand 4WD and Turbo 30 ID x 50 OD x 9.00mm 83-ON 1
27E A61226 Reduction Shaft 4WD 21 ID x 33 OD x 6.50mm 83-ON 2
28D 60230 Extension Housing 4WD Only 35 ID x 50 OD x 11.00mm 83-ON 1
NI A61229 Speedo Adaptor 12.5 ID x 17.5 OD x 7.90mm 75-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A61250K Sealing Ring Kit 75-ON 1
32E A61272 Governor Shaft Sealing Ring 75-ON 3
33E A61274 Governor Support 75-ON 1
NI A61276 Rear Output Shaft 4WD 82-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
40A 60310 Direct 116 OD x 1.50mm x 44T 75-ON 3-5
42B 60310 Forward 116 OD x 1.50mm x 44T 75-ON 3-5
44C A61318 Low & Reverse (2.50mm) 130mm OD 10mm Wide Lining 130mm OD x 2.50mm x 51T 75-82 3-4
44C A61320 Low & Reverse 130mm OD 8mm Wide Lining 130 OD x 45T 82-85 4-5
44C A61322 Low & Reverse 135mm OD (2.30mm) 135 OD x 2.30mm x 48T L85-ON 3-5
44C A61322X Low & Reverse 135mm OD Oversize (2.40mm) 135 OD x 2.40mm x 48T L85-ON AR
46D A61330 Transfer Case 4WD 75-ON 3-4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
41A 60360 Direct Flat (2.00mm) 92 ID x 2.00mm x 28T 75-ON 3-5
41A 65360 Direct Undersize (1.50mm) 92 ID x 1.60mm x 28T 75-ON AR
43B 60360 Forward Flat (2.00mm) 92 ID x 2.00mm x 28T 75-ON 3-5
43B 65360 Forward Undersize (1.50mm) 92 ID x 1.60mm x 28T 75-ON AR
45C A61360 Low & Reverse 82-85 3-4
45C A61362 Low & Reverse 85-ON 3-5
47D A61390 Transfer Case 75-ON 2-3

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
56D 60446 Extension Housing 4WD Only 35 ID x 40.20 OD x 40.10mm 75-ON 1
57E 60410 Converter Support Bush 75-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
NI 60450K Plastic Selective Kit 75-ON AR

filters

NO PART # DESCRIPTION SIZE YEARS QTY
65E 60550 Filter 75-ON 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
70E 60600 Modulator (Non Turbo) 75-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49910 Lubegard Red (10oz) 75-ON 1
NI 49999-04 ATF DX III 4 LITRE 95-ON AR
