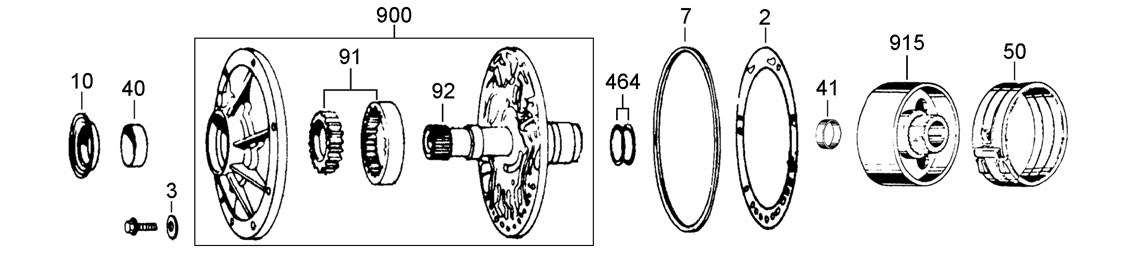

A

Pump

41
7
91
92
10
40
3
900
2
50
915

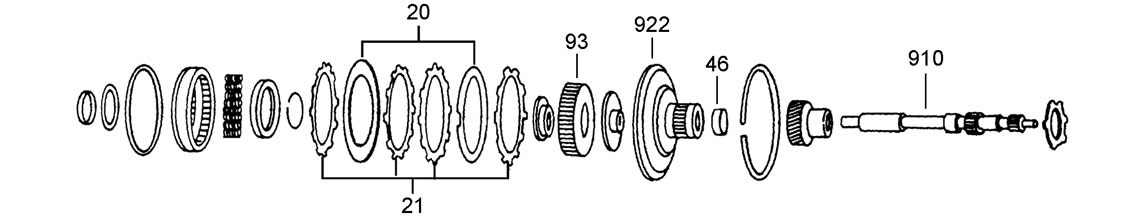

B

High Clutch

46
20
21
93
922
910

C

Reverse Clutch, Output Shaft & Case

4
29
48
49
47
42
60
23
22
668

D

Extension Housing & Governor

9
1
43
44
45
8
55
12
960

overhaul kits

gaskets

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
7A 31160 Pump O Ring 62-73 1
8D 35173 Speedo Housing O Ring 7/8” 62-73 1
9D 35168 Extension Housing to Case O Ring 62-73 1
NI 31170 Lip Seal Direct Clutch Inner 62-63 1
NI 33199 Filler Tube O Ring 62-73 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 35200 Front Pump Seal 46 ID x 70.3 OD x 10.70mm 62-73 1
10A 35200V Front Pump Seal 46 ID x 77 OD x 10mm 62-73 1
12D 33206 Extension Housing 36.5 ID x 60.5 OD x 12.00mm 62-73 1
NI 31210 Selector Shaft 15 ID x 22.2 OD x 4.90mm 62-73 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 31250K Sealing Ring Kit 62-73 1
NI 31260T Sealing Ring Input Shaft Teflon 62-73 1
NI 31264T Sealing Ring Pump Stator Teflon 62-73 1
NI 31268 Sealing Ring Servo Metal 62-73 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 31302K Friction Module Raybestos Red 62-73 1
Kit 31306K Direct Clutch Pack 62-73 1
20B 31310 High Clutch 129 OD x 2.50mm x 43T 62-73 3-5
20B 31310G High Clutch Hi Performance Cut Grooves for instant lockup 129 OD x 2.50mm x 43T 62-73 3-5
20B 31310H High Clutch Red Hi Performance 129 OD x 1.55mm x 43T 62-73 AR
20B 31310HP High Clutch Blue Raybestos 129 OD x 1.70mm x 43T 62-73 AR
22C 35320 Low & Reverse Clutch 165 OD x 2.50mm x 25T 62-73 3-6
22C 35320H Low & Reverse Red Hi Performance 165 OD x 2.50mm x 25T 62-73 3-6
NI 31304K High Clutch Power Pack Alto 62-73 1

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 31360 High Clutch 98 ID x 1.80mm x 12T 62-73 3-6
21B 31360S High Clutch 98 ID x 1.52mm x 12T 62-73 3-6
21B 31360SK High Clutch Kolene 98 ID x 1.52mm x 12T 62-73 3-6
23C 31362 Reverse Clutch 145 ID x 1.80mm x 6T 62-73 2-6
29C 31392 Reverse Clutch Pressure Plate 145 ID x 7.3/8.00mm x 6T 62-73 1
29C 31392U Reverse Clutch Pressure Plate (Used) 155.5 ID x 7.40mm x 6T 62-73 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 31478K Planetary Thrust Washer Kit 1.82 ratio pinions 63.3mm Long 62-73 1
Kit 31479K Planetary Thrust Washer Kit 1.76 ratio pinions 62-73 1
47C 31475 Sungear to Planet Thrust Washer 12.8 ID x 38.1 OD x 2.31mm 62-73 1
48C 31470 Sungear to Planet Bearing 26.11 ID x 38.63 OD x 4.10mm 62-73 1
49C 31480 Output Shaft Thrust Bearing 30.3 ID x 50.3 OD x 3.56mm 62-73 1
NI 31464 Pump to High Clutch Drum Thrust Washer 51 ID x 68 OD x 1.55mm 62-73 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50A 31500 Low Band 62-73 1
50A 31500HP Low Band - H/Duty Lining 62-73 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55D 31550 Filter 62-73 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 31550K Filter Kit 62-73 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
60C 31600 Modulator 62-73 1

springs & one way clutches

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 31812K Reprogramme Kit 67-73 1
