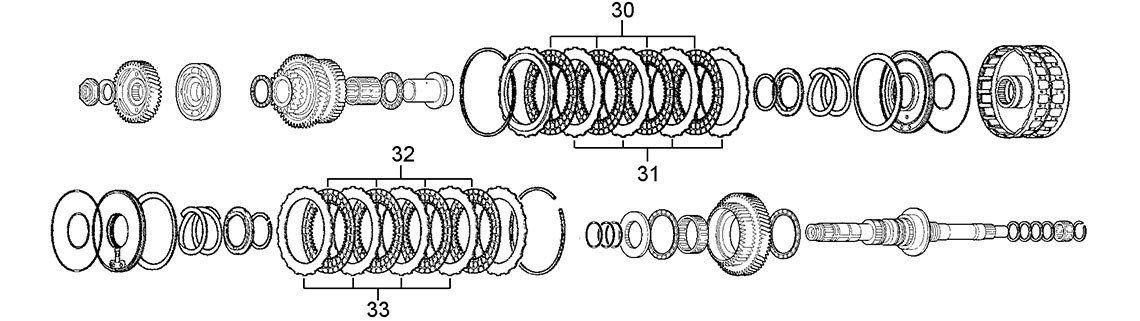

Mainshaft, 5th & 4th Clutches

30
31
32
33

B

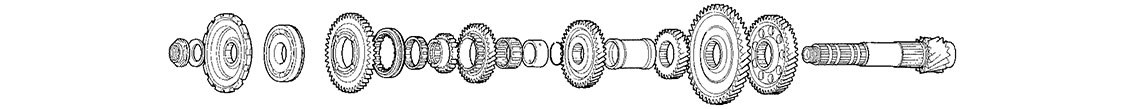

Countershaft


C

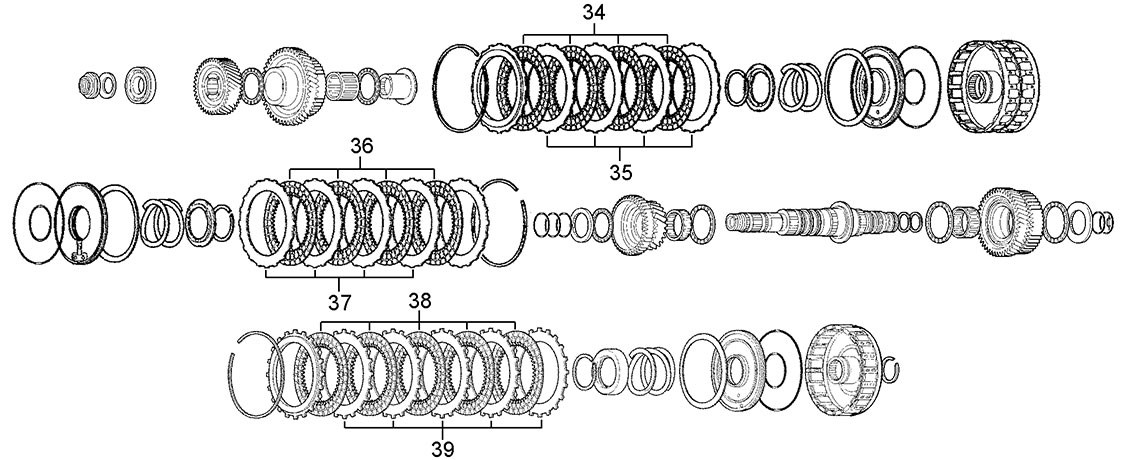

Secondary Shaft, 3rd, 1 St & 2nd Clutches

34
36
35
37
38
39

D

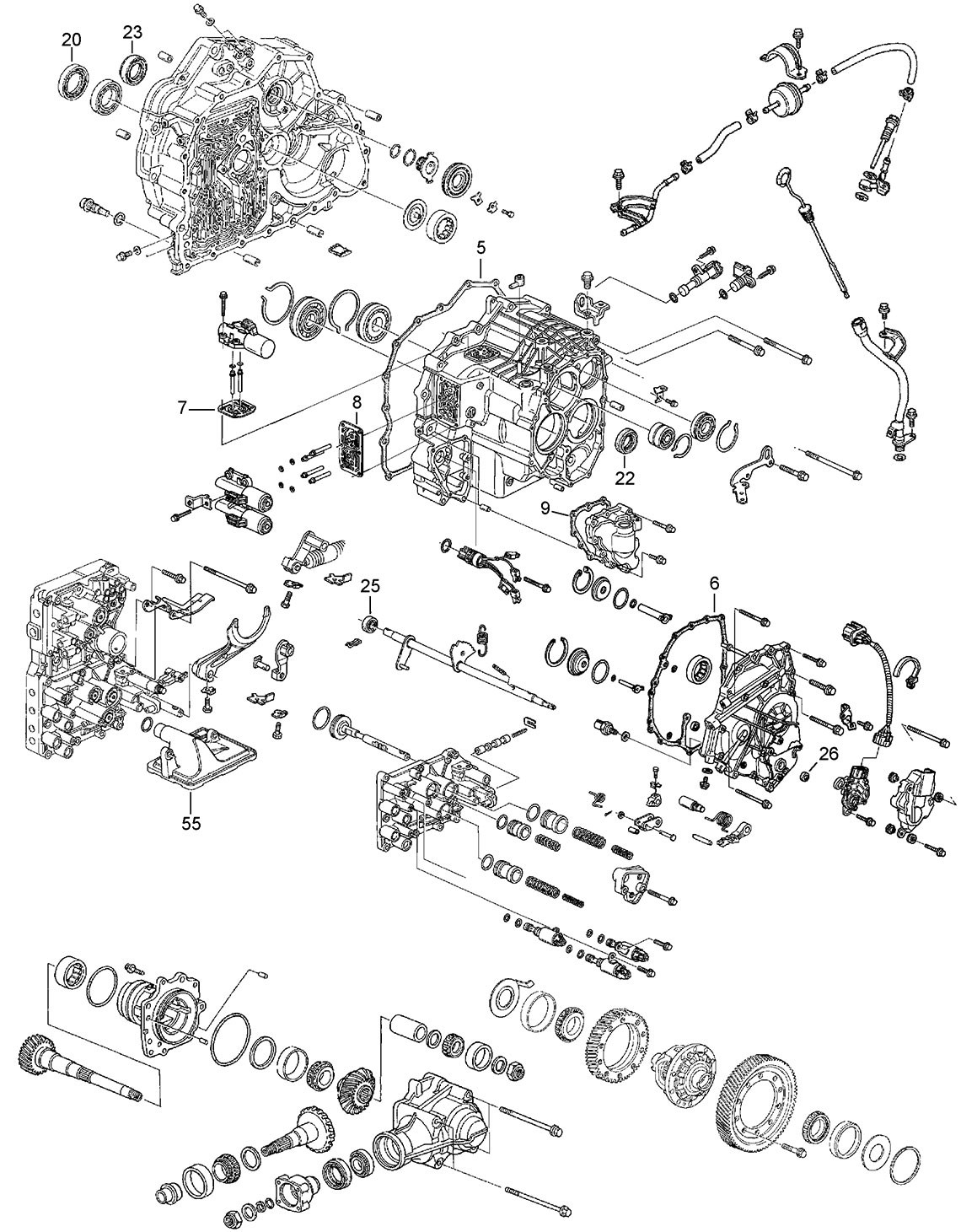

Cases, Valve Body, Filter, Differential & Transfer Box

7
23
20
8
22
25
26
6
9
5
55

Please check the following to enable us to identify the correct kit:

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53004K Overhaul Kit GPLA, GPPA, MKYA, MKZA 08-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53004KM Master Kit 00-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
5D 53116 Case Gasket 00-ON 1
5D 53118 Case Gasket 00-ON 1
6D 53136 End Cover Gasket 00-ON 1
7D 53148 Solenoid Gasket Single Solenoid 00-ON 1
8D 53149 Solenoid Gasket Two Solenoid 00-ON 1
9D 53150 Solenoid Cover Gasket 00-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 50160 Converter Hub O Ring 32.0 32 ID x 1.90mm 00-ON 1
NI 51196 Transfer Case to Transmission O Ring 00-ON 1
NI 53160 Converter Hub O Ring 35.5 35.5 ID x 1.90mm 00-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20D 51202 Converter Seal 44 ID x 68OD x 8.00mm 00-ON 1
22D 51228 Axle Seal Lefthand 40 ID x 56.3 OD x 9.00mm 00-ON 1
23D 51232 Axle Seal Righthand 35 ID x 58 OD x 8.00mm 00-ON 1
23D 53210 Axle Seal Righthand 39.75 ID x 58.3 OD x 8.00mm 00-ON 1
25D 50202 Selector Shaft Seal 10 ID x 22 OD x 7.00mm 00-ON 1
26D 51207 Inhibitor Shaft Seal 9 ID x 18 OD x 7.00mm 00-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55D 53554 Filter Internal 00-ON 1

Transmission must be Disassembled to change Filter.

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 51800K Lube Correction Kit, TransGo 97-09 1
Kit 53802K Shift Correction Package 00-ON 1
