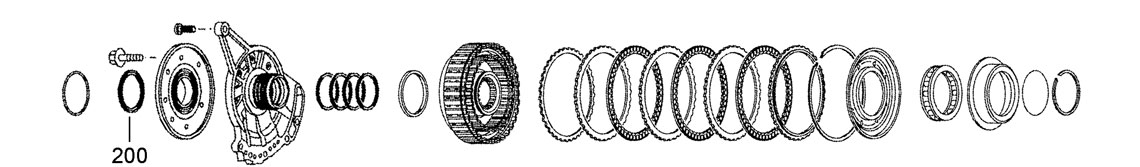

A

Oil Pump & High Clutch

200

B

Low Clutch, Input Shaft, High & Low Clutch Hubs and Primary Gear

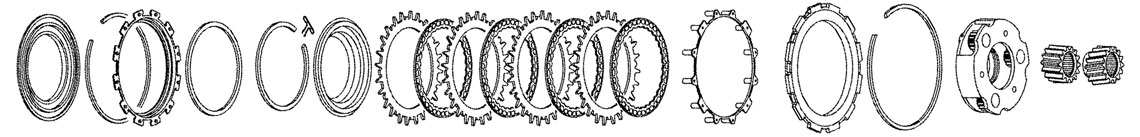

C

Low/Reverse Brake, Front Planet, Front & Rear Sungear and Rear Planet

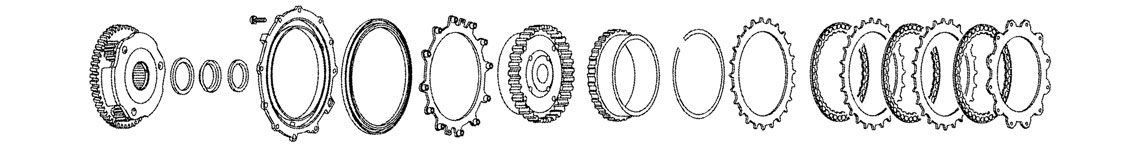

D

Reaction Sungear, Reaction Planetary & 2-6 Brake

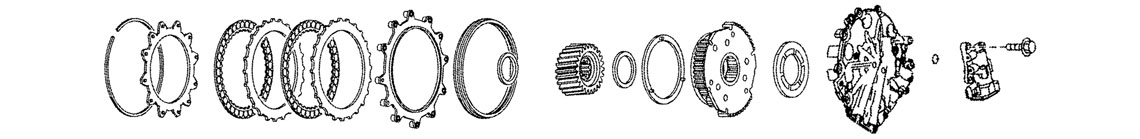

E

3-5-Reverse Brake & End Housing

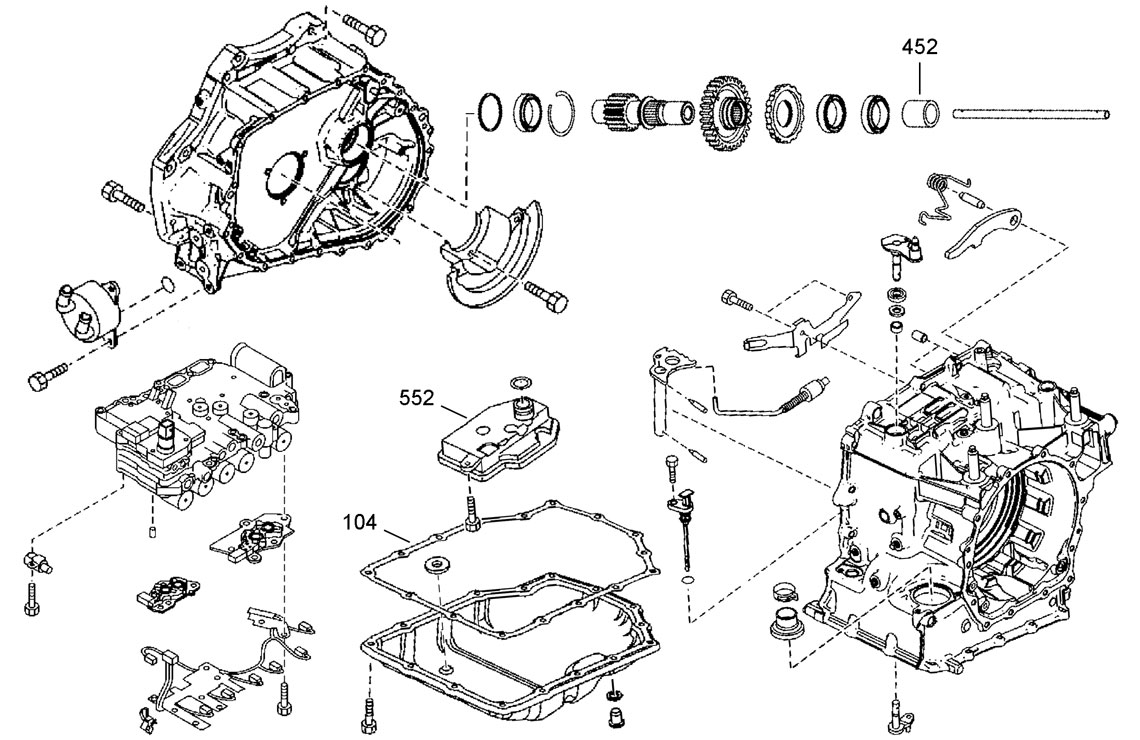

F

Bell Housing, Output Gear, Main Case, External Components, Valve Body, Filter & Oil Pan

552
104
452

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
104F 137104 Pan Gasket 14-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 137200 Converter Seal 44 ID x 60 OD x 5.50mm 12-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
452F 137452 Idler Support Bearing 14-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
552F 137552 Filter 14-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 137552K Filter Kit 14-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI 137760 Cooler Adapter for 6 Speed Mazda 12-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 137997 Transmission Case, Mazda 2 Late Casting # FZA4 14-ON 1
NI 137910 Torque Converter 14-ON 1
NI 137996 Transmission Case Casting # FZ11 14-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
NI 137760WC Cooler with Adapter 12-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 137999-05 Mazda FZ ATF 5 Litre 14-ON AR
NI 137999-20 Mazda FZ ATF 20 Litre 14-ON AR
