C6

Mid '68-later

Since its introduction in 1969 with the 428 SCJ, the R code servo has remained the trick piece for C6 builders needing additional band apply force. This Sonnax "R" ratio servo kit for C6 (mid 68-later) units features a no-leak pin which uses one O-ring and one PTFE ring to eliminate back pressure and leakage due to worn case bores. A replacement seal kit # 46161K also is available.

• Largest apply area
• No-leak servo pin design allows the servo piston to be used in worn bores
• Two selective return springs allow for tuning of shift quality

Note:
Some servo modifications involve blocking feed or exhaust passages in the case. These modifications must be removed. For proper operation of this servo, ensure that the exhaust passage and both oil feed passages are unrestricted.

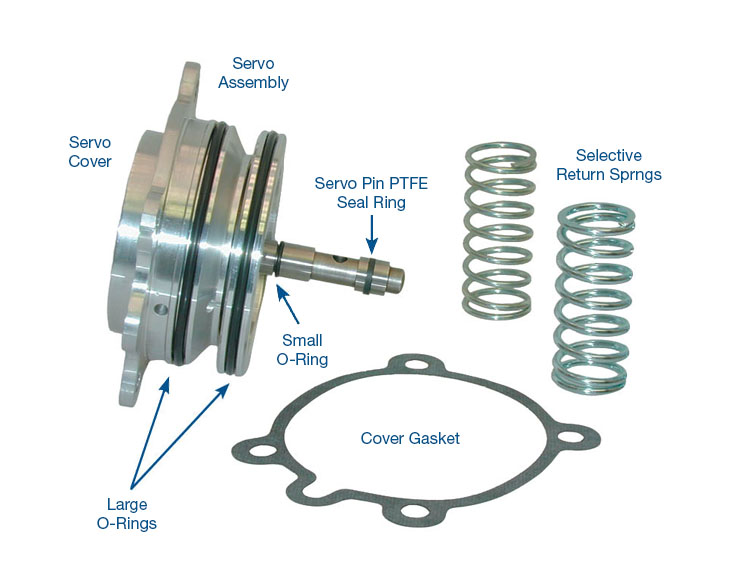

Contents:

• Cover
• Assembly
• Pin O-Ring
• Pin PTFE Seal Ring
• Medium O-Ring
• Large O-rings (2)
• Cover Gasket
• Selective Return Springs (2)

SONNAX Installation Instructions
