A

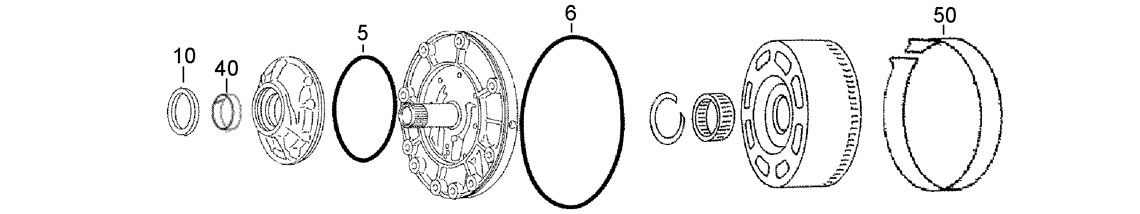

Pump, Front Sungear & Band

40
6
50
5
10

B

Front Planet & Input Clutch

21
33
20

C

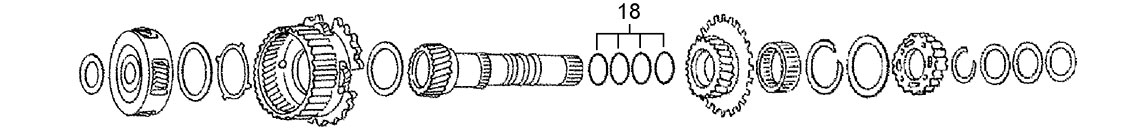

Mid Planet and Low & Reverse Clutch Hub

18

D

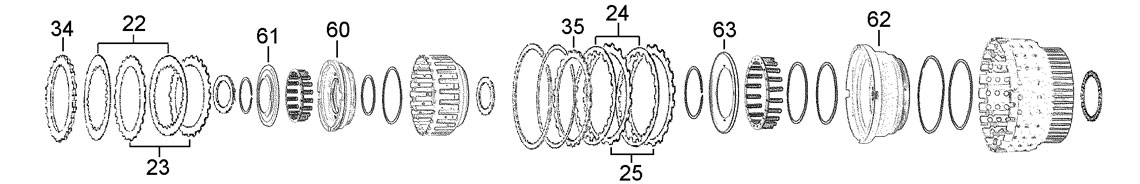

High & Low Reverse and Direct Clutches

24
25
63
23
35
22
62
34
61
60

E

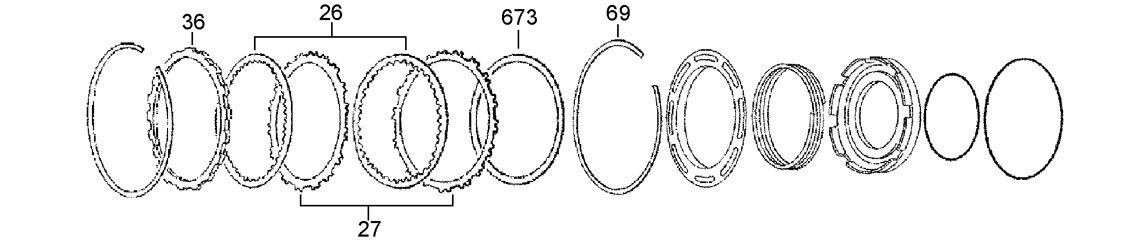

Reverse Brake

27
26
36
69
673

F

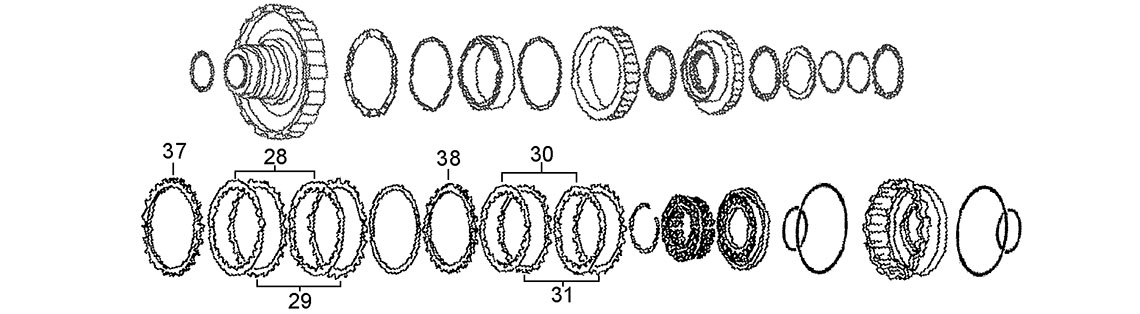

Forward & Low Coast Brakes

29
28
38
37
30
31

G

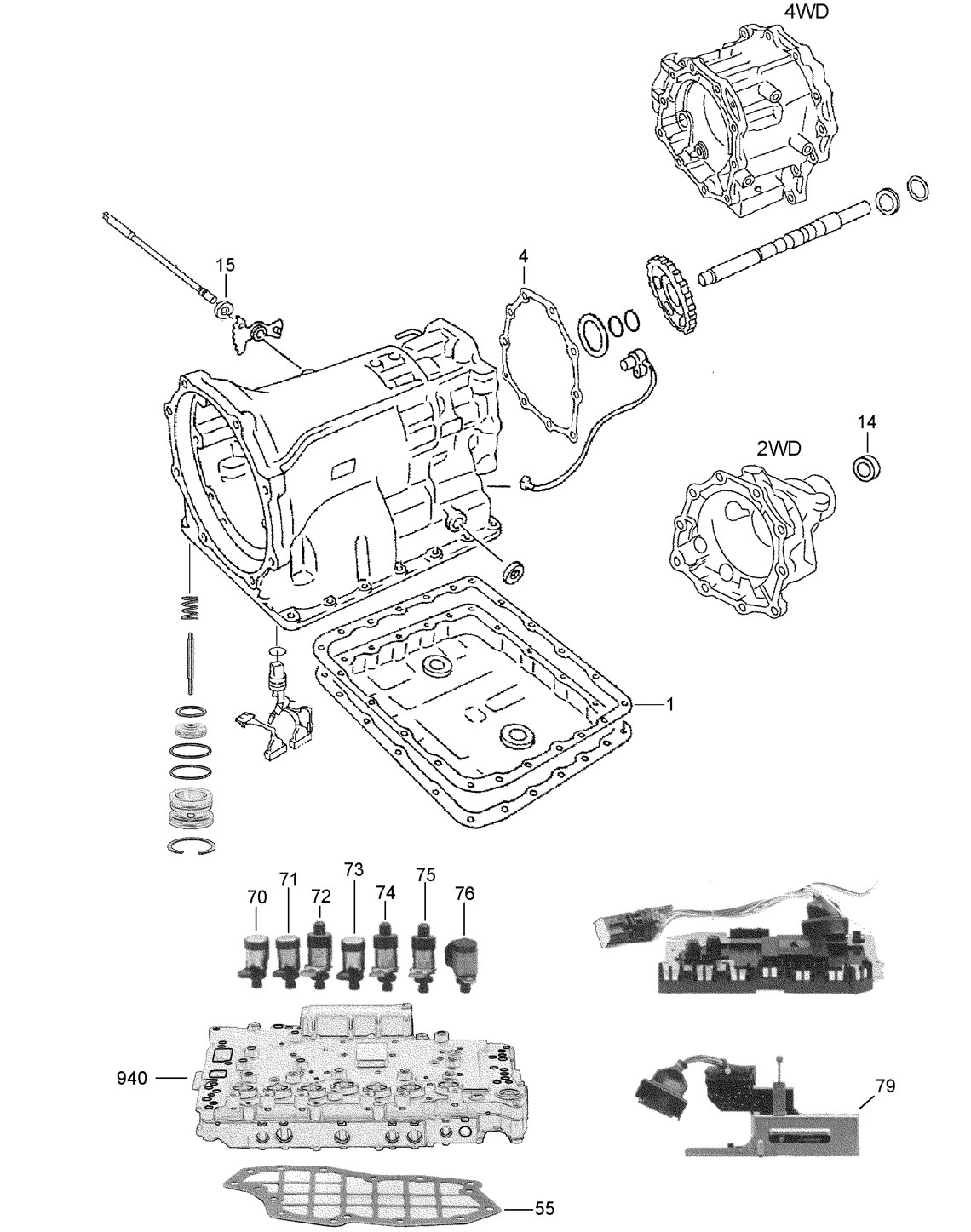

Case, Filter & Valve Body

4
76
72
70
75
73
79
71
55
74
14
1
15
940

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59000K Overhaul Kit A5SR1, A5SR2 Transtec 02-ON 1
Kit 59000KA Overhaul Kit, Aftermarket 02-ON Alt
Kit 59002KA Overhaul Kit with Pistons, Aftermarket 02-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59120K Valve Body Gasket Kit 02-ON 1
1G 59102 Pan Gasket 02-ON 1
1G 59104 Pan Gasket Cork Kia, Hyundai 02-ON 1
4G 59130 Extension Housing Gasket 02-ON 1
NI 59132 Adaptor Housing Gasket 02-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
5A 58160 Pump Body to Cover O Ring 02-ON 1
6A 27160 Pump Cover to Case O Ring 02-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 55200 Converter Seal 46 ID x 63 OD x 7.70mm 02-ON 1
14G 56230 Extension Housing 2WD 44 ID x 62 OD x 10/15.9mm 02-ON 1
14G 59220 Extension Housing 2WD 40 ID x 58 OD x 10.00mm 02-ON 1
15G 75205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 02-ON 1
NI 59232 Adaptor Housing Seal 4WD 47.5 ID x 65 OD x 9.00mm 02-ON 1
NI 59234 Transfer Case Rear Output Seal Nissan 45 ID x 69 OD x 10.00mm 02-ON 1
NI 59236 Transfer Case Rear Output Seal Hyundai 41 ID x 62.2 OD x 12.10mm 02-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59250K Sealing Ring Kit 02-ON 1
18C 59268 Centre Sealing Ring Metal 02-ON 4

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59300K Friction Kit, Non V8 Models 02-ON 1
Kit 59358K Direct Clutch Power Pack (Alto) 02-ON 1
20B 59310 Input Clutch 161.1 OD x 1.80mm x 60T 02-ON 6-7
22D 59314 High & Low Reverse Clutch 124.8 OD x 1.60mm x 30T 02-ON 4-5
24D 59318 Direct Clutch 158.6 OD x 1.80mm x 24T 02-ON 5
26E 59320 Reverse Brake 167.5 OD x 1.80mm x 50T 02-ON 6
26E 59322 Reverse Brake 167.5 OD x 1.60mm x 40T 02-ON 6
26E 59324 Reverse Brake 167.5 OD x 1.80mm x 40T 02-ON 6
28F 59326 Forward Brake 147 OD x 1.60mm x 39T 02-ON 5
28F 59328 Forward Brake 02-ON Alt
30F 59330 Low Coast Brake 132.5 OD x 1.60mm 30T 02-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59350K Input Clutch Power Pack (Alto) 02-ON 1
21B 59360 Input Clutch 144.5 ID x 2.00mm x 24T 02-ON 6-7
23D 59364 High & Low Reverse Clutch 95 ID x 131 OD x 2.40mm 24T 02-ON 4-5
23D 59366 High & Low Reverse Clutch 95 ID x 134 OD x 2.39mm 24T 02-ON 4-5
25D 59368 Direct Clutch 140.7 ID x 2.40mm x 24T 02-ON 5
27E 59372 Reverse Brake 150.6 ID x 2.00mm x 18T 02-ON 6
27E 59372A Reverse Brake 150.6 ID x 1.60mm x 18T 02-ON 7
29F 59376 Forward Brake 124.3 ID x 2.00mm x 18T 02-ON 5
29F 59378 Forward Brake 124.3 ID x 1.60mm x 16T 02-ON 5
31F 59380 Low Coast Brake 112.9 ID x 2.00mm x 18T 02-ON 3
31F 59382 Low Coast Brake 112.85 ID x 1.60mm x 16T 02-ON 3
31F 59384 Low Coast Brake 112.85 ID x 1.80mm x 15T 02-ON 3
33B 59390 Input Clutch 144.5 ID x 4.40mm x 24T 02-ON 1
34D 59394A High & Low Reverse Clutch 95 ID x 4.20mm x 24T 02-ON Alt
34D 59394B High & Low Reverse Clutch 95 ID x 4.40mm x 24T 02-ON Alt
34D 59395 High-Low & Reverse Pressure Plate, Wide Tooth 95 ID x 3.90mm x 24T 02-ON 1
35D 59396 Direct Clutch 140.7 ID x 3.90mm x 24T 02-ON 5
36E 59397 Reverse Brake 150.6 ID x 4.35mm x 18T 02-ON 6
36E 59397C Reverse Brake 150.6 ID x 4.80mm x 18T 02-ON Alt
37F 59398 Forward Brake 124.3 ID x 3.70mm x 18T 02-ON 1
38F 59399 Low Coast Brake 112.9 ID x 4.40mm x 18T 02-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59400K Bush Kit 02-ON 1
40A 59410 Pump Bush 02-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50A 59500 Band 02-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55G 59550 Filter 02-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59552K Filter Kit, Kia & Hyundai 02-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59570K Moulded Piston Kit 02-ON 1
Kit 59570KA Moulded Piston Kit, Aftermarket 02-ON Alt
60D 59574 Hi/Low Reverse Brake Alloy Piston 31.50mm 02-ON 1
60D 59575 Hi/Low Reverse Brake Alloy Piston 27.03mm 02-ON 1
61D 59576 Hi/Low Reverse Brake Moulded Balance Piston 02-ON 1
63D 59580 Direct Clutch Moulded Balance Piston 02-ON 1
NI 59572 Input Clutch Moulded Balance Piston 02-ON 1
NI 59572A Input Clutch Moulded Balance Piston 02-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
69E 59665 Heavy Duty Snap Ring Reverse Piston Retainer 02-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
673E 59673 Reverse Brake Cushion Spring 02-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70G 59712 EPC Solenoid PWM Normally Vented 02-ON 1
71G 59712 Lock Up (TCC) Solenoid PWM Normally Vented 02-ON 1
72G 59710 Direct Clutch Solenoid PWM Normally Applied 02-ON 1
73G 59712 Front Brake Band Solenoid PWM Normally Vented 02-ON 1
74G 59710 Input Clutch Control Solenoid PWM Normally Applied 02-ON 1
75G 59710 High & Low Reverse Clutch Solenoid PWM Normally Applied 02-ON 1
76G 59714 Low Coast Brake Solenoid On/Off Normally Open 02-ON 1
76G 59714A Low Coast Brake Solenoid 28 Ohms 02-ON 1
79G 59732 Inhibitor Switch Hyundai & Kia 02-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117784K Oversized Pressure Regulator & Boost Valve Kit 02-ON 1
Kit 59780K TCC Control Valve Kit 02-ON 1
Kit 59781K TCC Control Valve Sonnax 02-ON 1
Kit 59782K Sonnax Reverse Boost Valve Kit 02-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
62D 59578 Direct Clutch Alloy Piston 64.73mm 02-ON 1
62D 59579 Direct Clutch Alloy Piston 60.73mm 02-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
940G 59940 Valve Body, Elgrand & Fuga VIN Required 02-ON 1
940G 59958 Valve Body (A5SR1/2) VIN Required 02-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI T590 Nissan Dipstick, Loan Tool 02-ON 1
