A

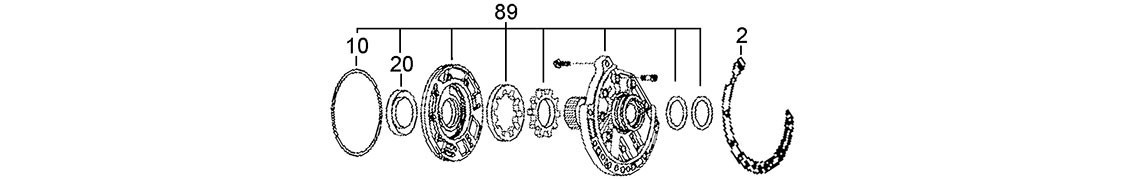

Pump
2
20
89
10
B

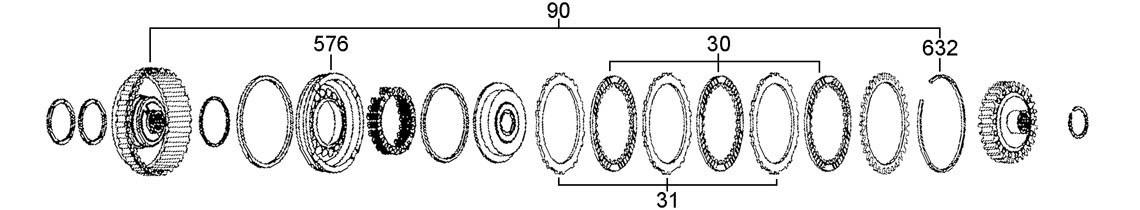

Underdrive Clutch
30
90
576
31
632
C

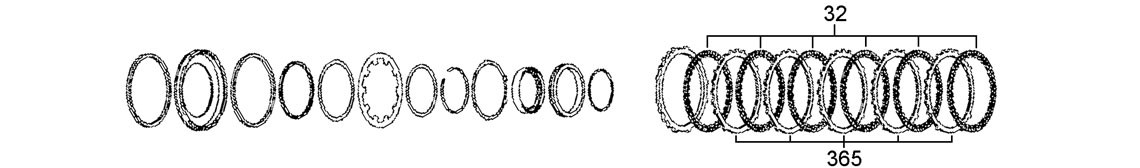

Low & Reverse Brake
32
365
D

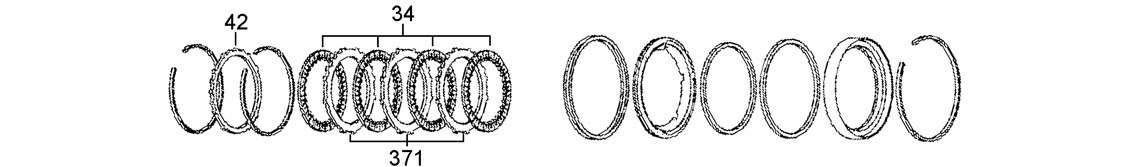

2-4 Brake
42
34
371
E

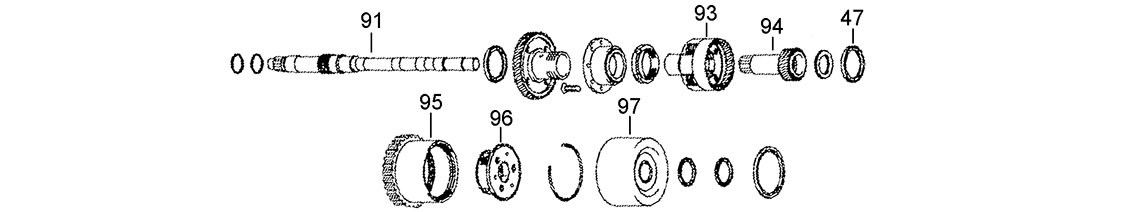

Input Shaft, Front Support & Planets
47
95
93
91
97
94
96
F

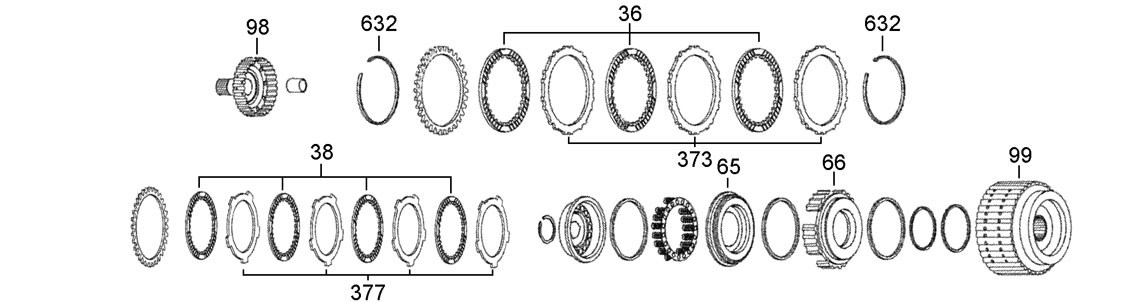

Overdrive & Reverse Clutches
38
65
66
36
98
99
632
632
377
373
G

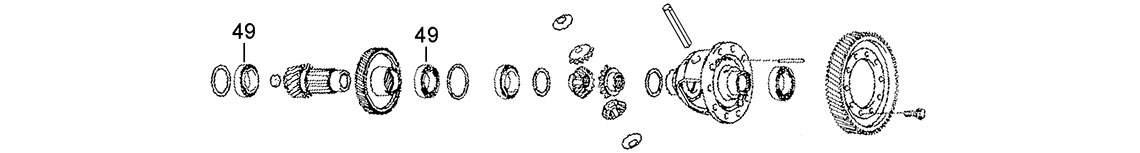

Differential & Transfer Shaft Assembly
49
49
H

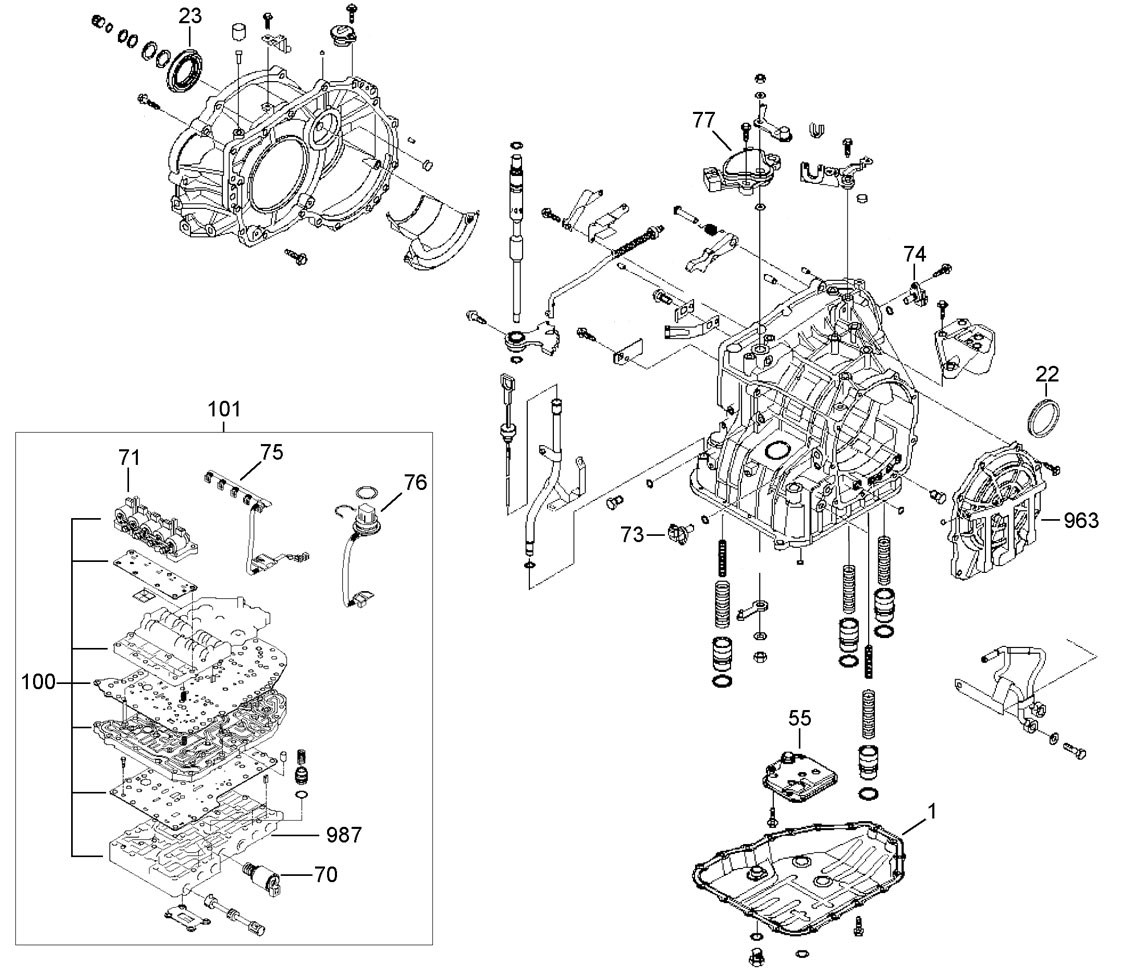

Valve Body, Case, Pan & Filter
76
22
75
71
23
70
77
963
55
73
1
100
74
101
987
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20004K | Overhaul Kit A4CF1, A4CF2 | Transtec | 06-ON | 1 |
| Kit | 20004KA | Overhaul Kit A4CF1, A4CF2 | Driveline | 06-ON | Alt |
| Kit | 20006K | Overhaul Kit A5CF1, A5CF2 | Transtec | 09-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20150K | Pump Leak Kit | 06-ON | 1 | |
| 1H | 20104 | Pan Gasket All | 06-ON | 1 | |
| 1H | 20104F | Pan Gasket, Farpak | 06-ON | 1 | |
| 1H | 20104H | Pan Gasket, Duraprene | 06-ON | 1 | |
| 2A | 20111 | Pump Gasket | 06-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20182K | Overdrive & Reverse Seal Kit A4CF1, A4CF2 | 06-ON | 1 | |
| 10A | 20160 | Pump O Ring | 06-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20A | 180200 | Converter Seal | 43 ID x 60 OD x 9.00mm | 06-ON | 1 |
| 22H | 20226 | Axle Seal Lefthand A4CF1, A4CF2, A5CF2 | 41 ID x 61.2 OD x 13.00mm | 06-ON | 1 |
| 23H | 20226 | Axle Seal Righthand A4CF1, A4CF2, A5CF2 | 41 ID x 61.2 OD x 13.00mm | 06-ON | 1 |
sealing rings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20254K | Sealing Ring Kit A4FC1, A4CF2 | 06-ON | 1 | |
| Kit | 20256K | Sealing Ring Kit A5CF2 | 09-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20311K | Underdrive Clutch Kit A4CF1/A4CF2, A5CF2 | 06-ON | 1 | |
| Kit | 20315K | Low-Reverse Brake Clutch Kit A4CF1, A4CF2, A5CF2 | 06-ON | 1 | |
| Kit | 20319K | 2-4 Brake Clutch Kit A4CF1, A4CF2, A5CF2 | 06-ON | 1 | |
| Kit | 20323K | Reverse Clutch Kit (Kia) A4CF1, A4CF2, A5CF2 | 06-ON | 1 | |
| Kit | 20327K | Overdrive Clutch Kit A4CF1, A4CF2, A5CF2 | 06-ON | 1 | |
| Kit | 20329K | Overdrive Clutch Kit A4CF1, A4CF2, A5CF2 | 06-ON | 1 | |
| Kit | 20333K | Direct Clutch Kit A5CF2 Only | 06-ON | 1 | |
| Kit | 20334K | Reduction Brake Clutch Kit A5CF2 Only | 06-ON | 1 | |
| Kit | 20348K | Overdrive Clutch Kit (Hyundai) | 06-ON | 1 | |
| 30B | 20311 | Underdrive Friction A4CF1/A4CF2, A5CF2 | 145 OD x 1.75mm x 30T | 06-ON | 3 |
| 32C | 20315 | Low-Reverse Brake Friction A4CF1, A4CF2, A5CF2 | 159.5 OD x 1.80mm x 30T | 06-ON | 6 |
| 34D | 20318 | 2-4 Brake Clutch Friction A4CF1, A4CF2, A5CF2 | 157 OD x 1.80mm x 30T | 06-ON | 4 |
| 36F | 20323 | Reverse Clutch Friction A4CF1, A4CF2, A5CF2 | 149 OD x 1.65mm x 30T | 06-ON | 3 |
| 38F | 20329 | Overdrive Clutch Friction A4CF1, A4CF2, A5CF2 | 137 OD x 1.80mm x 30T | 06-ON | 4 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 31B | 20361 | Underdrive Steel | 121 ID x 2.00mm x 20T | 06-ON | AR |
| 42D | 20391 | 2-4 Brake Pressure Plate 6.00mm | 130 ID x 6.00mm x 14T | 06-ON | 1 |
| 42D | 20391 | Pressure Plate 6.00mm | 130 ID x 6.00mm x 14T | 06-ON | 1 |
| 365C | 20365 | STEEL LOW & REVERSE (F4CF1/2) 1.00mm | 140.7 ID x 1.00mm x 14T | 06-ON | 5 |
| 365C | 20365A | Low & Reverse Brake Steel Plate | 140.7 ID x 2.20mm x 14T | 06-ON | Alt |
| 371D | 20371 | 2-4 Brake Clutch Steel Plate | 130 ID x 1.85mm x 14T | 06-ON | 1 |
| 371D | 20371A | 2-4 Brake Clutch Steel Plate | 130 ID x 3.00mm x 14T | 06-ON | Alt |
| 373F | 20373 | STEEL REVERSE (F4CF1/2) 3.00mm | 129.3 ID x 3.00mm x 20T | 06-ON | 3 |
| 377F | 20377 | STEEL OVERDRIVE (F4CF1/2) 2.50mm | 111.25 ID x 2.50mm x 5T | 06-ON | 4 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 47E | 20495 | Underdrive Sungear Bearing | 31.1 ID x 45.6 OD x 3.30mm | 06-ON | 1 |
| 49G | 20934 | Differential Bearing | 35 ID x 62 OD x 18.00mm | 06-ON | 2 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 65F | 20578 | Overdrive Piston All | 06-ON | 1 | |
| 66F | 20580 | Reverse Piston A4CF1, A4CF2 | 06-ON | 1 | |
| 66F | 20581 | Reverse Piston A4CF1, A4CF2 | 06-ON | 1 | |
| 576B | 20576 | Underdrive Piston (A4CF1, A4CF2) Alloy | 06-ON | 1 |
circlips
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 632B | 20632H | Underdrive Circlip | 2.30mm | 06-ON | 1 |
| 632B | 20632R | Underdrive Circlip | 3.00mm | 06-ON | 1 |
| 632F | 20632H | Overdrive Circlip | 2.30mm | 06-ON | 2 |
| 632F | 20632R | Overdrive Circlip | 3.00mm | 06-ON | 2 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 70H | 20706 | EPC Solenoid | 06-ON | 1 | |
| 71H | 20708K | Solenoid Assembly | 06-ON | 1 | |
| 73H | 20718 | Input Speed Sensor 3 Pin | 06-ON | 1 | |
| 73H | 20724 | Input Speed Sensor 3 Pin | 06-ON | 1 | |
| 74H | 20718 | Output Speed Sensor 3 Pin | 06-ON | 1 | |
| 74H | 20724 | Input/Output Speed Sensor 3 Pin | 06-ON | 1 | |
| 75H | 20726 | Valve Body Loom | 06-ON | 1 | |
| 75H | 20727 | Valve Body Loom | 06-ON | 1 | |
| 76H | 20728 | Wiring Harness with Case Connector | 06-ON | 1 | |
| 77H | 20730 | Inhibitor Switch | 06-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20786K | Boost Valve Kit A4CF1, A4CF2 | 06-ON | 1 | |
| Kit | 20788K | TCC Regulator Valve Kit A4CF1, A4CF2 | 06-ON | 1 | |
| Kit | 20790K | O/S Damper CL Control Valve Kit (A4CF1) | 06-ON | 1 | |
| Kit | 20792K | O/S Pressure Regulator Valve Kit (A4CF1) | 06-ON | 1 | |
| Kit | 20794K | Pressure Reducing Valve Kit (A4CF1) | 06-ON | 1 | |
| Kit | 20798K | O/S Pressure Control Valve Kit (A4CF1) | 06-ON | 1 | |
| NI | 20772 | Detent Spring | 06-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 20802K | Shift Kit, Tool Required | 06-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 89A | 20903 | Pump Assembly A4CF1, A4CF2 | 06-ON | 1 | |
| 90B | 20924 | Underdrive Drum Complete | 06-ON | 1 | |
| 91E | 20916 | Input Shaft A4CF1, A4CF2 | 06-ON | 1 | |
| 91E | 20917 | Input Shaft Hyundai A4CF1, A4CF2 | 06-ON | 1 | |
| 93E | 20944 | Output Planet A4CF1, A4CF2 | 06-ON | 1 | |
| 94E | 20946 | Underdrive Sungear A4CF1, A4CF2 | 06-ON | 1 | |
| 95E | 20947 | Low & Reverse Annulus A4C1, A4CF2 | 06-ON | 1 | |
| 96E | 20948 | Input Planet A4CF1, A4CF2 | 06-ON | 1 | |
| 97E | 20949 | Reverse Sungear 25 Teeth A4CF1, A4CF2 | 06-ON | 1 | |
| 98F | 20950 | Overdrive Clutch Hub A4CF1, A4CF2 May also need to replace Reverse Sungear 20949 | 06-ON | 1 | |
| 99F | 20928 | Reverse/Overdrive Drum | 06-ON | 1 | |
| 963H | 20963 | Rear Cover A4CF1, A4CF2 | 06-ON | 1 | |
| 987H | 20987 | Lower Valve Body | 06-ON | 1 |
As parts vary between models please provide Vehicle Details when ordering
valve bodies
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 100H | 20988 | Complete Valve Body A4CF1, A4CF2 | 06-ON | 1 | |
| 101H | 20988K | Valve Body & Wiring Harness | 06-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-05 | LUBEGARD COMPLETE FULL SYNTHETIC 5L | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
tools
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | T-A4A6-RV-TK | Toolkit for 20802K | 10-ON | 1 | |
| NI | T-F84741-TL10 | Toolkit for 20794K | 06-ON | 1 | |
| NI | T-F84741-TL3 | Toolkit for 20790K | 06-ON | 1 |
