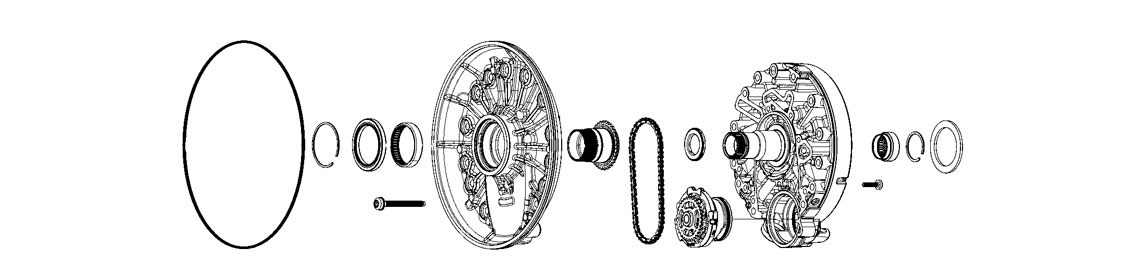

A
Pump

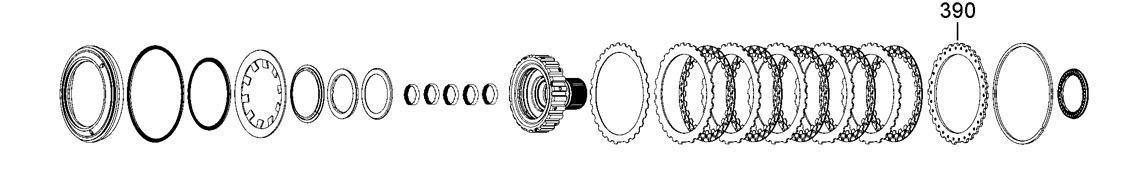

B
A Clutch
390
C

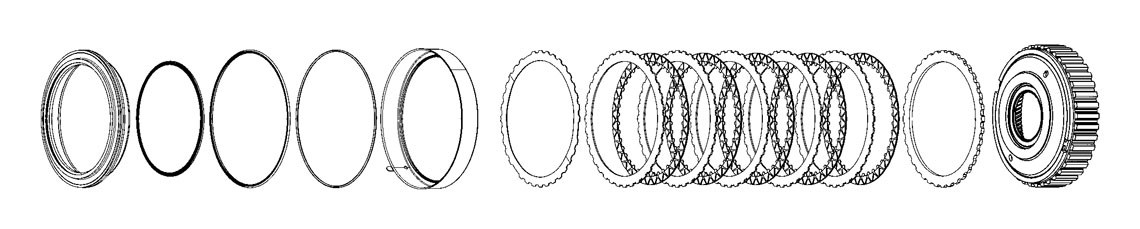

B Clutch
D

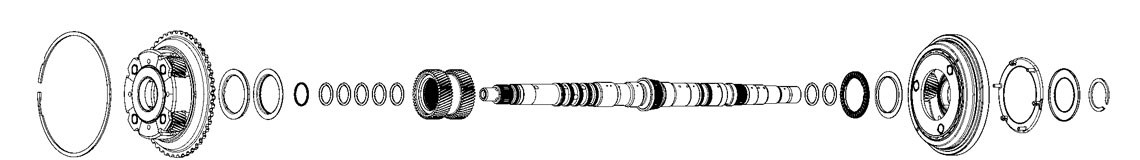

No 1 & No 2 Planetary Gear Sets

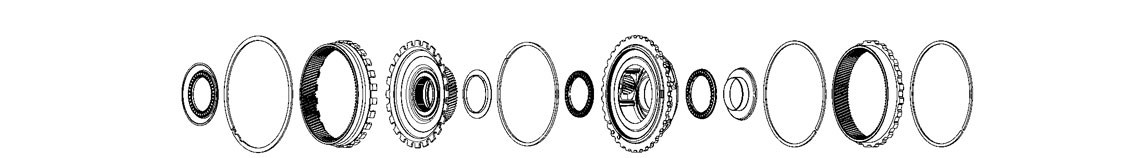

E
No 3 Planetary Gear Set

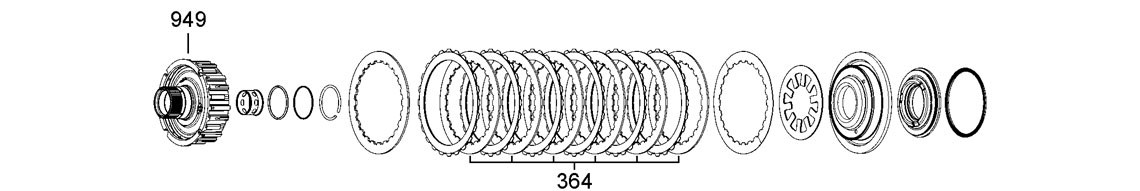

F
E Clutch
364
949

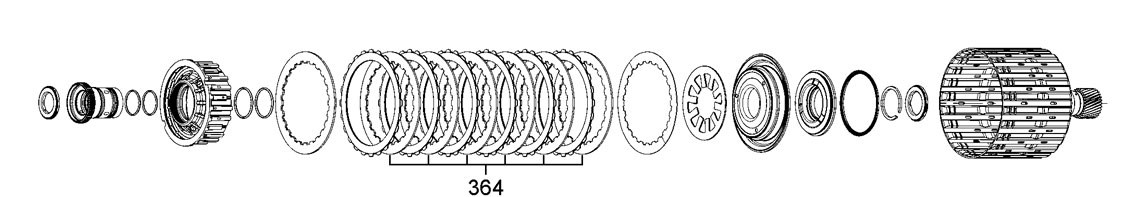

G
C Clutch
364

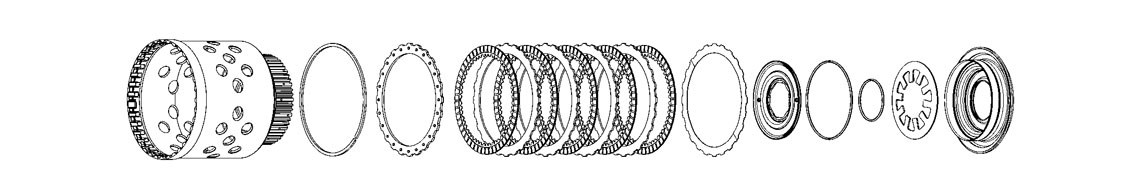

H
D Clutch

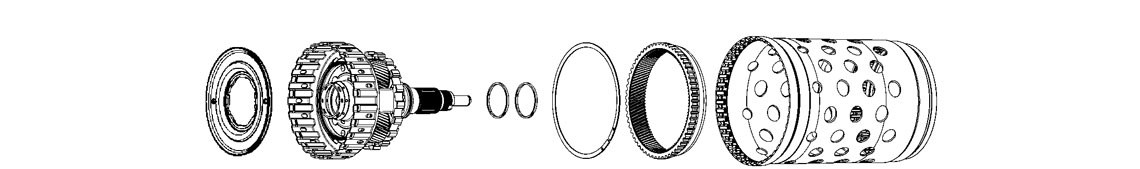

J
No 4 Planetary Gear Set

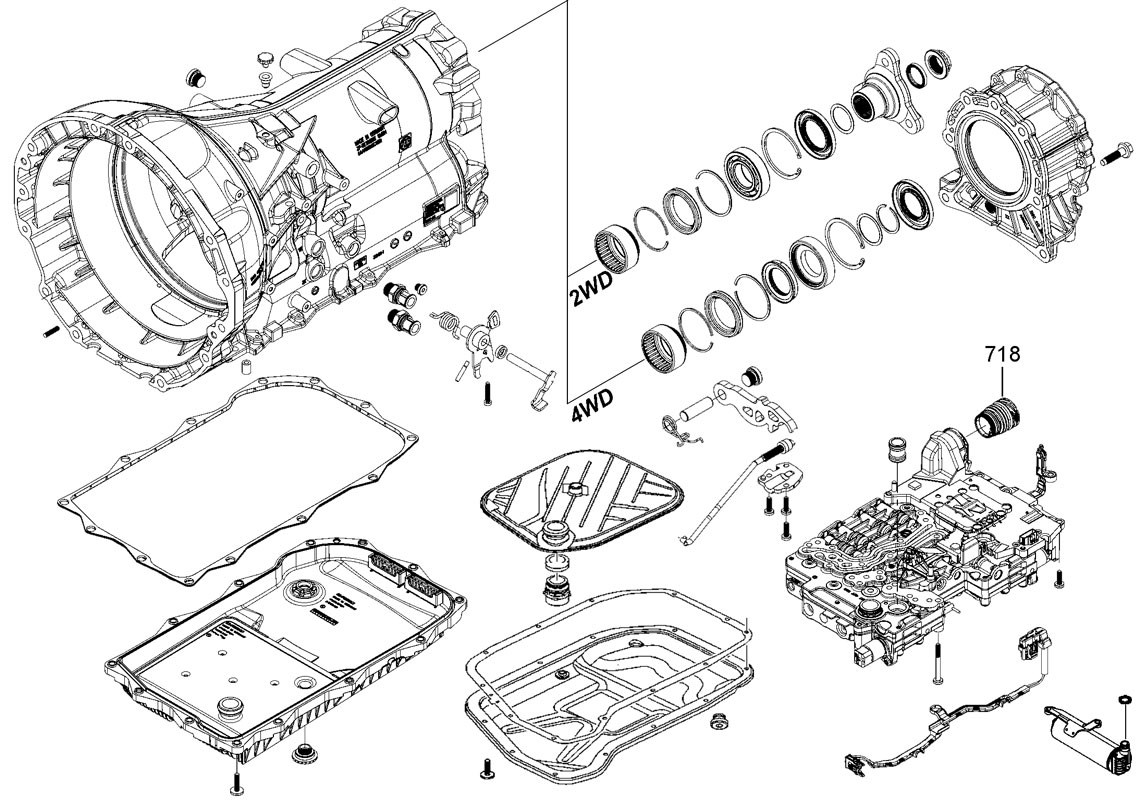

K
718
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121004K | Overhaul Kit with Pistons, Transtec | Transtec | 13-ON | 1 |
| Kit | 121006K | Overhaul Kit without Pistons, Transtec | Transtec | 13-ON | 1 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 364F | 121364 | E Clutch Steel Plate | 13-ON | 5-6 | |
| 364G | 121364 | C Clutch Steel Plate | 13-ON | 5-6 | |
| 390B | 121392 | A Clutch Pressure Plate (Sonnax) Heavy Duty (8HP50/8HP51) | 13-ON | 1 |
filter kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 123551K | Filter Kit Including Deep Pan & Bolts | 13-ON | 1 | |
| Kit | 123552K | Filter Kit Including Deep Pan | 13-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 123724K | Solenoid Set | 13-ON | 1 | |
| 718K | 121718 | Case Connector | 13-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121812K | ZIP KIT (8HP50/8HP75/850RRE) | 08-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 121992 | Separator Plate, Code 193 | 13-ON | 1 | |
| NI | 121993 | Separator Plate, Code 253 | 13-ON | Alt |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 121999-01 | ZF Lifeguard 8, 1 Litre Pack | 13-ON | AR | |
| NI | 121999-05 | ZF Lifeguard 8, 5 Litre Pack | 13-ON | AR | |
| NI | 121999-20 | ZF Lifeguard 8, 20 Litre Pack | 13-ON | AR |
