A

Bell Housing & Pump

20
40
90
92
91
10
930
908

B

1-2-3-4 & 3-5-Reverse Clutch & Input Carrier Assembly

32
43
61
93
33
50
571
30
31
94
95
632
636
577
602
566
392
366
393
604
467

C

4-5-6 Clutch

44
62
63
35
96
34
938
935
640
370
397
932

D

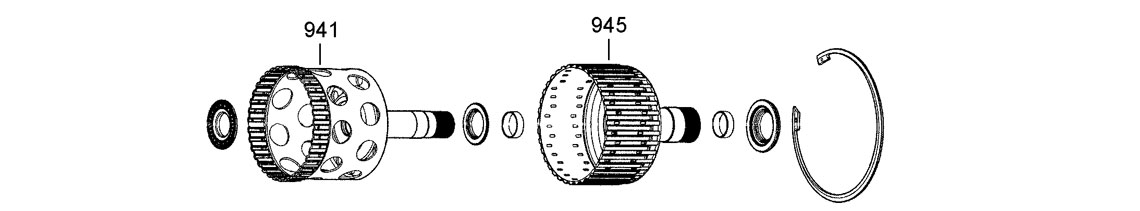

1-2-3-4 Clutch Hub, 2-6 & 3-5-Reverse Clutch Hub

941
945

E

2-6 Clutch, Low & Reverse Clutch And Output Carrier Assembly

65
37
36
64
38
39
11
72
980
644
642
398
373
600
380
399
952

F

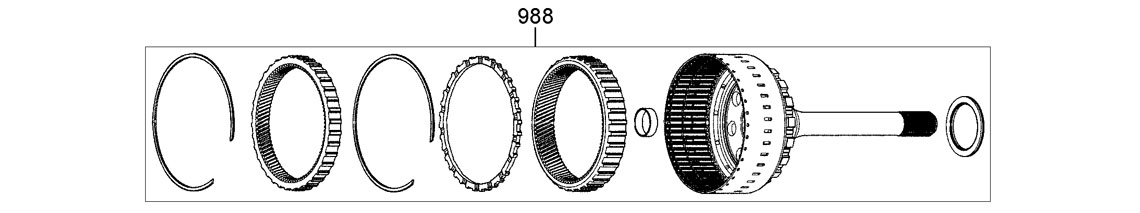

Output Shaft Assembly

988

G

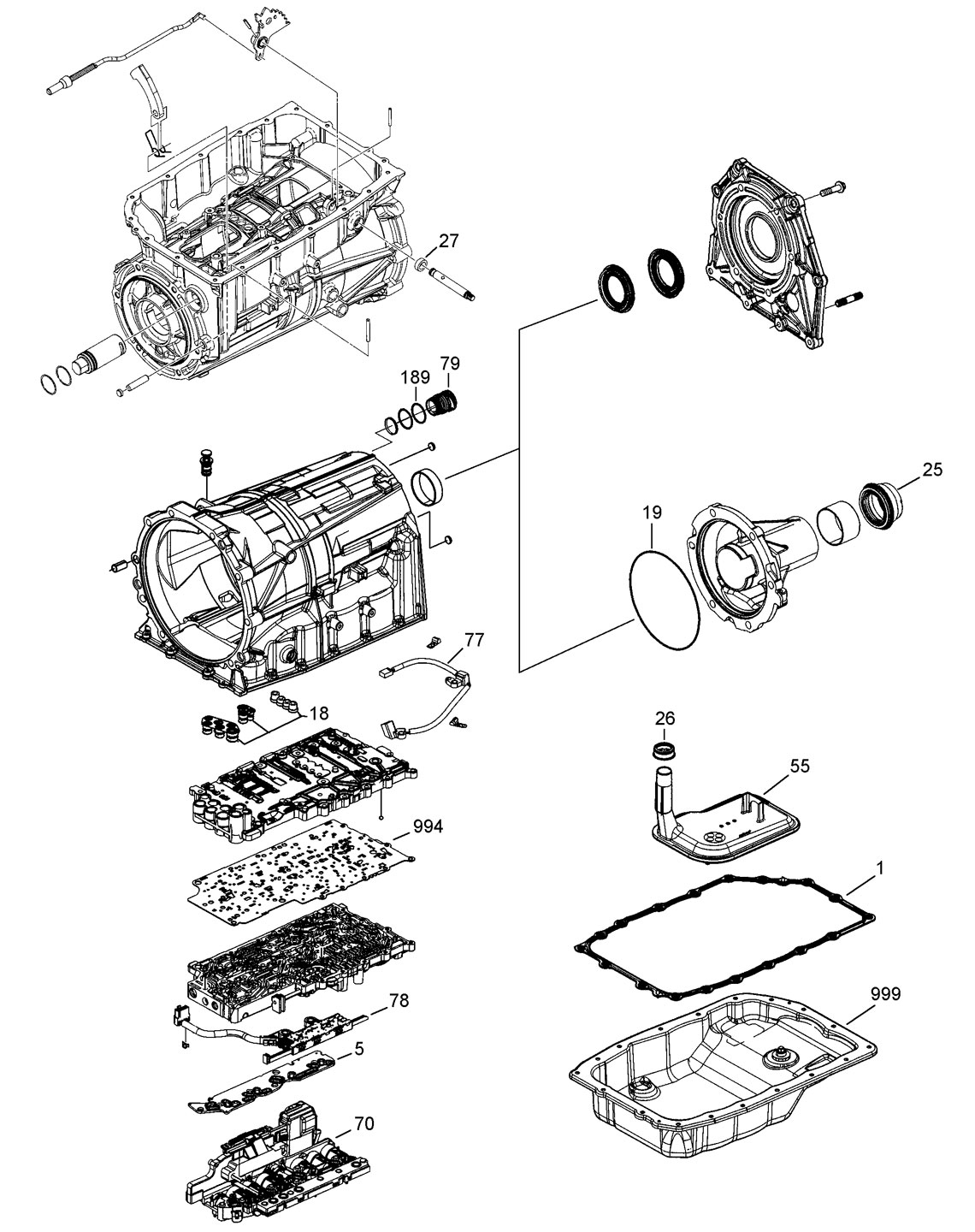

Case, Valve Body, Filter & Pan

26
27
25
79
70
77
5
55
78
994
1
18
19
189
999

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32004K Overhaul Kit with Bonded Pistons Transtec 06-ON 1
Kit 32004KA Overhaul Kit with Bonded Pistons SAP 06-ON Alt
Kit 32006K Overhaul Kit without Pistons Transtec 06-ON 1
Kit 32006KA Overhaul Kit without Pistons Precision 06-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32003KM Master Kit, Colorado 12-20 1
Kit 32004KM Master Kit V6 Commodore 6L50 06-ON 1
Kit 32005KM Master Kit V6 Commodore 6L45 06-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32120K Valve Body Gasket Kit 06-ON 1
Kit 32124K Valve Body Gasket Kit 06-ON 1
Kit 32150K Pump Leak Kit 06-ON 1
1G 32102 Pan Gasket 06-ON 1
5G 32188 Solenoid Gasket 06-ON 1
NI 32145 Cooler Fittings to Case Gasket 06-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32128K Check Ball Kit Torlon 6.4mm 06-ON 1
Kit 32172K Seal Kit 1-2 3-4 & 3-5 Reverse 06-ON 1
Kit 37199K Cooler O-Ring & Clip Kit 06-ON 1
10A 32161 Pump Assembly to Case O Ring 06-ON 1
11E 32168 Low Sprag to Centre Support O Ring 06-ON 1
18G 32194K Valve Body to Case Seal Kit 06-ON 1
19G 32182 Extension Housing Lathe Cut Seal 06-ON 1
26G 32210 Filter Seal 06-ON 1
189G 32189 O Ring Case Connector 06-ON 1
NI 24126T Valve Body Ball (Small) Torlon 6.37mm 06-ON AR
NI 32195 Cooling Line Cap Seal 06-ON 2
NI 37162 Lock up O Ring (V6) Green 245mm 06-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 32200 Converter Seal 46.6 ID x 73 OD x 7.20mm 06-ON 1
25G 32220 Extension Housing Seal - Colorado 49 x 68.80 x 10.30 x 36.80mm 06-ON 1
25G 32222 Extension Housing Seal 44 ID x 62 OD x 10.70mm 06-ON 1
27G 35210 Manual Shaft Seal 12 ID x 19.2 OD x 5.00mm 06-ON 1
NI 32230 Seal Filter Tube 06-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32250K Sealing Ring Kit 06-ON 1
Kit 32252K Sealing Ring Kit 06-ON 1
NI 32264 Sealing Ring & Backer Pump Stator 06-ON 1
NI 32266 Sealing Ring Pump Stator 06-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32304K Friction Module 6L50 06-ON 1
Kit 32305K Friction Module 6L45 06-ON 1
30B 32311 1-2 3-4 Clutch Friction Plate 170 OD x 1.60mm x 36T 06-ON 5
32B 32315 3-5 Reverse Clutch Friction Plate 182.3 OD x 1.80mm x 36T 06-ON 4
34C 32319 4-5-6 Clutch Friction Plate with Internal Teeth 125.6 OD x 2.00mm x 36T 06-ON 5
34C 32319A 4-5-6 Clutch Friction Plate with Internal Teeth 125.6 OD x 2.00mm x 36T 06-ON Alt
35C 32320 4-5-6 Clutch Friction Plate with External Teeth 104.8 ID x 2.00mm x 36T 06-ON 5
35C 32320A 4-5-6 Clutch Friction Plate with External Teeth 104.8 ID x 2.00mm x 36T 06-ON Alt
36E 32323 2-6 Clutch Friction Plate with Internal Teeth 184 OD x 2.50mm x 36T 06-ON 5
37E 32324 2-6 Clutch Friction Plate with External Teeth 161.5 ID x 2.10mm x 24T 06-ON 5
38E 32327 Low & Reverse Clutch Friction Plate 6L45 176 OD x 1.60mm x 44T 06-ON 4
38E 32328 Low & Reverse Clutch Friction Plate 6L50 177.3 OD x 1.60mm x 54T 06-ON 6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 32361 1-2 3-4 Clutch Steel Plate 156.2 ID x 1.75mm x 9T 06-ON 5
33B 32365 3-5 Reverse Clutch Steel Plate 161.8 ID x 2.50mm x 36T 06-ON 4
39E 32378 Low & Reverse Clutch Steel Plate 158 ID x 1.75mm x 24T 06-ON 6
366B 32366 3-5 Reverse Clutch Cushion Steel Plate 162 ID x 1.37mm x 6T Waved 06-ON 1
370C 32370 4-5-6 Clutch Waved Steel 105 ID x 1.9mm x 12T Waved 06-ON 1
373E 32373 2-6 Clutch Cushion Plate 162 ID x 1.52mm x 12T 06-ON 1
380E 32380 Low & Reverse Clutch Cushion Plate 157.6 ID x 1.73mm x 8T 06-ON 1
392B 32392 1-2 3-4 Clutch Pressure Plate 156 ID x 7.05mm x 9T 06-ON 1
393B 32393 3-5 Reverse Clutch Pressure Plate 162 ID x 5.10mm x 36T 06-ON 1
397C 32397 4-5-6 Clutch Pressure Plate 105 ID x 5.08mm x 36T Stepped 06-ON 1
398E 32398 2-6 Clutch Pressure Plate 162 ID x 5.00mm x 24T Stepped 06-ON 1
399E 32399 Low & Reverse Clutch Pressure Plate 157 ID x 7.95mm x 24T 06-ON 1
566B 32566 1-2 3-4 Clutch Waved Steel Plate 06-ON 1
NI 32362U 1-2 3-4 Cushion Plate (6L50) 156 ID x 1.75mm x 9T Waved 06-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32405K Bush Kit 06-ON 1
Kit 32407K Stator Support Bush Kit 06-ON 1
40A 32410 Converter Housing (Teflon coated) 06-ON 1
40A 32410A Converter Housing Bush 06-ON Alt
43B 32420 3-5 Reverse Clutch Housing 06-ON 1
44C 32422 4-5-6 Clutch Housing 06-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32454K Bearing Kit 06-ON 1
50B 32462 1-2-3-4 & 3-5-Reverse Drum Bearing with Seal 82.5 ID x 89 OD x 12.00mm 06-ON 1
467B 32467 Input Planet to 4-5-6 Drum Washer with 4 Tabs 06-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55G 32550 Filter 6L45/6L50 Total Height of Filter 146.30mm 06-ON 1
55G 32552 Filter 6L45 BMW 06-ON 1
55G 32556 Filter 6L50 Total Height of Filter 160.53mm, 33mm tall Spacer on top, Colorado 06-ON 1
55G 32558 Filter 6L50 Total Height of Filter 160.53mm 25.4mm tall Spacer on top of Filter 10-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32551K Filter 6L50 Total Height of Filter 146.30mm 06-ON 1
Kit 32552K Filter 6L45 BMW 06-ON 1
Kit 32556K Filter Kit, Colorado 06-ON 1
Kit 32558K Filter 6L50 Total Height of Filter 160.53mm 25.4mm tall Spacer on top of Filter 10-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32594K Piston Kit 06-ON 1
61B 32573 1-2-3-4 Clutch Balance Piston 06-ON 1
62C 32579 4-5-6 Clutch Piston 06-ON 1
63C 32582 4-5-6 Clutch Balance Piston 06-ON 1
64E 32576 2-6 Clutch Piston 06-ON 1
65E 32586 Low & Reverse Clutch Piston 06-ON 1
571B 32570C Piston 1-2-3-4 Clutch Apply (6L45 / 6L50) Alloy 06-ON 1
571B 32571 Piston 1-2-3-4 Clutch (6L50) Alloy 06-ON 1
577B 32577 3-5 Reverse Clutch Piston 06-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
632B 32632 1-2, 3-4 Clutch Circlip 06-ON 1
636B 32636 3-5 Reverse Clutch Circlip 06-ON 1
640C 32640 4-5-6 Clutch Circlip 06-ON 1
642E 32642 2-6 Clutch Circlip 06-ON 1
644E 32644 Low & Reverse Clutch Circlip 06-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32680K Clutch Select Valve Spring Kit 6L45, 6L50 06-10 1
72E 32651K Low Sprag Assembly (6L50) 06-ON 1
72E 32652K Low Sprag Assembly (6L45) 06-ON 1
600E 32600 Low & Reverse Clutch Diaphragm Spring 06-ON 1
602B 32602 3-5 Reverse Clutch Diaphragm Spring 06-ON 1
604B 32604 3-5 Reverse Clutch Diaphragm Spring 06-ON 1

electrical components

Please supply Vehicle Information when ordering to enable us to check correct unit is supplied.
May also require Solenoid Gasket & Valve Body to Case Seals.

NO PART # DESCRIPTION SIZE YEARS QTY
70G 32725 Solenoid & TCM Assembly 06-ON 1
70G 32726 Solenoid Control Body & TCM\ (TEHCM) 06-ON 1
77G 32750 Input and Output Speed Sensor 06-ON 1
78G 32740 Range Switch 6L50 06-ON 1
78G 32744 Range Switch (MLPS Sensor) 6L45 06-ON 1
79G 99718 Case Connector 06-ON 1
79G 99718-5 Case Connectors - 5 Pack 06-ON 1

Vehicle must be programmed by Dealer after fitting

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32775K Clutch Select & TCC Upgrade Kit 06-ON 1
Kit 32776K Pressure Switch Plastic Piston (10 per bag) 06-ON 1
Kit 32777K Pump Slide Pivot Pin & Spring Kit Pack of 3 06-ON 1
Kit 32778K-05 Pressure Switch Rebuild Kit Without Tools Bag of 5 06-ON 1
Kit 32778KT Pressure Switch Rebuild Installation Tool Kit 06-ON 1
Kit 32780K Line Pressure Boost Valve Kit 06-ON 1
Kit 32781K Actuator Feed Limit Valve Kit 06-ON 1
Kit 32782K TCC Regulator Valve Kit 06-ON 1
Kit 32782KA Oversized TCC Regulator Valve Kit 06-ON 1
Kit 32783K Press Regulator Boost Valve Kit 06-ON 1
Kit 32788K End Plug Kit with O Rings 06-ON 1
Kit 32790K Pressure Regulator Valve Kit Sonnax 06-ON 1
Kit 32791K Pressure Regulator Valve Repair Kit 06-ON 1
Kit 32799K End Play Shim Kit 06-ON 1
NI 32772 Manual Valve 6L45 BMW 06-ON 1
NI 32781KA Oversized Actuator Feed Limit Valve 06-ON 1
NI 32785K Oversized Converter Feed Limit Valve 06-ON 1
NI 32793K Pump Ring Kit Hi Performance 06-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32800K Shift Kit 06-12 1
Kit 32810K Sonnax ZIP Kit 06-ON 1
Kit 32812K Reprogramming Kit, TransGo 06-20 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32907K Pump Rotor Vane & Ring Kit 06-ON 1
Kit 32912K Rotor Kit, 17.945-17.961mm 06-ON 1
Kit 32914K Rotor Kit, 17.961-17.974mm 06-ON 1
Kit 32918K Pump Ring Kit, Hi Performance 06-ON 1
90A 32901 Bellhousing Commodore 06-ON 1
91A 32906FN Pump Stator 06-ON 1
93B 32921 1-2-3-4 & 3-5-R Drum 06-ON 1
93B 32921U 1-2-3-4/3-5-R Clutch Drum (Used) 06-ON 1
94B 32926 Input Planet 06-ON 1
95B 32928 Input Sungear 06-ON 1
96C 32932 4-5-6 Drum & Shaft 06-ON 1
96C 32932U Drum 4-5-6 Clutch With Shaft (Used) 06-ON 1
908A 32908 PUMP SLDE 13 VANE 17.95mm 6L45/50/80/90 06-ON 1
930A 32909 Pump Vanes 06-ON 13
930A 37930 Pump Vanes 06-ON 13
932C 32932KFN 4-5-6 Clutch Drum & Shaft Complete Assembly 06-ON 1
935C 32935K 4-5-6 (Overdrive) Hub & Shaft Kit 06-ON 1
938C 32938 Dampener 4-5-6 Clutch 22mm Height 06-ON 1
941D 32941 1-2-3-4 Clutch Hub with Shaft 06-ON 1
945D 32945 2-6 & 3-5-Reverse Clutch Hub 06-ON 1
952E 32952KFN 2-6-Clutch & Low & Reverse Clutch Assembly 06-ON 1
980E 32975K Output Carrier Assembly 06-15 1
980E 32980K Output Carrier Assembly 06-ON 1
988F 32988K Output Shaft Assembly 6L50 06-ON 1
994G 32994 Valve Body Separator Plate, 6L - 8 Checkballs 06-ON 1
999G 32999 6L50 Transmission Pan Commodore 06-ON 1
NI 32990 Separator Plate 7 Check Ball 06-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49470KDL Cooler Kit, LDV T60, Coolmaster 06-ON 1
Kit 49471K Cooler Kit, Holden Colorado 06-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI TF-104520-TL11C Reamer Tool for 32785K 06-ON 1
NI TF-104740-TL12 Reamer Tool for 32781KA 06-ON 1
NI TF-104740-TL7 Reamer Tool for 32782KA 06-ON 1
