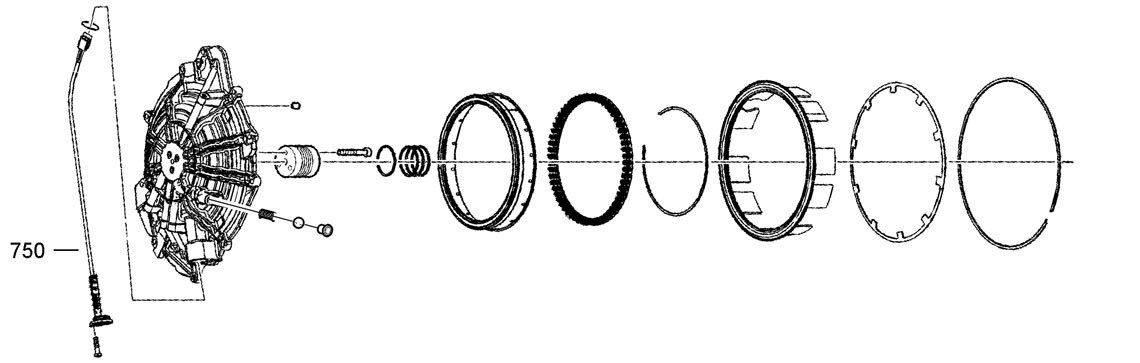

A
End Cover & Intermediate Clutch Piston
750

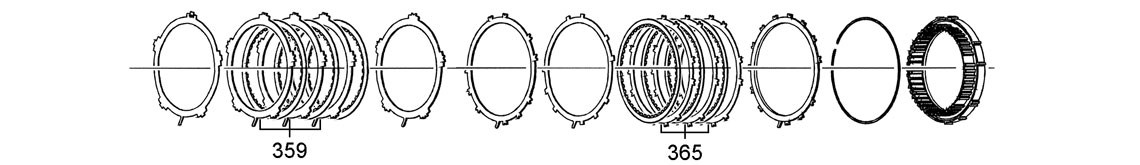

B
Intermediate Clutch & Low-Reverse Clutch Assembly
359
365

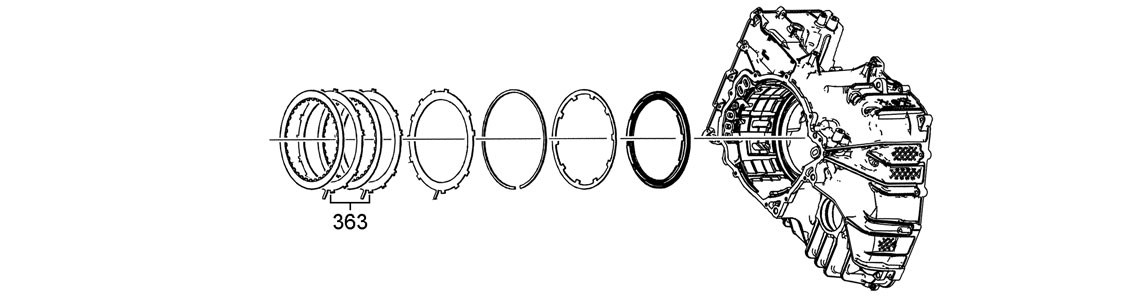

C
Forward Clutch Assembly
363
D
Direct Clutch
373

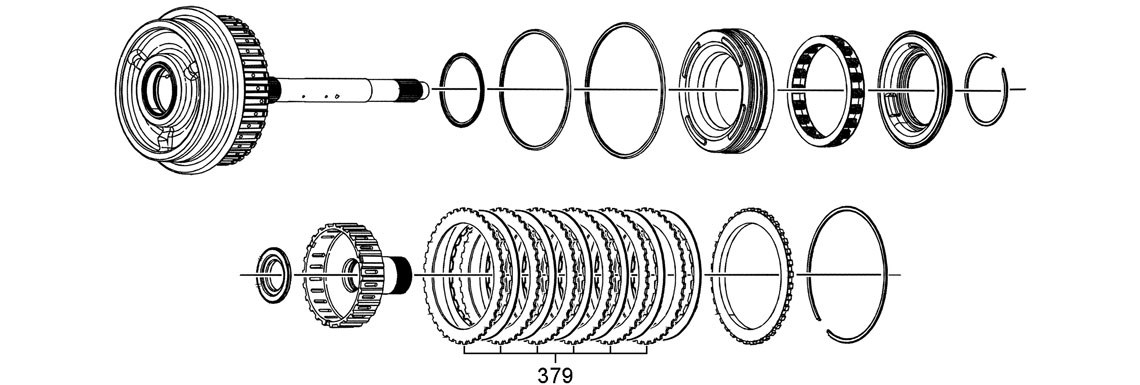

E
Overdrive Clutch
379
F
Planetary Assembly

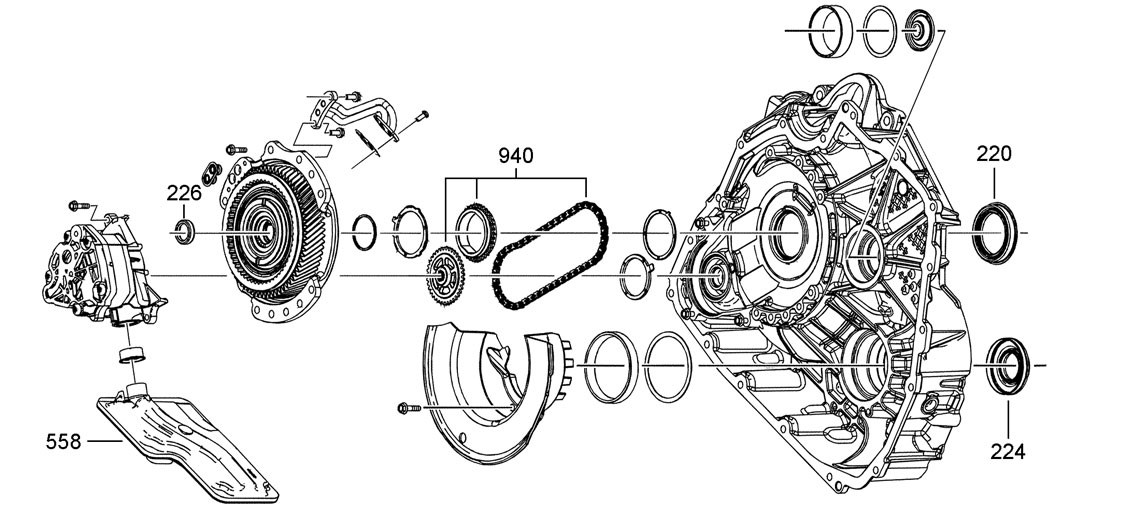

G
Filter & Oil Pump
558
220
224
226
940

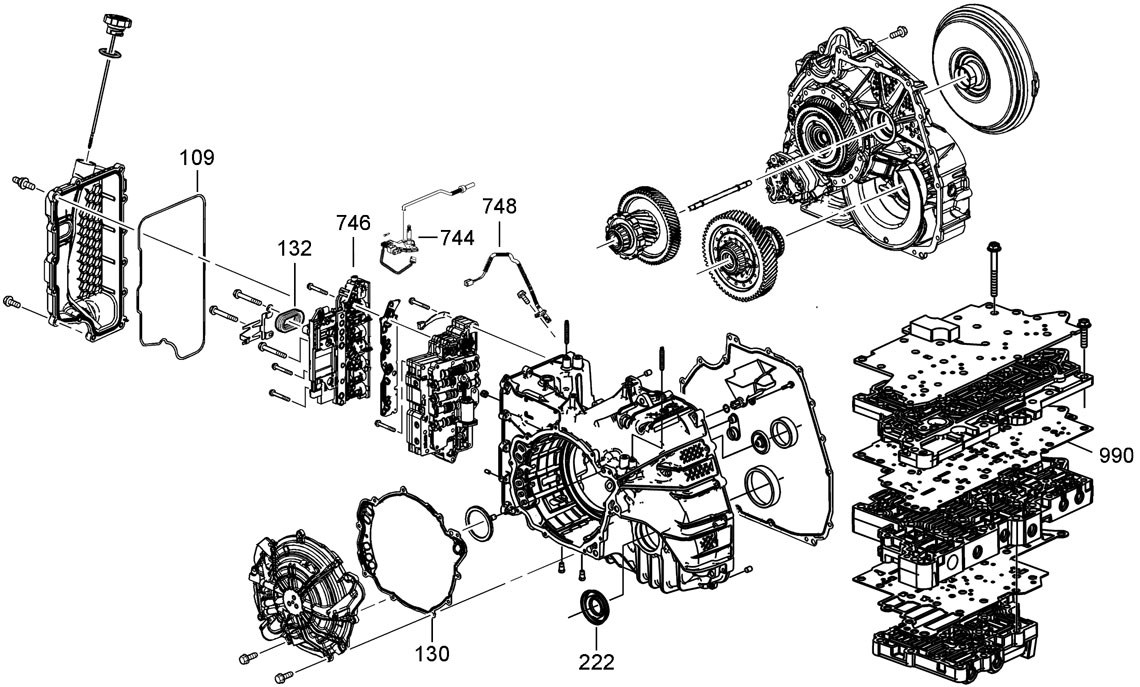

H
Case Components, Valve Body & Differential
109
132
746
744
748
130
222
990
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 136020K | Overhaul Kit with Pistons | Transtec | 07-ON | 1 |
| Kit | 136022K | Overhaul Kit without Pistons | Transtec | 07-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 136128K | Valve Body Gasket Kit | 07-ON | 1 | |
| 109H | 135109 | Pan Gasket | 07-ON | 1 | |
| 130H | 136130 | End Cover Gasket | 07-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 132H | 136132 | Case Connector Seal | 07-ON | 1 | |
| NI | 135134 | Pump to Case Seal | 07-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 220G | 135220 | Converter Seal | 07-ON | 1 | |
| 222H | 135222 | Lefthand Axle Seal | 07-ON | 1 | |
| 224G | 135224 | Righthand Axle Seal | 07-ON | 1 | |
| 226G | 135226 | Transfer Seal | 07-ON | 1 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 135366K | Steel Module | 07-ON | 1 | |
| 359B | 135359 | 2-6 Clutch Steel Plate | 182.75 ID x 2.90mm x 5T | 07-ON | 3 |
| 363C | 135363 | 1-2-3-4 Clutch Steel Plate | 175 ID x 2.16mm x 12T | 07-ON | 2 |
| 365B | 135365 | Low & Reverse Clutch Steel Plate | 197 ID x 1.75mm x 10T | 07-ON | 3 |
| 373D | 135373 | 3-5-Reverse Clutch Steel Plate | 167.34 OD x 2.90mm x 36 Int T | 07-ON | 4 |
| 379E | 135379 | 4-5-6 Clutch Steel Plate | 100 ID x 1.75mm x 36T | 07-ON | 6 |
bushes
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 135420K | Bush Kit | 07-ON | 1 | |
| NI | 135420 | Converter Bush | 07-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 744H | 136744 | Internal Mode Switch | 07-ON | 1 | |
| 746H | 136746 | Solenoid Assembly | 07-ON | 1 | |
| 748H | 136748 | Output Speed Sensor | 07-ON | 1 | |
| 750A | 136750 | Input Speed Sensor | 07-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 42765K | Cooler Bypass Delete Kit, TransGo | 07-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 940G | 136940K | Chain Kit | 07-ON | 1 | |
| 990H | 136990 | Main Valve Body Plate, Version 2 | 07-ON | 1 |
