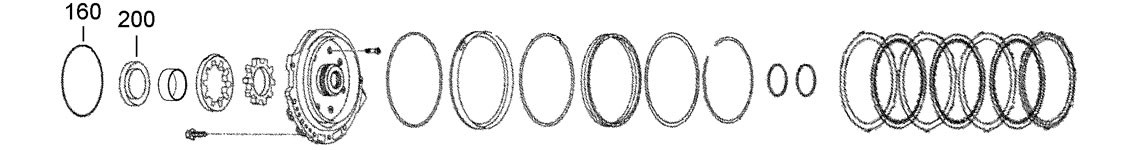

A
Pump & 2-6 Brake
160
200
B
3-5-Reverse Clutch

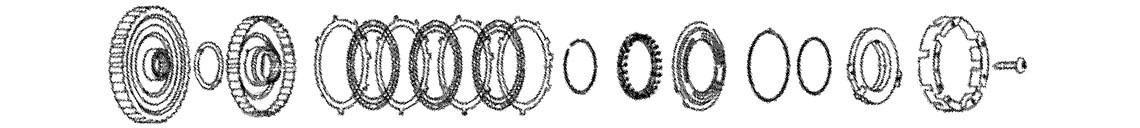

C
Underdrive Brake

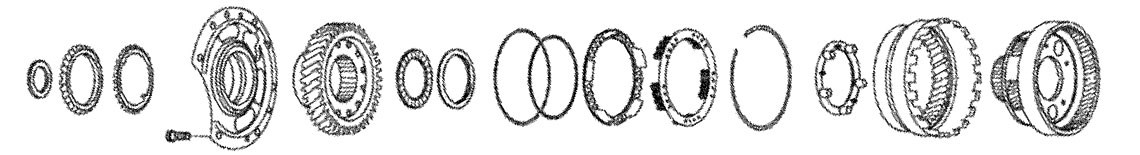

D
Reverse Piston & Front Planet

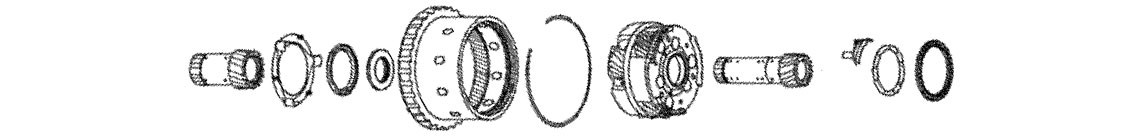

E
Front Sungear, Centre & Rear Planets

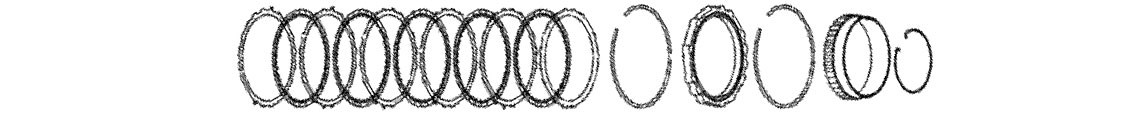

F
Low & Reverse Brake

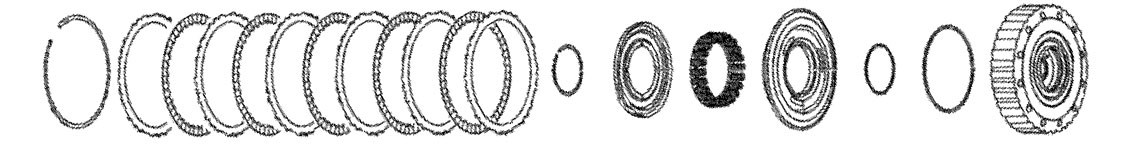

G
Overdrive Clutch

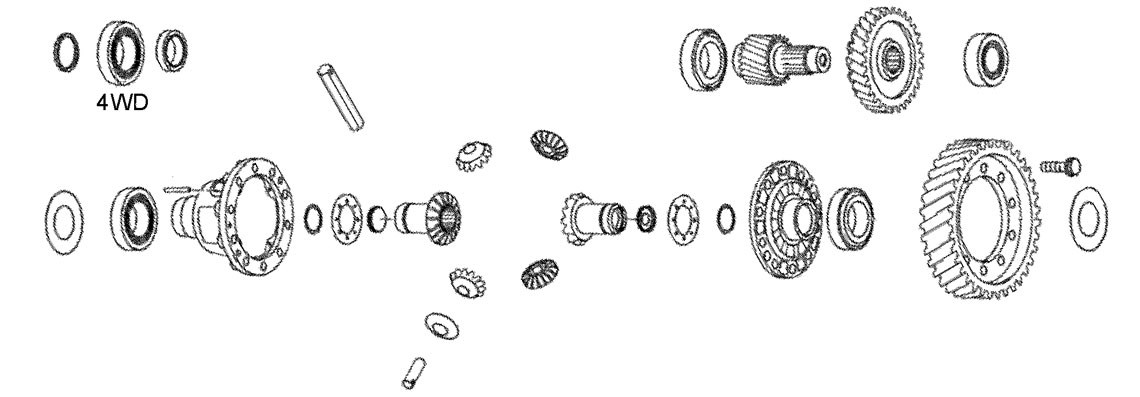

H
Transfer Gear & Differential Assembly

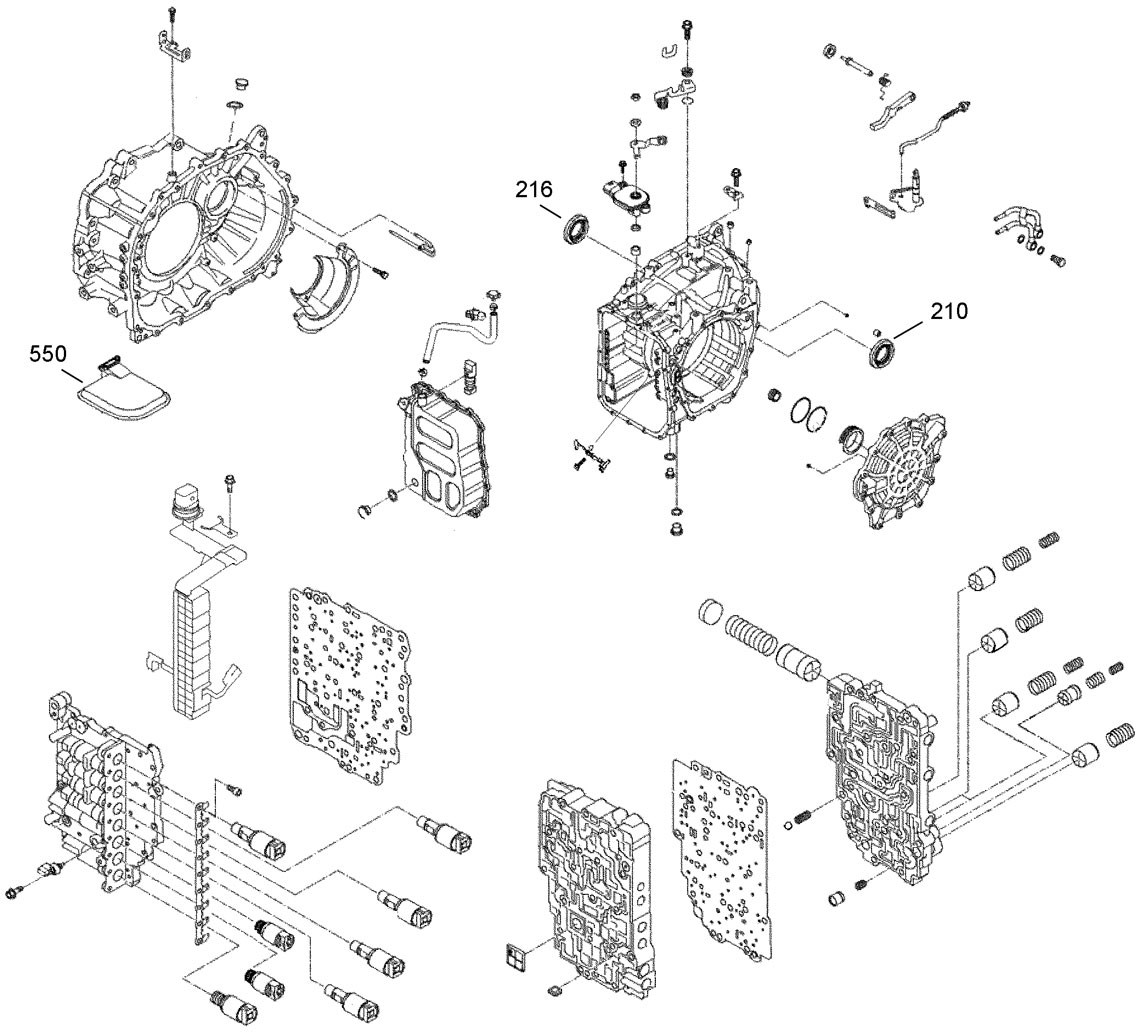

J
Case, Filter & Valve Body
210
216
550
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 131000K | Overhaul Kit with Pistons | 12-ON | 1 | |
| Kit | 131002K | Overhaul Kit without Pistons | 12-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 114151K | Pump Leak Kit | 12-ON | 1 | |
| NI | 131100 | Pan Gasket | 12-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 200A | 114200 | Converter Hub Seal | 43 ID x 60 OD x 6.00mm | 12-ON | 1 |
| 210J | 114210 | Lefthand Axle Seal | 37 x 64 x 10 x 17mm | 12-ON | 1 |
| 216J | 114216 | Righthand Axle Seal 2WD | 37 x 67 x 10 x 17mm | 12-ON | 1 |
| 216J | 131218 | Righthand Axle Seal 4WD | 12-ON | 1 | |
| NI | 131230 | Manual Shaft Seal | 14 ID x 20 OD x 4mm | 12-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 115802K | Shift Kit, Tool Required | 12-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-05 | LUBEGARD COMPLETE FULL SYNTHETIC 5L | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
