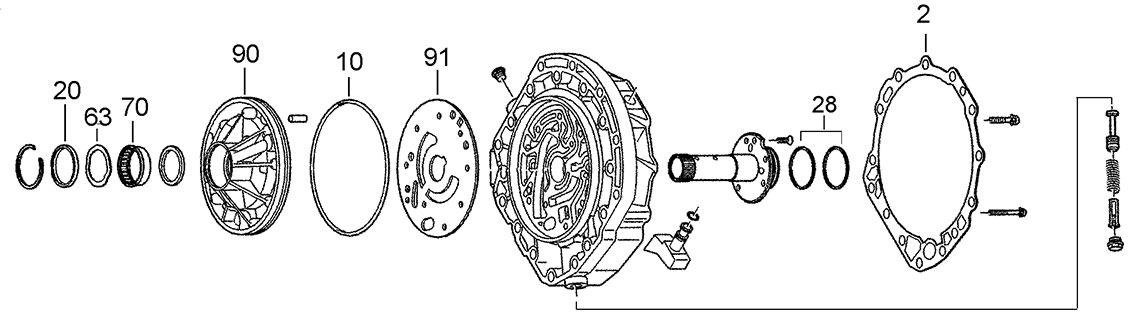

A

Front Pump

91
28
20
63
70
90
10
2

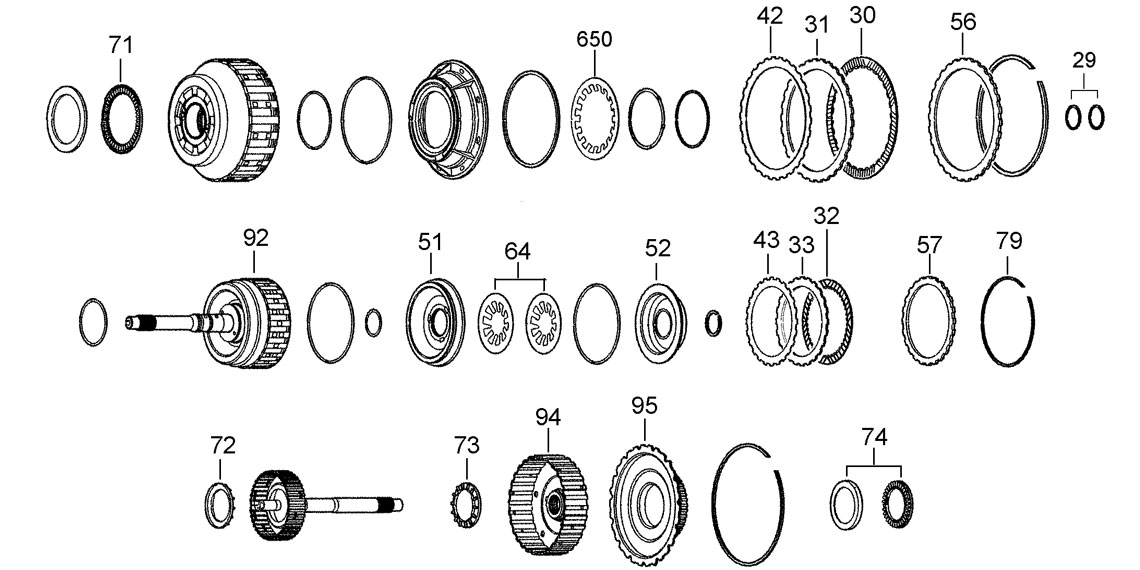

B

A & B Clutches

71
72
73
64
30
79
94
33
92
29
650
42
31
56
51
52
43
32
57
95
74

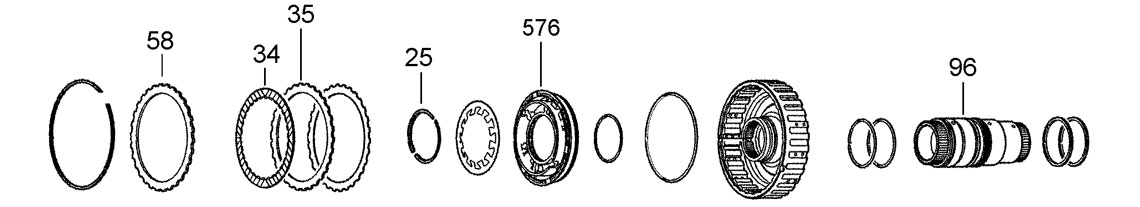

C

C Clutch

96
58
34
35
25
576

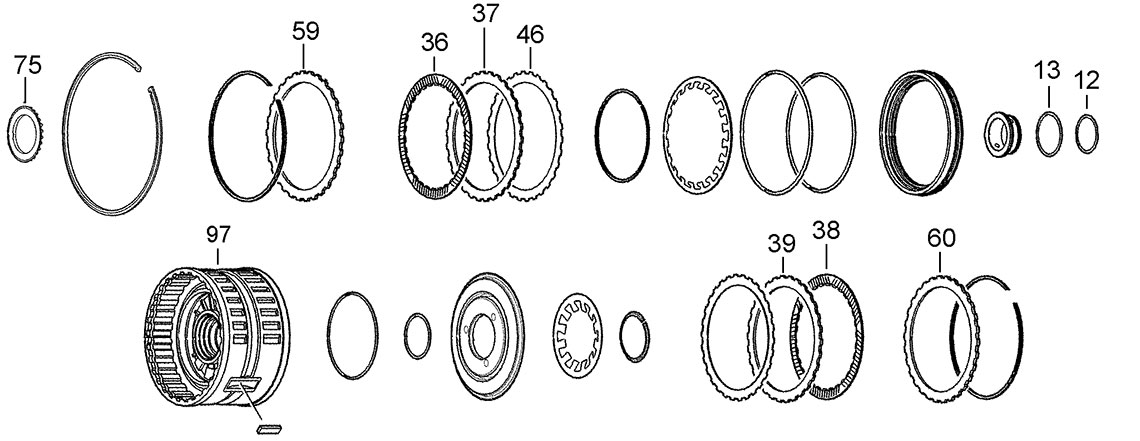

D

D & E Brakes

46
97
75
59
36
37
39
38
60
13
12

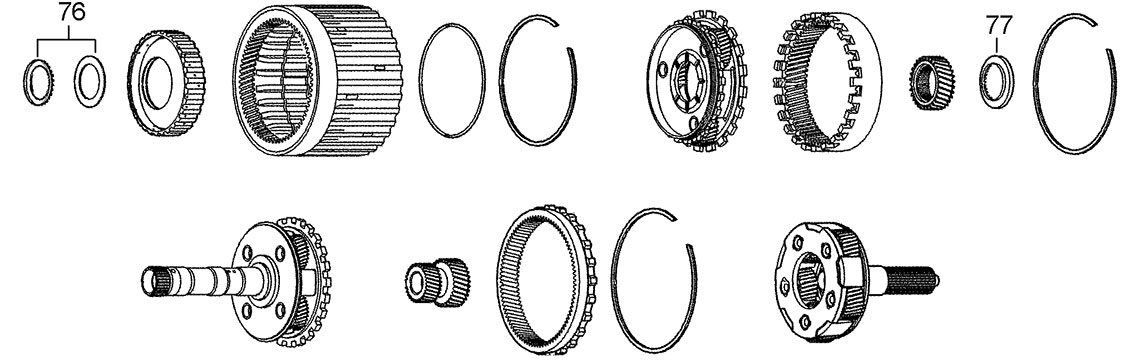

E

Planetary Assemblies

77
76

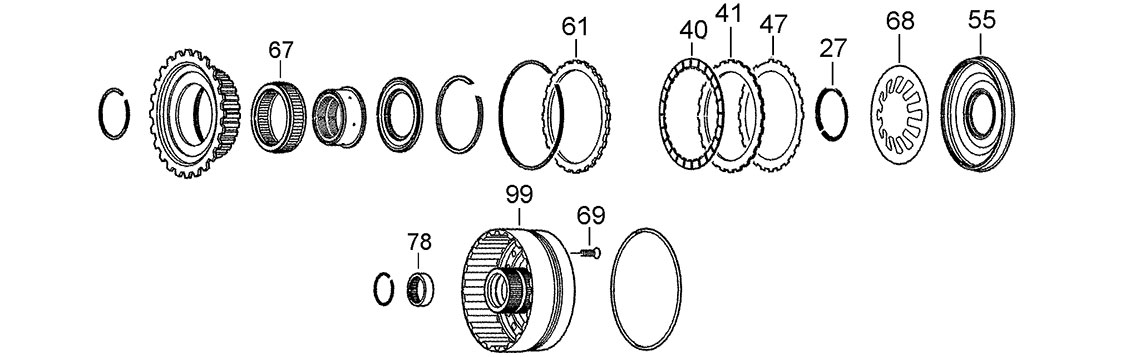

F

F Brake

41
47
69
61
99
67
78
40
27
68
55

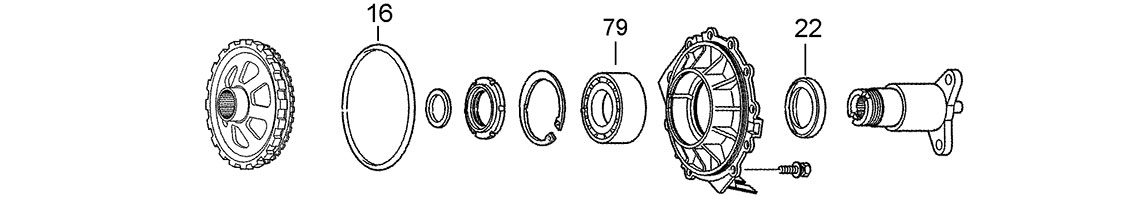

G

Park Lock & Output

79
16
22

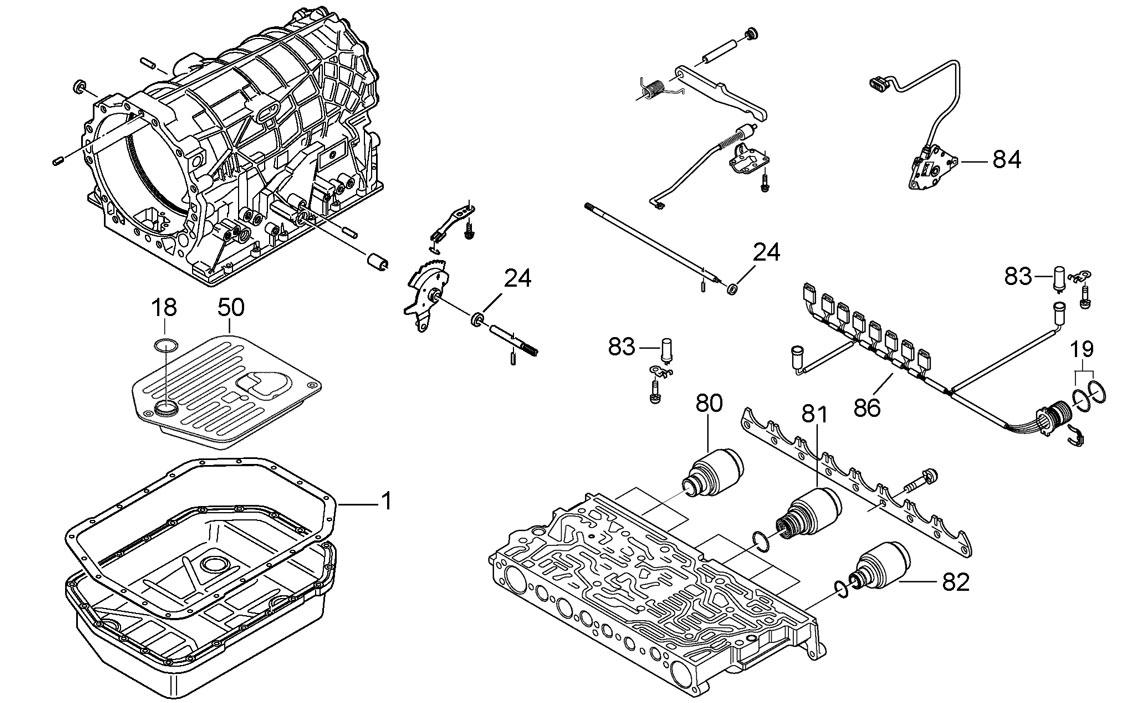

H

Case, Pan, Filter & Electrical Components

1
19
18
50
24
83
24
83
84
80
81
86
82

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96000K Overhaul Kit 5HP24 97-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1H 96100 Pan Gasket 97-ON 1
1H 96100H Pan Gasket OEM 97-ON Alt
2A 96110 Stator to Case Gasket 97-ON 1
2A 96110A Stator to Case Gasket 97-ON 1
NI 96120 Valve Body Gasket 97-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96165K A Clutch Repair Kit 97-ON 1
10A 95160 Pump O Ring 97-ON 1
12D 96172 Centre Support Bush O Ring Small 97-ON 1
13D 96174 Centre Support Bush O Ring Large 97-ON 1
16G 97185 Rear Housing O Ring 97-ON 1
18H 97165 Filter O Ring 97-ON 1
19H 94190 Wiring Loom Plug O Ring 97-ON 2
NI 95182 Valve Body to Case Seals 10mm long 97-ON 2

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 93200 Pump Body Seal 39 ID x 52.3 OD x 6.80mm 97-ON 1
22G 96240 Extension Housing Seal 56 ID x 73.3 OD x 8.00mm 97-ON 1
24H 93202 Selector Shaft Seal 10 ID x 18 OD x 5.00mm 97-ON 1
NI 92224 Adaptor Housing Range Rover 44 ID x 62.2 OD x 7.00mm 97-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
28A 96268 Stator Support Sealing Ring 97-ON 2
29B 96262 Input Shaft Sealing Ring 97-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30B 96310 B Clutch 178.4 ODx 1.55mm x 30T 97-ON 6
30B 96310A B Clutch Aftermarket 178.4 ODx 1.55mm x 30T 97-ON AR
30B 96312 B Clutch 178.4 OD x 1.55mm x 30T 97-ON 6
32B 96318 A Clutch 128 OD x 1.55mm x 40T 97-ON 6
32B 96318A A Clutch Afermarket 128 OD x 1.55mm x 40T 97-ON AR
32B 96320 A Clutch 128 OD x 1.55mm x 40T 97-ON 6
34C 96318 C Clutch 128 OD x 1.55mm x 40T 97-ON 4
34C 96318A C Clutch Afermarket 128 OD x 1.55mm x 40T 97-ON AR
34C 96320 C Clutch 128 OD x 1.55mm x 40T 97-ON 4
36D 96310 D Brake 178.4 ODx 1.55mm x 30T 97-ON 3-4
36D 96310A D Brake Aftermarket 178.4 ODx 1.55mm x 30T 97-ON AR
36D 96312 D Brake 178.4 OD x 1.55mm x 30T 97-ON 3-4
38D 96310 E Brake 178.4 ODx 1.55mm x 30T 97-ON 4-5
38D 96310A E Brake Aftermarket 178.4 ODx 1.55mm x 30T 97-ON AR
38D 96312 E Brake 178.4 OD x 1.55mm x 30T 97-ON 4-5
40F 96322 F Brake 142.9 OD x 1.55mm x 30T 97-ON 6
40F 96324 F Brake 142.9 OD x 1.55mm x 30T 97-ON 6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 96360 B Clutch 154.9 ID x 3.00mm x 30T 97-ON 6
31B 96361 B Clutch 154.9 ID x 1.80mm x 30T 97-ON 1
33B 96366 A Clutch 106.9 ID x 3.00mm x 24T 97-ON 6
33B 96368 A Clutch 106.9 ID x 2.10mm x 24T 97-ON 6
33B 96368A A Clutch 106.9 ID x 2.10mm x 24T 97-ON AR
35C 96366 C Clutch 106.9 ID x 3.00mm x 24T 97-ON 4
35C 96368 C Clutch 106.9 ID x 2.10mm x 24T 97-ON 4
35C 96368A C Clutch 106.9 ID x 2.10mm x 24T 97-ON AR
37D 96360 D Brake 154.9 ID x 3.00mm x 30T 97-ON 3-4
37D 96361 D Brake 154.9 ID x 1.80mm x 30T 97-ON AR
39D 96360 E Brake 154.9 ID x 3.00mm x 30T 97-ON 4-5
39D 96361 E Brake 154.9 ID x 1.80mm x 30T 97-ON AR
41F 97362 F Brake 119 ID x 1.80mm x 24T 97-ON 6
43B 99671 A Clutch Waved Steel 97-ON 1
47F 97364 F Brake Waved Steel 119 ID x 0.72mm x 24T Waved 97-ON 1
56B 96360B B Clutch Pressure Plate 154.9 ID x 3.90mm x 30T 97-ON 1
57B 96392 A Clutch Pressure Plate 106.9 ID x 5.90mm x 24T 97-ON 1
58C 96394 C Clutch Pressure Plate 106.9 ID x 4.50mm x 24T 97-ON 1
59D 96360B D Brake Pressure Plate 154.9 ID x 3.90mm x 30T 97-ON 1
60D 96360B E Brake Pressure Plate 154.9 ID x 3.90mm x 30T 97-ON 1
61F 96398 F Brake Pressure Plate 119 ID x 6.00mm x 24T 97-ON 1
NI 96360A Steel B/D/E Aftermarket 154.9 ID x 3.00mm x 30T 95-ON 5-6

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96400K Bush Kit with Bronze Bushes 97-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96450K Thrust Washer & Bearing kit Does not Contain Pump Body Bearing or the B Clutch Hub to Intermediate Shaft Bearing 96458 97-ON 1
63A 96786 Waved Washer Under Pump Seal 97-ON 1
70A 96410 Pump Body Needle Bearing 97-ON 1
71B 96454 Stator to Input Drum Bearing 58 ID x 75 OD x 3.70mm 97-ON 1
72B 96456 A Drum to Intermediate Shaft Bearing 21.5 ID x 38 OD x 7.50mm 97-ON 1
73B 96458 B Clutch Hub to Intermediate Shaft Bearing not included in the Bearing kit 26.5 ID x 44 OD x 7.50mm 97-ON 1
74B 96460 Rear of Input Assembly Bearing Kit 40 ID x 60 OD x 7.25mm 97-ON 1
75D 96462 D Brake to B Clutch Bearing 73 Race x 65 OD x 48 ID x 3.50 97-ON 1
76E 96464 E Brake to Sungear Bearing 42 ID x 64 OD x 8.00mm 97-ON 1
77E 96466 Sungear to Planet Carrier Bearing 42 ID x 62.5 OD x 5.00mm 97-ON 1
78F 96480 F Clutch Sleeve Bearing 97-ON 1
79G 96488 Output Shaft Roller Bearing 97-ON 1
NI 96468 Bearing Park Lock to End Cover 97-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
50H 96550 Filter 97-ON 1
50H 96551 Filter OEM 97-ON Alt

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96550K Filter Kit 97-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
51B 96572 A Clutch Piston 97-ON 1
52B 96574 A Clutch Balance Piston 97-ON 1
55F 97580 F Brake Piston 97-ON 1
576C 96576U Piston C Clutch Alloy (Used) 97-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
79B 96630A A Clutch Retaining Circlip 1.6mm 97-ON 1
79B 96630B A Clutch Retaining Circlip 1.8mm 97-ON 1
79B 96630C A Clutch Retaining Circlip 2.0mm 97-ON 1
79B 96630D A Clutch Retaining Circlip 3.0mm 97-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
42B 96362 B Clutch Waved Steel 97-ON 1
42B 96672 B Clutch Waved Steel 97-ON 1
46D 96362 D Brake Waved Steel 97-ON 1
46D 96672 D Brake Waved Steel 97-ON 1
64B 96652 A Clutch Diaphragm Spring 97-ON 2
67F 96672 Low (Rear) Sprag 97-ON 1
68F 97656 F Clutch Diaphragm Spring 97-ON 1
650B 96650 B Clutch Diaphragm Spring 97-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
80H 95707 Shift Solenoid (On-Off) 97-ON 3
81H 92704 Lock Up Control (PWM) 97-ON 1
81H 92704 Shift Control Solenoid (PWM) 97-ON 3
82H 92700 Main Pressure Control (PWM) 97-ON 1
82H 95703 Main Pressure Control (PWM) 97-ON 1
83H 93730 Speed Sensor (Inductive) 97-ON 2
84H 96708 Range Switch Land Rover, Range Rover 97-ON 1
84H 96710 Range Switch BMW Except Code 1058 000 005 97-ON 1
84H 96714 Inhibitor Switch Jaguar Codes 1058 000 009, 013, 014, 024, 026, 027, 028 97-ON 1
86H 96720 Wiring Harness All 97-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96670K End Float Shim Kit 97-ON 1
25C 96784 C Clutch Retainer 97-ON 1
27F 96784 F Clutch Retainer 97-ON 1
69F 97760 F Brake Cylinder to Case Retaining screws 97-ON 12
NI 94780 Manual Valve 97-ON 1
NI 95770 Valve Body Rubber Plug 97-ON 1
NI 95772 Valve Body Accumulator Plug 97-ON 1
NI 95773 Valve Body Check Valve and Spring White 97-ON 1
NI 95774 Valve Body Check Valve and Spring Black 97-ON 1
NI 95775 Filler Plug 97-ON 1
NI 96762 Valve Body Accumulator Piston 97-ON 2
NI 96762 Valve Body Accumulator Plastic Piston 97-ON 2
NI 96780 Breather 97-ON 1
NI 96782 Breather Cap 97-ON 1
NI 96788 E Clutch Retainer 5HP24/A/30 Pack of 2 97-ON 1
NI 97780 Main Pressure Regulator Valve 97-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 96810K Valve Body Kit 97-ON 1
Kit 96811K Pressure Regulator Valve Kit TransGo 97-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 96900 Pump Body & Gears 97-ON 1
91A 96904 Pump Wear Plate 97-ON 1
92B 96914 A Clutch Drum & Shaft 97-ON 1
92B 96914A A Clutch Drum & Shaft Aftermarket 97-ON Alt
94B 96918 B Clutch Hub 97-ON 1
95B 96920 C Disc Carrier 97-ON 1
96C 96926 Sungear Shaft 97-ON 1
97D 96970 D/E Brake Cylinder (4/5 plate) 97-ON 4-5
99F 96980 F Brake Cylinder 97-ON 1
NI 96938 Valve Body Housing (Upper Rear) Fits Codes 1058 000 003, 004, 005, 009, 013, 014, 015, 016, 017, 018, 024 97-ON 1
NI 96940 Valve Body Housing (Upper Rear) Fits Codes 1058 000 020, 021, 022, 023, 026, 027, 028, 029, 032 & 036 97-ON 1
NI 96942 Valve Body Housing (Upper Rear) Fits Codes 1058 000 034 & 035 97-ON 1
NI 96944 Valve Body Housing (Lower Front) Must Also use 97780 Fits Codes 1058 000 004, 010, 014, 017 97-ON 1
NI 96946 Valve Body Housing (Lower Front) Must Also use 97780 Fits Codes 1058 000 003, 005, 009, 013, 015, 016, 018 020, 021, 022, 023, 024, 026, 027 028, 029, 032, 034, 035, & 036 97-ON 1

Transmission Code Required when Ordering

oil & transmission supplements

NO PART # DESCRIPTION SIZE YEARS QTY
NI 95999-05 ZF Lifeguard 5 5 Litre Pack 97-ON AR
NI 95999-20 ZF Lifeguard 5 20 Litre Pack 97-ON AR
