4L30E, AR25, AR35, A4S 270R

4 Speed RWD & 4WD

A

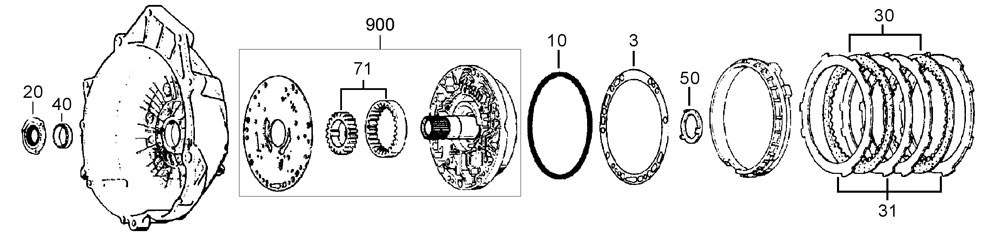

Pump & Overdrive Clutch

40

30

20

3

10

50

31

71

900

B

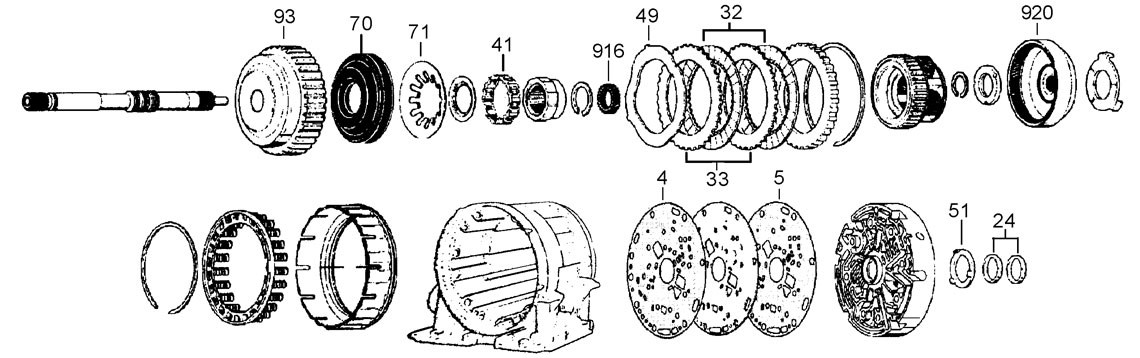

Overrun Clutch & Overdrive Housing

4

5

49

24

93

70

71

916

41

32

33

51

920

C

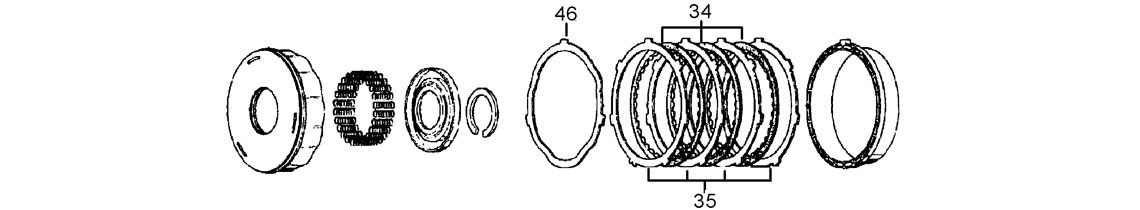

Reverse Clutch

34

46

35

D

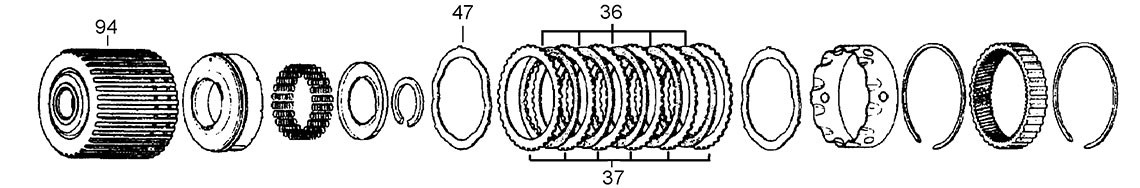

Intermediate Clutch

36

94

47

37

E

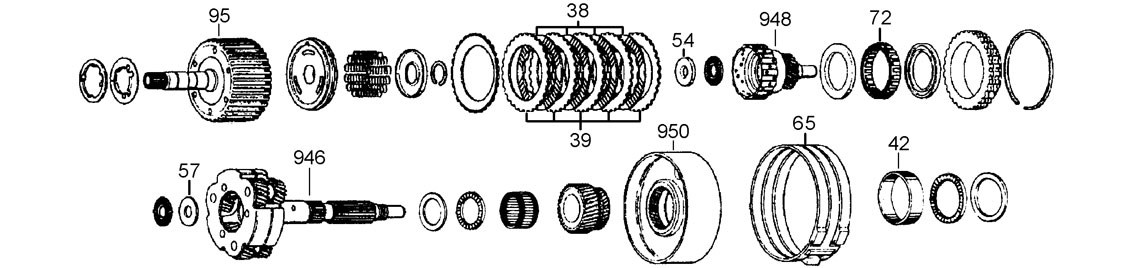

High Clutch, Planet & Band

946

57

38

39

950

54

948

72

65

95

42

F

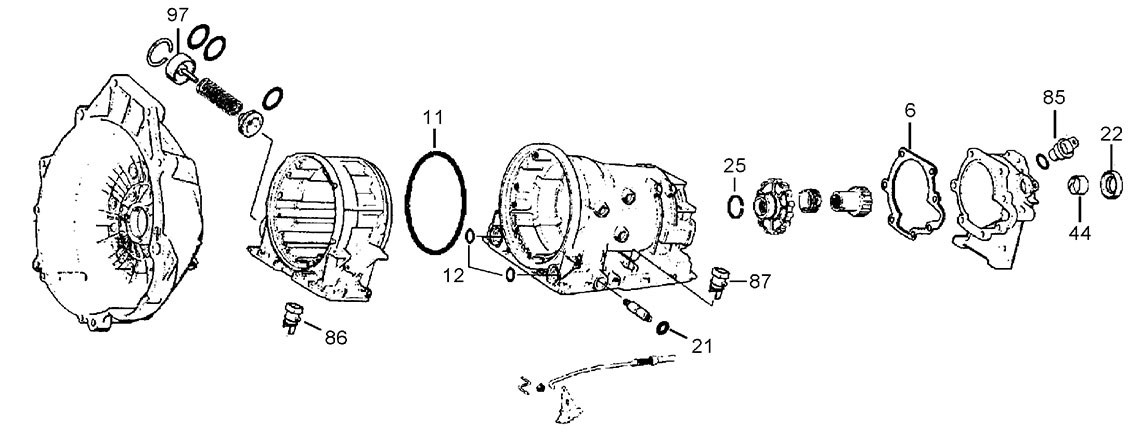

Bellhousing, Case & Extension Housing

6

86

44

97

11

12

21

25

87

85

22

G

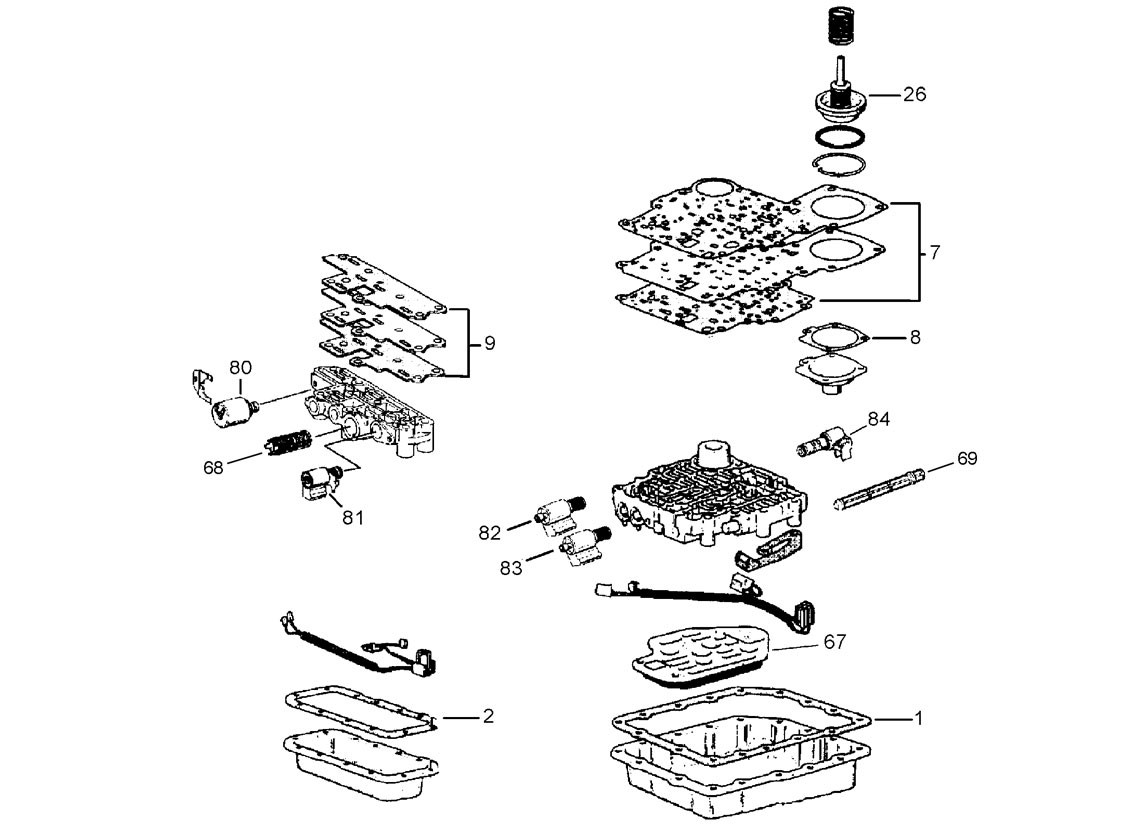

Valve Body, Pan & Filter

26

67

84

81

82

9

2

8

80

1

7

83

68

69

overhaul kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33010K	Overhaul Kit 4L30E, AR25, AR35	Transtec	90-ON	1
Kit	33010KA	Overhaul Kit		90-ON	Alt

master kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33010KM	Master Kit With Shift Solenoids		90-ON	1

gaskets

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33119K	Pump Repair Kit GM		90-ON	1
1G	33140	Pan Gasket Isuzu, Opel		90-ON	1
1G	33140F	Pan Gasket Isuzu, Opel		90-ON	Alt
1G	33140H	Pan Gasket Isuzu, Opel Duraprene		90-ON	Alt
1G	33142	Pan Gasket BMW		90-ON	1
1G	33142H	Pan Gasket BMW Duraprene		90-ON	Alt
2G	33143	Overdrive Pan All Cork		90-ON	1
2G	33143F	Overdrive Pan All Farpak		90-ON	Alt
2G	33143H	Overdrive Pan All Duraprene		90-ON	Alt
3A	33103	Front Pump Gasket		90-ON	1
4B	33144	Pump to Wear Plate Gasket Except BMW		90-ON	1
4B	33146	Pump to Wear Plate Gasket BMW		90-ON	1
5B	33144	Pump to Overdrive Housing Except BMW		90-ON	1
5B	33146	Pump to Overdrive Housing BMW		90-ON	1
6F	33107	Extension Housing		90-ON	1
7G	33148K	Valve Body Gasket Kit		90-ON	1
9G	33149K	Overdrive Valve Body Gasket Kit		90-ON	1
NI	33101	Front Pump Bolt Washers		90-ON	12
NI	33111	Servo Cover Gasket		90-ON	1

rubber components

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
10A	33150	Pump to Overdrive Housing Lathe Cut Seal		90-ON	1
11F	33150	Overdrive Housing to Case Lathe Cut Seal		90-ON	1
12F	33190	Overdrive to Case O Ring		90-ON	2
NI	33152	Intermediate Clutch Inner		90-ON	1
NI	33153	Intermediate Clutch Outer		90-ON	1
NI	33154	High Clutch Inner		90-ON	1
NI	33155	High Clutch Outer		90-ON	1
NI	33156	Reverse Clutch Inner		90-ON	1
NI	33157	Reverse Clutch Outer		90-ON	1
NI	33165	Overdrive Inner D Ring		90-ON	1
NI	33172	Speedo Cable O Ring		90-ON	1
NI	35172	Filler Tube Top Hat Seal		90-L94	1
NI	37162	Input Shaft O Ring		90-ON	1

seals

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
20A	33202	Converter	48 IDx 70.2 OD x 7.50mm	90-ON	1
21F	33210	Selector Shaft	12 ID x 19 OD x 8.80mm	90-ON	1
22F	33206	Extension Housing 2 Lip Nitrile	36.5 ID x 60.5 OD x 12.00mm	90-ON	1
22F	37230	Extension Housing 3 Lip Vamac	36.5 ID x 60.5 OD x 10.20mm	90-ON	Alt
22F	93240	Extension Housing BMW	40 ID x 58 OD x 10.00mm	90-ON	1

sealing rings

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33254K	Sealing Ring Kit		90-ON	1
24B	44262	Centre Support to Intermediate Clutch Metal		90-ON	Alt
25F	33268	Park Gear to Case Sealing Ring		90-ON	1
26G	33270	Servo Piston		90-ON	1

friction plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33310K	Friction Module		90-ON	1
Kit	33310KD	Friction Kit		90-97	1
Kit	33311K	Friction Kit		98-ON	1
30A	33320	Overdrive Clutch	170 OD x 2.25mm x 36T	90-ON	3
32B	33322	Overrun Clutch	129.5 OD x 2.25mm x 40T	90-ON	2
34C	33314	Reverse Clutch	162 OD x 2.50mm x 36T	90-ON	3-5
34C	33314H	Reverse Clutch Heavy Duty	162 OD x 2.50mm x 36T	90-ON	Alt
36D	33312	Intermediate Clutch	132 OD x 2.50mm x 30T	90-ON	3-6
38E	33310	High Clutch	98.5 OD x 2.50mm x 12T	90-97	3-5
38E	33310A	High Clutch	98.5 OD x 2.50mm x 12T	90-97	Alt
38E	33310G	High Clutch - Grooved	98.5 OD x 2.50mm x 12T	90-97	Alt
38E	33311	High Clutch	98.5 OD x 1.60mm x 12T	98-ON	6

steel & pressure plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
31A	33370	Overdrive Clutch	148 ID x 2.10mm x 5T	90-ON	4
33B	33372	Overrun Clutch	100 ID x 2.00mm x 36T	90-ON	2
35C	33364	Reverse Clutch	144 ID x 1.80mm x 7T	90-ON	3-6
35C	33364X	Reverse Clutch	144 ID x 2.10mm x 7T	90-ON	AR
37D	33362	Intermediate Clutch	109 ID x 1.80mm x 36T	90-ON	4-7
37D	33362C	Intermediate Clutch Cushion Steel Plate		90-ON	Alt
37D	33362S	Intermediate Clutch Thin	109 ID x 0.70mm x 36T	90-ON	AR
37D	33362S1	Intermediate Clutch Thin Steel Plate	109 ID x 0.50mm x 36T	90-ON	Alt
37D	33362X	Intermediate Clutch Thick	109 ID x 2.10mm x 36T	90-ON	AR
39E	33360	High Clutch	72 ID x 1.75mm x 30T	90-ON	4-6
39E	33360S	High Clutch Steel Plate	72 ID x 0.80mm x 30T	90-ON	AR
39E	33360SHP	High Clutch Thin Steel Plate, Laser Cut, High Performance	72 ID x 1.50mm x 30T	90-ON	AR
39E	33360SS	High Clutch Thin Steel Plate	72 ID x 0.50mm x 30T	90-ON	Alt
39E	33360X	High Clutch Thick	72 ID x 2.10mm x 30T	90-ON	AR
46C	33365	Reverse Clutch Cushion		90-ON	1
46C	33365U	Reverse Cushion Plate (Used)	144 ID x 1.80mm Waved x 3T	90-ON	AR
49B	33374U	Overrun Clutch Waved Steel (Used)	103 ID x 1.50mm x 12T Waved	90-ON	1

bushes

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33405K	Bush Kit		90-ON	1
40A	35410	Converter Housing (Pump)		90-ON	1
42E	33416	Low Drum		90-ON	1
44F	33425	Extension Housing Babbit	38 ID x 41.5 OD x 24.00mm	90-ON	Alt
44F	35440	Extension Housing Bronze Heavy Duty	38 ID x 41.5 OD x 24.00mm	90-ON	1
44F	37442	Extension Housing Duralife	41.3 OD x 38.4 ID x 24.00mm	90-ON	Alt
NI	33411	Pump Bush		90-ON	1
NI	33413	Stator Support		90-ON	1
NI	33414	Intermediate Clutch Drum		90-ON	1
NI	33418	Case Bush		90-ON	1
NI	37411	Stator Front		90-ON	1

thrust washers & bearings

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
50A	33454K	Front Pump Selective Kit Plastic with 3 Tabs		90-ON	1
50A	33456K	Front Pump Selective Kit Sonnax Metal Kit		90-ON	Alt
51B	33454K	Centre Support to Intermediate Clutch Drum Selective Kit		90-ON	1
54E	33461	Input Sungear to High Clutch Plate (Thick)		90-ON	1
57E	33462	Input Sungear to Planet Plate (Thin)		90-ON	1

bands

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
65E	33500	Low Band All Models		90-ON	1

filters

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
67G	33560	Filter Isuzu OEM		90-ON	1
67G	33562	Filter BMW OEM		90-ON	1
67G	33564	Filter Opel OEM		90-ON	1
68G	33572	Pressure Control Solenoid Filter		90-ON	1
69G	33570	Band Control Solenoid Filter		90-ON	1

filter kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33560K	Filter Kit Isuzu		90-ON	1
Kit	33562K	Filter Kit BMW		91-ON	1

pistons

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
70B	33580	Overrun Piston with Bonded Seals		90-ON	1
NI	33582	Servo Billet Piston		90-ON	1

springs & one way clutches

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
41B	33652	Overdrive Roller Clutch		90-ON	1
47D	33673	Intermediate Clutch Wave Spring		90-ON	1
47D	33673	Intermediate Clutch Wave Spring		90-ON	1
47D	33673U	Intermediate Clutch Wave Spring (Used)		90-ON	1
71B	33656	Overrun Clutch Diaphragm Spring		90-ON	1
72E	33650	One Way Clutch 26 Cam		90-ON	1

electrical components

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
80G	33701	Pressure Control Solenoid		99-ON	1
81G	33702	TCC Solenoid		90-99	1
81G	33703	TCC Solenoid		00-ON	Alt
81G	33706	TCC Solenoid		00-ON	1
82G	33704	1-2 & 3-4 Shift Solenoid (Normally Closed)		90-ON	1-2
83G	33706	2-3 Shift Solenoid (Normally Open)		90-ON	1
84G	33708	Band Control Solenoid		90-ON	1
85F	33730	Output Speed Sensor		90-ON	1
86F	33723	Overdrive Case Connector		90-ON	1
87F	35704	Main Case Connector		90-ON	1
NI	33725	7 Pin Case Connector		00-ON	1
NI	33740	Inhibitor Switch Long Harness Female Connector		90-ON	1
NI	33744	Inhibitor Switch BMW		90-ON	1

sundry parts

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
97F	33770	Bonded Accumulator Cover		90-ON	1
97F	33770	Bonded Accumulator Cover		90-ON	1
NI	33768	Bore Sleeve Servo Pin		90-ON	1
NI	33782	Pump Regulator Boost Valve		90-ON	1
NI	33785	Overfill & Drain Plug		90-ON	1

shift & reprogramme kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	33802K	Shift Correction Kit		90-ON	1
Kit	33804K	Shift Correction Package Superior		90-ON	1
Kit	33806K	Valve Body Upgrade Kit, Superior		90-ON	1

hard parts

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
71A	33902	Pump Gear Set	0.626"	90-ON	1
93B	33915	Overdrive Drum Contains Frictions & Steels, Pressure Plate, Piston & Circlip		90-ON	1
94D	33940U	Intermediate Clutch Drum (Used)		90-ON	1
95E	33942U	3rd Clutch Drum 88.9mm Shaft		90-ON	1
900A	33900	Pump Assembly with Plate		97-ON	1
916B	33916U	Overdrive Sungear (Used)		90-ON	1
920B	33920U	Overdrive Planet Ringear (Used)		90-ON	1
946E	33945	Rear Planet Rodeo 2WD		90-ON	1
946E	33946KU	Planet Kit With Output Shaft 4WD (Used)		90-ON	1
948E	33948	Forward Sungear		90-ON	1
950E	33950U	Band Drum (Used)		90-ON	1

fluids

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
NI	49910	Lubegard Red		90-ON	1
NI	49999-04	ATF DX III 4 LITRE		95-ON	AR
