A

Torque Converter, Pump Drive Gear & Stator Support

200
150

B

Intermediate A Clutch

310

C

Overdrive B Clutch

312
368
366

D

Planetary Gear Sets

452

E

Direct C Clutch

314
370

F

High F Clutch

320
380

G

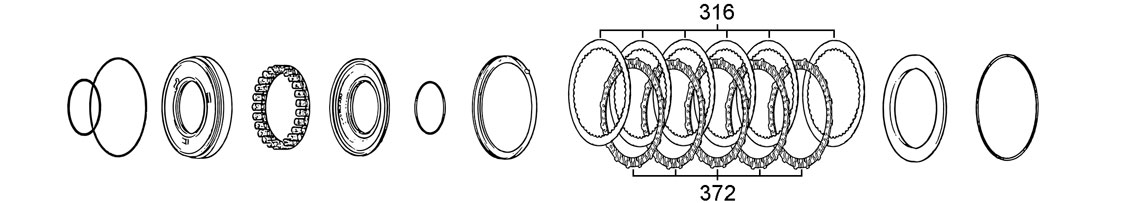

Low D Clutch

316
372

H

Input Shaft


J

Forward E Clutch

318
378
374
376

K

Planetary & Output Shaft

920

L

Control Mechanisms, Oil Pump and Bearing Assembly, Case, Pan, Gasket & Filter

554
102

M

Valve Body & Modules Sensors


overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129004K Overhaul Kit with Pistons (10L80/10L90) Transtec 15-ON 1
Kit 129006K Overhaul Kit without Pistons (10L80/10L90) Transtec 15-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
102L 129102 Pan Gasket (10L80/90) 15-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
150A 129150 Pump O-ring 15-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 129200 Torque Converter Seal 68 ID x 98 OD x 14.00mm 15-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129300KBW Friction Module (10L80 Only) BorgWarner 16-ON Alt
Kit 129300KGPZ Friction Module (10L80) 16-ON 1
Kit 129302K Friction Module (10L90) 16-ON 1
Kit 129318K E Clutch GPZ Torqkit Clutch Pack 16-ON 1
310B 129310 Intermediate A Clutch Friction Plate, BorgWarner 210 OD x 1.75mm x 44T 16-ON Alt
310B 129310GPZ Intermediate A Clutch Friction Plate, GPZ 210 OD x 1.78mm x 44T 16-ON 3
312C 129312 Overdrive B Clutch Friction Plate, BorgWarner 155.6 OD x 1.73mm x 45/48T 16ON Alt
312C 129312GPZ Overdrive B Clutch Friction Plate, GPZ 155.6 OD x 1.75mm x 45/48T 16-ON 5
314E 129314 Direct C Clutch Friction Plate, BorgWarner 174.10 OD x 2.12mm x 24T 16-ON Alt
314E 129314GPZ Direct C Clutch Friction Plate, GPZ 174.10 OD x 2.12mm x 24T 16-ON 5-6
316G 129316 Low D Clutch Friction Plate, BorgWarner 138 OD x 1.57mm x 24/27T 16-ON Alt
316G 129316GPZ Low D Clutch Friction Plate, GPZ 138 OD x 1.63mm x 24/27T 16-ON 6-7
318J 129318GPZ Forward E Clutch Friction Plate, GPZ 138.26 ID x 2.08mm x 16 Ext. T 16-ON 5
318J 129319 Forward E Clutch Friction Plate, BorgWarner 138.26 ID x 2.08mm x 16 Ext. T 16-ON Alt
320F 129320 High F Clutch Friction Plate, BorgWarner 160.0 ID x 2.12mm x 70 Ext. T 16-ON Alt
320F 129320GPZ High F Clutch Friction Plate, GPZ 160.0 ID x 2.12mm x 70 Ext. T 16-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
366C 129366 Overdrive B Clutch Steel Plate 130.15 ID x 2.51mm x 10T 16-ON 4
368C 129368 Overdrive B Clutch Bottom Steel Plate 130.15 ID x 4.00mm x 10T 16-ON 1
370E 129370 Direct C Clutch Steel Plate 146 ID x 3.63mm x 36T 16-ON 5-6
372G 129372 Low D Clutch Steel Plate 105.7 ID x 1.70mm x 44T 16-ON 6-7
374J 129374 Forward E Clutch Steel Plate, Internal Teeth 168.3 OD x 3.5mm x 10/15 Int.T 16-ON 4
376J 129376 Forward E Clutch Bottom Steel Plate, Internal Teeth 168.3 OD x 3mm x 10/15 Int.T 16-ON 1
378J 129378 Forward E Clutch Top Steel Plate, Internal Teeth 168.3 OD x 2.8mm x 10/15 Int.T 16-ON 1
380F 129380 High F Clutch Steel Plate, Internal Teeth 186 OD x 2.24mm x 44 Int. T 16-ON 4

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129402K Bush Kit 17-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
452D 129452 Direct Overdrive Sungear Thrust Washer 16-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
554L 129554 Filter, 10L80 16-ON 1
554L 129556 Filter 20-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129570K Piston Kit 16-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129762K Solenoid Stabilization Clip Insert Kit 16-ON 1
Kit 129784K LPC Signal Damper Piston Kit Gen I 16-ON 1
Kit 129785K LPC Signal Damper Piston Kit Gen II 16-ON 1
Kit 129786K TCC Signal Damper Piston Kit for 10R60/80and 10L80/90 (Gen. 1) 16-ON 1

solutions & fixes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129780K TCC Priority Valve Kit 16-ON 1
Kit 129782K O-Ringed End Plug Kit 16-ON 1
Kit 129788K Feed Limit High Valve Kit 16-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129810K Zip Kit, Sonnax 16-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 129950K Gear Kit 16-ON 1
920A 129920 C-D-F Clutch Shell Cylinder 16-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49486KRAP COOLER KIT RANGER PY RAPTOR (COOLMASTER) 22-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 129999-01 ATF Mercon ULV (946ml) 16-ON AR
NI 129999-12 ATF Mercon ULV (946ml), Box of 12 16-ON AR
